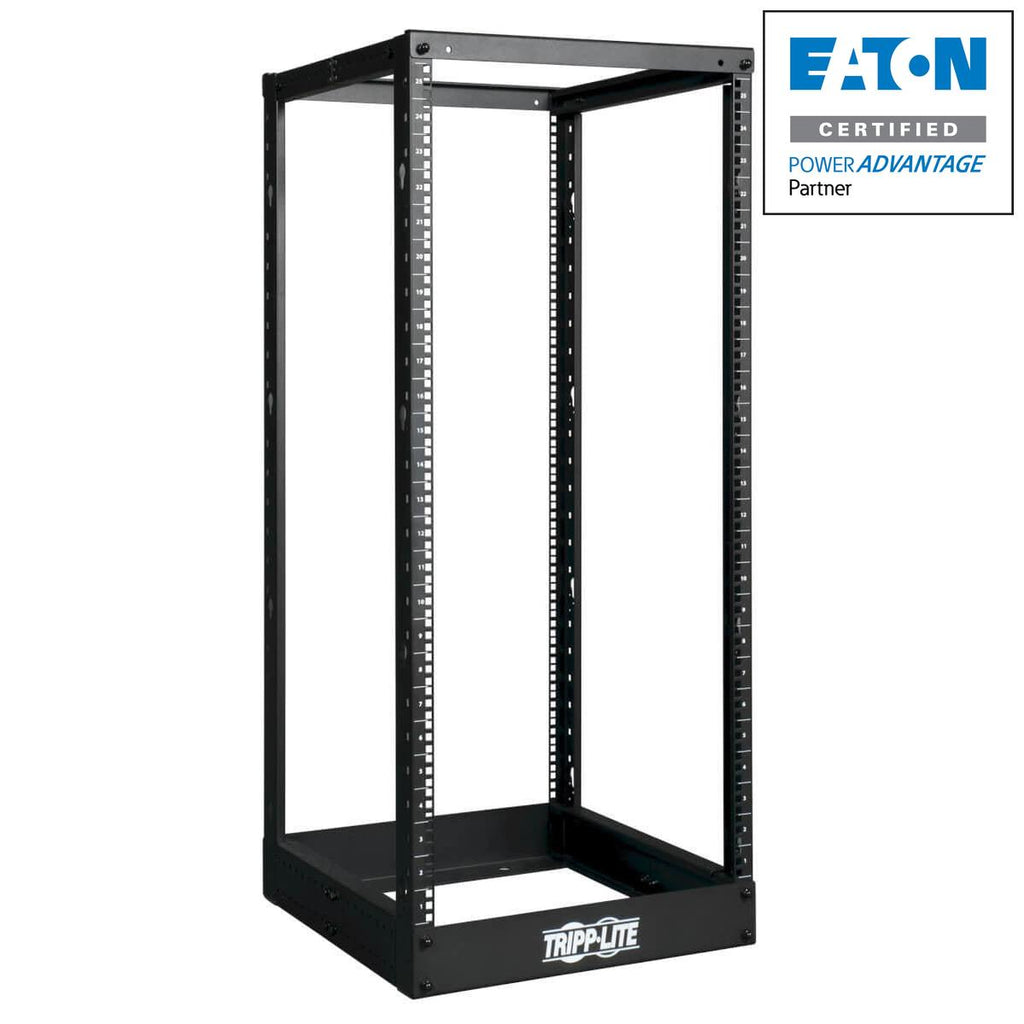

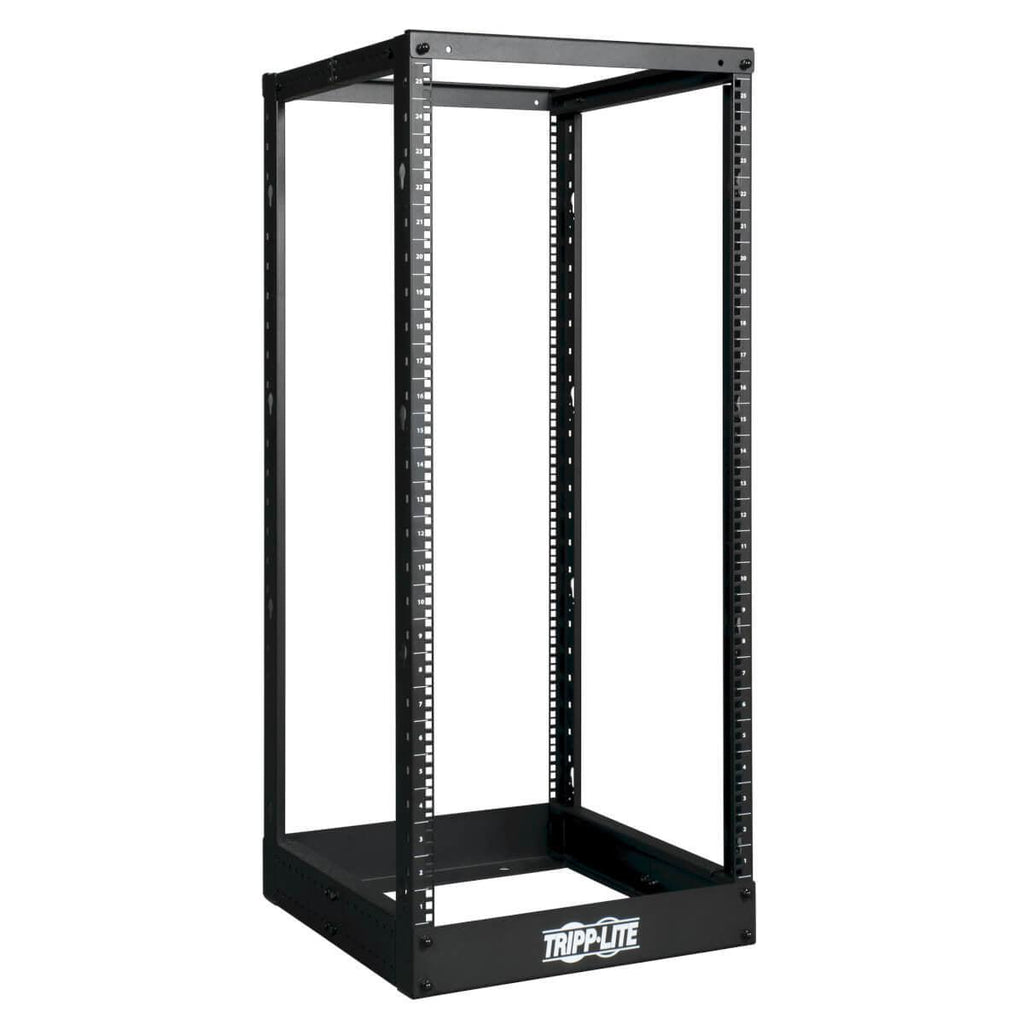

The Tripp Lite 25U SmartRack 4-Post Open Frame Rack is ideal for IT managers and data center operators who require robust, flexible, and reliable server management solutions. This open frame rack provides:
- An efficient way to organize high-density network rack equipment without requiring a lockable enclosure
- Strong support with a dynamic 1000 lbs weight capacity for heavy servers and networking hardware
- A versatile toolless mounting system which simplifies installation and maintenance
- Scalability with adjustable mounting depth to suit various server architectures
Key Features
- Four-post design enhances stability and supports heavy network equipment installations
- Square, numbered mounting holes simplify equipment assembly and maintenance
- Open design enables superior airflow and easy access to devices and cabling
-
Toolless button mounts facilitate quick attachment of vertical PDUs and cable managers
- Adjustable depth range from 24 to 36 inches accommodating diverse equipment sizes
- Compatible with standard 19-inch EIA-310-D equipment form factor
Technical Specifications
| Manufacturer |
Tripp Lite by Eaton |
| Model Number |
SR4POST25 |
| Type |
4-Post Open Frame Server Rack |
| Rack Units |
25U |
| Material |
Cold-rolled steel |
| Weight Capacity |
1000 lbs (453.6 kg) |
| Mounting Holes |
Square with numbered positions |
| Compatibility |
19-inch network and server equipment |
Frequently Asked Questions
Q: Can this rack support mixed equipment loads?
A: Yes, the open frame rack is designed to support mixed loads, providing up to a 1000 lbs capacity for a variety of equipment types including servers, switches, and patch panels.
Q: How does the toolless mounting enhance efficiency?
A: This feature enables quickly snapping in attachments without tools, expediting the initial setup and any subsequent reconfigurations.
Q: What ensures the stability of the rack at full capacity?
A: Its four-post structure maximizes stability, ensuring safe and secure operations even under maximum weight loads.
Q: What are the depth adjustment options?
A: The rack accommodates device depths ranging from 24 to 36 inches, providing flexibility for various installation needs.
25U SmartRack open frame rack by Tripp Lite. 1000 lbs capacity, ideal for data centers with flexibility and easy access.
