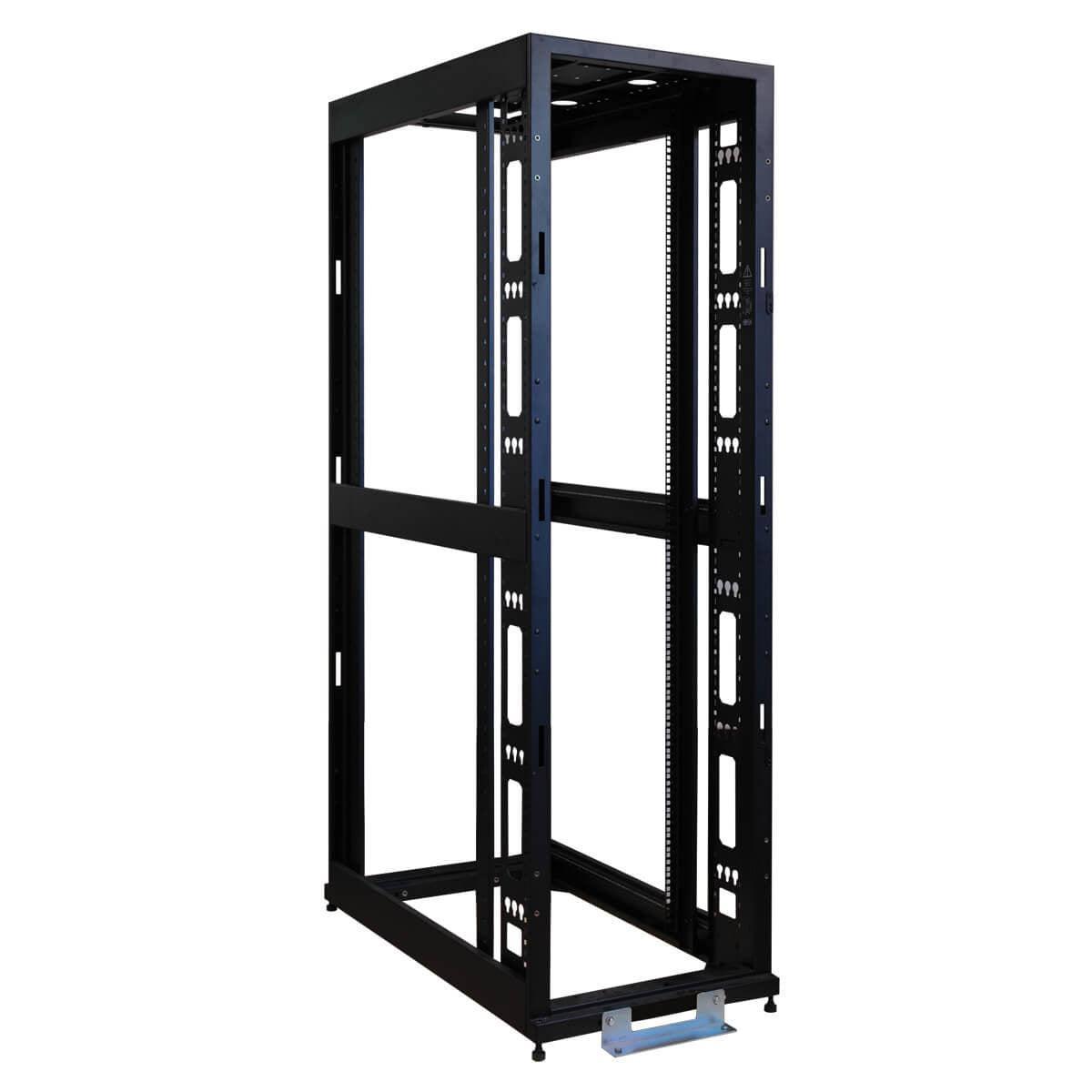

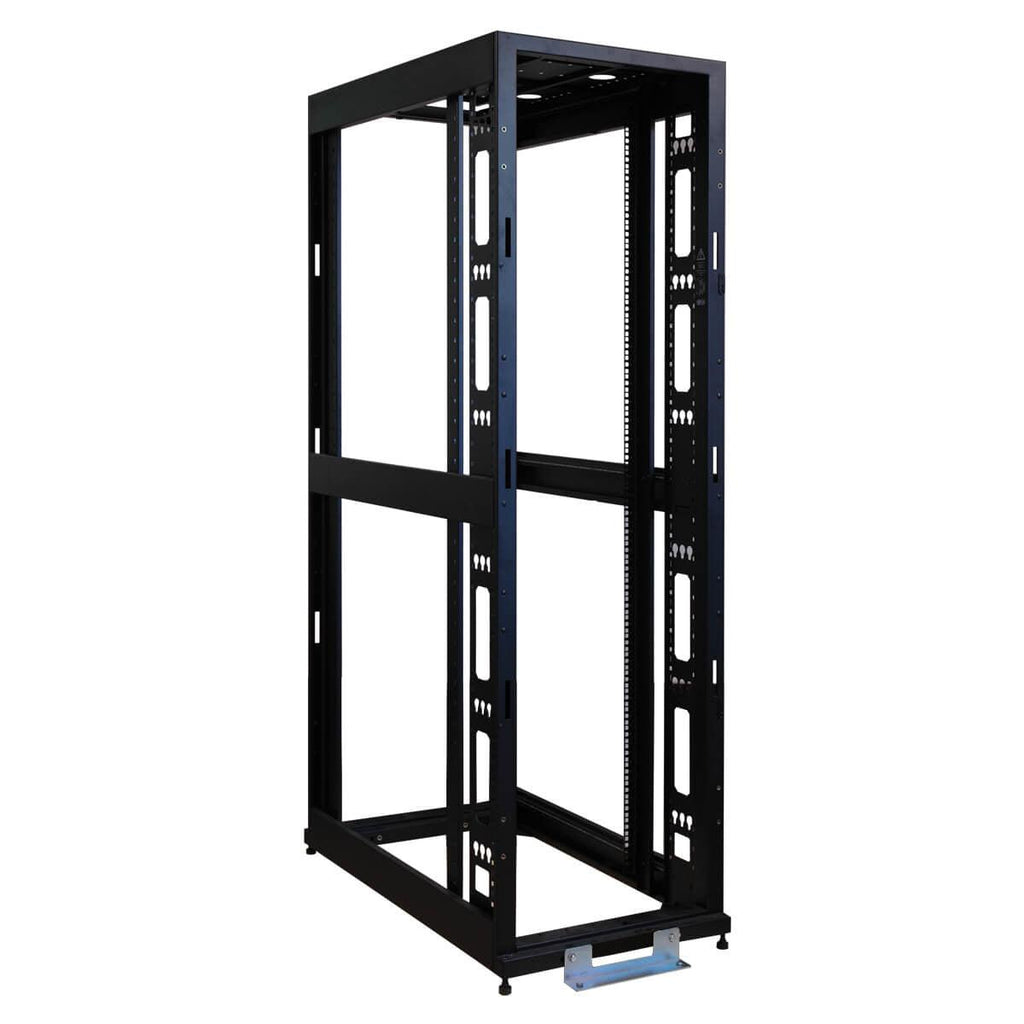

Tripp Lite Sr48Ubexpnd Smartrack 48U Standard-Depth 4-Post Premium Open Frame Rack With No Sides Or Doors

SmartRack 48U Standard-Depth 4-Post Premium Open Frame Rack with No Sides or Doors

Tripp Lite SR48UBEXPND SmartRack 48U Standard-Depth 4-Post Premium Open Frame Rack with No Sides or Doors. Safety: EIA-310-E, IEC 60297-3-100, DIN 41494, RoHS, UL 60950. Dimensions (WxDxH): 6002 x 10920 x 22610 mm. Weight: 77.6 kg, Width: 600.2 mm, Depth: 1092.2 mm. Package width: 660.4 mm, Package depth: 1143 mm, Package height: 2413 mm. Master (outer) case width: 660.4 mm, Master (outer) case length: 1143 mm, Master (outer) case height: 2413 mm

This SmartRack 48U Standard-Depth 4-Post Premium Open Frame Rack has NO doors and NO side panels. The 'EXP' version is an expansion model used when several cabinets are bayed together. Its integrated baying tabs make it easy to combine multiple enclosures in rows for data center applications. This enclosure is also compatible with hot-aisle/cold-aisle configurations.

The SR48UBEXPND houses 3000 lbs (1360.8 kgs) of standard 19-inch rack equipment in 48U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 37 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.

Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.

All components of the SR48UBEXPND are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground.

To simplify deployment, the SR48UBEXPND comes with preinstalled casters that enable it to be easily maneuvered into the desired location, where it can be secured by adjusting the preinstalled levelers. Note: the casters are intended for minor position adjustments and are not designed for moving the enclosure over long distances.

The SR48UBEXPND comes with a 5-year product warranty. As part of the SmartRack family, the SR48UBEXPND is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirement.

Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters (casters are removable)

Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.
Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).
Mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screws included
Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses
Maximum usable internal depth of 37 inches/94 cm (front to rear rail).
Weight ratings of 3000 lbs (1360.8 kgs) stationary and 2250 lbs (1020.6 kgs) rolling.
Built in baying tabs allow premium open frame racks to be combined securely in rows. Center-to-center width can be set at 600mm or 24" to match standard data center floor tiles.
Leveling feet extend to allow premium open frame racks to be positioned on uneven floors. Levelers are removable.
Convenient grounding system. All components are grounded to the premium open frame rack structure which includes multiple connections for facility ground.
Open bottom for cable access.
Included stabilizing brackets are used for shipment and can be reattached at the bottom of the premium open frame rack on the inside or outside of the rack.
Compatibility with all cable management accessories.
