SNMP Webcard Interface Module - Remote Cooling Management for Use with SRCOOL12K or SRXCOOL12K
Tripp Lite SmartRack 12,000 BTU 120V Portable Air Conditioning Unit - Small Server Rooms & Network Closets. Product colour: Black, Fan performance: 329 cfm. Width: 300 mm, Depth: 505 mm, Height: 778 mm. Package width: 391.2 mm, Package depth: 840.7 mm, Package height: 736.6 mm. Country of origin: China, Master (outer) case width: 391.2 mm, Master (outer) case length: 840.7 mm

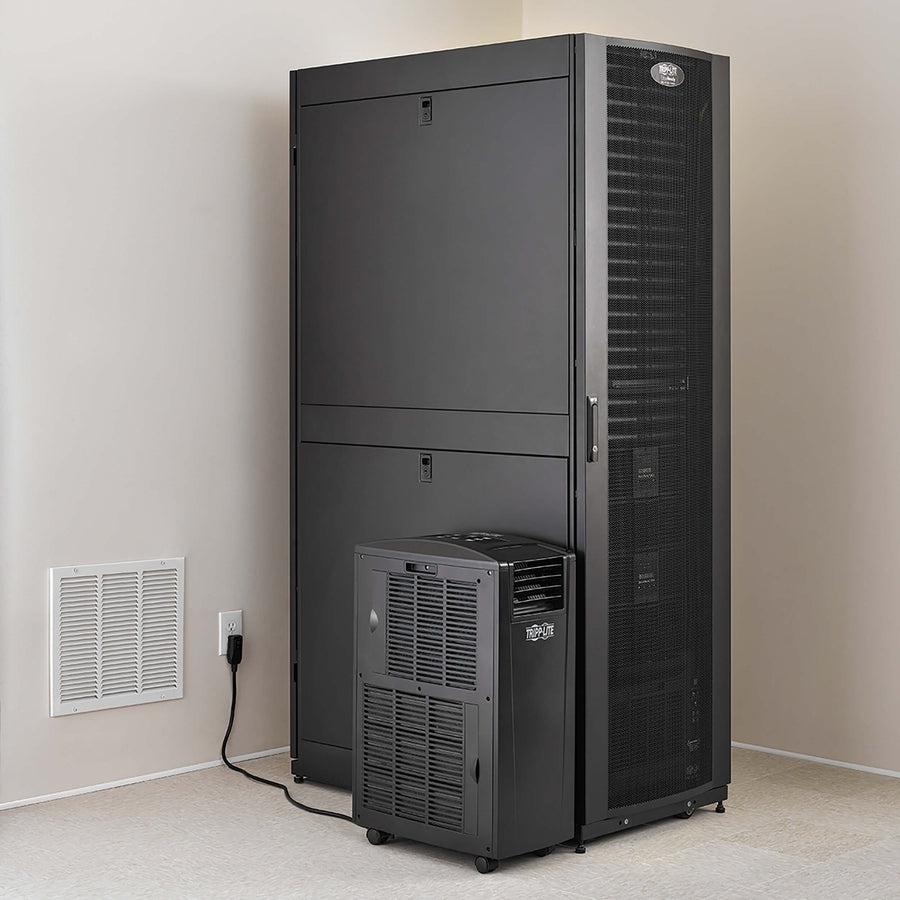

With 12,000BTU of cooling power, the 120V, 60 Hz SRCOOL12K is ideal for use in data centers, server and wiring closets, IT environments, home and small business offices, conference rooms, warehouses, entertainment centers or other venues with heat-sensitive equipment, particularly in areas that facility air conditioning can't reach. The SRCOOL12K not only adjusts ambient room temperatures, but can also dehumidify and filter the air, providing better air quality for enhanced equipment performance with minimal noise and power consumption.

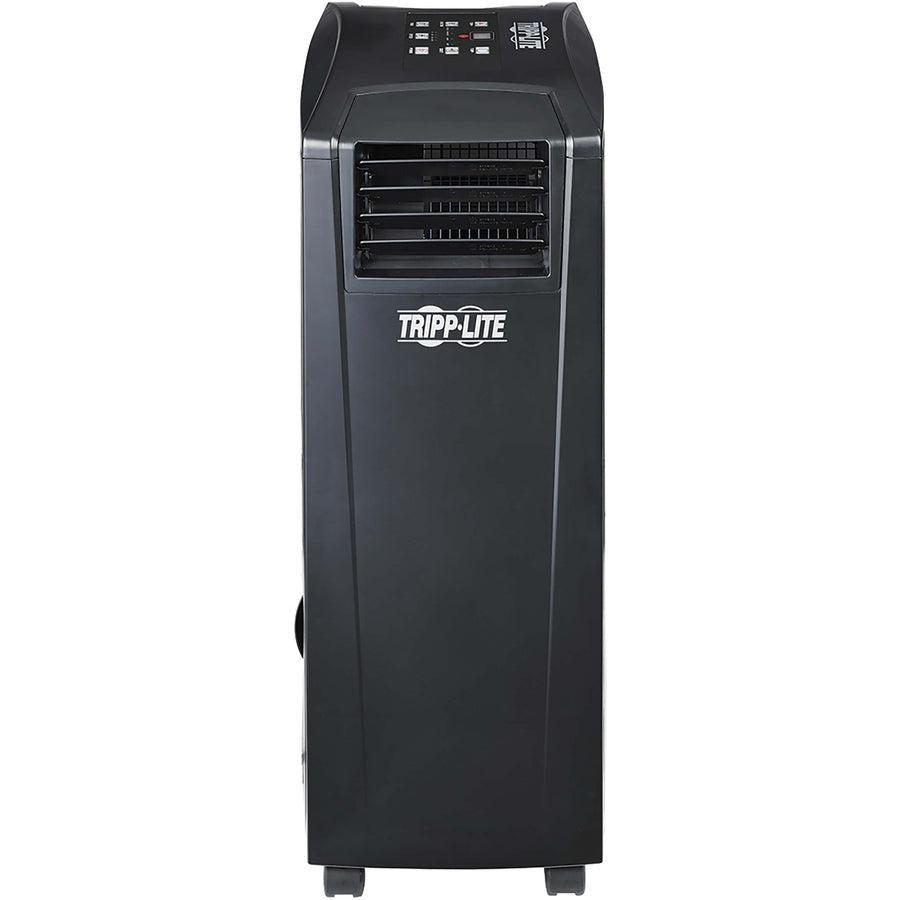

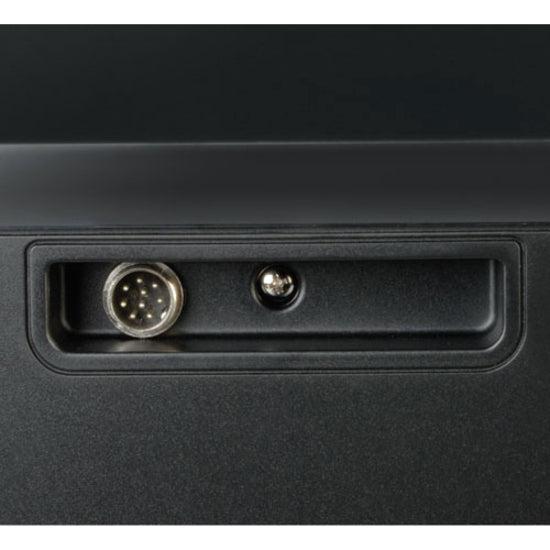

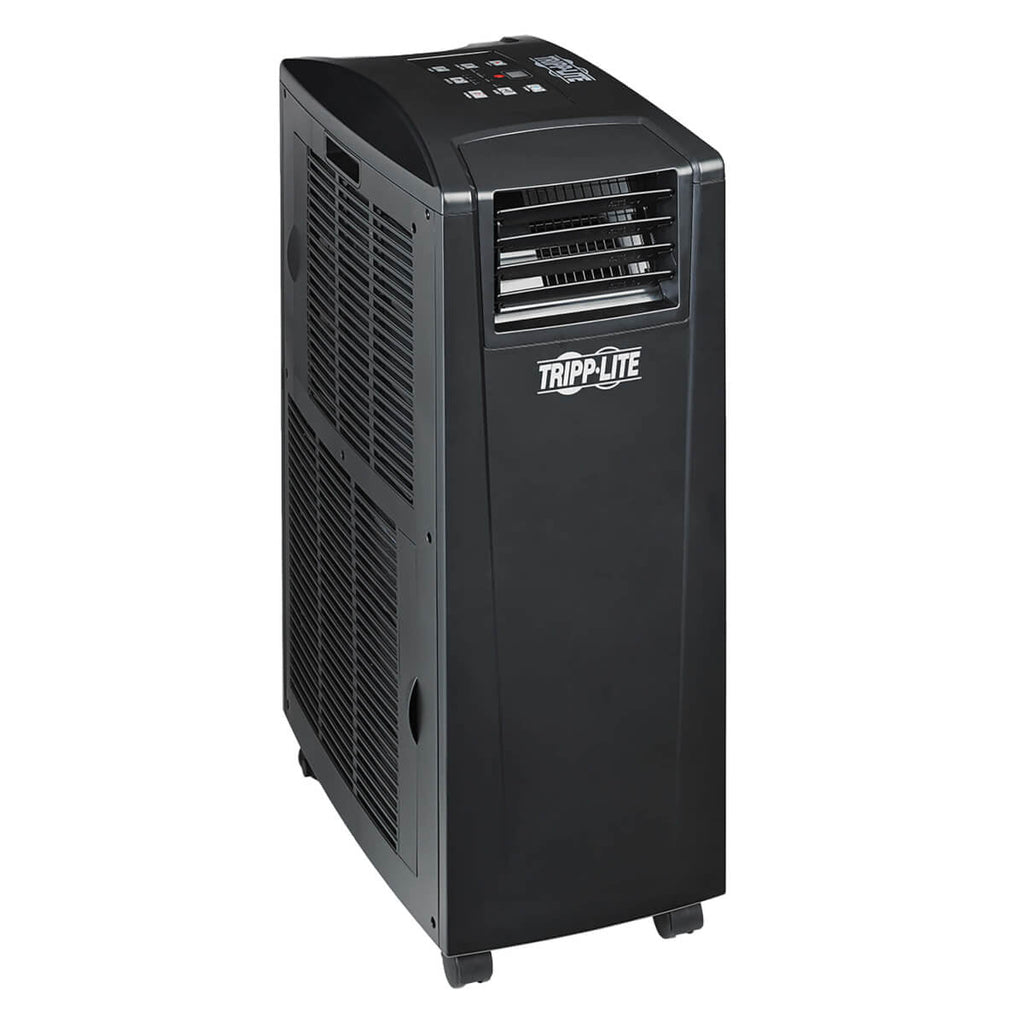

The SRCOOL12K has a built-in evaporator that expels the condensed water through the exhaust duct, so there is no need for a drain tube, drain pan or water collection tank. Both a standard louvered vent (for general room cooling) and a directional ducted cooling vent (to direct cold air where most needed) are provided. A directional exhaust duct safely removes hot air from the room. SRCOOL12K comes equipped with an auto-restart feature that retains all system settings and returns the unit back to its last operational state after AC power is restored. A built-in timer enables the unit to be programmed for unattended start-up and shutdown. Controls and displays are conveniently mounted on the top panel. With the optional added accessory of the SRCOOLNET, this communication port allows users to monitor temperatures, receive alerts, review logs and control settings from any location. Designed for quick and simple installation, the SRCOOL12K rolls into place on built-in casters and plugs into a standard 5-15R outlet with no adapter required. An included window/drop ceiling kit provides multiple installation options.
The SRCOOL12K uses environmentally friendly R410a refrigerant, which complies with EPA standards for 2010 and beyond, and is accepted worldwide. It contains zero, ozone depleting R22 refrigerant that has been banned by the EPA for new equipment manufactured after January 1, 2010.

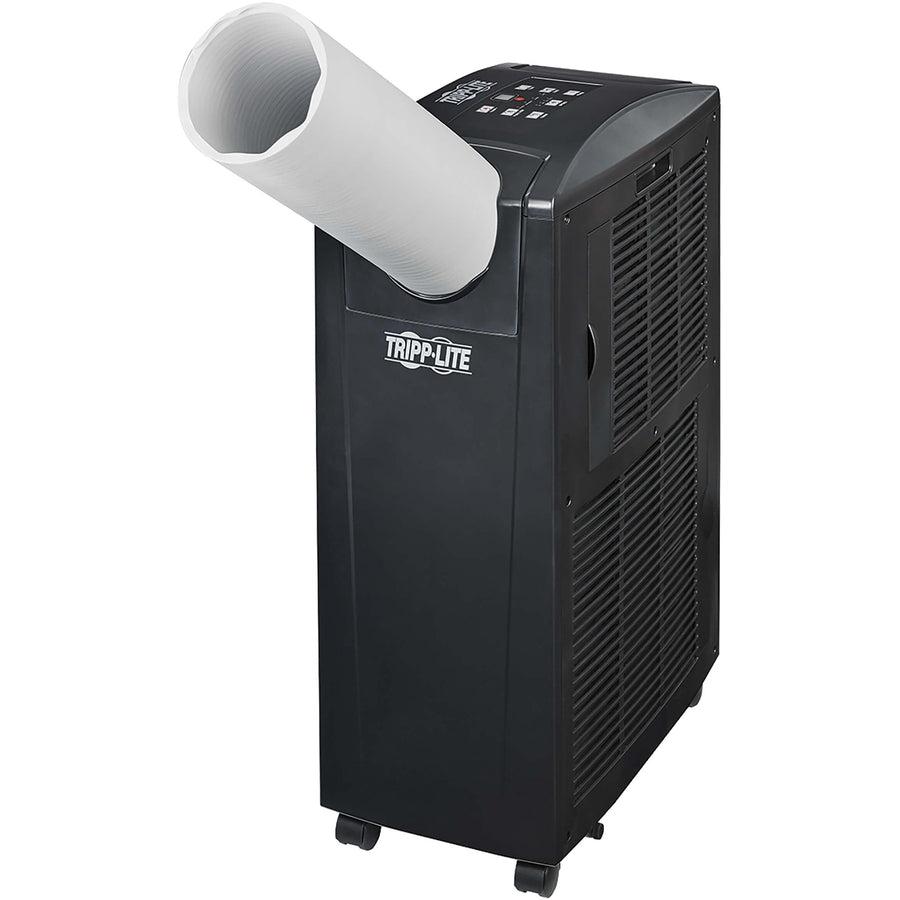

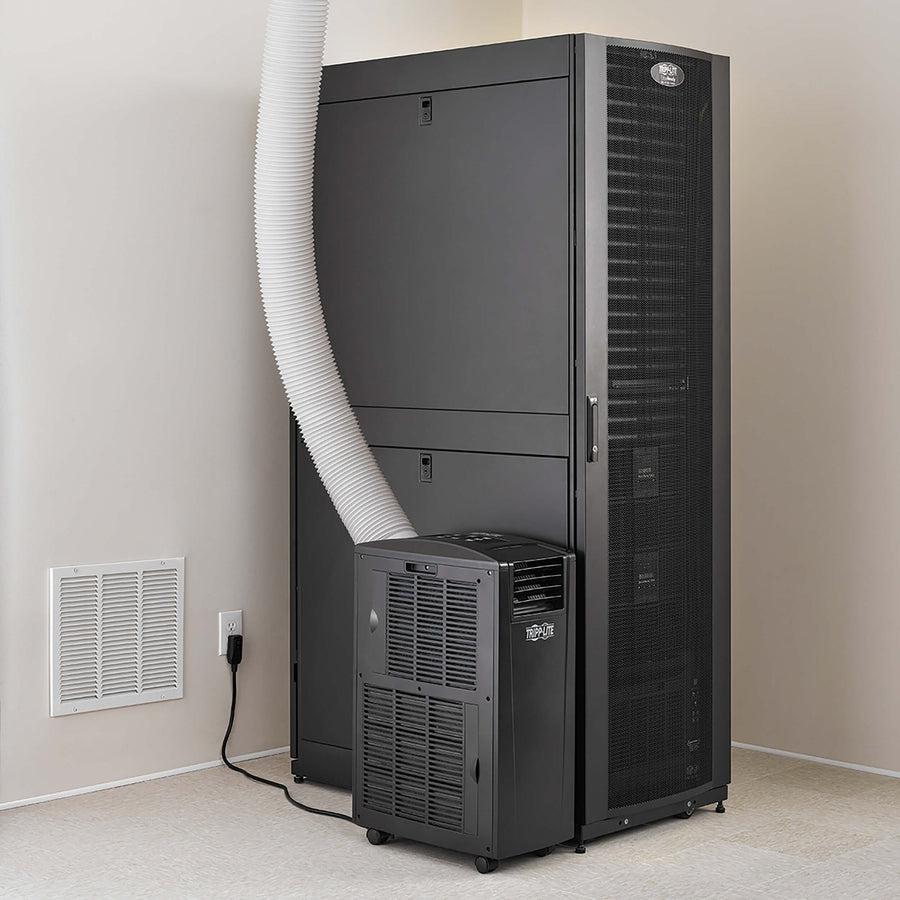

- 12,000 BTU of cooling power can cool a 500 square foot room - Uses environmentally friendly R410a refrigerant (Contains no ozone depleting R22 refrigerant which has been banned by the U.S. EPA in new equipment after January 1, 2010) - No water collection tank required. A built-in evaporator expels condensate into the exhaust air stream meaning no drain tube, drain pan or water collection tank that needs to be emptied every few hours - Cold air output can be precisely directed through a 71" flexible tube to the 'hot spot' for better, faster cooling. (Standard louvered insert is also included for general room cooling) - Auto-restart feature retains all system settings and returns the unit back to its last operational state after AC power is restored - Communication port allows users to remotely monitor and control temperatures, alerts, logs and settings from any location with an Internet connection (requires SRCOOLNET accessory) - Compact, portable, self-contained design; ideal for IT, industrial, commercial and similar applications - Quick and easy installation. Plugs into a standard 5-15R outlet; no adapter required - Window/drop ceiling installation kit is included for extracting heat - Offers 3 different cycles (cool, dehumidify and fan) - Cools in confined spaces where facility air conditioning can't reach - Dehumidifies and filters air to promote more efficient equipment performance - Built-in timer for automatic unattended start-up and shutdown - System lock function disables all other buttons to prevent accidental input - Quiet operation with minimal power consumption - Convenient top-mounted controls and displays
