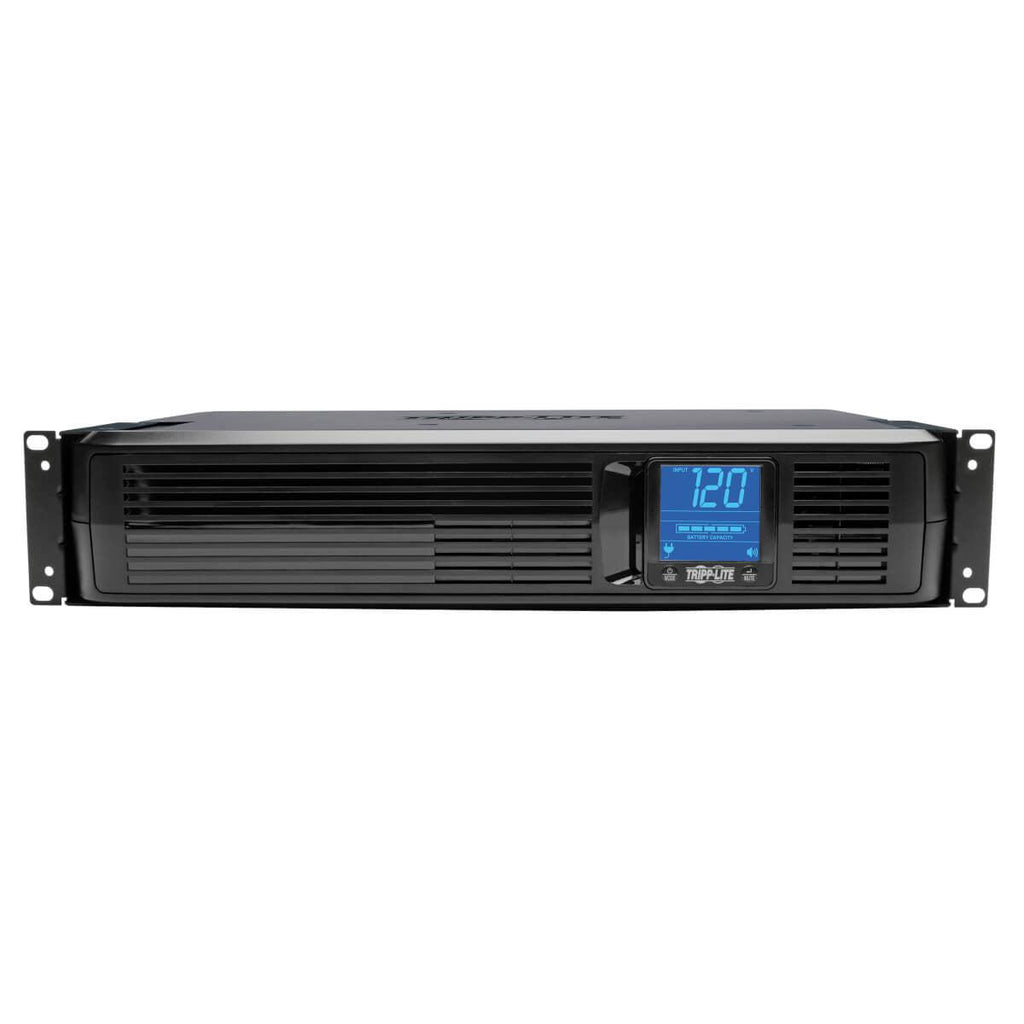

Tripp Lite SmartPro LCD 120V 1.5kVA 900W Line-Interactive UPS, 2U Rack/Tower, LCD Display, USB, DB9 Serial. UPS topology: Line-Interactive, Output power capacity: 1.5 kVA, Output power: 900 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 8 AC outlet(s). Typical backup time at full load: 3.5 min, Typical backup time at half load: 13 min, Battery recharge time: 4.5 h. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS). Width: 438.2 mm, Depth: 266.7 mm, Height: 88.9 mm
The SMART1500LCD SmartPro LCD 120V, 1500VA/900W Line-Interactive Uninterruptible Power Supply provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. Ideal for backing up your desktop computer or audio/visual components, this line-interactive UPS switches to battery backup mode in milliseconds to keep your connected equipment running long enough to save files and shut down safely with no data loss.
Eight NEMA 5-15R outlets protect against surges, as well as provide up to 11.8 minutes of UPS battery support at half load (450W) and 4.4 minutes of support at full load (900W). Automatic voltage regulation (AVR) corrects severe undervoltages as low as 75V and overvoltages as high as 147V without using any battery power. EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 870-joule surge suppression rating protects your equipment from harmful power surges.
NEMA 5-15P plug with 6-foot cord connects to any NEMA 5-15R socket. Large rotatable LCD screen with dimmer shows real-time input voltage, overload, AVR and battery statuses at a glance. Alarm sounds to indicate power loss or low battery. With Tripp Lite’s free PowerAlert software (available via free download), the SMART1500LCD enables safe unattended system shutdown and file saves in case of a prolonged power failure.
Reliable Battery Backup

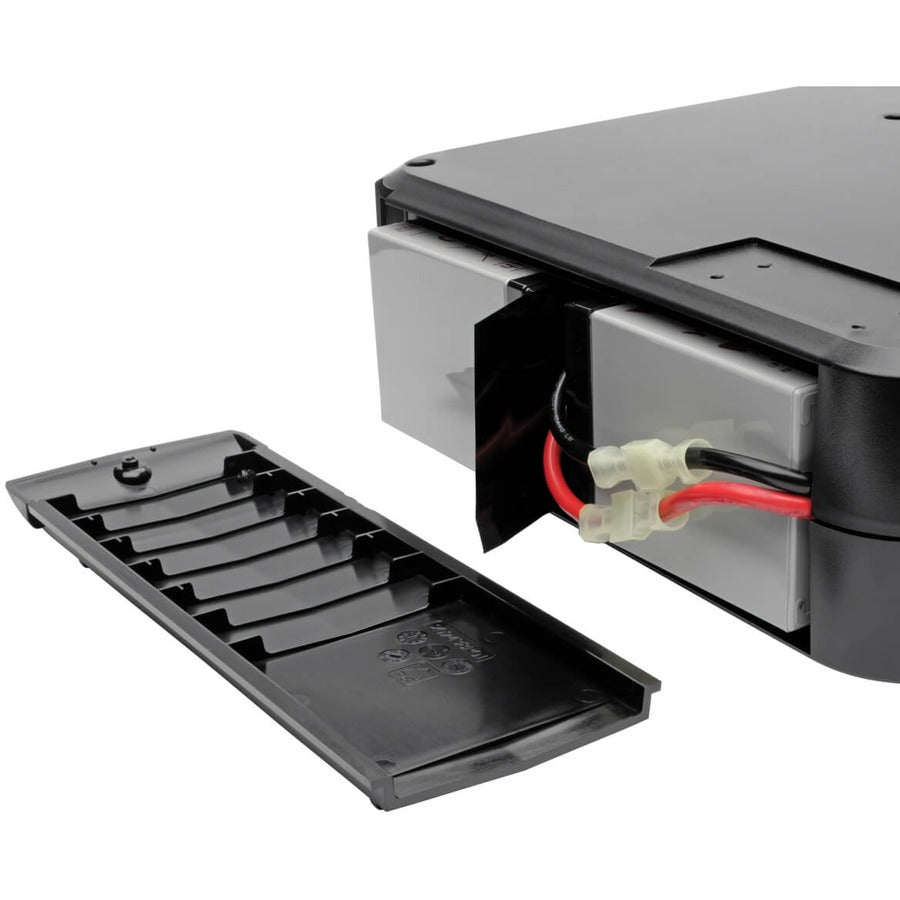

- Provides 1500VA/900W high-performance power protection for desktop computers, audio/video components, media centers and other electronics - Supports 50% load (450W) up to 11.8 minutes and full load (900W) up to 4.4 minutes - Audible alarm indicates loss of utility power or low battery - Battery access door enables hot-swappable, user-replaceable internal batteries
Optimized Outlets

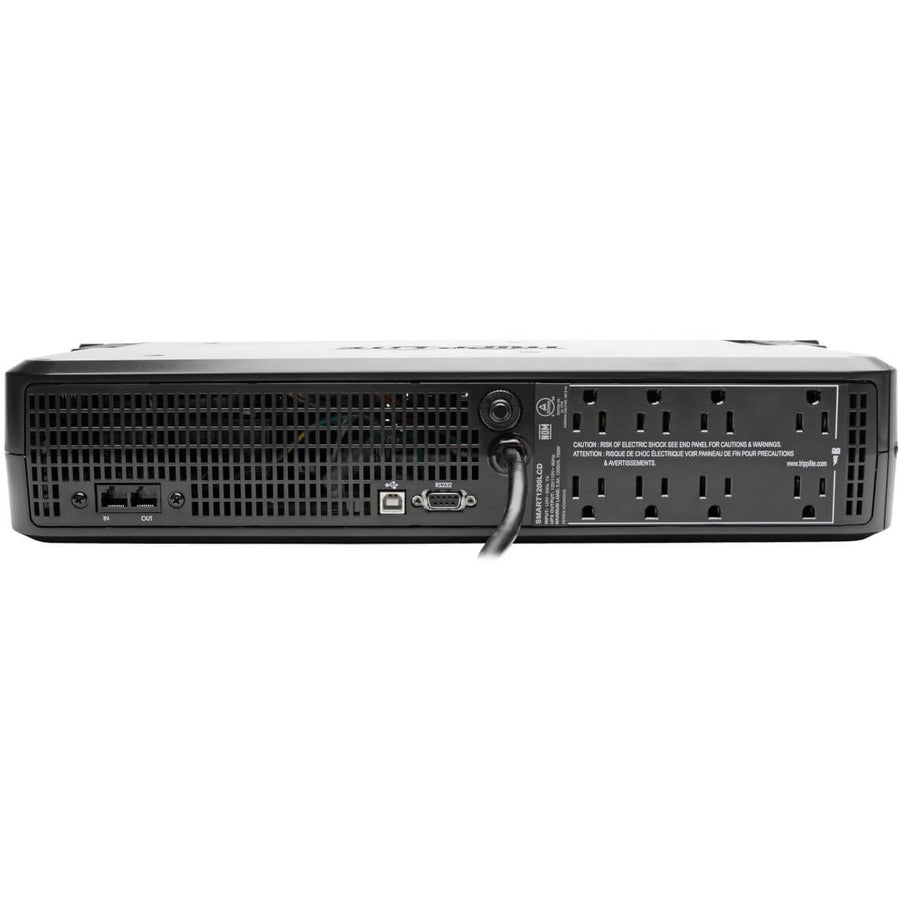

- 8 NEMA 5-15R outlets provide battery backup and protect against surges or spikes that can harm equipment or data
Automatic Voltage Regulation (AVR)
- Corrects undervoltages as low as 75V and overvoltages as high as 147V without drawing battery backup power

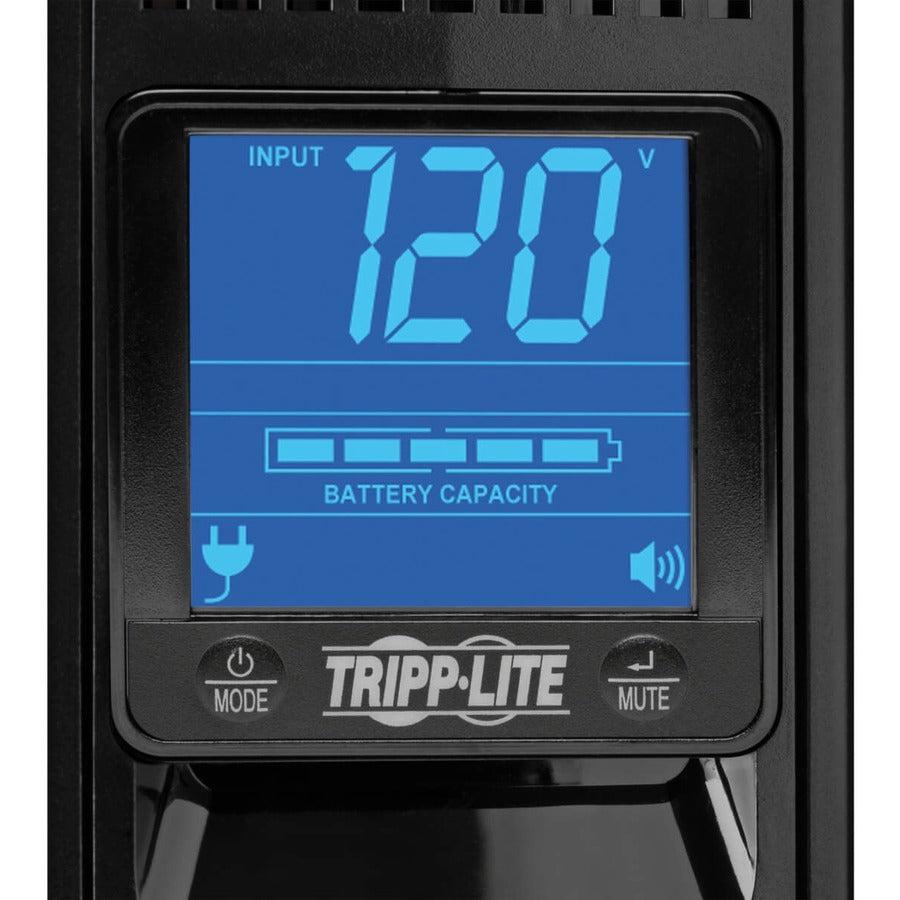

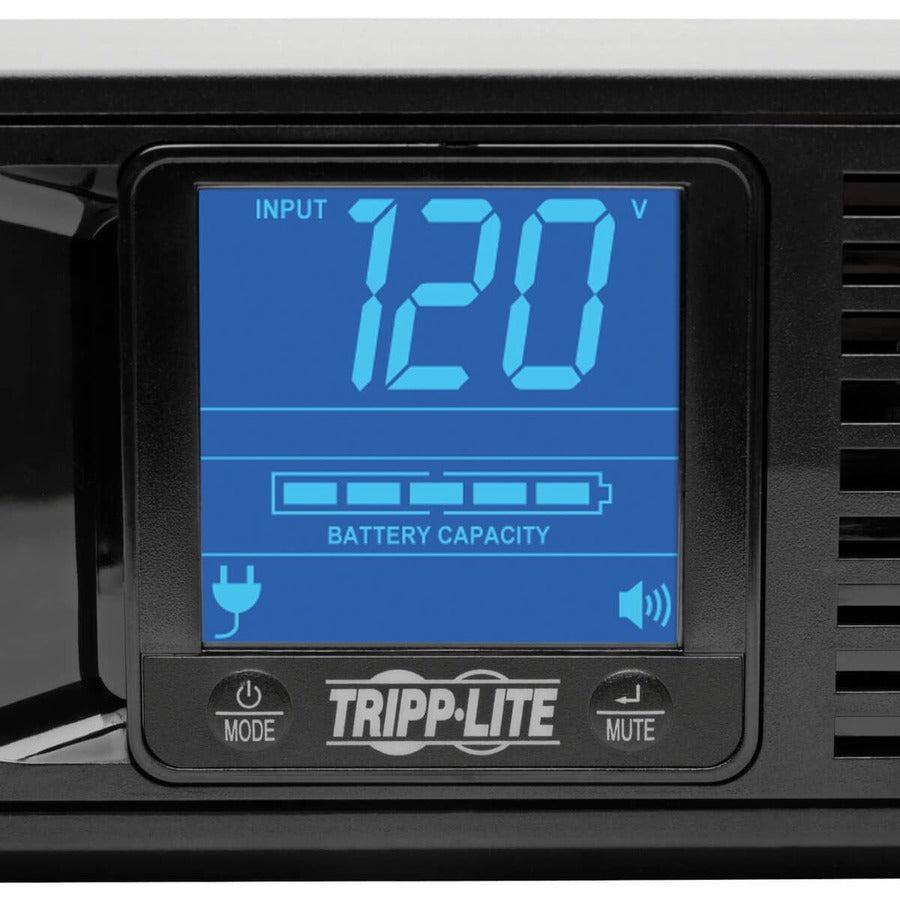

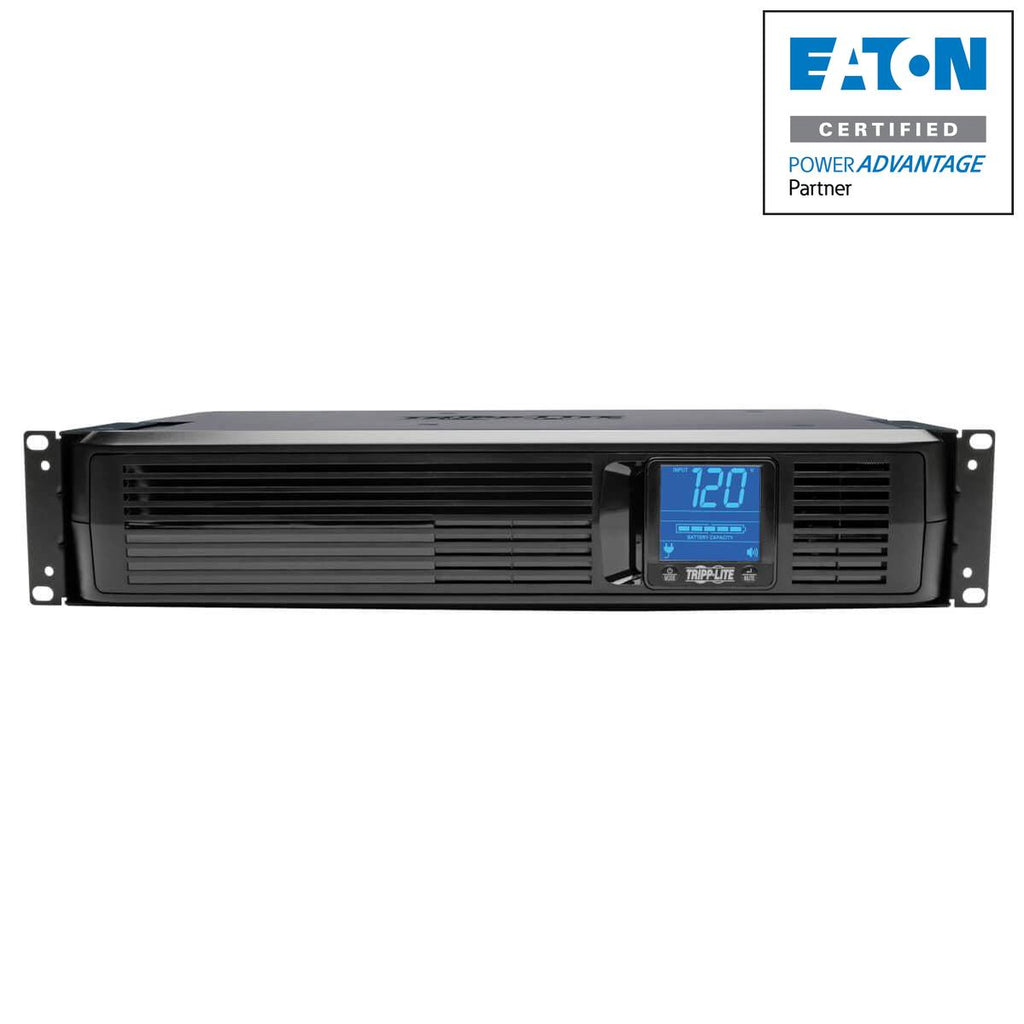

Rotatable LCD Status Screen
- Large LCD screen offers real-time status information regarding operating mode, voltage, load level, battery charge percentage and estimated runtime in minutes - UPS configuration options via front panel LCD include battery self-test, external battery pack configuration, alarm on/off status and LCD brightness - Rotates for easy viewing in both horizontal and vertical installations
AC Line, Tel/DSL and Ethernet Surge Suppression
- Surge suppression rating of 870 joules protects connected equipment and data from harmful power surges - Built-in RJ-45 jacks protect single-line tel/DSL or network Ethernet connection
EMI/RFI Line Noise Filtering
- Removes electromagnetic and radio frequency interference that can disrupt or damage your equipment’s performance
USB and DB9 Communication Ports and Free PowerAlert Software
- HID-compliant USB port integrates with built-in power management and auto-shutdown of Windows and Mac OS X - USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert - DB9 port also supports contact closure messaging for AC Present and AC Fail status

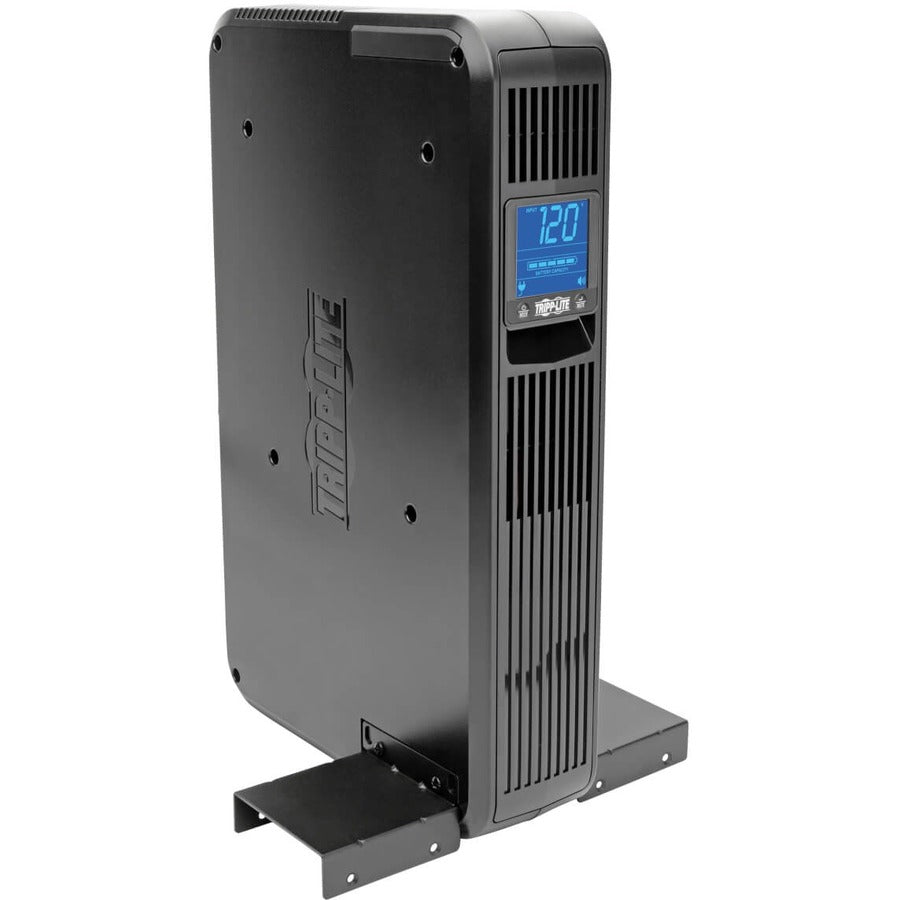

Flexible Installation Options

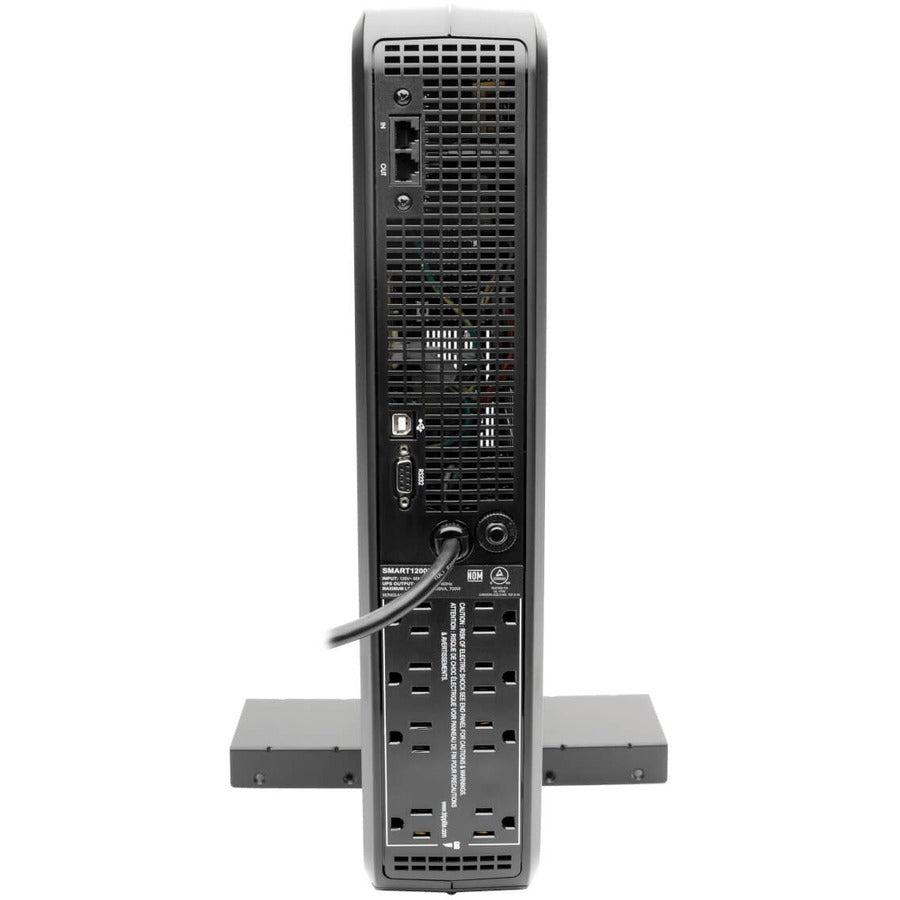

- NEMA 5-15P plug with 6-foot cord connects to any NEMA 5-15R socket - Adapts to vertical or horizontal installation with included mounting hardware - Includes 2U brackets for rack-mount installation in 2 or 4 post racks

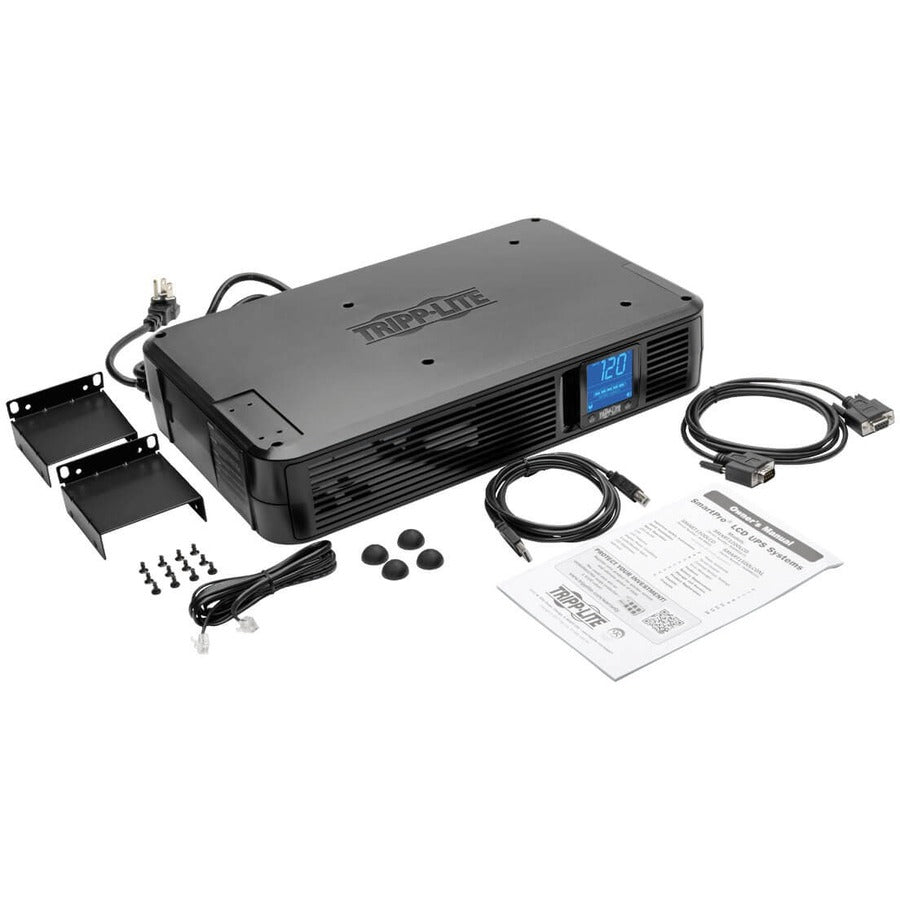

Package Includes
- SMART1500LCD UPS - USB cable - DB9 serial cable - Telephone cable - Mounting hardware - Owner’s Manual
