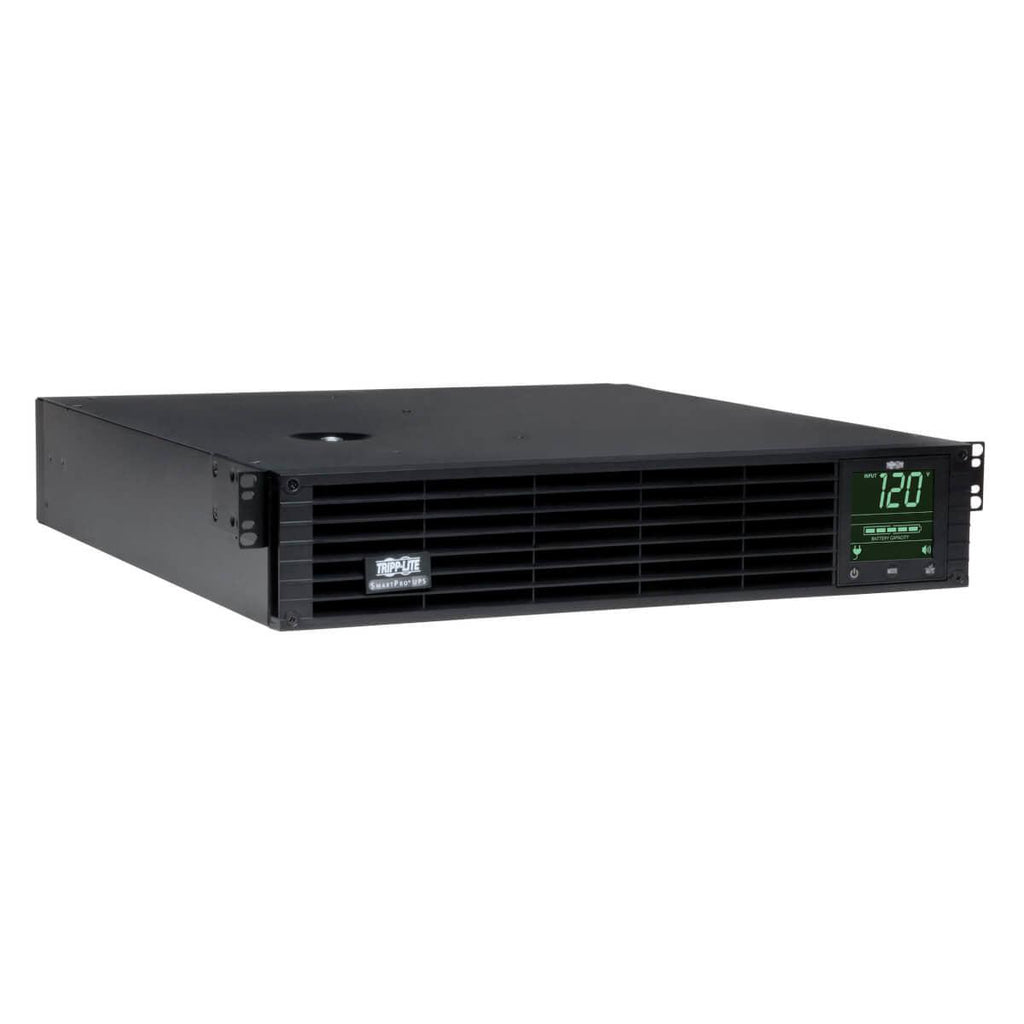

Tripp Lite SmartPro 120V 2000VA 1920W Line-Interactive Sine Wave UPS, 2U, Extended Run, LCD, USB, DB9, 8 Outlets. UPS topology: Line-Interactive, Output power capacity: 2 kVA, Output power: 1920 W. AC outlet types: NEMA 5–15R,NEMA 5–20R, Power plug: NEMA 5-20P, AC outlets quantity: 8 AC outlet(s). Typical backup time at full load: 4.5 min, Typical backup time at half load: 12 min. Form factor: Rackmount, Product colour: Black, Housing material: Steel. Width: 439.9 mm, Depth: 490 mm, Height: 87.9 mm
2000VA/1920W/120V Battery Backup for PC Networks, Security Systems or Digital Signage The SmartPro® line-interactive SMART2000RMXL2U UPS system with AVR provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise that can damage valuable electronics or destroy data. The eight-outlet 120V battery backup with an enhanced 0.96 power factor is ideal protection for small networks, wiring closets, security systems, telecom, high-end PC gaming, digital signage equipment and other professional applications, including retail, casino and hotel/motel management.
Allows Time to Back Up Critical Files During a Blackout Backup support allows you to work through short power failures and gives you enough time to safely save files and shut down your system in case of a prolonged blackout. Backup time varies according to load, but the line-interactive UPS system should keep a half load (960W) powered as long as 12 minutes and a full load (1920W) up to 4.5 minutes.
Supports an External Battery Pack for Extended Runtime In addition to the user-replaceable internal battery, the SMART2000RMXL2U supports connection of external battery packs, such as Tripp Lite’s BP48V24-2U, BP48V60RT-3U and BP48V27-2US (sold separately). During normal operation, incoming utility power keeps the internal and external batteries fully charged, so backup power will always be available. Output is reduced to 1600W maximum with external battery packs.
8 NEMA Outlets Protect Your Connected Components Four 5-15R and four 5-15/20R outlets provide battery backup, 570 joules of surge protection and voltage regulation for your crucial components. Two independently switched single-outlet load banks (one 5-15R and one 5-15/20R) enable both scheduled and real-time remote rebooting and load shedding.
Automatic Voltage Regulation (AVR) Corrects Low- and High-Voltage Conditions AVR protects your equipment from incremental hardware damage, data loss and performance problems caused by brownouts and overvoltages. The SMART2000RMXL2U can correct brownouts as low as 83V and overvoltages as high as 145V back to nominal 120V power continuously, all while keeping the battery fully charged and ready to take over in case of power failure.
Combats Line Noise That Can Harm Equipment EMI (electromagnetic interference) and RFI (radio frequency interference) are common causes of performance problems and can lead to incremental hardware damage, data corruption and audio/video transmission problems. The SMART2000RMXL2U filters out this disruptive line noise on the AC line, so that it won’t affect your equipment.
Designed for High Efficiency to Help You Save Money and Protect the Environment A 96% efficiency rating reduces BTU emissions, energy consumption and, ultimately, your energy costs.

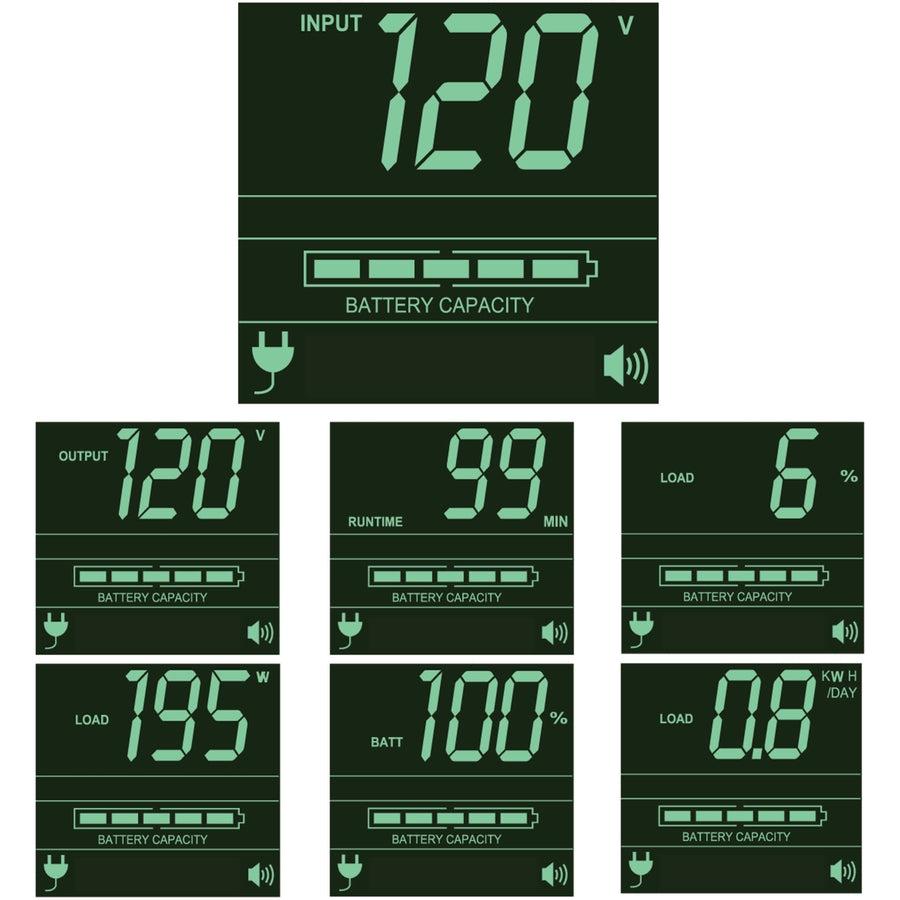

Silenceable Alarm and Easy-to-Read LCD Keep You Informed Around the Clock The LCD screen features seven selectable screens of detailed UPS and site power data, as well as advanced user setup and operating preferences. It rotates for comfortable viewing in both rack and tower configurations. The audible alarm sounds for power failure, low battery and overloads. You may silence it using the built-in switch or disable it.
Optional WEBCARDLX Network Interface Offers 24/7 Access An accessory slot accommodates the optional Java-free HTML5-based WEBCARDLX interface (sold separately), which enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Automated alerts help prevent accidental overloads, power loss and downtime.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite’s free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. Cables are included.

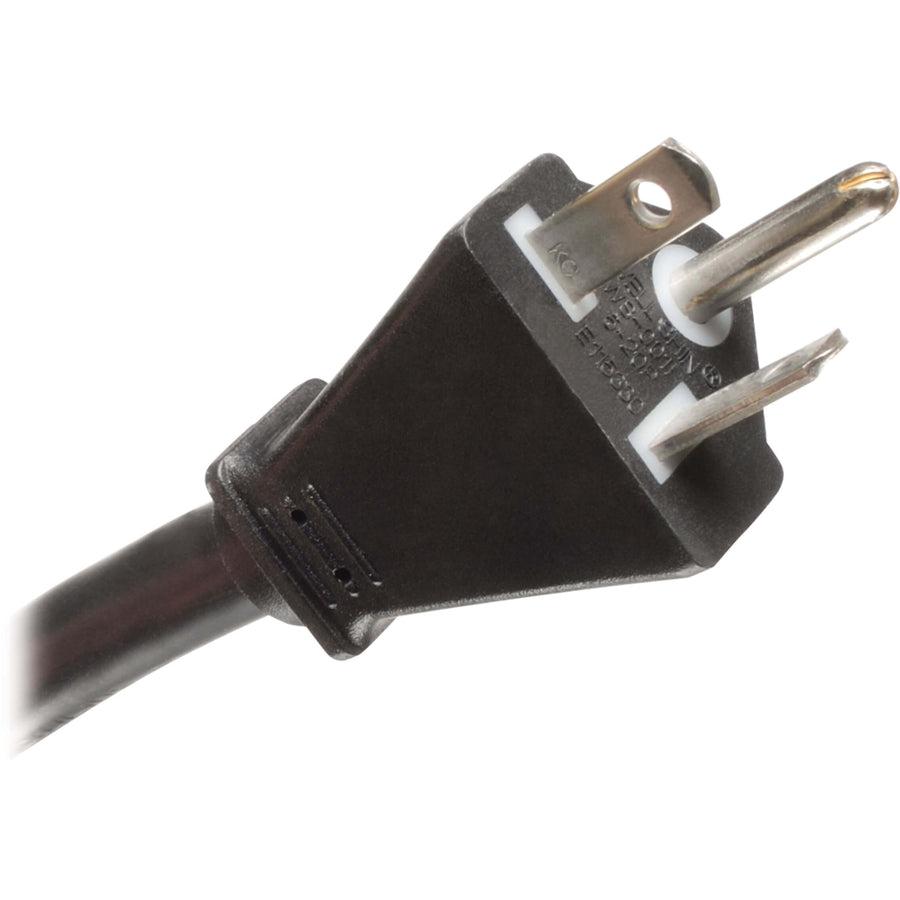

Versatile Installation Options Hardware is included for mounting the Tripp Lite SmartPro UPS system in 2U of space in an EIA-standard 19-inch 4-post rack. Using optional mounting accessories (sold separately), you can adapt the SMART2000RMXL2U for 2-post, front-rail, 4-post short-depth, tower or wall mounting. The 10-foot power cord with NEMA 5-20P plug connects to any compatible AC outlet.
Typical Applications - Protect your small network server and other network components against power surges, line noise, brownouts, overvoltages and blackouts - Operate essential equipment during short-term power outages using battery backup power - Shut down desktop PCs and other equipment without data loss during long-term power outages - Connect high-end security systems, casino gaming machines or digital signage in a small network - Extend runtime for DVRs, wireless routers and other low-power home network equipment

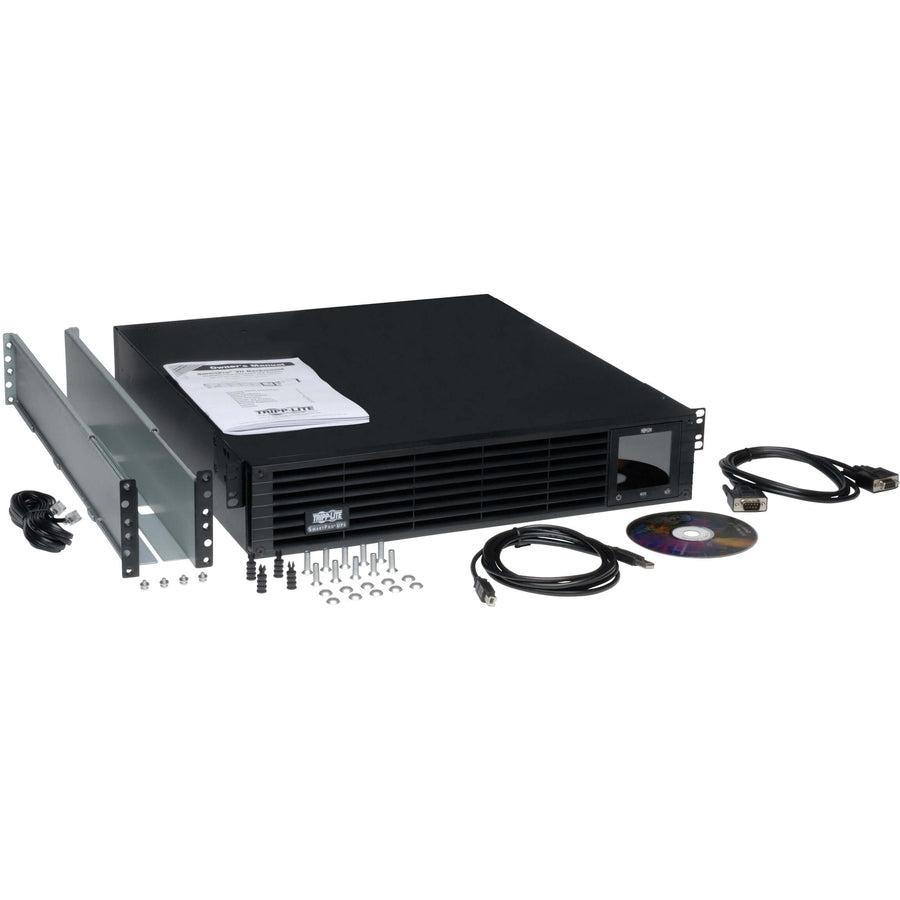

Package Includes - SMART2000RMXL2U 120V 2000VA 1920W Line-Interactive UPS with 8 Outlets - USB cable - DB9 cable - EPO cable - Rack-mounting hardware - Owner’s manual
