SmartPro 120V 2.2kVA 1.9kW Line-Interactive Sine Wave UPS, Extended Run, SNMP, Webcard, 4U Rack Reduced Depth, USB, DB9 Serial
Tripp Lite SmartPro 120V 2.2kVA 1.9kW Line-Interactive Sine Wave UPS, Extended Run, SNMP, Webcard, 4U Rack Reduced Depth, USB, DB9 Serial. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1900 W. AC outlet types: NEMA 5–15R,NEMA 5–20R, Power plug: NEMA 5-20P, AC outlets quantity: 8 AC outlet(s). Typical backup time at full load: 11 min, Typical backup time at half load: 28 min, Battery recharge time: 3.6 h. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Steel. Width: 439.4 mm, Depth: 452.1 mm, Height: 175 mm

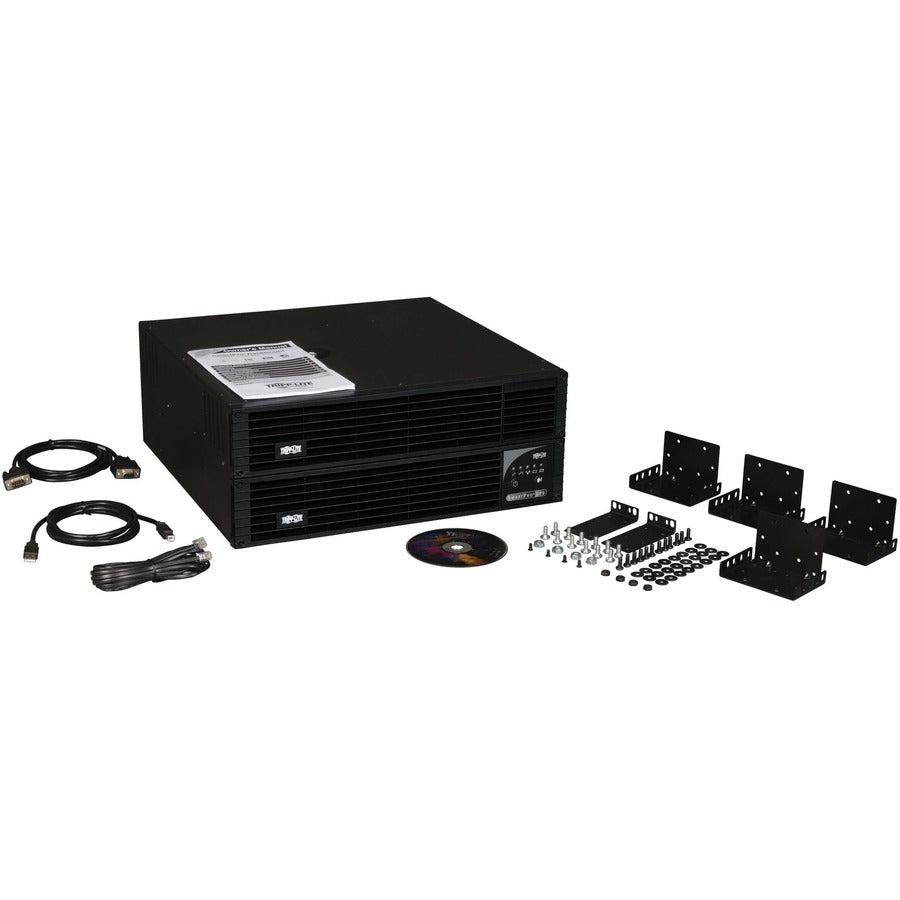

Tripp Lite's SmartPro Compact Rackmount Uninterruptible Power Supply (UPS) offers line interactive voltage regulation, network grade surge suppression and long lasting battery support for critical network hardware during blackouts and extended power failures. Special reduced-depth housing, larger internal batteries, higher rated wattage and included 2 post rackmount installation hardware makes these systems ideal for network and telecom wiring closets and other limited-space installations. 97% line power mode efficiency saves operating costs over less efficient UPS types. Runtime is expandable with optional BP48V24-2U (limit 1), BP48V48RT4U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) reduced-depth external battery packs. SMART2200CRMXL 4U rackmount 2200VA/1900 watt UPS offers battery-derived sine wave AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) provides two levels of voltage boost during brownouts and one level of voltage cut during overvoltage conditions to maintain regulated 120V nominal output over an input range of 83-145V. Includes NEMA 5-20P input plug, NEMA 5-15R and 5-15/20R output receptacles. Network management interfaces support simultaneous communications via USB port, DB9 serial port and optional SNMP/Web management accessory card slot. Optional SNMPWEBCARD offers remote management and control of the UPS via direct network connection. Additional ENVIROSENSE accessory, when used in conjunction with SNMPWEBCARD reports temperature, humidity and status of up to two directly connected contact closure sensors. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once. Includes PowerAlert monitoring software with USB and serial cables. Emergency Power Off (EPO) interface. Integrated 3-bank programmable PDU switching supports load shedding and remote-reboot of up to 3 individual connected devices. 3-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. 2-post rackmount accessories included; 2-9USTAND tower stands and UPSRMRII 4 post rackmount kit available. Field-replaceable, hot-swappable internal batteries and external battery packs. Attractive all-black color scheme. - Tripp Lite's SmartPro Compact Rackmount Uninterruptible Power Supply (UPS) offers line interactive voltage regulation, network grade surge suppression and long lasting battery support for critical network hardware during blackouts and extended power failures - Special reduced-depth housing, larger internal batteries, higher rated wattage and included 2 post rackmount installation hardware makes these systems ideal for network and telecom wiring closets and other limited-space installations - Runtime is expandable with optional BP48V24-2U (limit 1), BP48V48RT4U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) reduced-depth external battery packs - Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual) - SMART2200CRMXL 4U rackmount 2200VA/1900 watt UPS offers battery-derived sine wave AC output during power failures and extreme voltage variations - Line interactive Automatic Voltage Regulation (AVR) provides two levels of voltage boost during brownouts and one level of voltage cut during overvoltage conditions to maintain regulated 120V nominal output over an input range of 83-145V - Includes NEMA 5-20P input plug, NEMA 5-15R and 5-15/20R output receptacles - Network management interfaces support simultaneous communications via USB port, DB9 serial port and optional SNMP/Web management accessory card slot - Optional SNMPWEBCARD offers remote management and control of the UPS via direct network connection - Additional ENVIROSENSE accessory, when used in conjunction with SNMPWEBCARD reports temperature, humidity and status of up to two directly connected contact closure sensors - HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X - 97% efficiency in line power mode offers substantially lower operating costs than lower efficiency UPS types - Supports detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces at once - Includes PowerAlert monitoring software with USB and serial cables - Emergency Power Off (EPO) interface - Integrated 3-bank programmable PDU switching supports load shedding and remote-reboot of up to 3 individual connected devices - 3-stage metered current monitoring and battery charge status LEDs; Utility power and voltage regulation LEDs; Audible alarm; Self-test - 2-post rackmount accessories included; 2-9USTAND tower stands and UPSRMRII 4 post rackmount kit available - Field-replaceable, hot-swappable internal batteries and external battery packs - Attractive all-black color scheme
