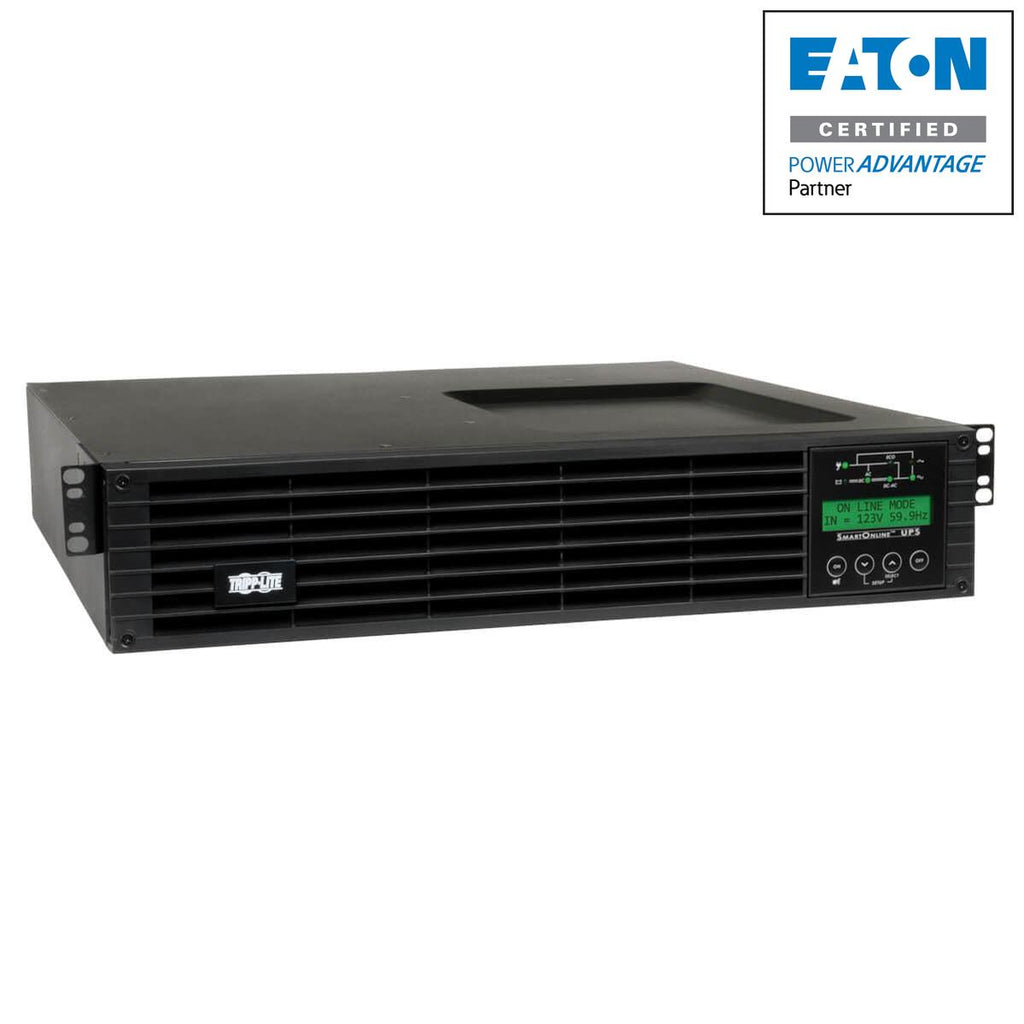

SmartOnline 120V 2.2kVA 1.8kW Double-Conversion UPS, 2U Rack/Tower, Extended Run, SNMP Card, LCD, USB, DB9, ENERGY STAR
Tripp Lite SmartOnline 120V 2.2kVA 1.8kW Double-Conversion UPS, 2U Rack/Tower, Extended Run, SNMP Card, LCD, USB, DB9, ENERGY STAR. UPS topology: Double-conversion (Online), Output power capacity: 2.2 kVA, Output power: 1800 W. AC outlet types: NEMA 5–15R,NEMA 5–20R, Power plug: NEMA 5-20P, AC outlets quantity: 6 AC outlet(s). Typical backup time at full load: 4 min, Typical backup time at half load: 12 min, Battery recharge time: 3 h. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Steel. Width: 444.5 mm, Depth: 482.6 mm, Height: 88.9 mm
Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. Pre-installed network management card permits remote UPS management.
- Zero transfer time suitable for advanced network applications - 2% output voltage regulation in online and battery modes - Expandable runtime with optional external battery packs - Meets strict ENERGY STAR® efficiency guidelines - 12 min. runtime at half load; 4 min. at full load

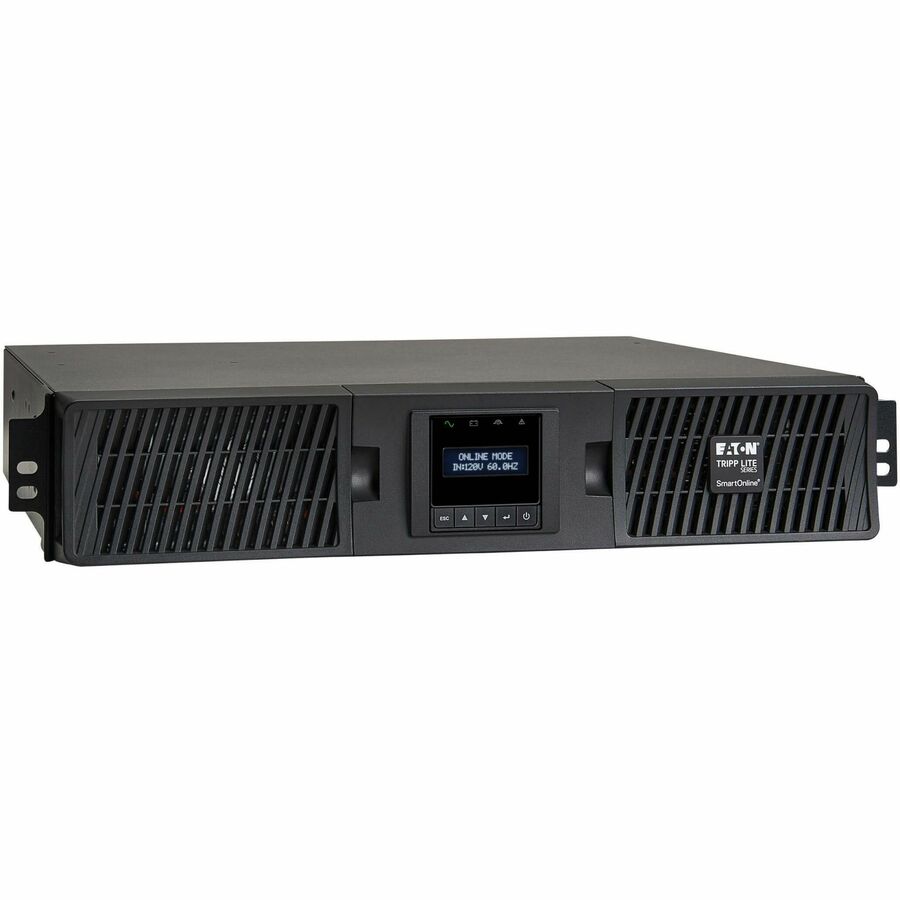

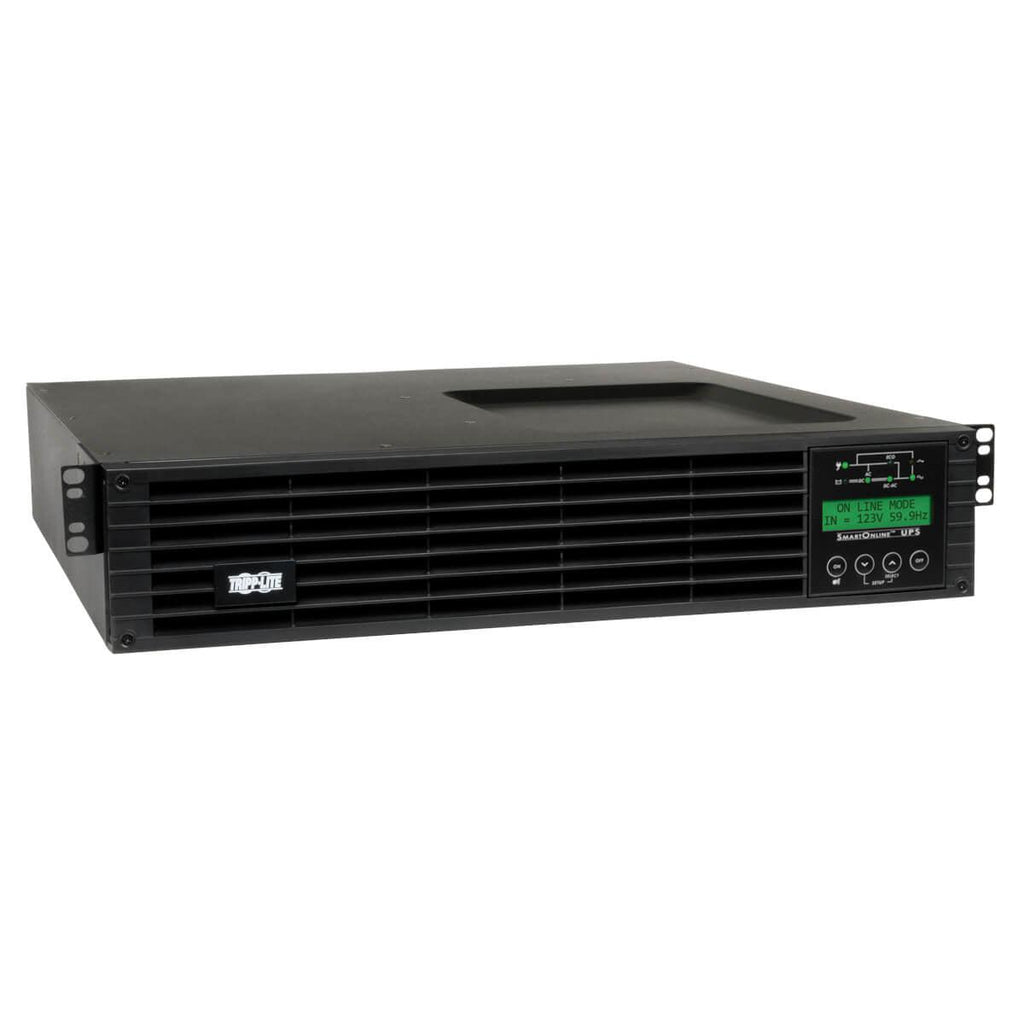

The SU2200RTXLCDN SmartOnline® 120V 2.2kVA 1.8kW On-Line Double-Conversion UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. It converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes.
The ENERGY STAR-certified SU2200RTXLCDN saves you money by meeting strict EPA guidelines. Featuring six NEMA 5-15/20R outlets in two switchable numbered load backs, as well as one L5-20R outlet and a 5-20P input, the SU2200RTXLCDN has an internal battery that provides 12 minutes of support at half load and four minutes at full load. Adding external battery packs, such as BP48V24-2U (sold separately), provides extended runtime.
The pre-installed network management card permits remote management, including reboots, configuration, updates and activity logs. An interactive LCD interface displays operating conditions and diagnostic data. You can set operating modes to reflect your protection priorities, including an optional economy mode that saves heat output and energy costs.
EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 570-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite’s free downloadable PowerAlert® software, the SU2200RTXLCDN enables safe unattended system shutdown and file saves in case of a prolonged power failure.

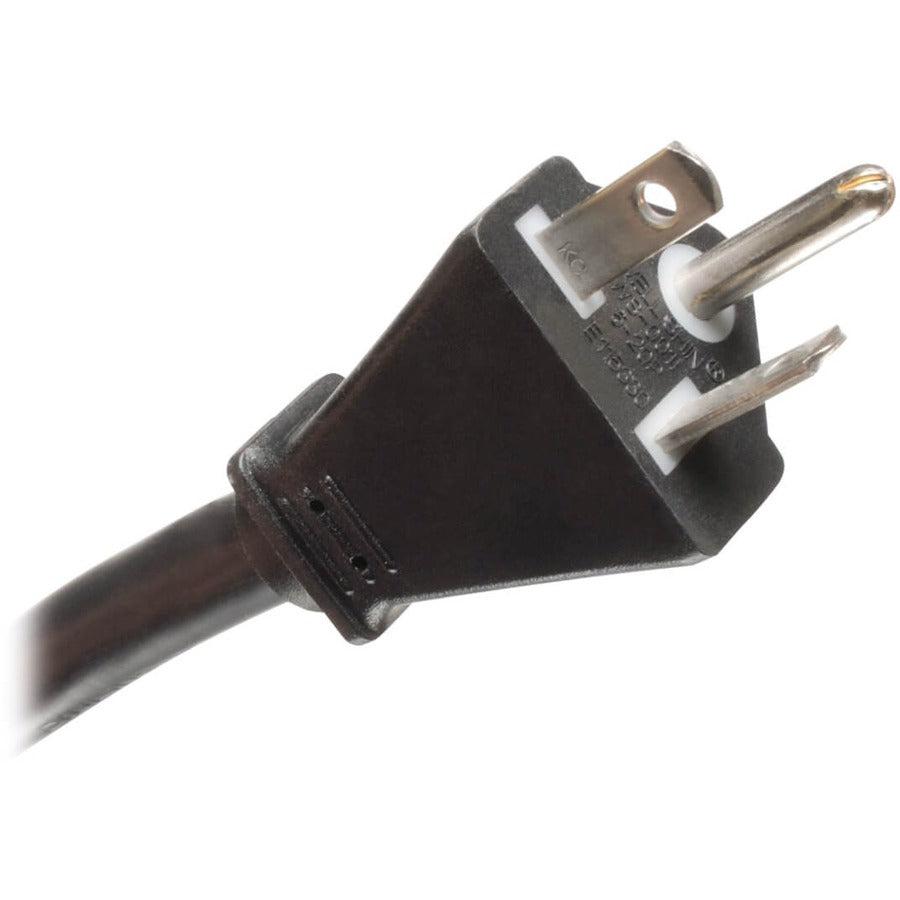

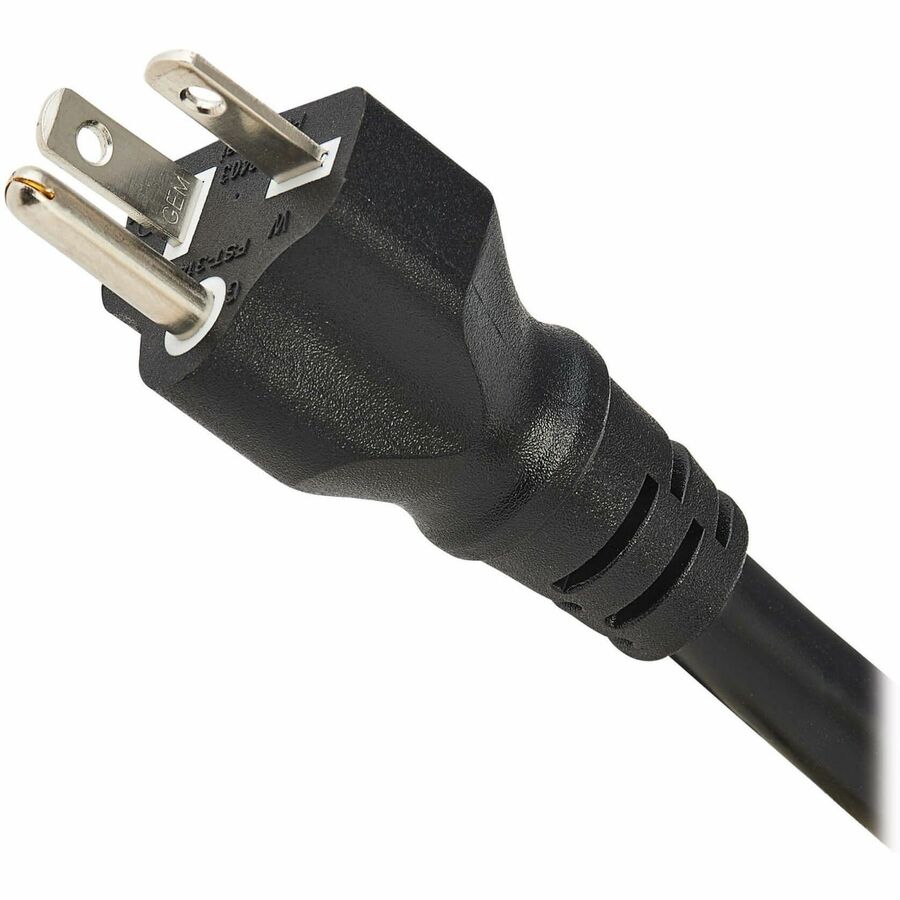

Protects Mission-Critical Rack-Mounted Equipment - Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware - +/-2% voltage regulation in online and battery modes - Selectable 100/110/120/127V output voltage - 6 NEMA 5-15/20R and 1 L5-20R outlets - 10 ft. power cord with NEMA 5-20P input - 570-joule surge suppression rating
Reliable Battery Backup with Expandable Runtime - Supports half load for 12 min. and full load for 4 min. - Zero transfer time suitable for advanced network applications - Expandable runtime with optional external battery packs, such as Tripp Lite’s BP48V24-2U - Restarts automatically after lengthy power outages
ENERGY STAR Certification - Saves money and energy and protects environment by meeting strict EPA efficiency guidelines
Included Network Management Card - Pre-installed network management card permits remote management of UPS
Switchable Numbered Load Banks - Outlets are divided into 2 numbered load banks, each of which may be individually powered on and off remotely to reset or reboot connected equipment

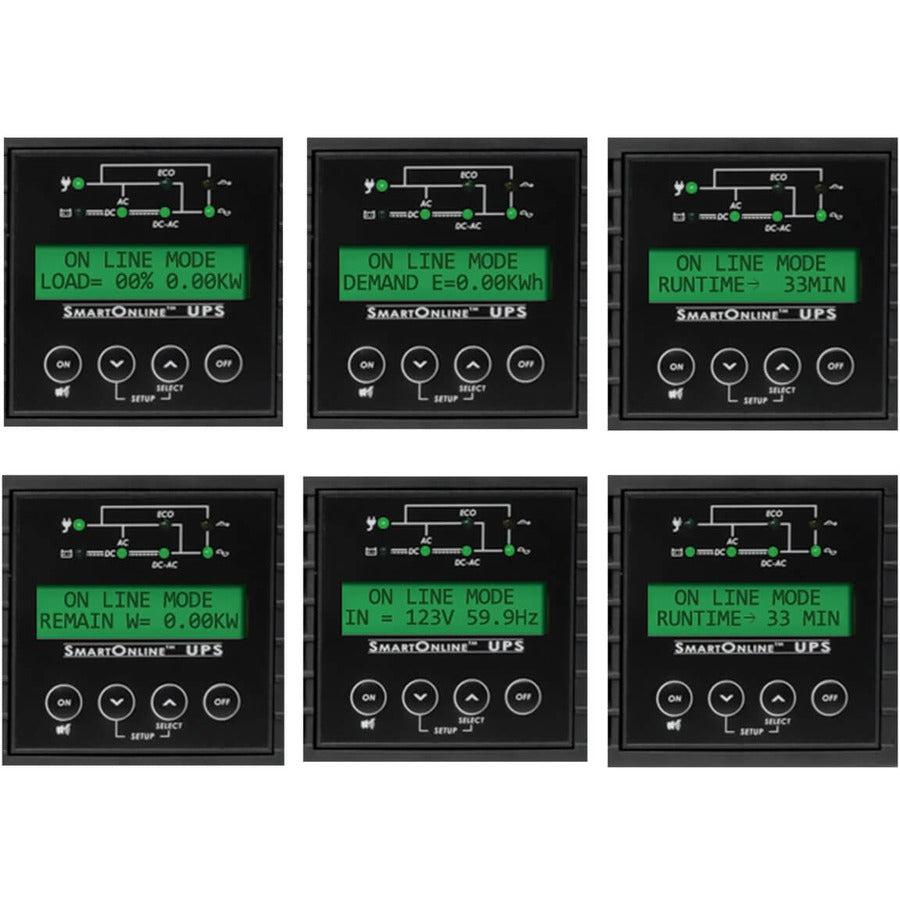

Interactive LCD Screen - Reports detailed status information, including load, voltage and battery levels - Offers advanced configuration and setup options, including output voltage and operating mode
EMI/RFI Line Noise Filtering Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance
Audible Alarm - Indicates startup/shutdown, power failure, low battery, overload and fault conditions
Communications Ports - USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via free download at www.tripplite.com/poweralert - EPO port supports emergency shutdown in large facilities

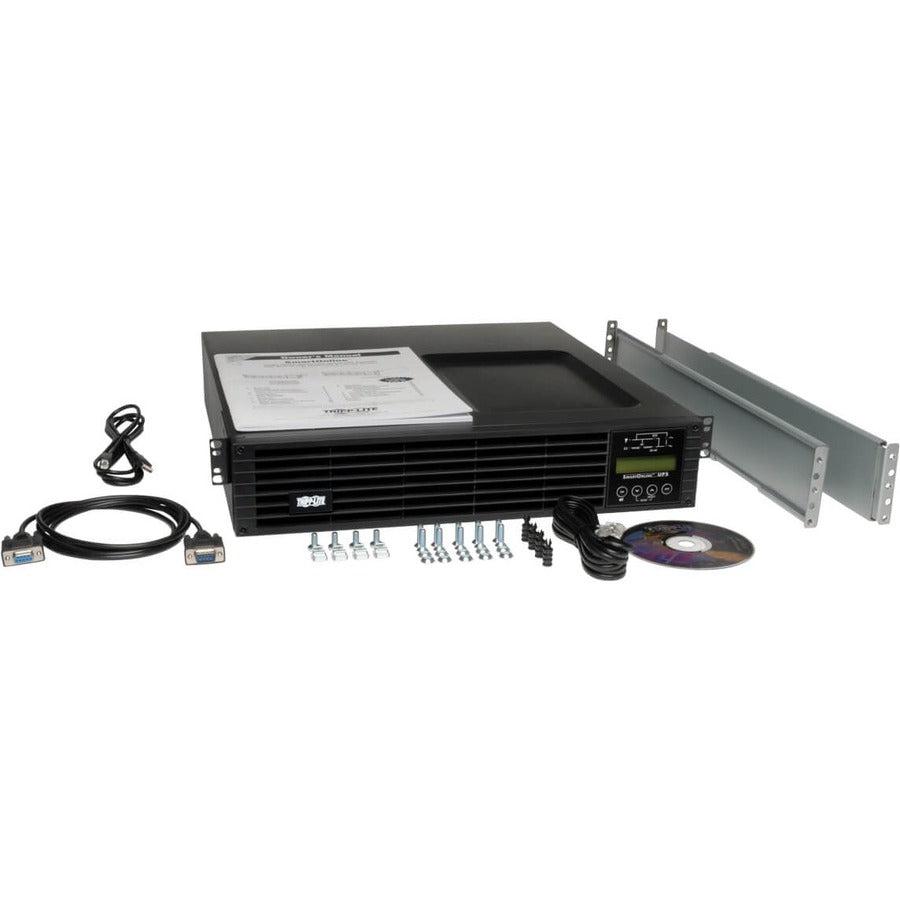

Versatile Installation Options - Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack - Mounts on wall or 2-post rack with optional 2POSTRMKITWM - Mounts in upright tower position with optional 2-9USTAND
