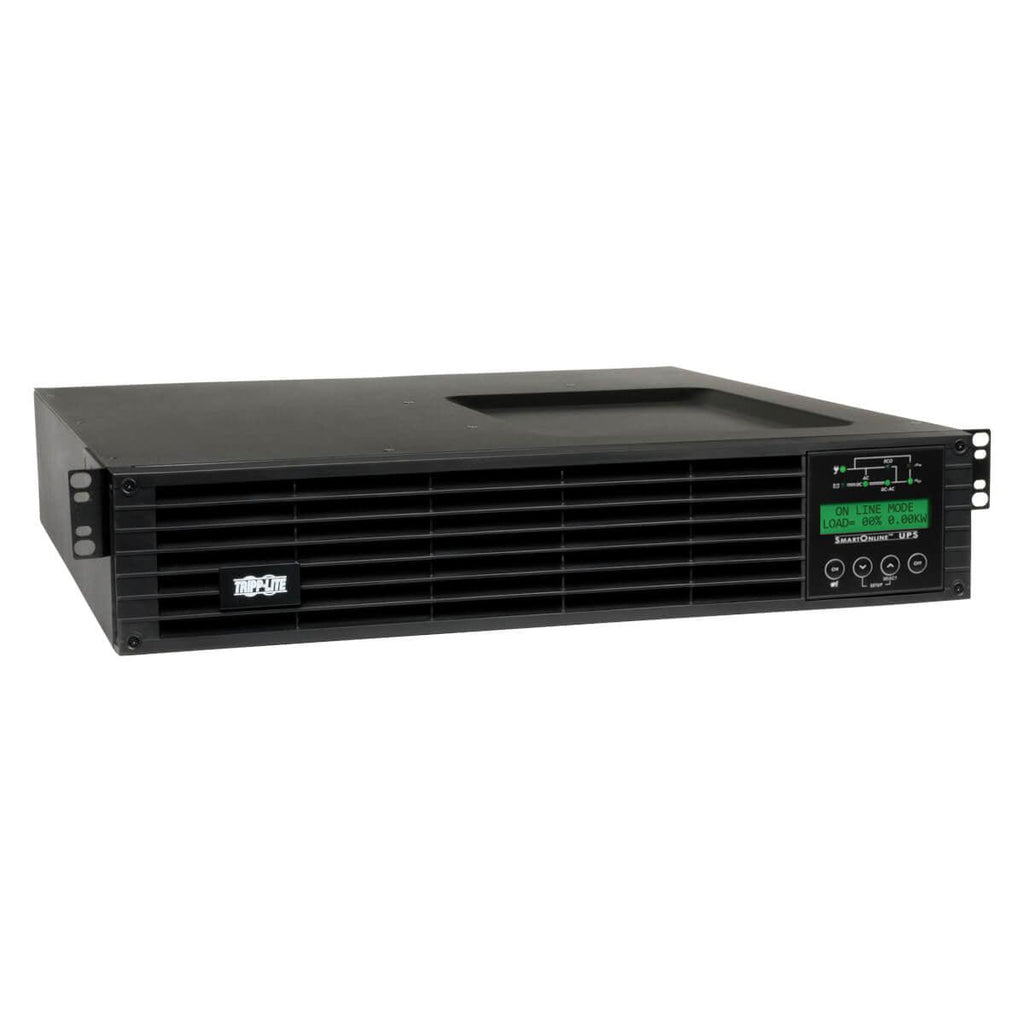

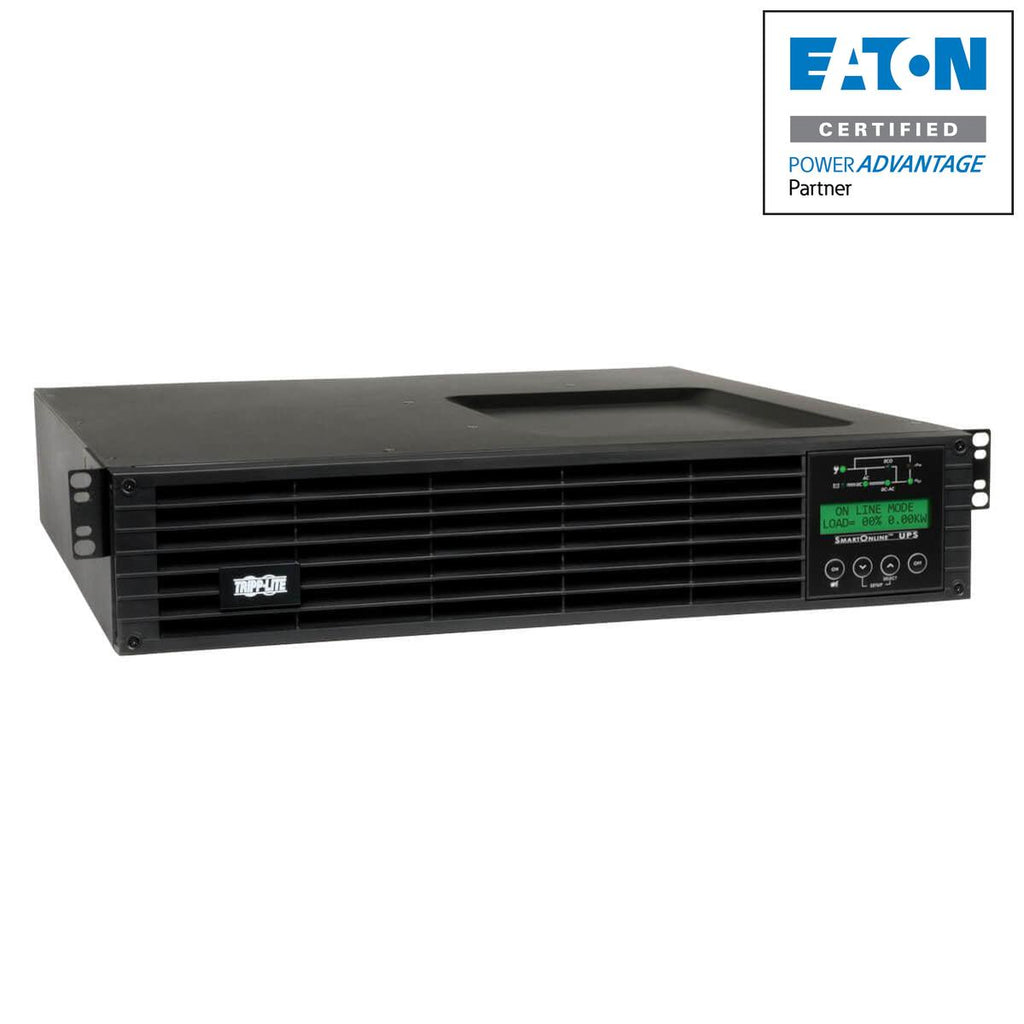

Tripp Lite SmartOnline 120V 1.5kVA 1.35kW Double-Conversion UPS, 2U Rack/Tower, Extended Run, Preinstalled Network Management Card, LCD, USB, DB9. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1350 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 6 AC outlet(s). Typical backup time at full load: 4 min, Typical backup time at half load: 12 min, Battery recharge time: 3 h. Form factor: Rackmount/Tower, Product colour: Black, Housing material: Steel. Width: 444.5 mm, Depth: 469.9 mm, Height: 88.9 mm
Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, power surges and line noise. Pre-installed Network Management Card permits remote UPS management, including reboots.
- Zero transfer time suitable for advanced network applications - 2% output voltage regulation in online and battery modes - Expandable runtime with optional external battery packs - Preinstalled Network Management Card - 14 min. runtime at half load; 4.2 min. at full load
The SU1500RTXLCDN SmartOnline® 120V 1.5kVA 1.35kW On-Line Double-Conversion UPS provides battery backup and AC power protection against blackouts, brownouts, power surges and line noise that can damage electronics or destroy data. It converts AC input to DC power, and then converts DC to fully regulated sine wave AC output with +/-2% voltage regulation in online and battery modes.
Featuring six NEMA 5-15R outlets in two switchable numbered load banks, as well as a NEMA 5-15P input, the SU1500RTXLCDN has an internal battery that provides 14 minutes of support at half load and 4.2 minutes at full load. Adding external battery packs, such as BP48V24-2U (sold separately), provides extended runtime.
The pre-installed Network Management Card accessory card permits remote management, including reboots, configuration, updates and activity logs. An interactive front-panel LCD interface displays operating conditions and diagnostic data, such as load, voltage and battery levels. You can set operating modes to reflect your protection priorities, including an optional economy mode that saves heat output and energy costs.
EMI/RFI noise filtering improves your equipment’s performance and prevents damage. A 570-joule surge suppression rating protects your equipment from harmful power surges. With Tripp Lite’s free downloadable PowerAlert® software, the SU1500RTXLCDN enables safe unattended system shutdown and file saves in case of a prolonged power failure. An audible alarm indicates startup/shutdown, power failure, low battery, overload and fault conditions.

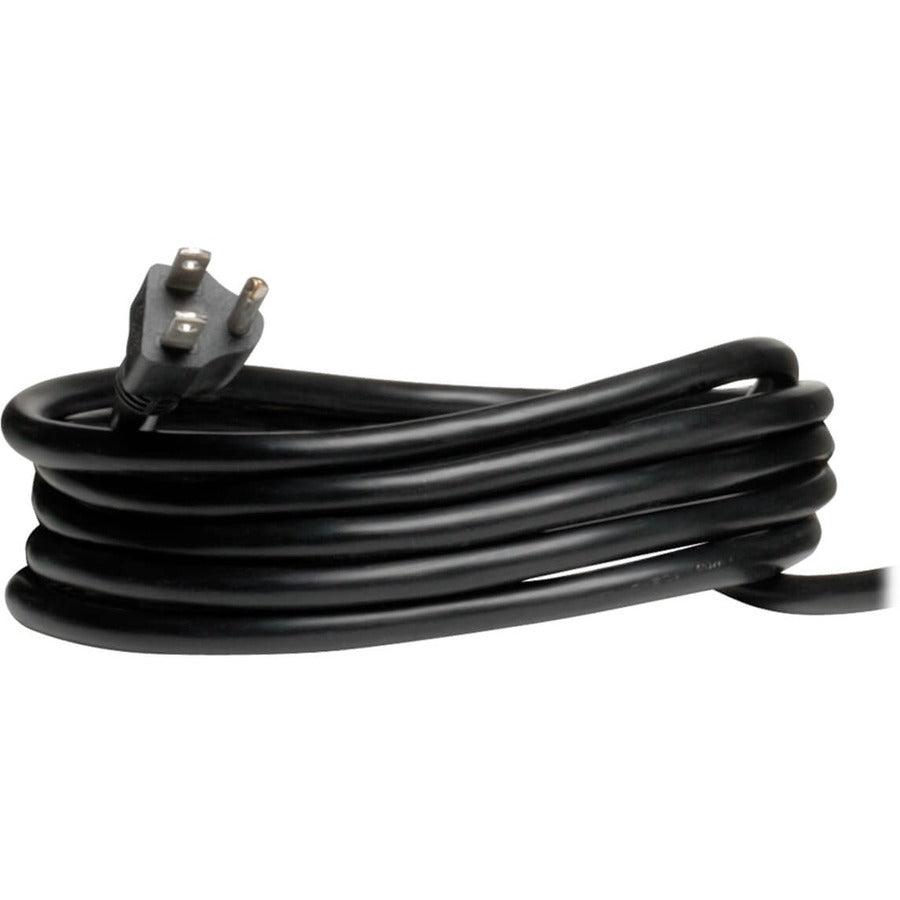

Protects Mission-Critical Rack-Mounted Equipment - Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware - +/-2% voltage regulation in online and battery modes - Selectable 100/110/120/127V output voltage - 6 NEMA 5-15R outlets - 10 ft. power cord with NEMA 5-15P input - 570-joule surge suppression rating
Reliable Battery Backup with Expandable Runtime - Supports half load for 14 min. and full load for 4.2 min. - Zero transfer time suitable for advanced network applications - Expandable runtime with optional external battery packs, such as Tripp Lite’s BP48V24-2U - Restarts automatically after lengthy power outages
Included Network Management Card - Pre-installed Network Management Card permits remote management of UPS

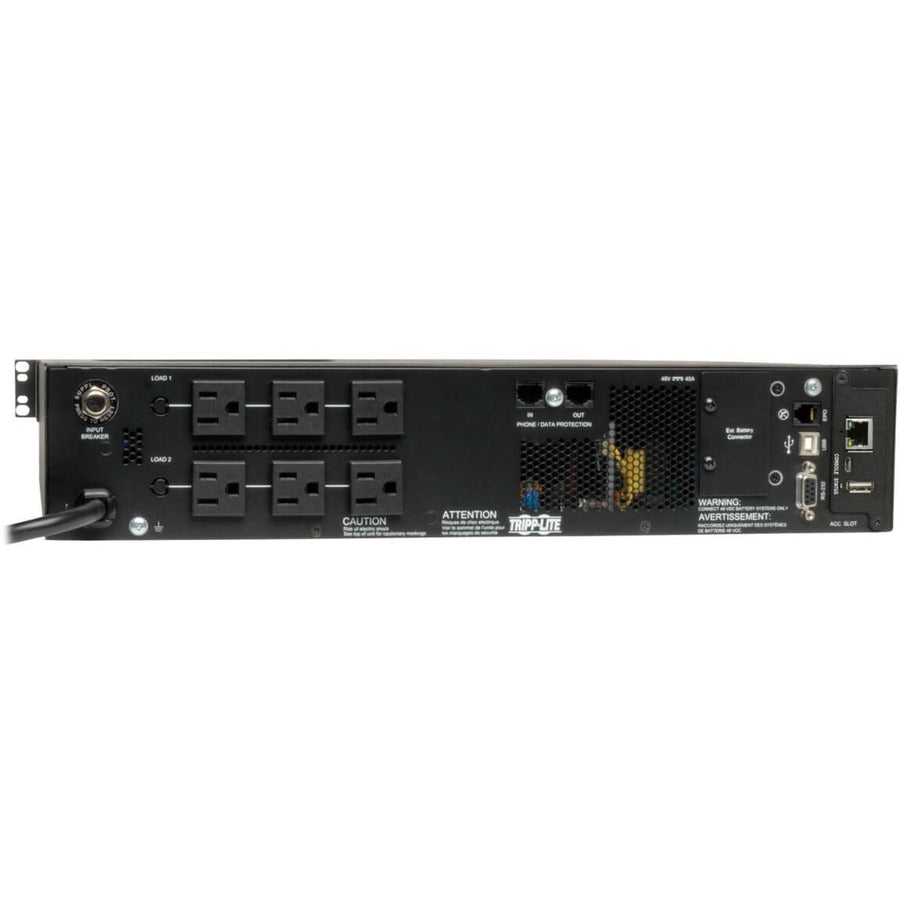

Switchable Numbered Load Banks - Outlets are divided into 2 numbered load banks, each of which may be individually powered on and off remotely to reset or reboot connected equipment

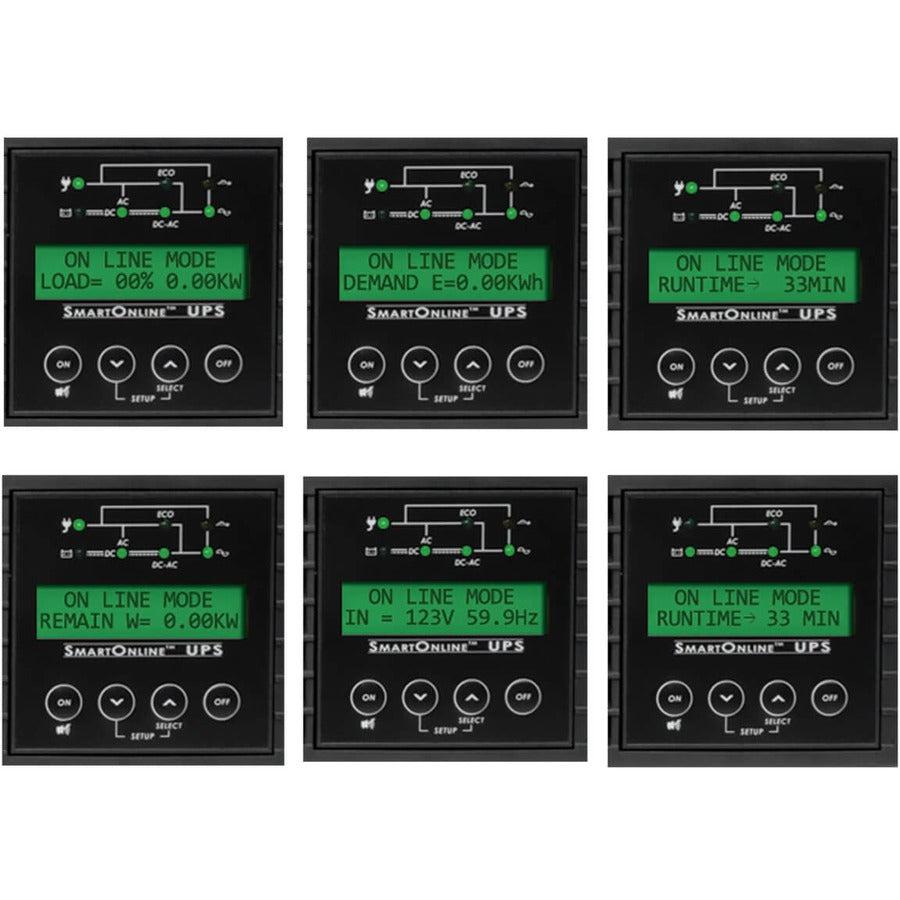

Interactive LCD Screen - Reports detailed status information, including load, voltage and battery levels - Offers advanced configuration and setup options, including output voltage and operating mode
EMI/RFI Line Noise Filtering - Removes electromagnetic and radio frequency interference that can disrupt or damage equipment’s performance
Audible Alarm - Indicates startup/shutdown, power failure, low battery, overload and fault conditions
Communications Ports - USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from www.tripplite.com/poweralert - EPO port supports emergency shutdown in large facilities

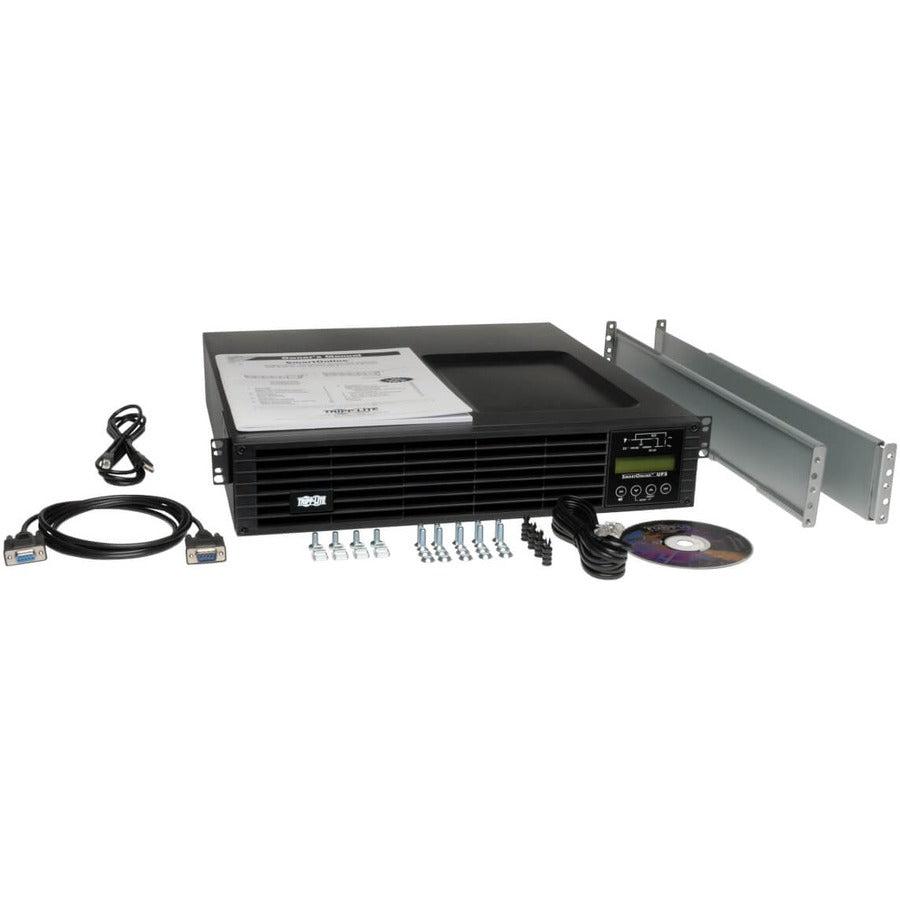

Versatile Installation Options - Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack - Mounts on wall or 2-post rack with optional 2POSTRMKITWM - Mounts in upright tower position with optional 2-9USTAND
