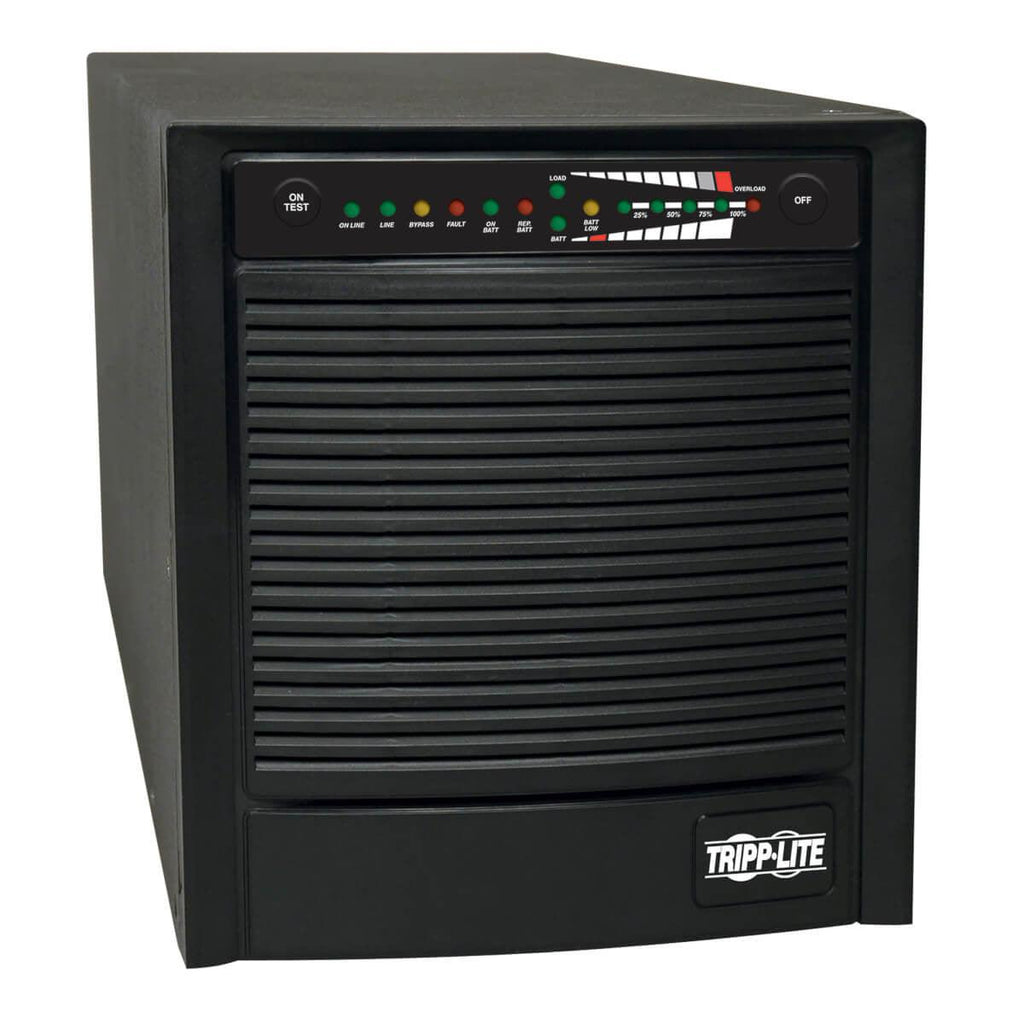

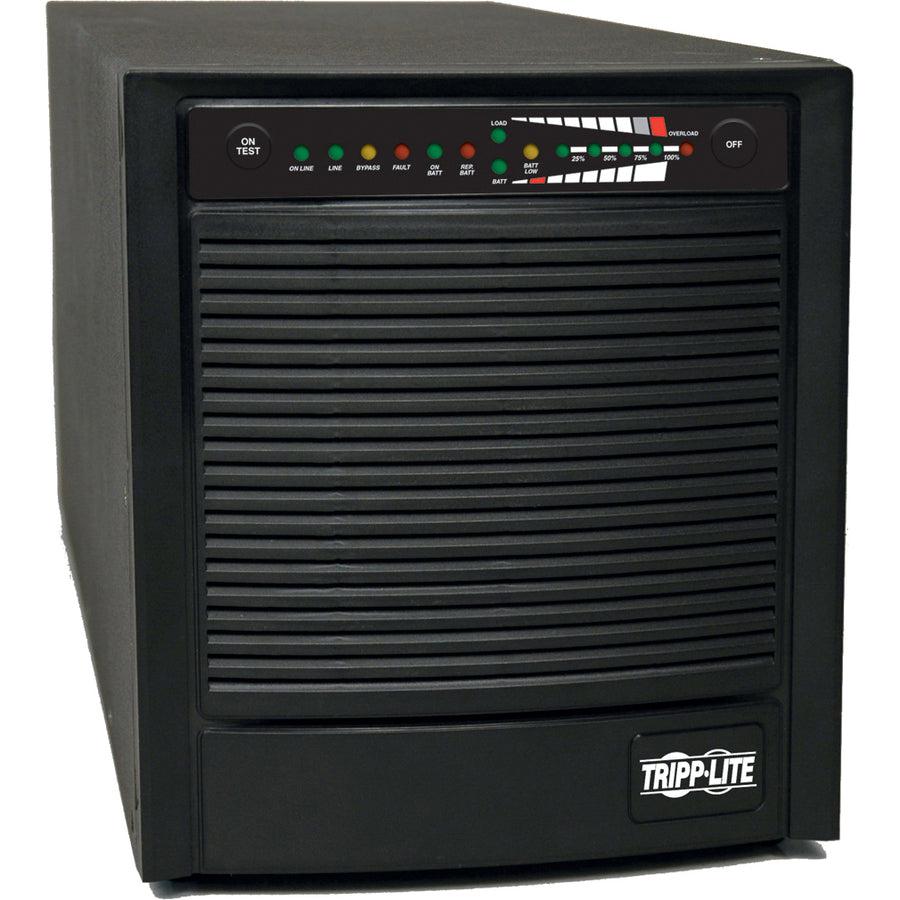

Tripp Lite SmartOnline 100-120V 1.5kVA 1.2kW On-Line Double-Conversion UPS, Extended Run, SNMP, Webcard, Tower, USB, DB9 Serial. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1200 W. AC outlet types: NEMA 5–15R, Power plug: NEMA 5-15P, AC outlets quantity: 6 AC outlet(s). Typical backup time at full load: 14 min, Typical backup time at half load: 4.5 min. Form factor: Tower, Product colour: Black, Cable length: 3 m. Width: 228.6 mm, Depth: 495.3 mm, Height: 260.4 mm
Tripp Lite's SmartOnline SU1500XL on-line, double conversion UPS protects critical server, networking or telecommunications equipment from blackouts, brownouts, voltage fluctuations and surges. Large-capacity 1.5kVA/1200W UPS continuously converts incoming AC to DC, then back to perfect sine wave AC output at 120V AC (+/-2%). Removes harmonic distortion, fast electrical impulses, frequency fluctuations and other hard-to-solve power problems not addressed by other UPS systems. True sine wave output and zero transfer time provides guaranteed compatibility with all equipment types. Highly efficient operation in optional economy mode setting, saving BTU heat output and energy costs. Includes 6 UPS-supported outlets. 2 load banks, each with 3 outlets, can be independently controlled via a software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment. Battery backup time can be extended with the addition of multiple external battery packs. Includes slot for internal SNMP/web card, plus DB9 enhanced serial monitoring port for unattended shutdown, remote control and monitoring of UPS system and power data. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Includes Tripp Lite's PowerAlert UPS Power Management Software. Compatible with Tripp Lite's Watchdog Service Monitoring/Rebooting Software. Attractive all-black upright tower format. $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) - True on-line, double conversion UPS provides constant, pure sine wave AC output - Zero transfer time, on-line, double-conversion and economy-mode operation supported - Maintains continuous operation through blackouts, brownouts, voltage fluctuations and surges with zero transfer time - Removes harmonic distortion, electrical impulses, frequency variations and other hard-to-solve power problems - Accepts input voltages between 80V and 150V (65V to 150V at loads under 70%), regulating output to 120V AC +/-2% - 1500VA/1200W output capacity with 6 NEMA 5-15R outlets - Two built-in, individually switchable load banks, each with 3 outlets, can be controlled via software interface to selectively reboot remote equipment or automatically shed less critical loads to extend battery runtime for the most critical equipment - Standard internal battery set provides 14 min. runtime at half load and 4.5 min. at full load - Runtime is expandable with BP48V24-2U (limit 1), BP48V60RT-3U (multi-pack compatible) and BP48V27-2US (multi-pack compatible) external battery packs - Some external battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual) - Attractive all-black upright tower format - Simultaneous communications via HID-compliant USB port, DB9 serial port, and SNMP/web card slot - HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X - DB9 serial network interface supports RS-232 and contact closure messaging - Slot for optional SNMP/web card (part# SNMPWEBCARD) - Included PowerAlert UPS Power Management Software and cabling provides monitoring of in-depth site power conditions, full UPS status and fault warnings, output load level and load bank power control - Compatible with Tripp Lite's WatchDog Service Monitoring/Rebooting Software (part # WATCHDOGSW) - Fault tolerant electronic bypass maintains utility output during a variety of UPS fault conditions - Diagnostic LEDs - Built-in RJ-11 EPO (Emergency Power Off) jack allows connection to site emergency power off systems - $250,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico only) for connected equipment (USA and Canada Only)
