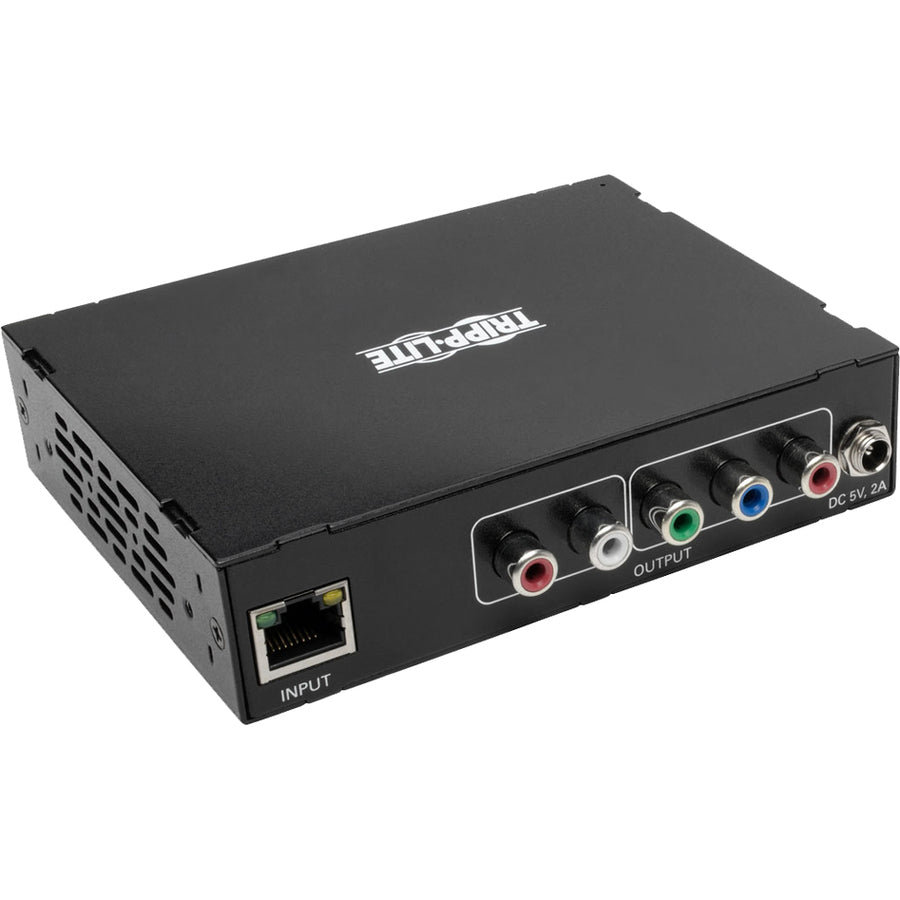

Tripp Lite Rgb Component Video + Audio Over Cat5 Cat6 Ip Extender Receiver Taa 1080I

Tripp Lite RGB Component Video + Audio Over Cat5 Cat6 IP Extender Receiver TAA 1080i

The B160-100-CSI RGB Component Video + Audio over IP Extender Receiver works with a Tripp Lite B160-Series transmitter (sold separately) to extend and distribute component video + stereo audio, RS-232 serial and IR (infrared) remote signals from the source to the display located up to 328 feet (100 meters) away, which is more than 200 feet farther than a traditional Cat5e/6 solution. By adding a chain of low-cost unmanaged network switches, such as Tripp Lite's NG5, you can continue extending the distance between source and display up to 328 feet per switch.

Create a multi-in, multi-out installation with up to 64 transmitters and 255 receivers by connecting dedicated managed Ethernet network switches with Internet Group Management Protocol (IGMP), such as Tripp Lite's NSS-G16D2. With a compatible B160-Series transmitter, this receiver works with any analog or digital source, including HDMI, VGA and DisplayPort™, allowing you to mix and match technologies and use existing source devices. An IGMP-enabled switch will let you manage all connections for centralized control over which sources show on which displays.

The B160-100-CSI supports video resolutions up to 1080i. It extends IR control signals that control a source, such as a Blu-ray™ player, from a remote display, as well as RS-232 signals at serial baud rates up to 57600 Bps. It mounts to a wall, rack or pole using the included hardware.

Features

RGB Component Video + Stereo Audio, Serial and IR Control Signals over Cat5/6 Cabling

• Receives IP-based audio + video transmitted point-to-point from a source 328 ft. away
• Add low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switch

Create a Multi-In, Multi-Out Installation Using B160-Series Transmitters and Receivers

• Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches
• IGMP-enabled switches allow centralized control over which sources show on which displays
• Displays video from any analog or digital source, so you can mix and match technologies and use existing sources and monitors

Enhanced Technical Features

• Supports video resolutions up to 1080i
• Uses H.264 video compression standard
• Transmits on 20-60 kHz IR frequency
• Extends IR control signals that control a source from a remote display
• Supports RS-232 serial baud rates up to 57600 Bps

Plug-and-Play Functionality

• No software or drivers required
• Hardware included for mounting on wall, rack or pole
• Compatible with all Tripp Lite B160-Series A/V over IP transmitters

TAA-Compliant

• Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases

• Compatible with Tripp Lite B160-Series A/V over IP transmitters


• Display video from any source, analog or digital


• Supports video resolutions up to 1080i


• Scales up to multi-in, multi-out installation with network switch


• Plug and play-no software or drivers required

Product Type: Video Extender Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Receiver Height: 1.17"
Receiver Width: 5.04"
Receiver Depth: 3.94"
Receiver Weight (Approximate): 1.59 lb
Taa Compliant: Yes
Product Color: Black
Country Of Origin: Taiwan
Brand Name: Tripp Lite
Form Factor: Rack-mountable
Manufacturer: Tripp Lite by Eaton
Product Model: B160-100-CSI
Product Name: Receiver Unit
Manufacturer Part Number: B160-100-CSI
Manufacturer Website Address: http://www.tripplite.com
Package Contents:

• Receiver Unit
• External Power Supply (Input: 100-240v, 50/60 hz, 0.5a; Output: 5v 2A)
• Plug Adapters for U.S., U.K., Europe and Australia
• IR-In Cable
• 3.5 mm to db9 Adapter Cable (m/m)
• Mounting Hardware
• Owner's Manual
