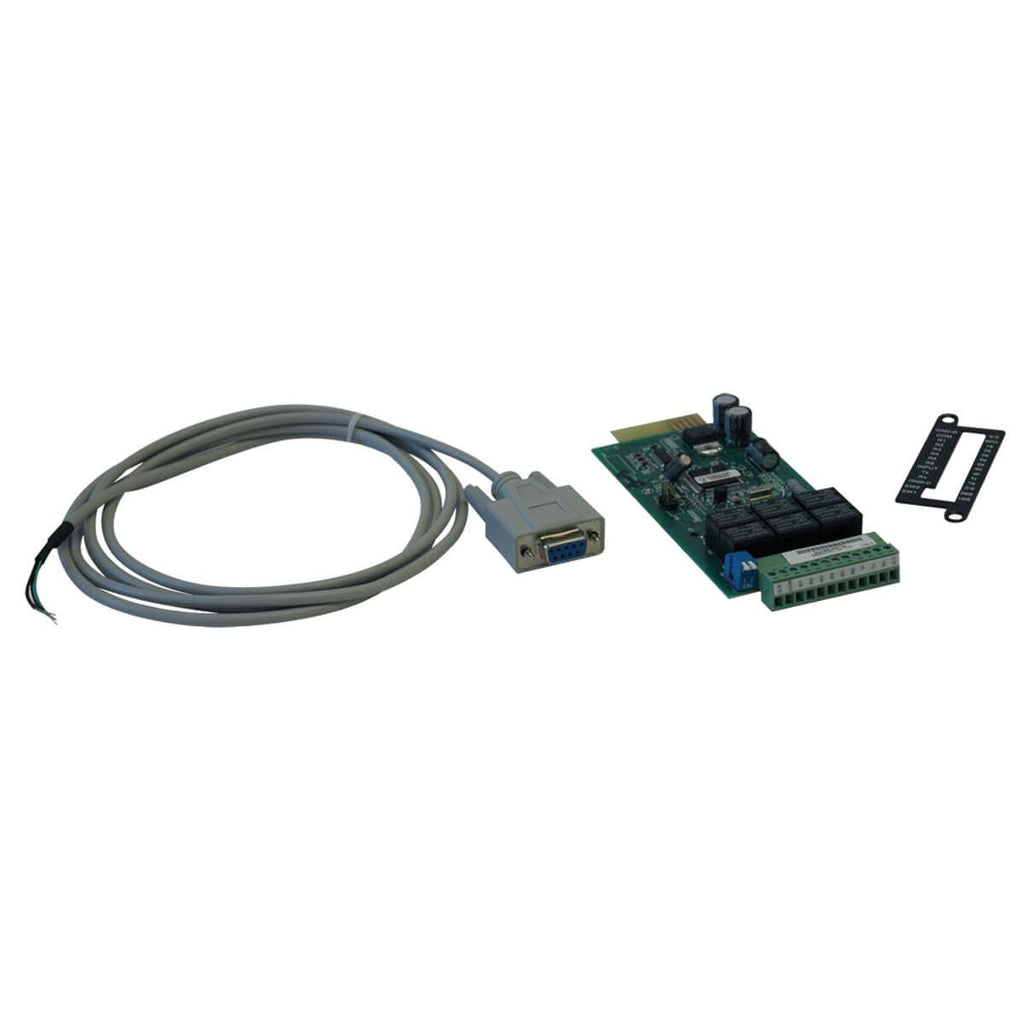

Tripp Lite Relayiocard Programmable Relay I/O Card

Programmable Relay I/O Card

Tripp Lite RELAYIOCARD Programmable Relay I/O Card. Product colour: Green, Certification: RoHS. Weight: 70 g, Package width: 44.4 mm, Package depth: 157.5 mm. Products per master (outer) case: 12 pc(s), Master (outer) case width: 167.6 mm, Master (outer) case length: 325.1 mm

Tripp Lite's RELAYIOCARD allows users to communicate UPS status and events via six configurable contact closure outputs. Installs in select expansion slot-equipped SmartOnline and select SmartPro UPS systems*. Enables monitoring of UPS conditions and events. Provides input signal relay contact to perform remote UPS system shutdown or battery tests.

*NOTE: SmartPro UPS systems including SMART1050SLT, SMART1500SLT, SMART2200RMXL2U, SMX1050SLT, SMART3000SLT, SMART2200SLT, SMART2200NAFTA, SMART2600RM2U, SMART3000RM2U, SMART1500CRMXL, SMART750XLa, SMX2200XLRT2U, and SMX3000XLRT2UA. Supported SmartPro systems must run UPS protocol 3008 or above. Works with most Tripp Lite Smart Online series models except the following; SU3000RTXL2U, SUINT3000RTXL2U, SUINT1000LCD2U, SUINT1500LCD2U, SUINT2200LCD2U, SUINT3000LCD2U, and SU3000LCD2UHV models.

Makes select Tripp Lite SmartPro or SmartOnline UPS capable of providing contact closure output communications
6 relay output contacts are configurable for normal open or normal close signaling of UPS conditions
Configurable UPS conditions and events for each output relay contact
Configurable input signal relay contact to shutdown UPS or test battery
