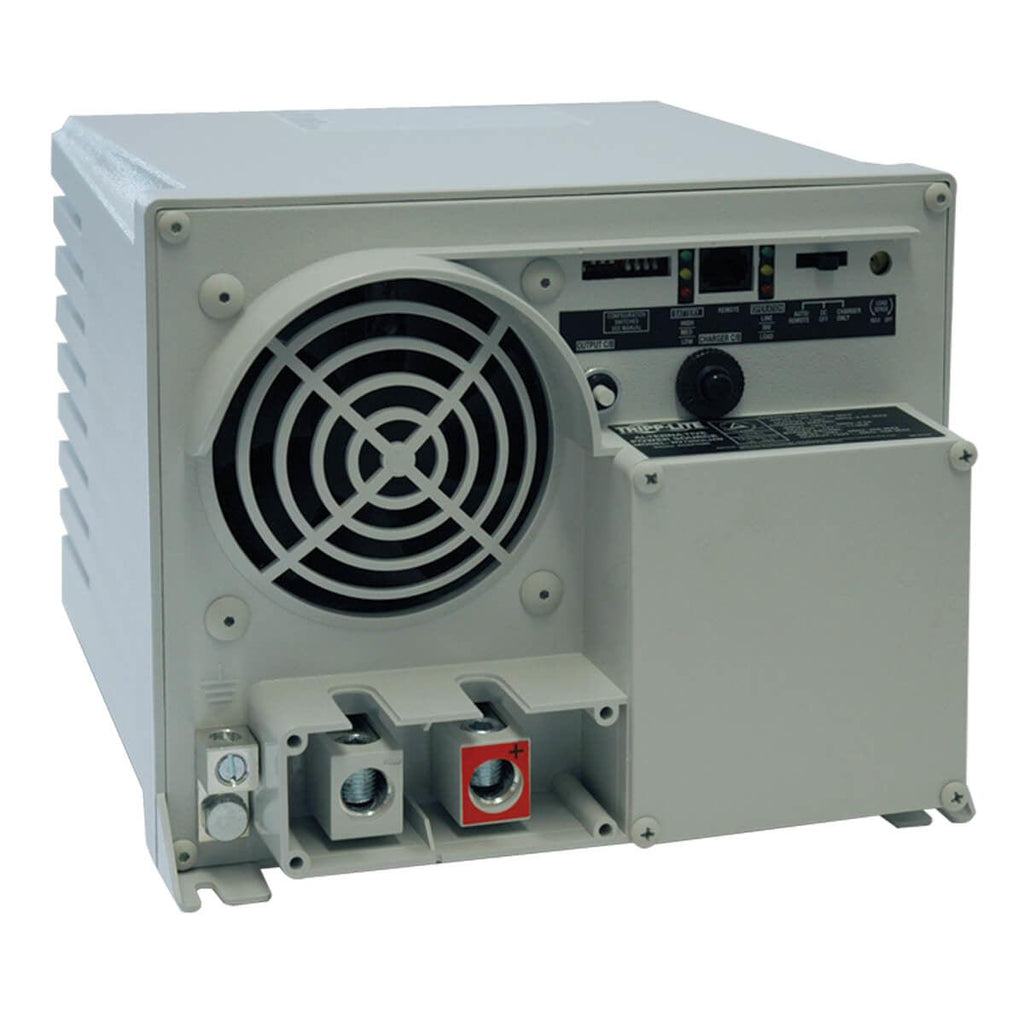

Tripp Lite Powerverter Rv Inverter/Charger Power Adapter/Inverter 750 W White

PowerVerter RV Inverter/Charger - 750 W

Tripp Lite PowerVerter RV Inverter/Charger. Output power: 750 W, Output voltage: 120 V, Country of origin: China. Product colour: White. Width: 222.2 mm, Depth: 228.6 mm, Height: 177.8 mm. Package width: 266.7 mm, Package depth: 271.8 mm, Package height: 315 mm. Master (outer) case width: 266.7 mm, Master (outer) case length: 271.8 mm, Master (outer) case height: 315 mm

Tripp Lite's RV750ULHW Inverter/Charger is the quiet alternative to gas generators—with no fumes, fuel or noise to deal with! It provides equipment with utility- or generator-supplied AC electricity filtered through premium ISOBAR surge protection. This DC-to-AC inverter with automatic line-to-battery tranfser and integrated charging system serves as an extended run UPS, a standalone power source or an automative inverter suitable for rugged RV applications. Supplies up to 750 watts of continuous 120V AC power from any 12V DC battery or automotive DC source. OverPower inverter output feature temporariliy provides up to 150% of the continuous output for 1-60 minutes and DoubleBoost TM inverter output feature delivers up to 200% of the continuous output for up to 10 seconds, providing the extra power needed to cold start heavy-duty tools and motorized equipment. When hardwire AC input is energized, commercial power passes through to connected equipment and the battery set is recharged via 3 stage, selectable 11/45 amp charging system. In UPS mode, the APS system responds to blackouts and voltage fluctuations with a near instantaneous automatic transfer to battery-derived AC output. Includes a set of high current DC input terminals for simple installation (user supplies batteries and cabling - see owner's manual for recommendations). Passes sine wave utilty or generator power during battery charging and UPS line power operation, plus efficient PWM sine wave AC output in inverter and UPS backup modes. Reliable large transformer design, with frequency control powers resistive electronic loads or large inductive motors, compressors and other items with high current needs on startup. Optional APSRM4 wired remote power switch with full status LEDs provides remote power inverter on/off switching and continuous status information (APSRM4 sold separately). Supports an unlimited amount of runtime with any number of user-supplied batteries connected. Highly adaptable to a variety of applications and site conditions with adjustable charger settings for wet/gel battery types and selectable line to battery power transfer voltages.

- RV750ULHW serves as an automotive or stationary DC-to-AC inverter with automatic line-to-battery transfer and integrated battery charger.
- Supports 120V AC output from a 120V AC line power source or 12V DC battery source.
- 16.6 millisecond automatic transfer between line and battery power supports UPS protection during blackouts and voltage fluctuations for equipment compatible with a one cycle transfer time.
- 750 watts continuous AC output in inverter mode, 750 watts continuous AC output in AC mode.
- Double Boost inverter output supports momentary startup loads up to 200% of the continuous rating for up to 10 seconds.
- OverPower inverter output supports longer duration overloads to 150% for 1-60 minutes under ideal battery and temperature conditions. (For best results, utilize OverPower usage for as short of a duration as possible, ensure battery bank and cabling is able to provide full nominal DC voltage under load and allow inverter/charger to fully cool before and after OverPower usage.).
- 3 stage, selectable 11/45 amp battery charger with adjustable settings for wet/gel battery types offers fast, reliable battery recharging.
- Protected hardwire bolt-down input lugs safely accept heavy gauge input wiring from attached battery bank.
- Protected hardwire output passes 120V line power or inverter output through to connected equipment.
- Reliability enhanced large-transformer design tested to UL (USA) and CSA (Canada) standards.
- Moisture-resistant construction enables vehicular or marine operation in high humidity environments.
- 3 position operating mode switch supports "AUTO" mode to enable automatic transfer between DC and AC modes, CHARGE-ONLY to maintain a full battery charge when AC is present without auto transfer and SYSTEM OFF settings.
- Set of six front panel LEDs display AC/DC operational modes, overload status, DC voltage level, shutdown status and system fault status.
- Set of 4 configuration dipswitches support wet/gel battery charging profiles, adjustable 135/145V high voltage auto transfer during overvoltages and selectable 75/85/95/105V AC low voltage auto transfer during brownouts.
- Set of 4 additional configuration dipswitches support 4 levels of charger limiting relative to output load size, a battery equalization program and battery charger low/high/off settings.
- Resettable 10A charger AC input breaker and automatic 2 speed cooling fan protect the inverter from load and temperature related failures.
- Grounding lug properly connects the inverter/charger system to earth ground or vehicle grounding system.
- Automatic overload and thermal shutoff safely turns off inverter as excessive loads or overheating conditions develop.
- Front panel remote control connector enables remote off/on switching (requires APSRM4 switch accessory). Optional APSRM4 accessory also includes user configurable jacks to support inverter shutoff or startup as a vehicle ignition is engaged.
- Load sensing control dial enables adjustable load threshold required to automatically turn the inverter on and off in DC mode as load conditions change.
