Tripp Lite PDUMV30HVNETLX. PDU types: Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: NEMA L6-30P. Cable length: 3.05 m, Certification: UL 60950-1, NOM, TAA. Nominal input voltage: 200-240 V, Maximum current: 30 A, AC input frequency: 50 - 60 Hz. Width: 55.6 mm, Depth: 67.3 mm, Dimensions (WxDxH): 56 x 67 x 1778 mm

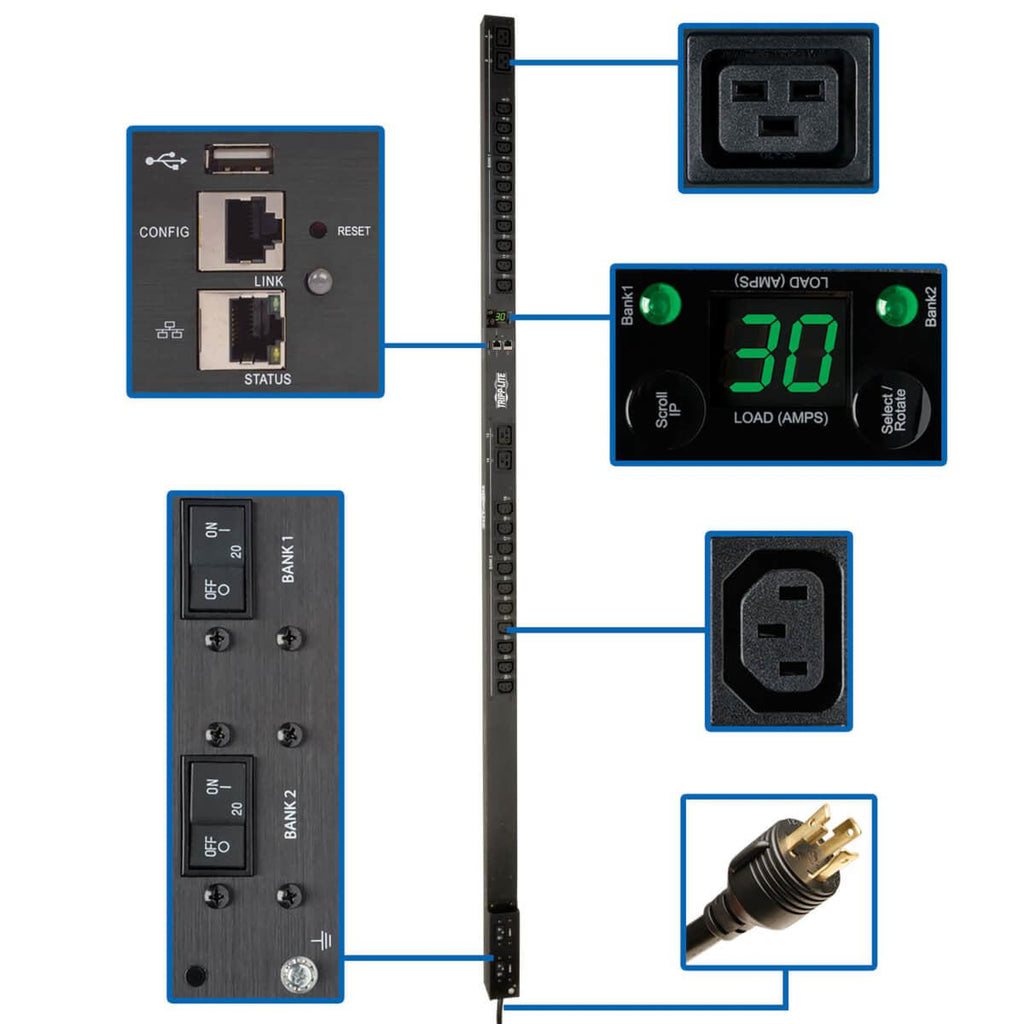

The PDUMV30HVNETLX 5/5.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. LEDs indicate each outlet’s on/off power status. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor each bank’s load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

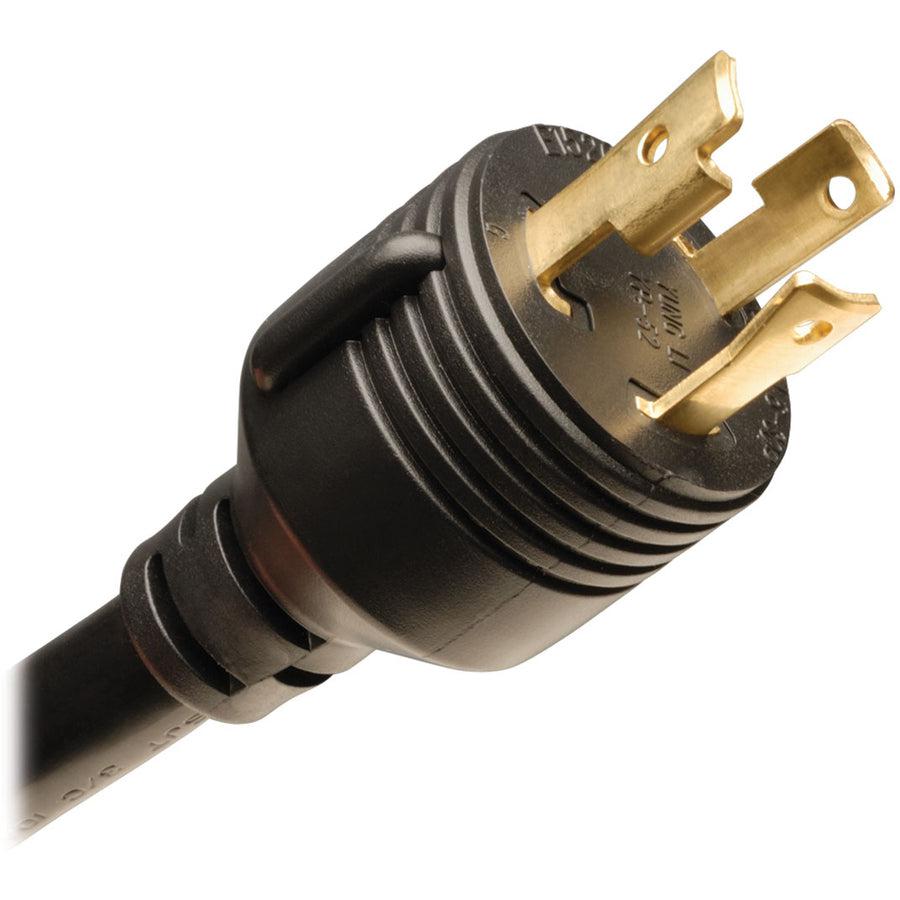

Distributes Network-Grade Single-Phase Power - 5/5.8kW 208/240V 30A switched PDU with single-phase input/output - Recommended for network applications requiring individual outlet control, load shedding and remote monitoring of critical network components - NEMA L6-30P plug with 10 ft. cord connects to compatible AC power source - Firmware upgrades support future product enhancements

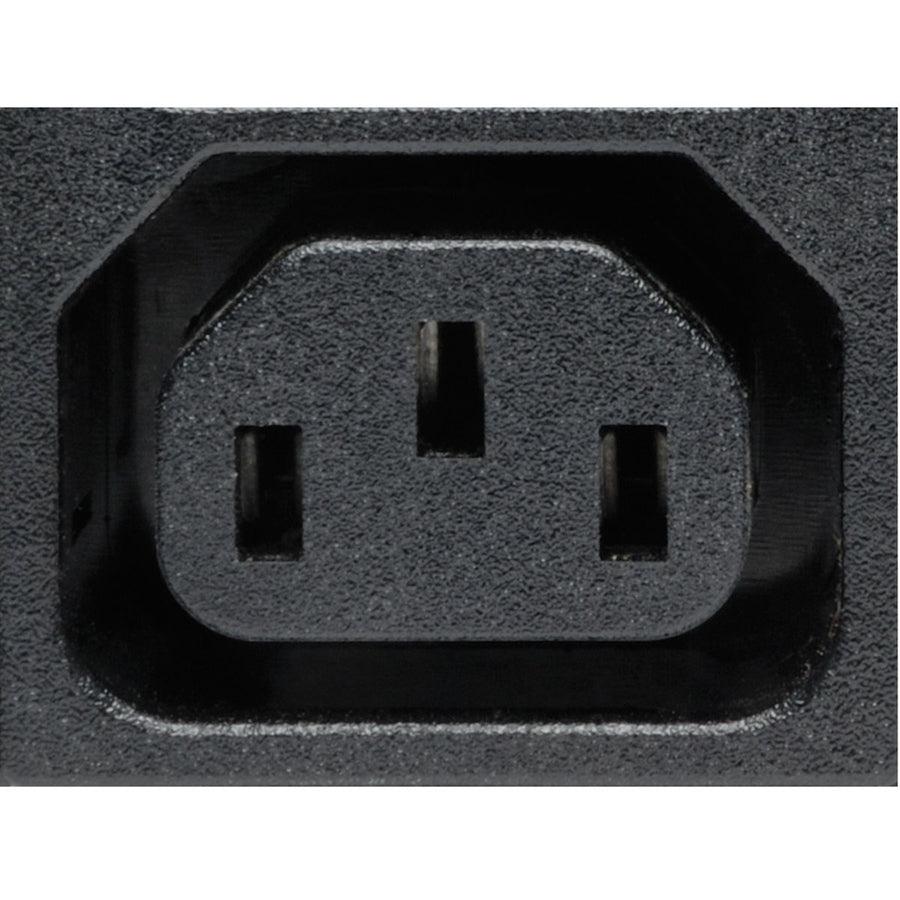

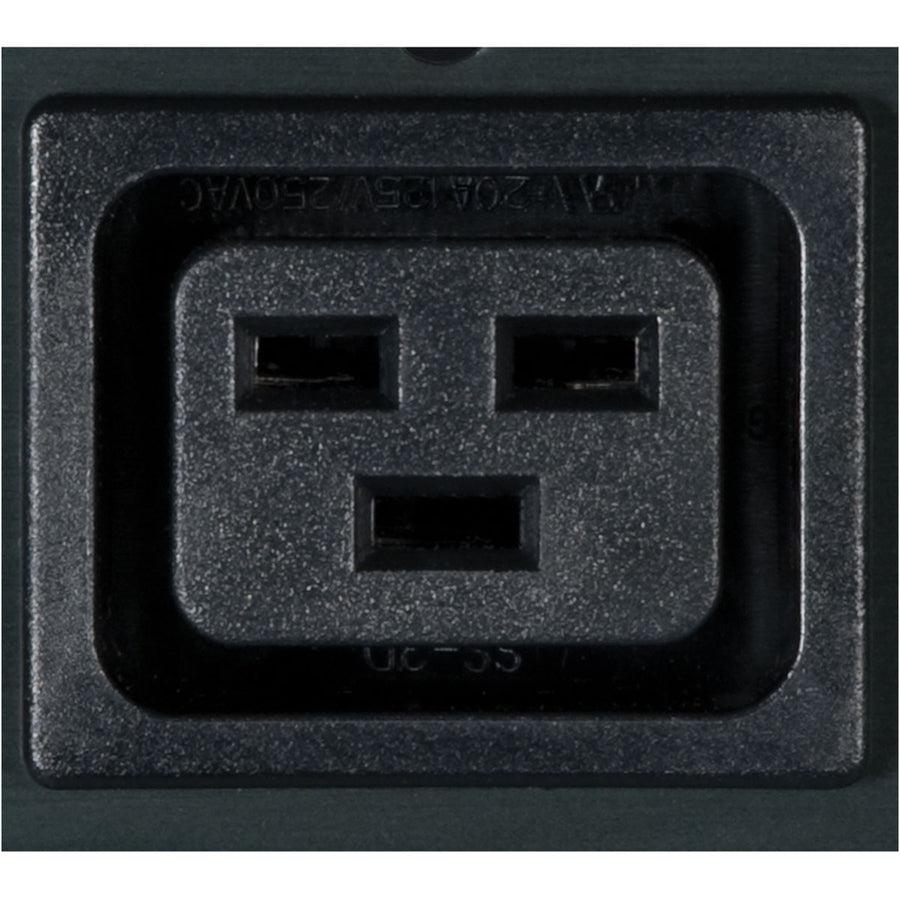

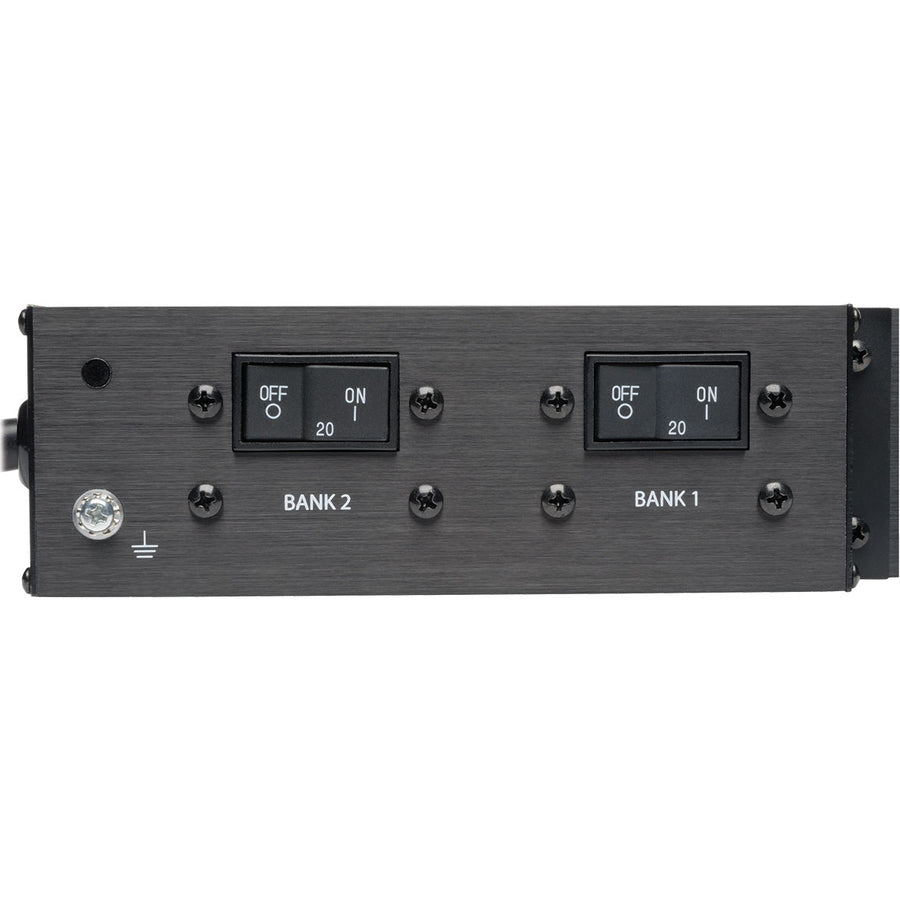

24 Switched Outlets Distribute AC Power - 20 C13 and 4 C19 outlets split into 2 separately breakered load banks - Individual outlets can be remotely controlled to power up, power down, reboot or lock out devices - Plug-lock inserts prevent cables from becoming accidentally disconnected

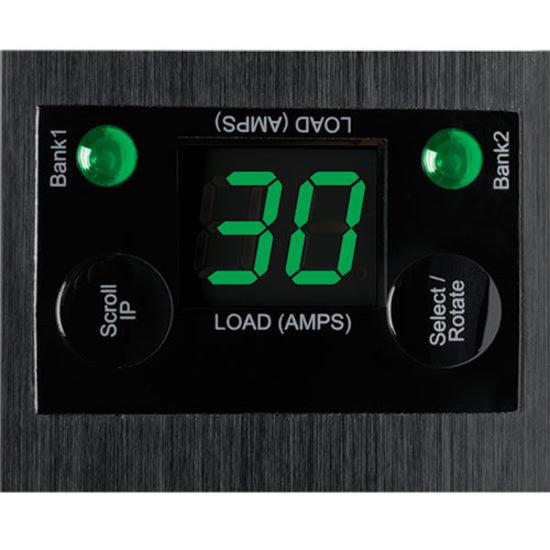

Digital Ammeter - Reports load level on each bank and total PDU output - Supports IP-address self-ID - Rotates 180° for easy reading at either angle

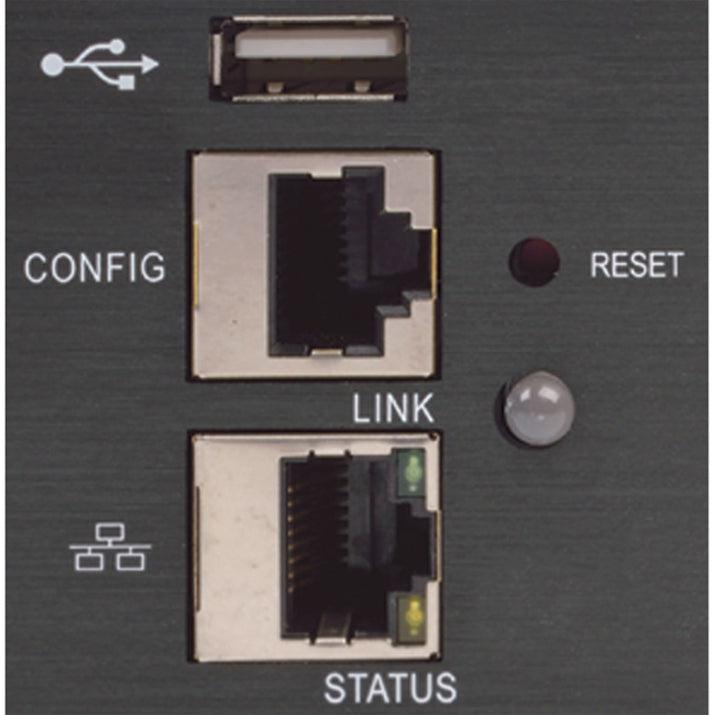

Built-In LX Platform Interface - Allows full remote access for power monitoring with email notifications via secure web browser, SNMP, telnet or SSH - Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities - No Java required
Broad Communications Compatibility Supports HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP Supports automatic and manual assignment of IP address

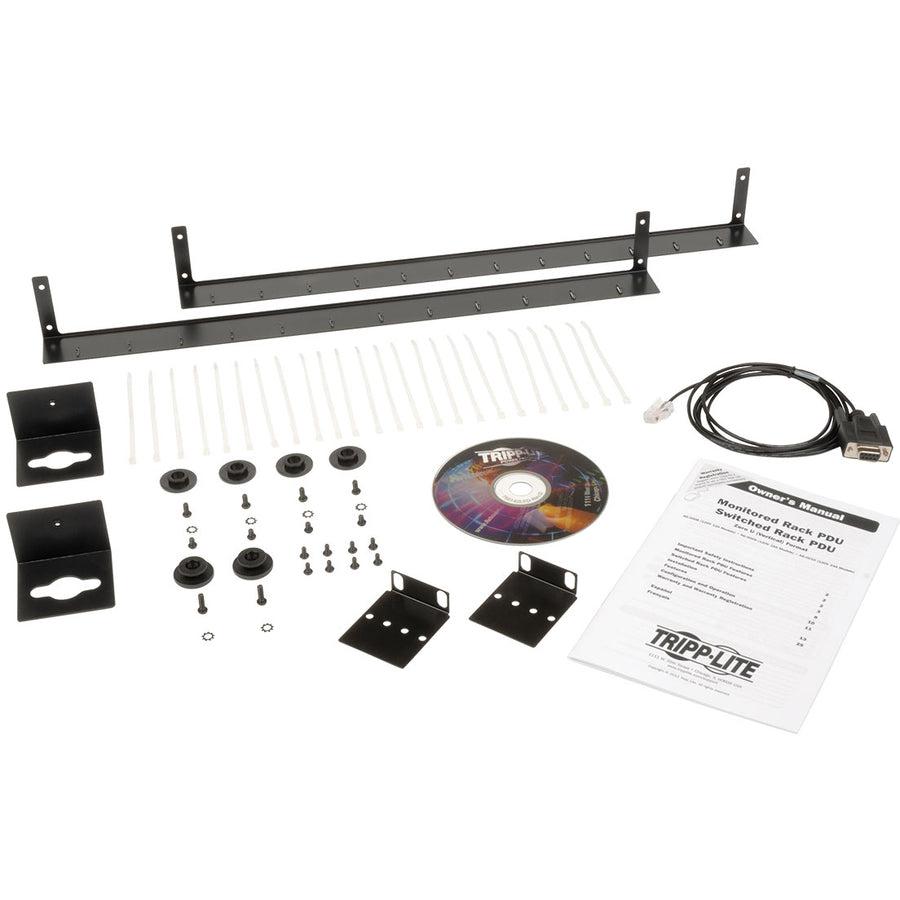

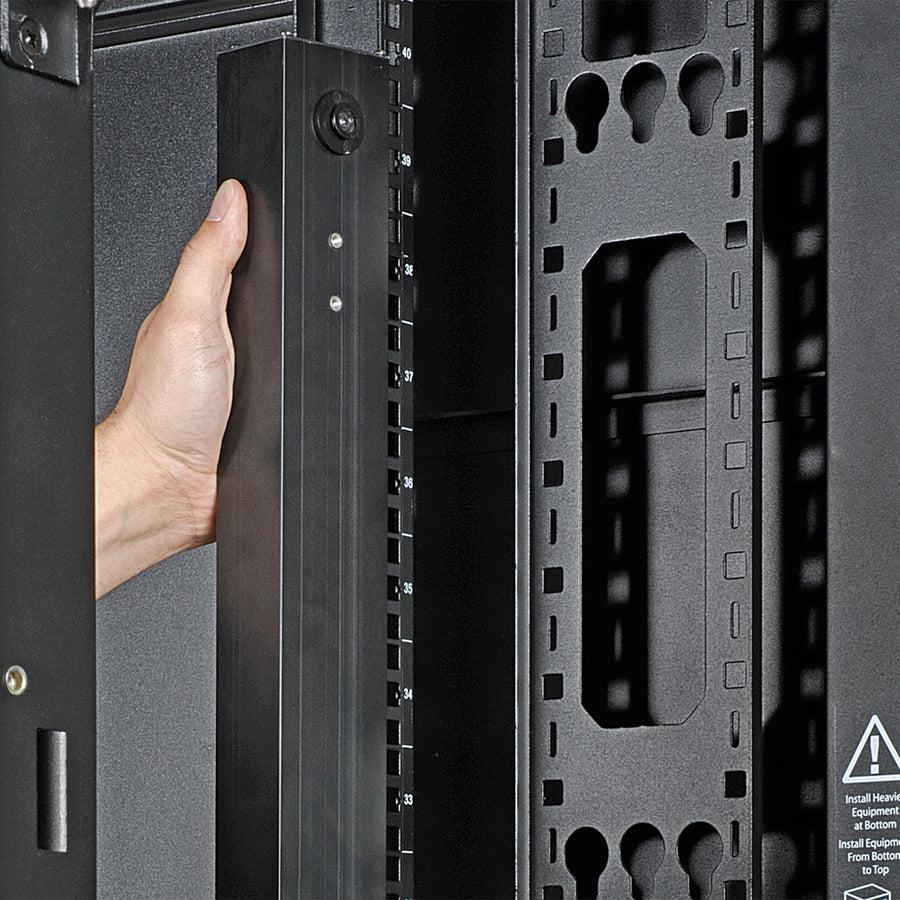

Easy 0U Installation in EIA-Standard 19 in. Racks - Mounts vertically using included toolless buttons or rack-mounting brackets - Included PDUMVROTATEBRKT allows mounting with rear-facing outlets
TAA-Compliant - Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
