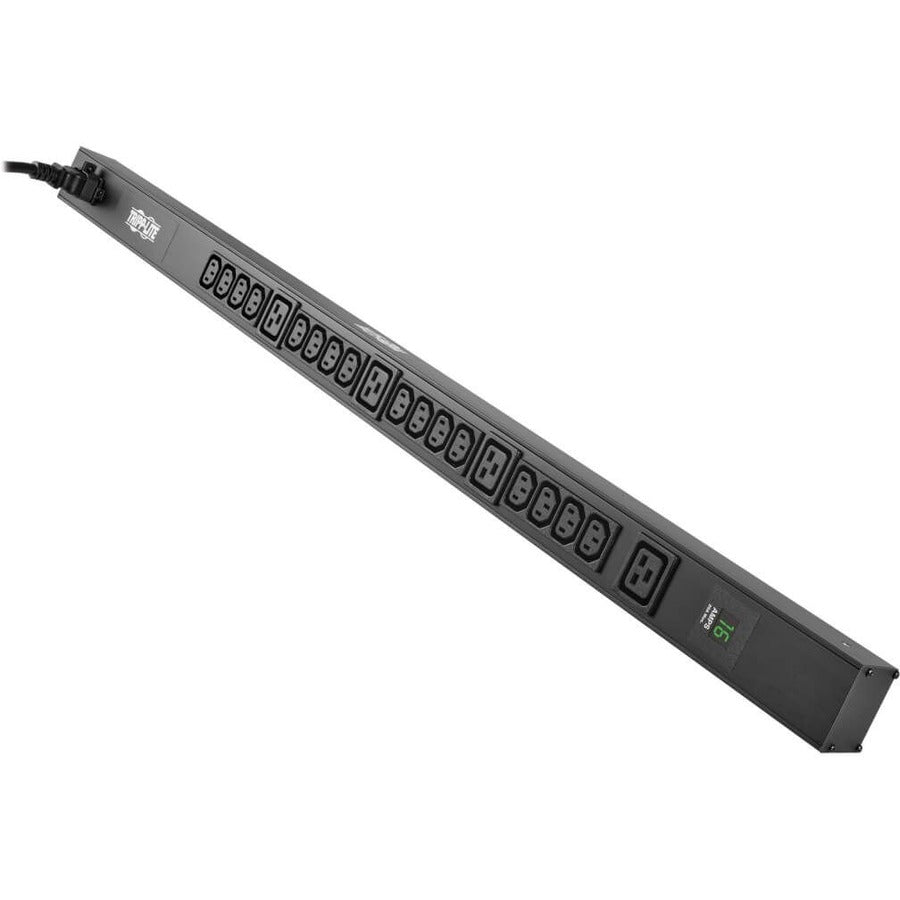

This vertical rack power distribution unit is perfect for data center managers and IT professionals who need space-efficient metered power distribution unit solutions with high outlet density. Our Tripp Lite vertical PDU delivers:
-
Rack mounted power distribution unit design optimized for vertical installation
-
Metered power monitoring capabilities for accurate power consumption tracking
-
19 rack power distribution unit compatibility with standard server racks
-
Space-saving vertical design maximizing rack space utilization
Key Features
-
Vertical mounting design for optimal rack space utilization
-

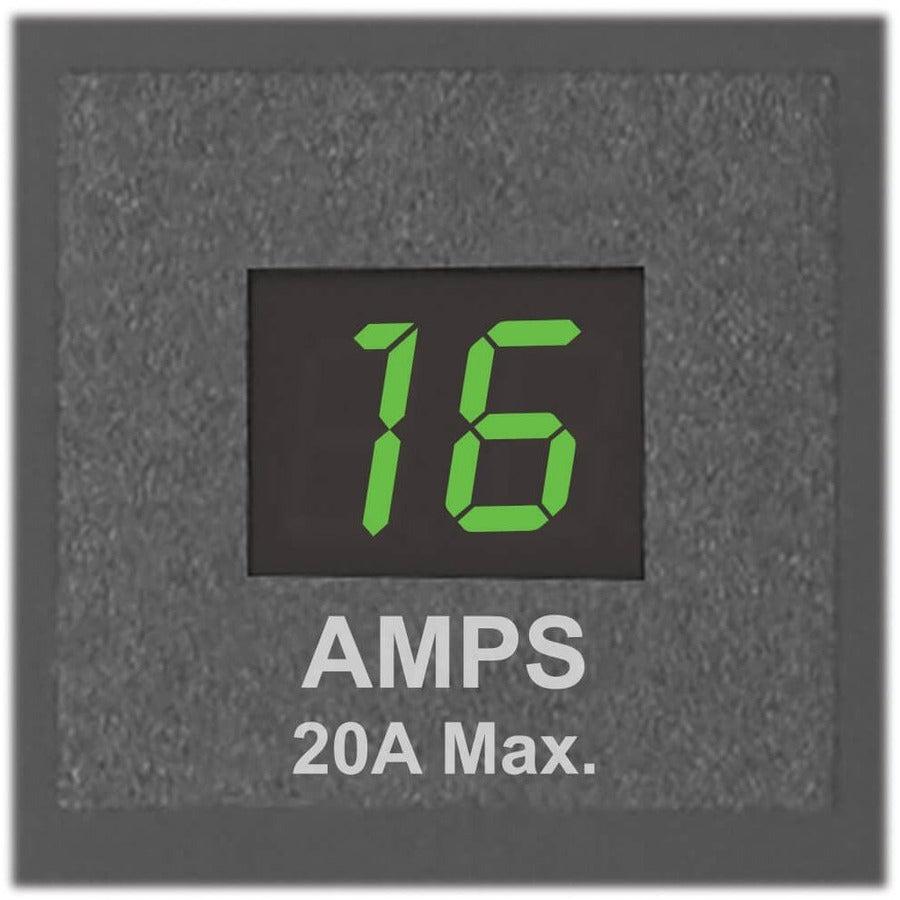

Digital power metering with LCD display for real-time monitoring
- Optimized for high-density rack installations with 20 outlets
- Consistent power distribution with circuit breaker protection
-

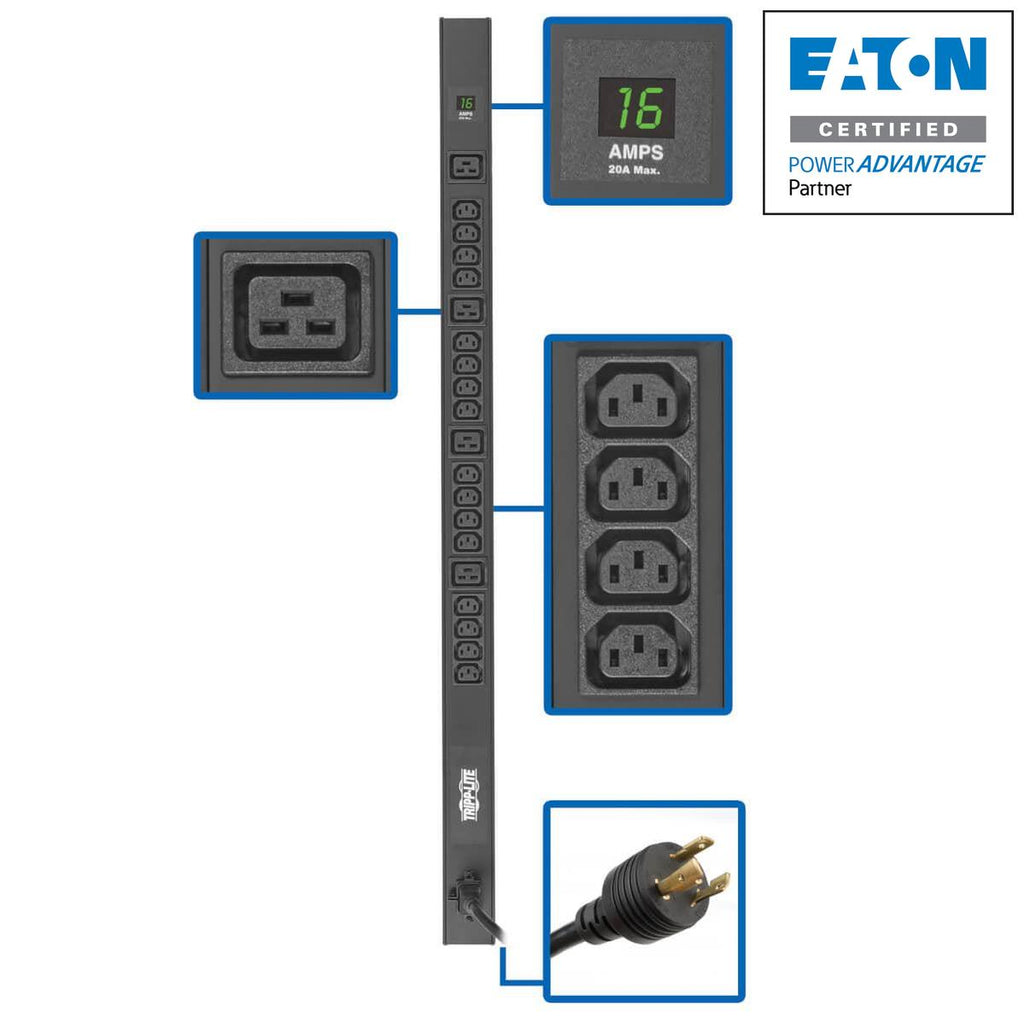

IEC C13 outlet configuration for server and network equipment
-
36-inch form factor suitable for tall rack installations
-
Heavy-duty construction rated for continuous data center operations
-
Tool-free mounting with included rack mounting hardware
Technical Specifications
| Manufacturer |
Tripp Lite by Eaton |
| Model Number |
PDUMV20HV-36 |
| Type |
Vertical Rack Power Distribution Unit |
| Outlets |
20 IEC C13 outlets |
| Input Voltage |
208/240V single-phase |
| Current Rating |
30A maximum input current |
| Length |
36 inches (914 mm) |
| Mounting |
Vertical rack mount with 0U design |
| Metering |
Digital LCD display with power monitoring |
| Protection |
Circuit breaker overload protection |
| Input Connector |
L6-30P locking plug |
| Cord Length |
12 ft. input power cord |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Compatible Systems |
Servers, network switches, storage systems, telecom equipment |
Frequently Asked Questions
Q: What are the advantages of a vertical rack power distribution unit?
A: This vertical rack pdu maximizes outlet density while conserving valuable horizontal rack space — ideal for high-density server installations where every rack unit counts for equipment placement.
Q: How does the power metering work on this PDU?
A: The metered power distribution unit features a built-in digital LCD display showing real-time voltage, current, power consumption, and energy usage — essential for capacity planning and energy management in data centers.
Q: Is this PDU compatible with standard 19-inch server racks?
A: Yes. This 19 rack power distribution unit is designed for standard 19-inch racks with vertical mounting brackets that secure to the rear mounting rails without consuming rack units (0U design).
Q: What type of outlets does this vertical PDU provide?
A: This rack mounted power distribution unit features 20 IEC C13 outlets evenly distributed along the 36-inch length, providing reliable power connections for servers, network equipment, and other rack-mounted devices.
Tripp Lite PDUMV20HV-36 vertical rack PDU with 20 outlets, digital metering, 36-inch design - space-efficient power distribution solution.
