Tripp Lite PDU3VN10L2120LV. PDU types: Monitored, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 36 AC outlet(s). Cable length: 3 m, Certification: UL60950-1. Nominal input voltage: 208 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz. Width: 44.4 mm, Depth: 55.9 mm, Dimensions (WxDxH): 56 x 83 x 177.8 mm
Tripp Lite 3 phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. PowerAlert interface supports custom notification of user-specified remote conditions via email, secure web, SNMP, Telnet or SSH interface. PDU output current consumption in amps is displayed per-phase via front panel lighted digital display and can be monitored remotely to warn of potential overloads before critical IT mains breakers trip.

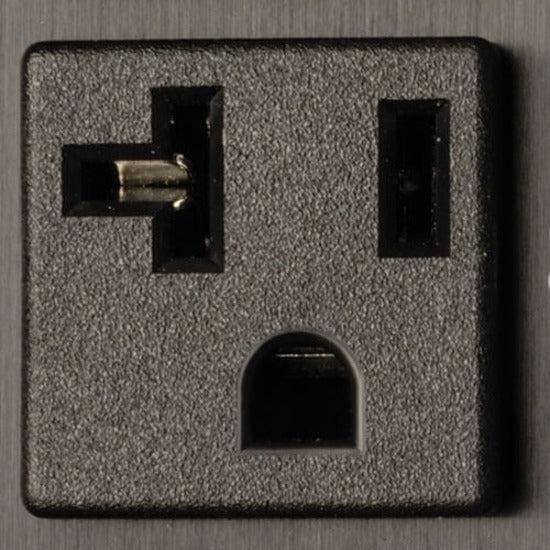

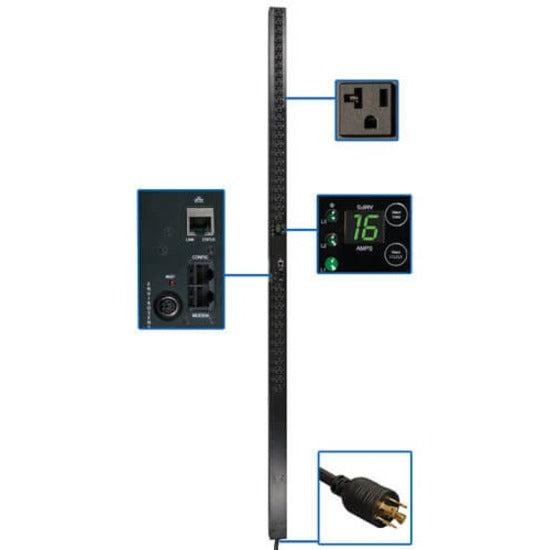

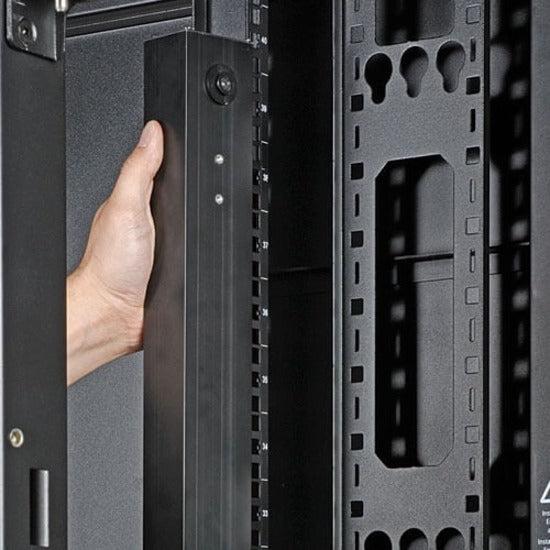

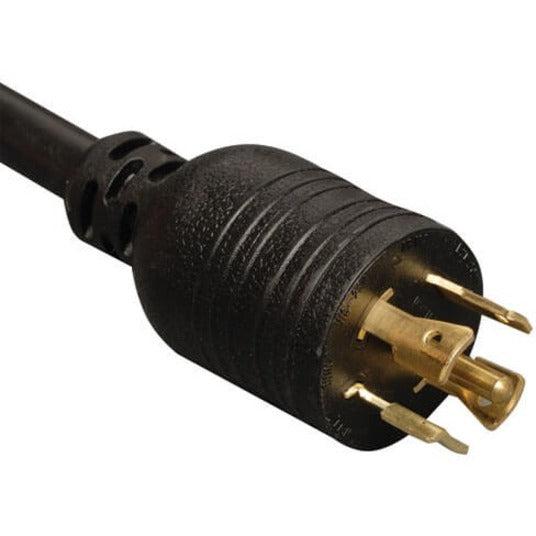

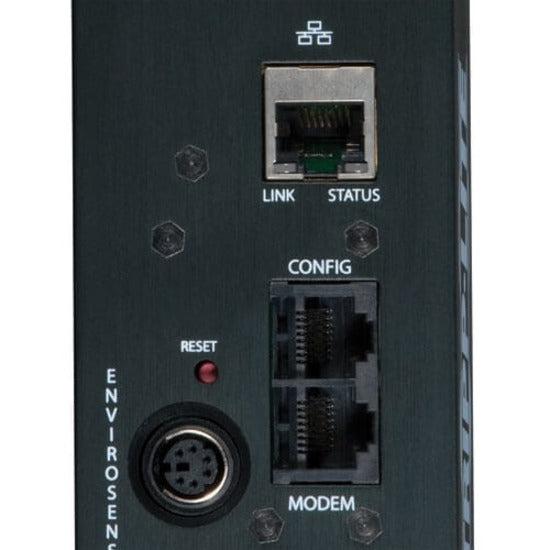

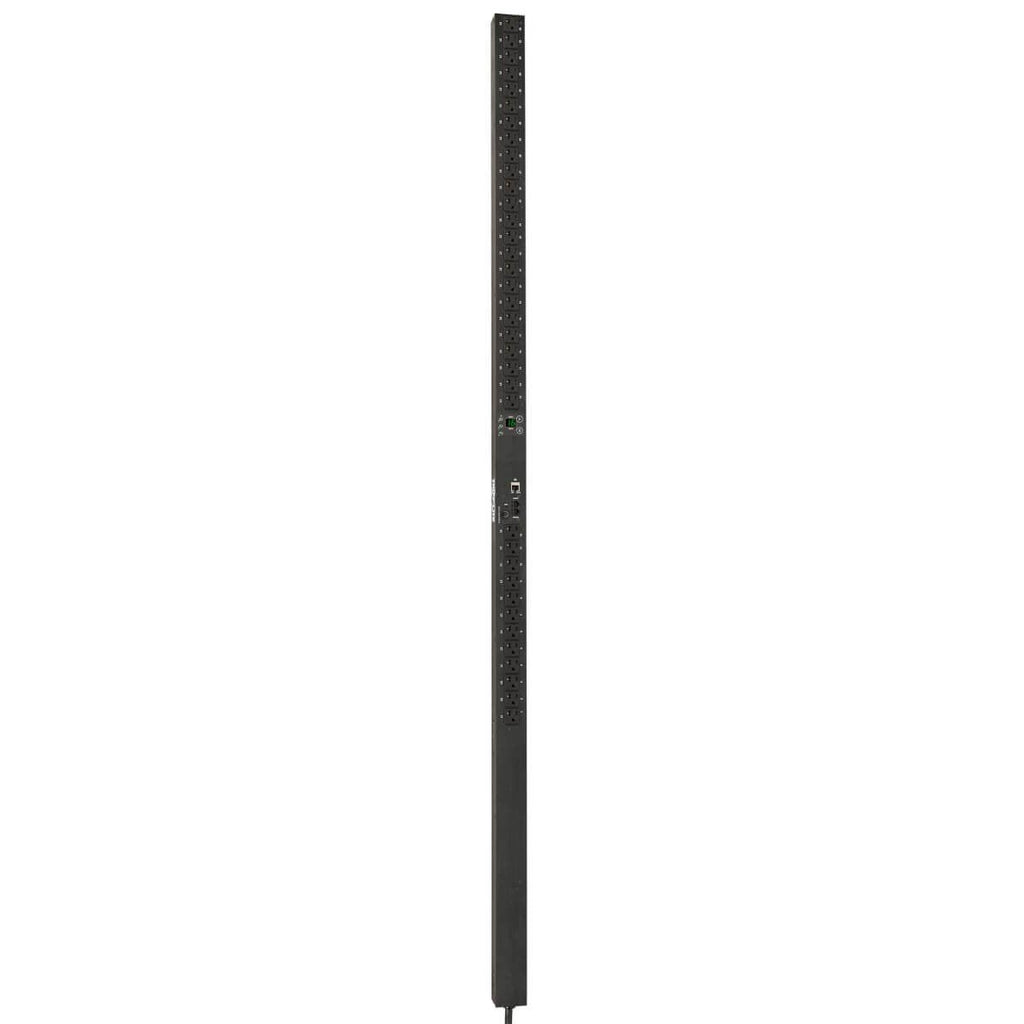

- 5.7kW 3 phase 208V Monitored Power Distribution Unit / PDU with built-in web/network interface - Attached NEMA L21-20P 20A (3P+N+E) 208V 3 phase input plug with 10 ft. / 3m cord - 0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks - 36 total 120V NEMA 5-15/20R outlets arranged in three breakered single phase output load banks - Lighted display with scroll-button reports power consumption in amps for all 3 loading banks, IP-address self-identification and 180 degree display rotation for overhead or raised floor power feeds - Built-in SNMP/ethernet interface reports voltage, frequency and PDU loading per-phase via network or secure web browser interface with options for user specified alarm and notification thresholds - Supports in-rack environmental reporting with optional ENVIROSENSE temperature / humidity sensor and rack access notification with up to 4 optional SRSWITCH door sensors - DHCP/Manual configuration support - 10/100 Mbps auto-sensing allows optimal communication with 10/100 Base-T networks - Real-time clock backup maintains the time of day and date even if the PDU is unpowered - Tiered access privileges allow an administrator and a guest to login via web browser for monitoring - Alert notifications via email or SNMP traps offer immediate event notification - Firmware upgrade ability supports future product enhancements - Supports HTTP, HTTPS, PowerAlert Network Management System, SMTP, SNMPv1, SNMPv2, Telnet, SSH, FTP, DHCP, BOOTP, NTP protocols - Fully compatible with FREE PowerAlert Network Management System / NMS Software - Included cord retention brackets keep vital network equipment plugged in and continuously powered - Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications
