Tripp Lite PDU3MV6H50. PDU types: Metered, Rack capacity: 0U, Mounting: Horizontal/Vertical. AC outlets quantity: 45 AC outlet(s). Cable length: 1.83 m, Certification: UL60950-1 NOM. Nominal input voltage: 208 V, Maximum current: 35 A, Nominal output voltage: 208 V. Width: 55.9 mm, Depth: 67.3 mm, Dimensions (WxDxH): 67 x 56 x 1778 mm

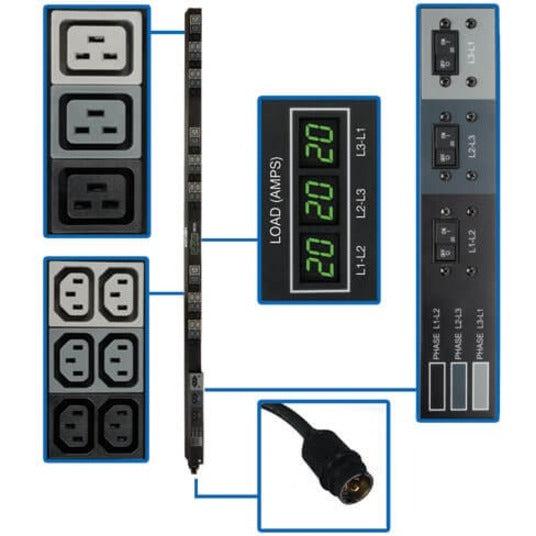

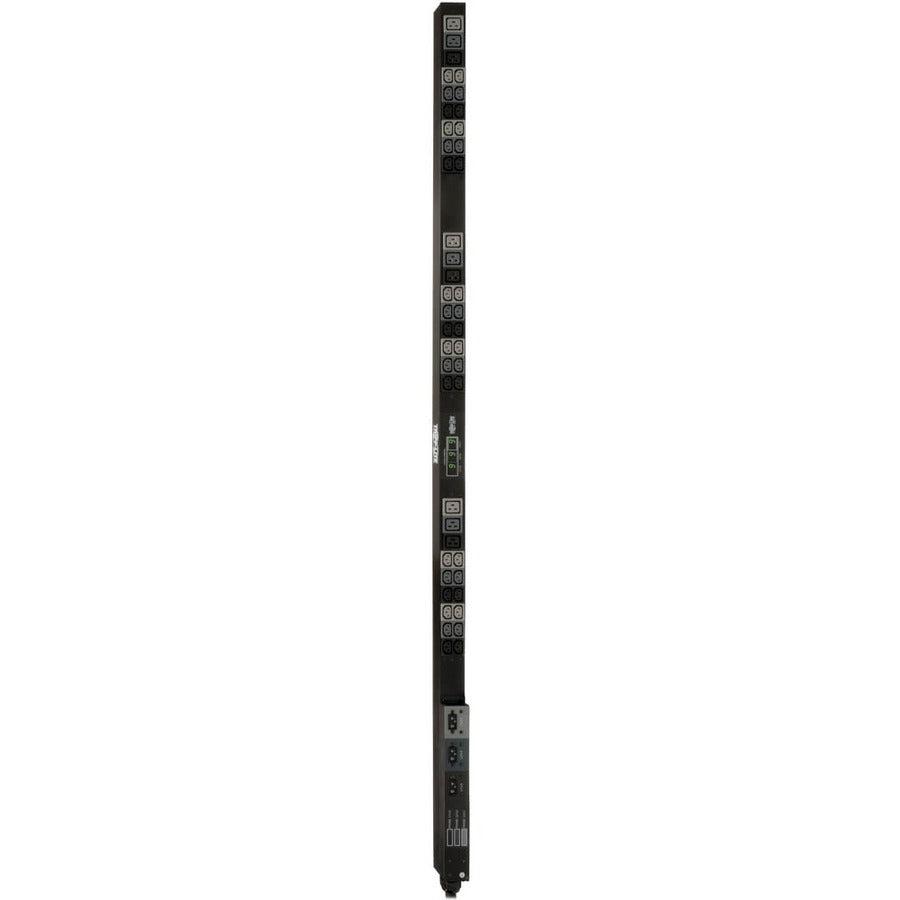

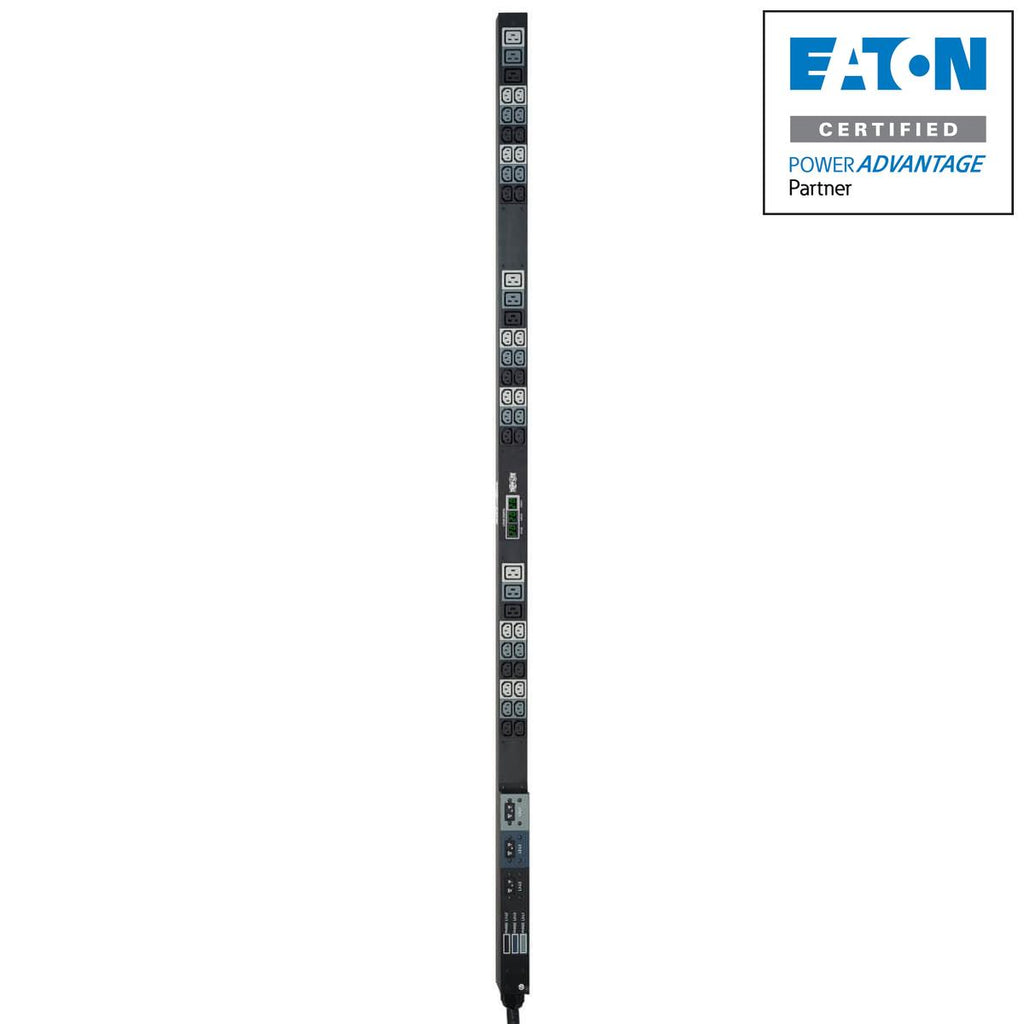

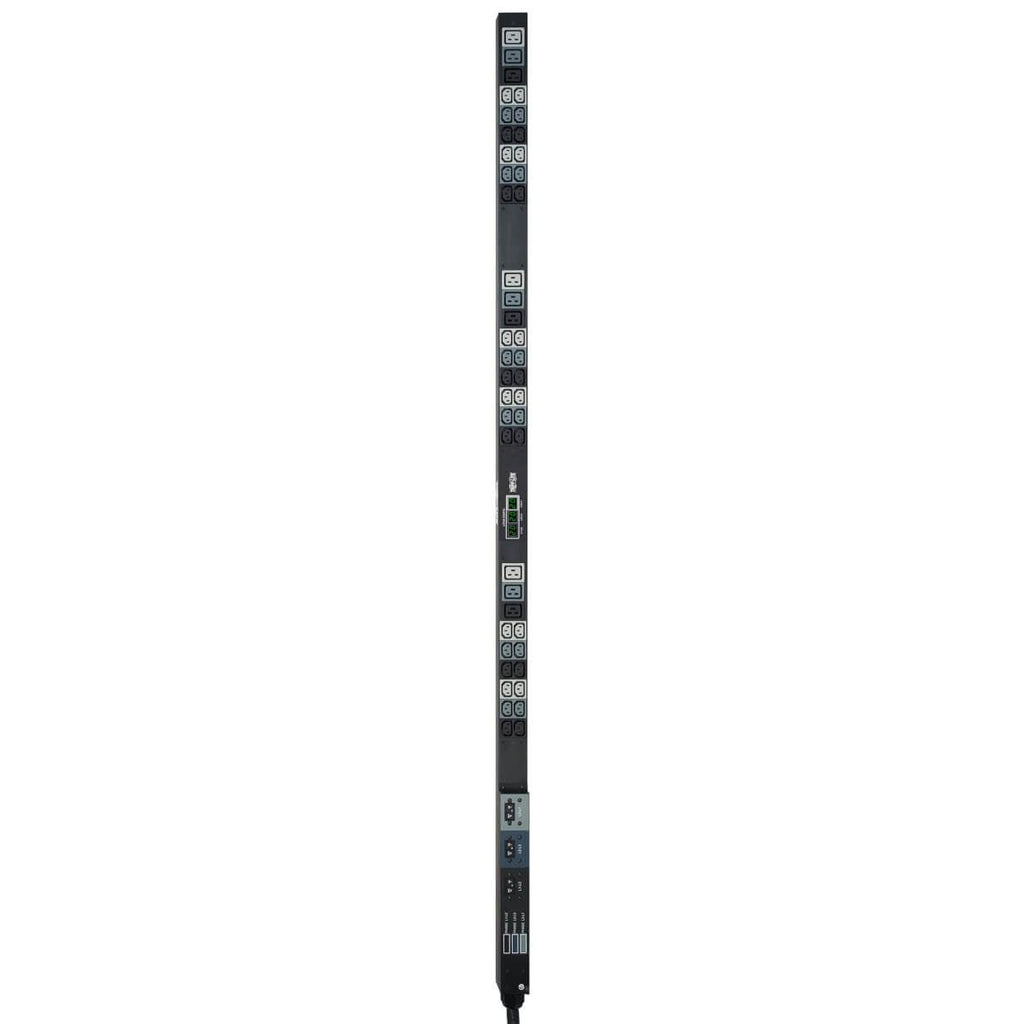

3-Phase Metered PDU, 12.6 kW, 45 208V outlets (36 C13, 9 C19), 6 ft Hubbell CS8365C 50A input connection - Metered 12.6kW 3 Phase 208V PDU; 70 in. / 178cm 0U vertical rackmount - Reports load current per-phase via set of 3 built-in current meters - Hubbell CS8365C 50A (3P+E) 208V 3 phase input; 6 ft. / 1.8m line cord - 45 208V outlets total (36 C13, 9 C19) - Toolless button-mount installation; cord retention brackets included

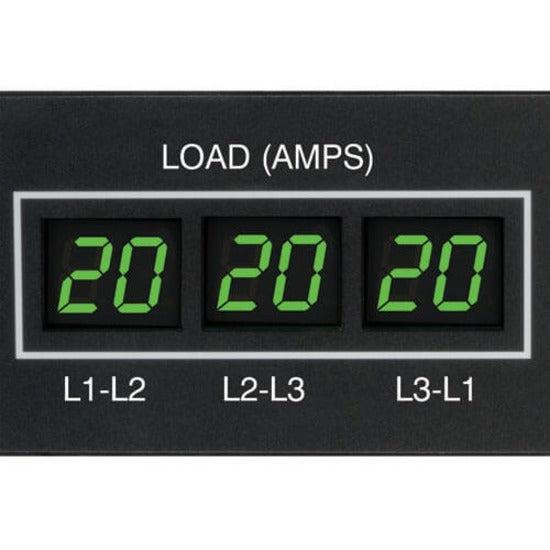

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

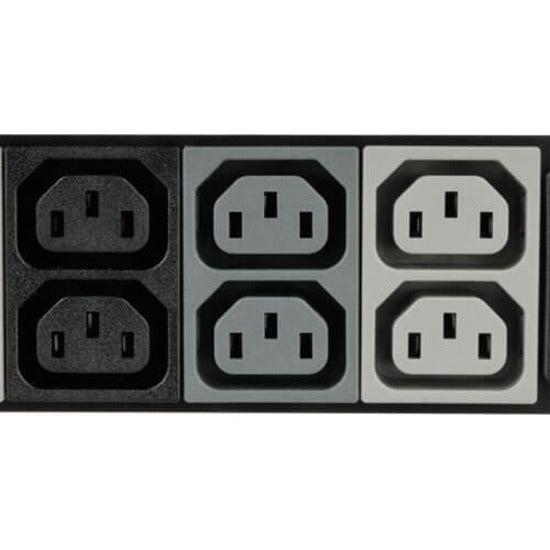

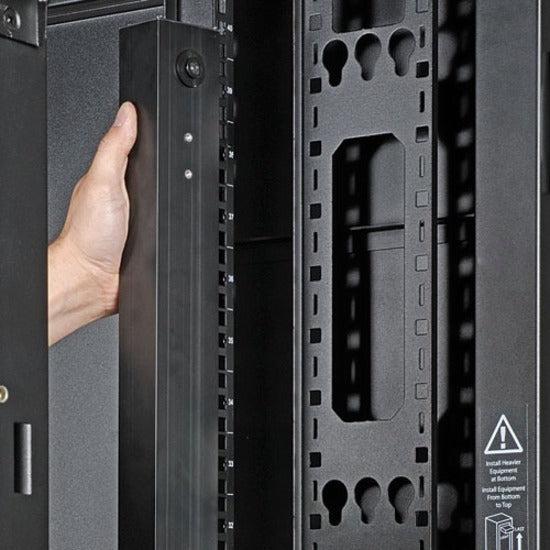

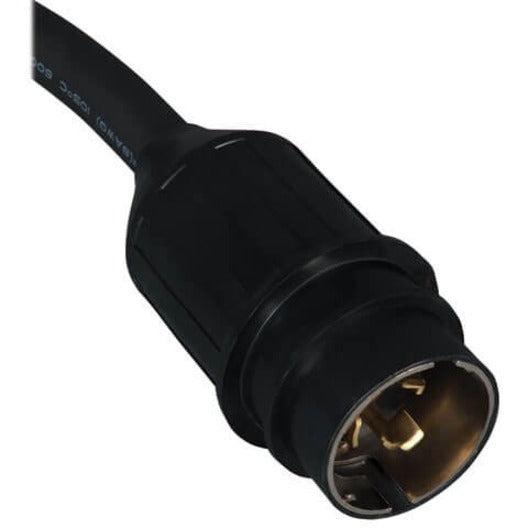

Key Features - 12.6kW 3 phase 208V Metered Power Distribution Unit / PDU - Set of 3 built-in current meters continuously report load current in amps for all 3 output phases - Attached Hubbell CS8365C 50A (3P+E) 208V 3 phase input plug with 6 ft. / 1.8m cord - 0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks - 45 total 208V outlets (36 C13, 9 C19) arranged in three breakered single phase output load banks - Included cord retention brackets keep vital network equipment plugged in and continuously powered - Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications
Typical Applications Ideal for 3 phase network configurations in datacenters and heavily configured equipment racks

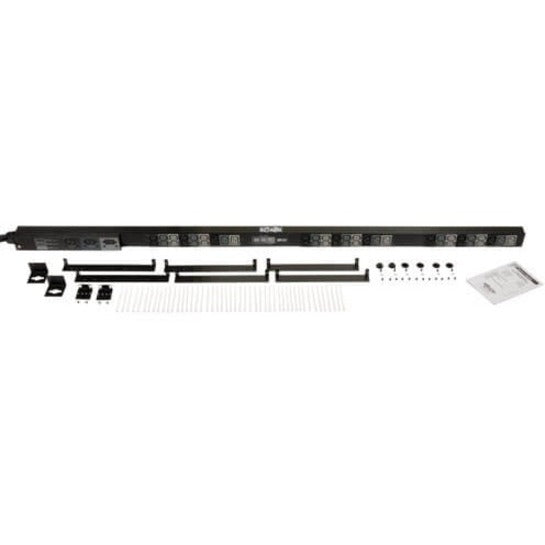

Package Includes - Metered PDU with pre-installed mounting buttons - Cord retention brackets - Rack mounting brackets - Owner's manual
