10kW 3-Phase Monitored PDU, LX Interface, 200/208/240V Outlets (42 C13/6 C19), LCD, NEMA L15-30P, 3m/10 ft. Cord, 0U 1.8m/70 in. Height, TAA
Tripp Lite PDU3EVN10L1530B. PDU types: Monitored, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 48 AC outlet(s), AC outlet types: C13 coupler, Power plug: NEMA L15-30P. Cable length: 3 m. Maximum current: 30 A, Nominal output voltage: 200-240 V. Width: 55.1 mm, Depth: 72.6 mm, Dimensions (WxDxH): 55 x 73 x 1778 mm
The PDU3EVN10L1530B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. These advanced remote capabilities can save you money and reduce downtime.
Recommended for your IT or industrial application, the monitored PDU features 48 outlets—42 C13, 6 C19—with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L15-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

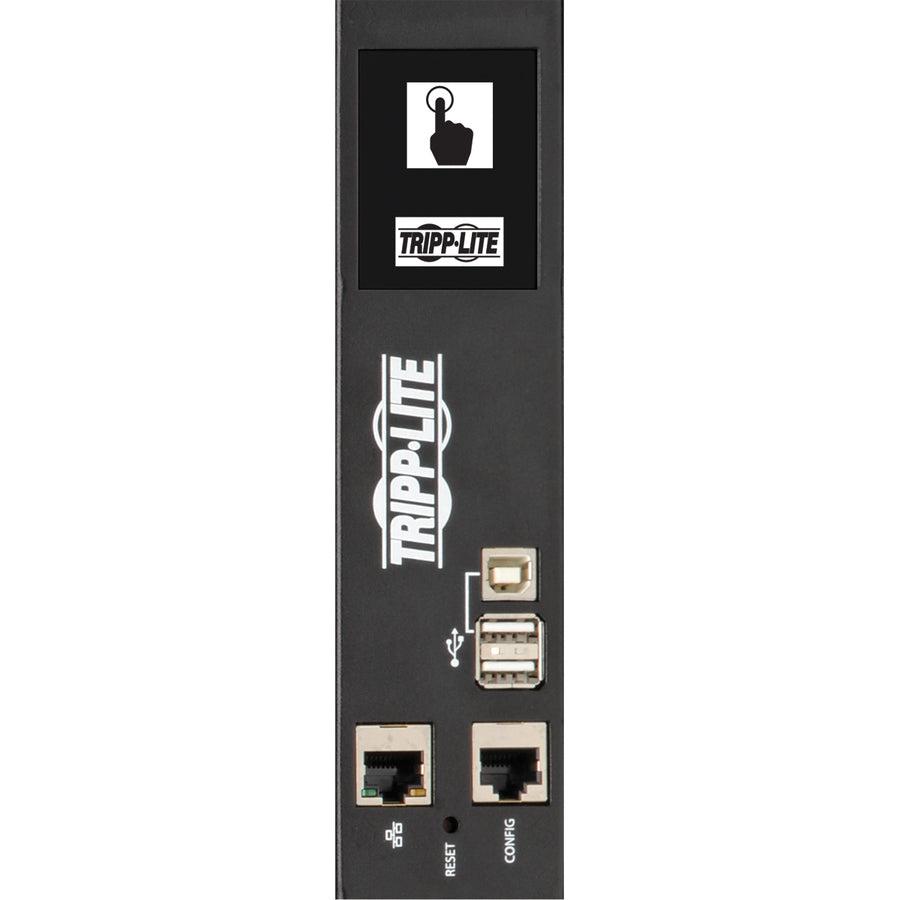

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.
Tripp Lite 3-Phase PDU Monitored 10kW 200/208/240V 42 C13; 6 C19 L15-30P
The PDU3EVN10L1530B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. These advanced remote capabilities can save you money and reduce downtime.
Recommended for your IT or industrial application, the monitored PDU features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L15-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.

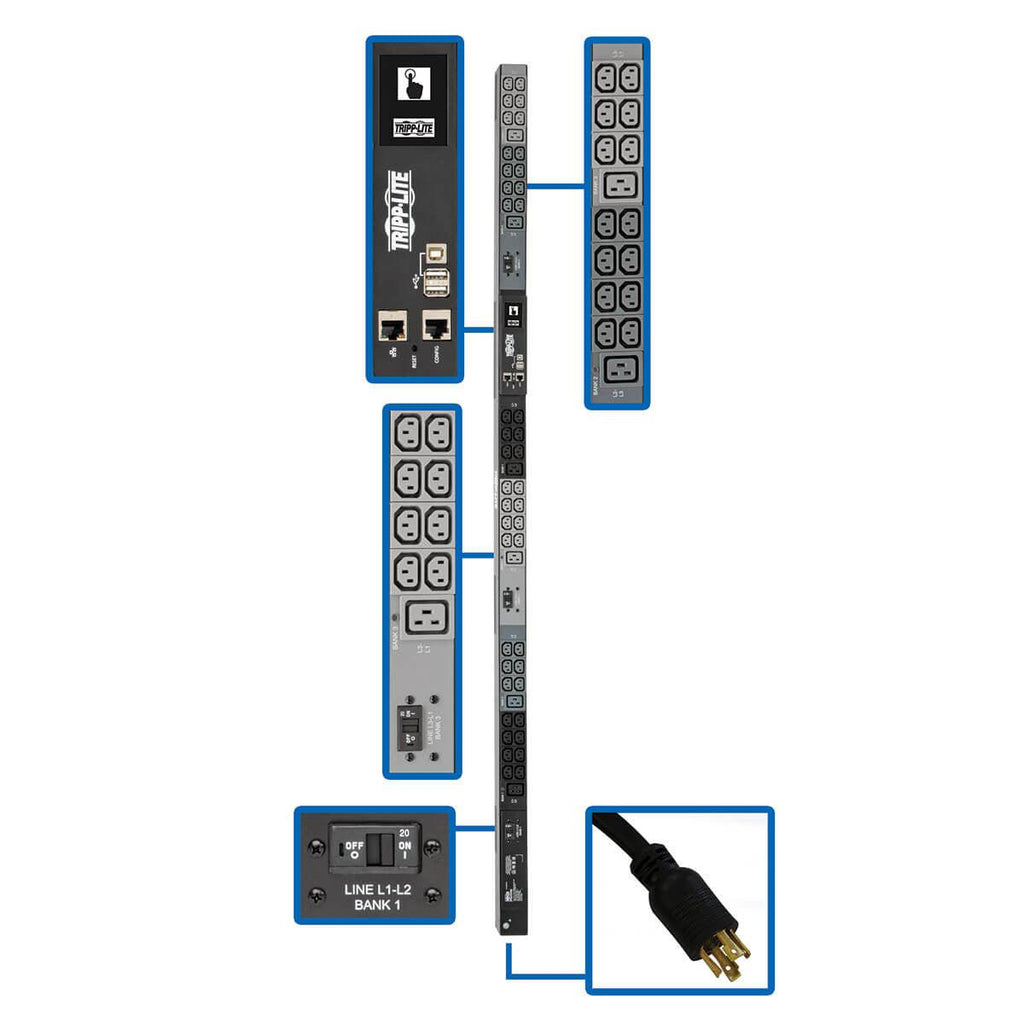

- 10kW 200/208/240V 3-phase 0U monitored PDU

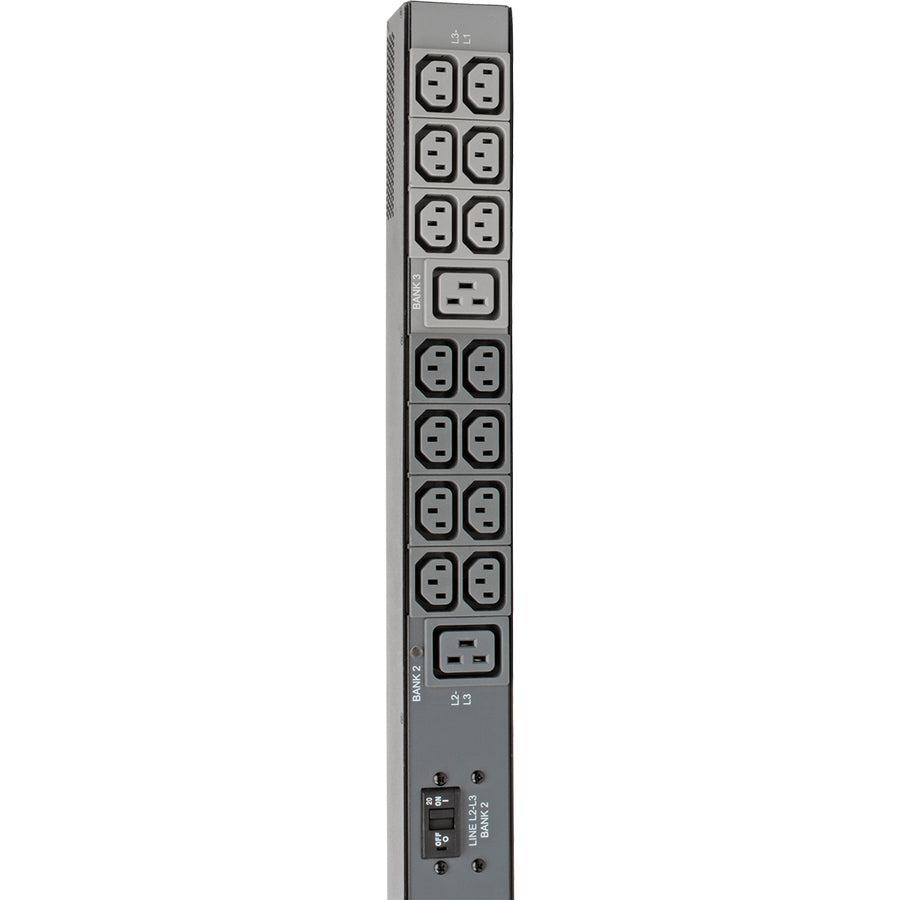

- 48 outlets-42 C13, 6 C19-with plug-lock inserts
- Built-in LX Platform interface for remote access 24/7

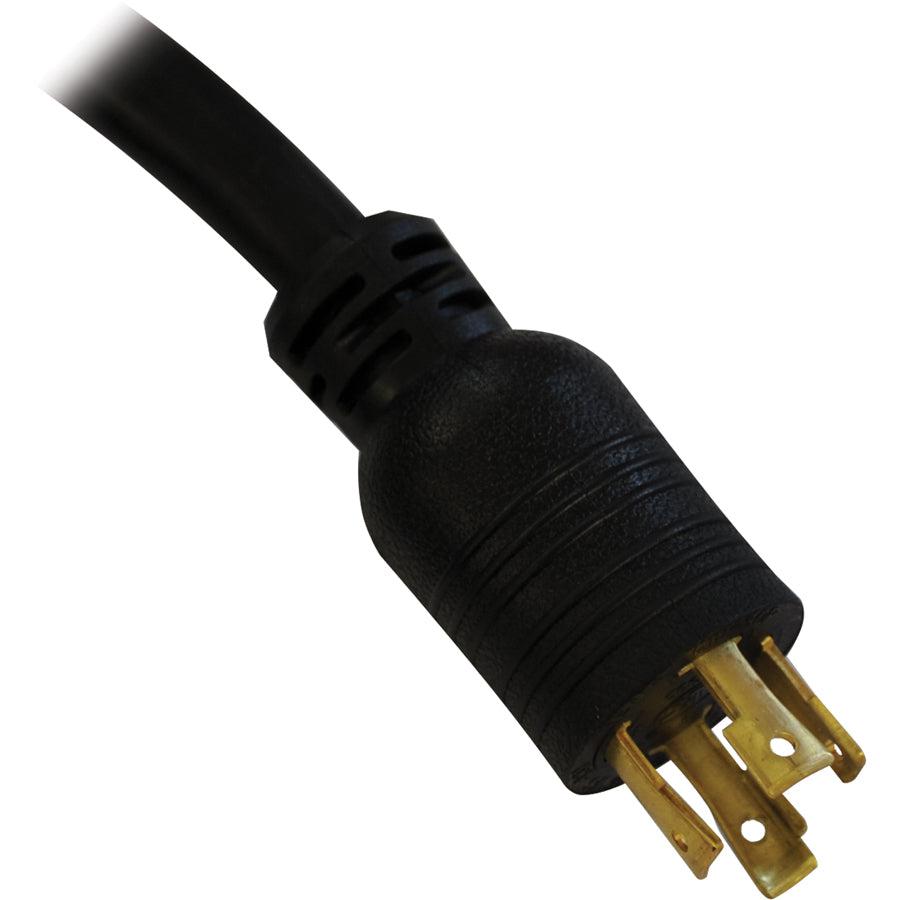

- NEMA L15-30P input with 10 ft. AC power cord
- Touchscreen LCD with mobile access option via QR code
Product Type: PDU
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Mounting Orientation: Vertical
Country Of Origin: Taiwan
Rack Height: 0U
Brand Name: Tripp Lite
Manufacturer: Tripp Lite by Eaton
Product Model: PDU3EVN10l1530B
Product Name: PDU3EVN10l1530B 48-Outlet PDU
Mount Type: Rack-mountable
Manufacturer Part Number: PDU3EVN10l1530B
Manufacturer Website Address: http://www.tripplite.com
Package Contents:
- PDU3EVN10l1530B 48-Outlet PDU
- Built-in LX Platform Interface
- Configuration Cable
- 48 x Plug-lock Insert Sleeves
- Rack-mounting Hardware
- Mounting Bracket Accessory
- Owner's Manual
Limited Warranty: 2 Year
