Tripp Lite Pci-D9-02 2-Port Db9 (Rs-232) Serial Pci Card With 16550 Uart, Full Profile

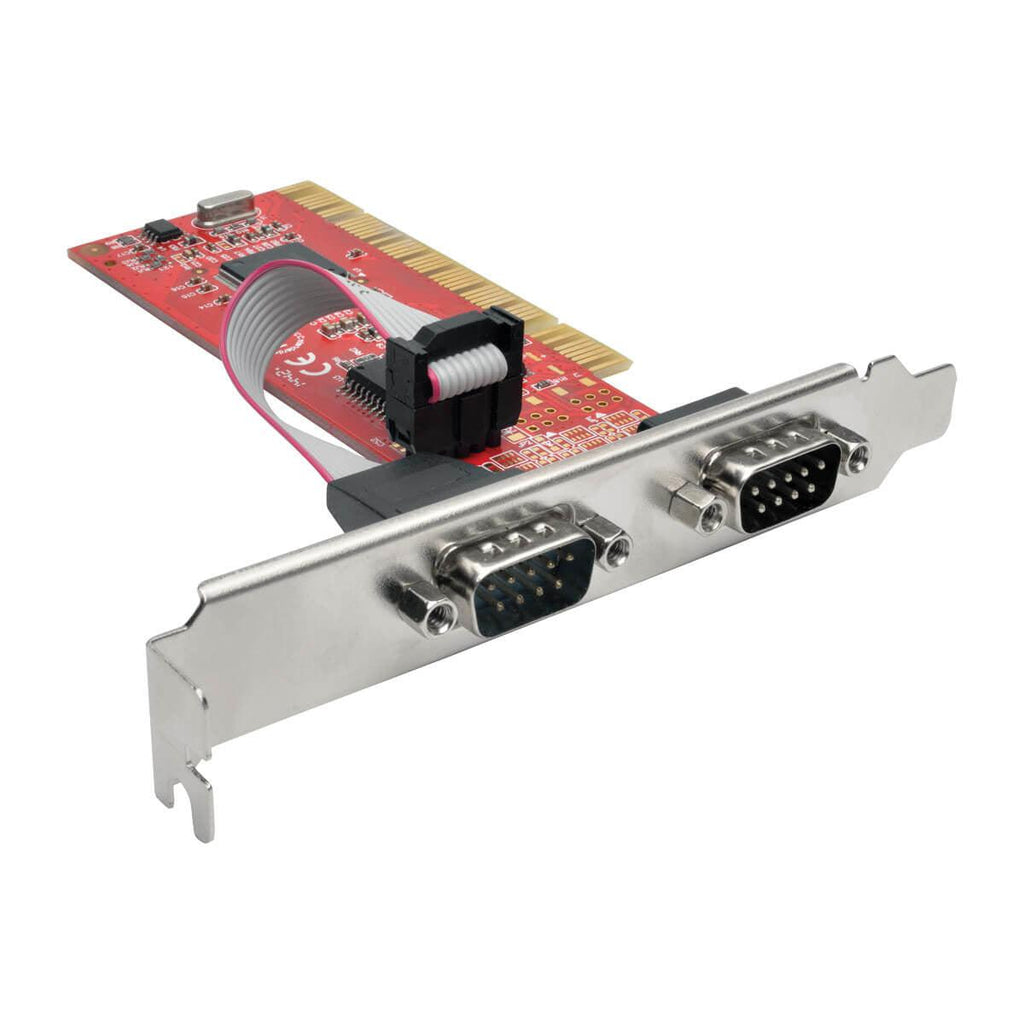

2-Port DB9 (RS-232) Serial PCI Card with 16550 UART, Full Profile

Tripp Lite PCI-D9-02 2-Port DB9 (RS-232) Serial PCI Card with 16550 UART, Full Profile. Host interface: PCI, Expansion card form factor: Full-height, Expansion card standard: PCI 2.3. Product colour: Red, Country of origin: China. FIFO (First In, First Out): 256 B. Package width: 127 mm, Package depth: 147.3 mm, Package height: 25.4 mm. Products per master (outer) case: 10 pc(s), Master (outer) case width: 157.5 mm, Master (outer) case length: 276.9 mm

The PCI-D9-02 2-Port DB9 Serial PCI Card adds two DB9 serial ports to your computer or server. By adding the PCI-D9-02 to a computer with no DB9 ports or not enough of them, you can upgrade your DB9 capability without having to buy a new computer.

Perfect for home or office, the PCI-D9-02 supports data transfer rates up to 115.2 Kbps on each port. It easily installs inside your computer in just a few minutes. The standard bracket’s interface is compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots. Allow the appropriate drivers to automatically install on your hard drive (a driver CD is included if they don’t), and connect DB9 serial extension cables (such as Tripp Lite’s P520-006) to the card’s DB9 connectors.

The PCI-D9-02 is fully compliant with PCI Local Bus Specification Revision 2.3 and compatible with industrial standard 16550 UART. On-chip 256-byte depth FIFO in transmit and receive paths of each port. Supports hardware and software flow control; PCI IRQ sharing and PCI power management; 5-, 6-, 7-, 8- and 9-bit serial formats; Even, Odd, None, Space and Mark parity; and 1- or 2-stop bit operation.

Adds 2 DB9 (RS-232) Serial Ports to Your Computer
Upgrades your DB9 capability without buying a new computer or server
Each port supports data transfer rates up to 115.2 Kbps
Perfect for home or office use

Easy to Install Inside Your Computer
Compatible with universal 3.3V and 5V 32-bit PCI/PCI-X slots
Appropriate drivers install to your hard drive automatically

Loaded with the Latest Features
Complies with PCI Local Bus Specification Revision 2.3
Compatible with industrial standard 16550 UART
On-chip 256-byte depth FIFO in transmit and receive paths of each port
Supports hardware and software flow control
Supports PCI IRQ sharing and PCI power management
Supports 5-, 6-, 7-, 8- and 9-bit serial formats
Supports Even, Odd, None, Space and Mark parity
Supports 1- or 2-stop bit operation
