Description

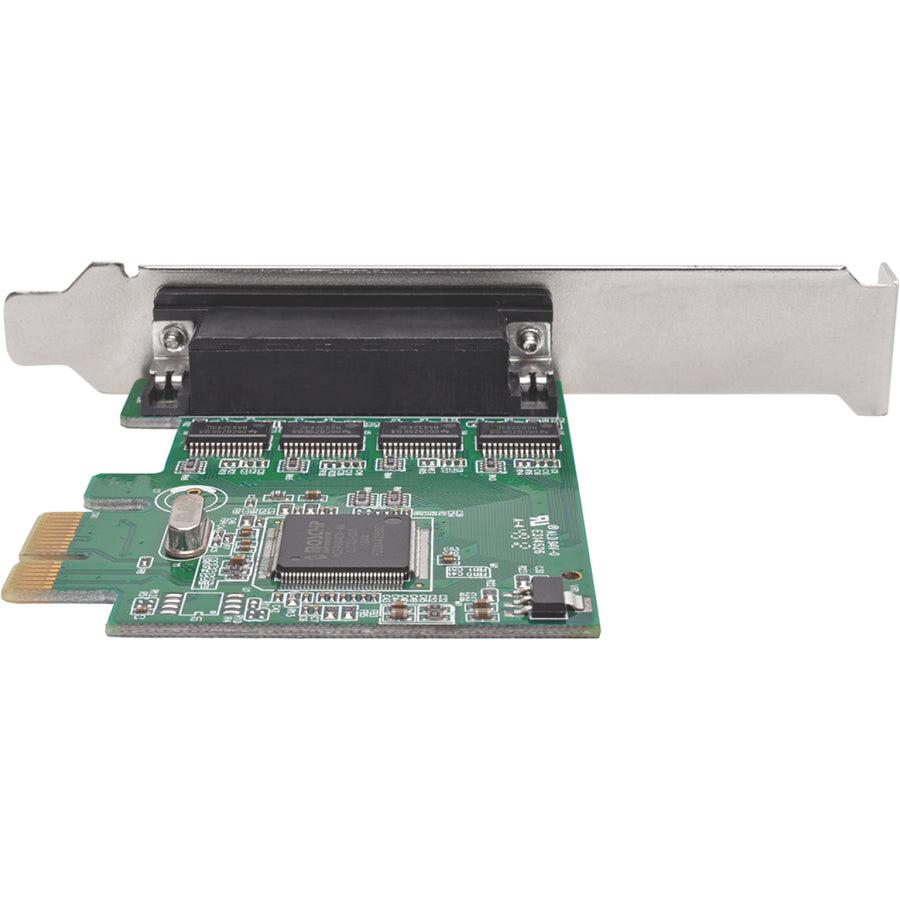

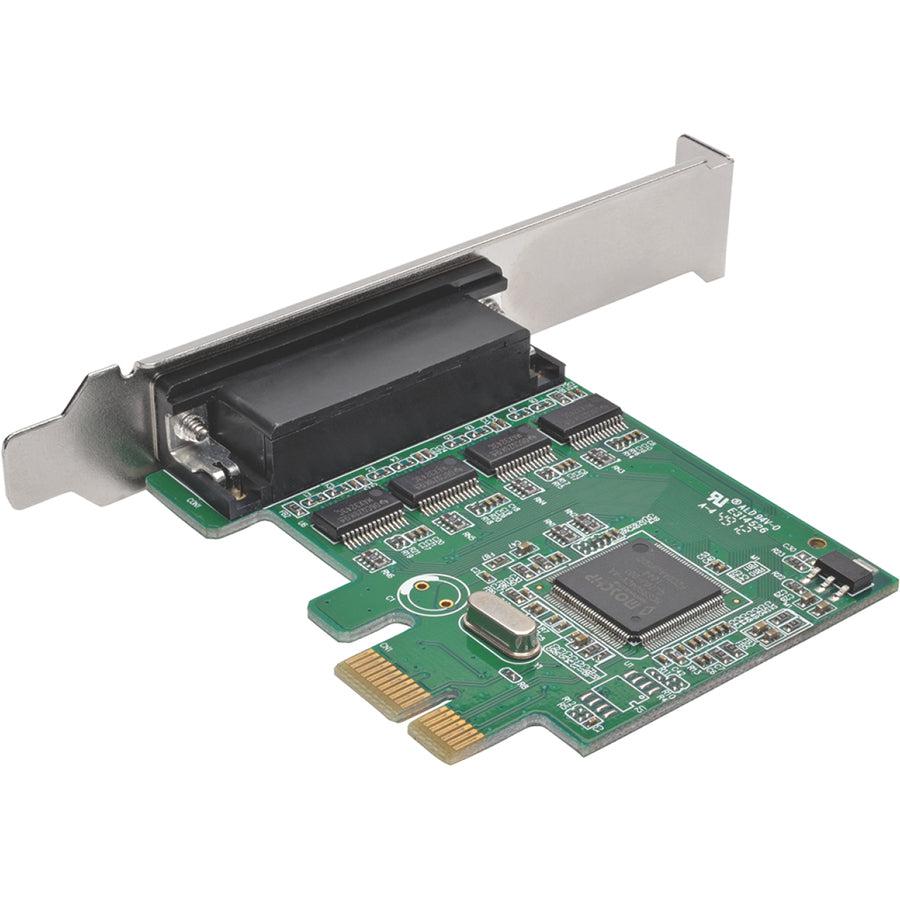

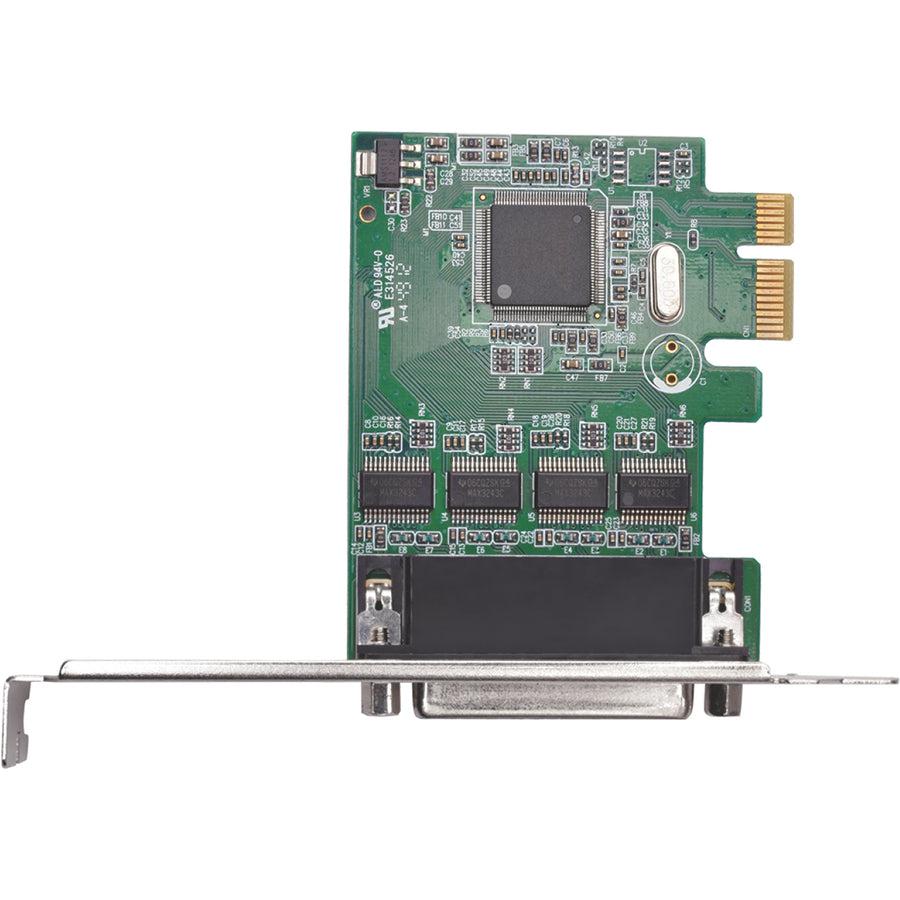

4-Port DB9 (RS-232) Serial PCI Express (PCIe) Card with Breakout Cable, Full Profile
Tripp Lite PCE-D9-04-CBL 4-Port DB9 (RS-232) Serial PCI Express (PCIe) Card with Breakout Cable, Full Profile. Host interface: PCIe, Expansion card form factor: Full-height / Low-profile, Expansion card standard: PCI 1.1. Product colour: Black, Green, Country of origin: China. Data transfer rate (max): 2.5 Gbit/s, Baud rate: 250 Kbit/s. Package width: 137.2 mm, Package depth: 170.2 mm, Package height: 55.9 mm. Products per master (outer) case: 10 pc(s), Master (outer) case width: 315 mm, Master (outer) case length: 355.6 mm
The PCE-D9-04-CBL 4-Port DB9 Serial PCI Express Card adds four DB9 serial ports to your computer or server. By adding the PCE-D9-04-CBL to a computer with no DB9 ports or not enough of them, you can upgrade your DB9 capability without having to buy a new computer. Its single-chip design provides optimum reliability and speed, reducing your CPU’s load from conventional bridge-chip cards and saving you money.
Perfect for home or office, the PCE-D9-04-CBL supports data transfer rates up to 250 Kbps on each port with throughput up to 2.5 Gbps. It easily installs inside your computer in just a few minutes. The standard bracket’s one-lane (x1) interface is compatible with x4, x8 and x16 PCIe slots. Connect the included DB9 breakout cable to the card’s HD44 port, and allow the appropriate drivers to automatically install on your hard drive (a driver CD is included if they don’t).
The PCE-D9-04-CBL is fully compliant with PCI Express Revision 1.1 and compatible with industrial standard 16450/16550 UART. On-chip 256-byte depth FIFO in transmit and receive paths of each port. Supports hardware and software flow control; 5-, 6-, 7- and 8-bit serial formats; Even, Odd, None, Space and Mark parity; 1- or 2-stop bit operation; and re-map function for legacy ports.
Adds 4 DB9 (RS-232) Serial Ports to Your Computer Upgrades your DB9 capability without buying a new computer or server Single-chip design reduces CPU load from conventional bridge-chip cards Each port supports data transfer rates up to 250 Kbps Perfect for home or office use

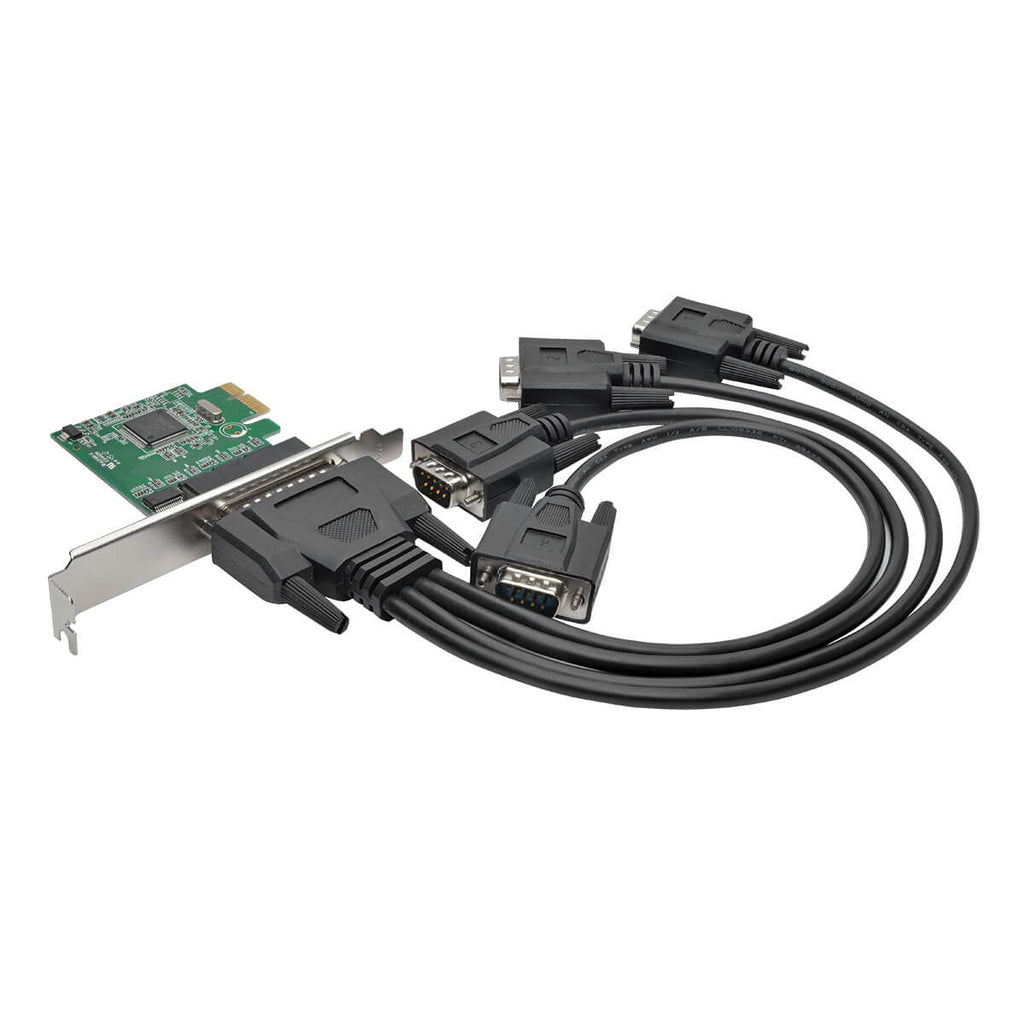

Easy to Install Inside Your Computer 1-lane (x1) interface compatible with x4, x8 and x16 PCIe slots Appropriate drivers install to your hard drive automatically Included breakout cable features 4 DB9 dongles
Loaded with the Latest Features Complies with PCI Express Revision 1.1 Throughput up to 2.5 Gbps Compatible with industrial standard 16450/16550 UART On-chip 256-byte depth FIFO in transmit and receive paths of each port Supports hardware and software flow control Supports 5-, 6-, 7- and 8-bit serial formats Supports Even, Odd, None, Space and Mark parity Supports 1- or 2-stop bit operation Supports re-map function for legacy ports
