DisplayPort Fiber Extender Terminations for MPO Fiber Optic Cable

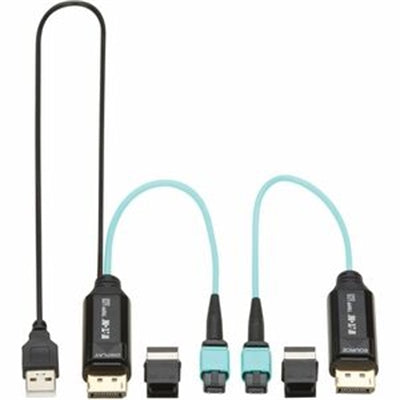

The Tripp Lite P580F-000 is a professional-grade DisplayPort fiber extender designed to transmit Ultra HD 8K video signals over extended distances without signal degradation. This termination kit extends your video source up to 328 feet (100 meters) using OM3 multimode fiber optic cable, making it ideal for applications where traditional copper cabling falls short. With support for 8K 60 Hz resolution and bandwidths up to 32.4 Gbps, this fiber extender delivers pristine image quality for demanding environments including data centers, medical imaging systems, stereoscopic 3D photography, military surveillance, and security installations.
Key Features
- Extends DisplayPort video signals up to 328 ft (100 m) over OM3 multimode fiber
- Supports 8K 60 Hz resolution with 32.4 Gbps bandwidth capacity
- Compatible with 4K 120 Hz video transmission for high-refresh applications
- Includes MPO fiber adapters and DisplayPort extender terminations
- LSZH (Low Smoke Zero Halogen) cable jacket for safety compliance
- Ideal for data centers, medical imaging, surveillance, and 3D imaging systems
- Works with N844A-Series multimode OM3 MPO fiber cables (sold separately)
- Professional-grade construction for mission-critical installations
Technical Specifications
| Specification |
Details |
| Manufacturer |
Tripp Lite |
| Part Number |
P580F-000 |
| Video Resolution Support |
8K 60 Hz, 4K 120 Hz |
| Bandwidth |
32.4 Gbps |
| Maximum Distance |
328 feet (100 meters) |
| Fiber Type |
OM3 Multimode |
| Connector Type |
DisplayPort with MPO Fiber Adapters |
| Cable Jacket |
LSZH (Low Smoke Zero Halogen) |
| Compatible Cables |
N844A-Series MPO Fiber Cables |
| Applications |
Data Centers, Medical Imaging, Military Surveillance, Security Systems |
Frequently Asked Questions
What is a DisplayPort fiber extender and why would I need one?
A DisplayPort fiber extender transmits video signals over fiber optic cables instead of traditional copper, allowing you to extend video sources much farther without quality loss. This is essential in data centers, medical facilities, and surveillance systems where displays must be located far from video sources.
How far can the P580F-000 extend DisplayPort signals?
The Tripp Lite P580F-000 can extend DisplayPort video signals up to 328 feet (100 meters) using OM3 multimode fiber optic cable, far exceeding the distance limitations of standard copper DisplayPort cables.
Does this fiber extender support 8K video resolution?
Yes, the P580F-000 fully supports 8K 60 Hz video with 32.4 Gbps bandwidth, as well as 4K at 120 Hz, making it suitable for ultra-high-definition applications in medical imaging, surveillance, and professional visualization systems.
What fiber cable do I need to use with this DisplayPort extender?
The P580F-000 is compatible with N844A-Series multimode OM3 MPO fiber cables, which must be purchased separately. OM3 fiber is specifically designed for high-bandwidth video transmission over extended distances.
