VGA with Audio to HDMI Converter with Scaler function
Tripp Lite P116-000-HDSC1 VGA with Audio to HDMI Converter with Scaler function. Product colour: White. Maximum video resolution: 1920 x 1440 pixels, Supported video modes: 720p,1080p, Colour depth: 24 bit. Host interface: VGA (D-Sub) + 3.5 mm (1/8"), Output interface: HDMI. Input voltage: 100 - 240 V, Input frequency: 50/60 Hz, Operating current: 0.5 A. Width: 55.9 mm, Depth: 58.4 mm, Height: 22.9 mm
The P116-000-HDSC1 VGA with Audio to HDMI Converter/Scaler saves you money on costly computer upgrades by converting and upscaling a VGA video signal for viewing on an HDMI display. The built-in scaler upgrades the VGA input signal, allowing you to display 720p or 1080p high-definition video in your home audio/video setups, media presentations or digital signage using your tried-and-true analog source equipment. The unit is ready to use right from the box with no software or drivers required.
Connect the unit’s female VGA video and 3.5 mm mini-stereo audio ports to your computer and the female HDMI port to your HDMI projector, monitor or television. The unit automatically upscales the video signal to 720p. Toggle the display to 1080p by pressing the button on the unit. In addition to high-definition video resolutions up to 1080p, the P116-000-HDSC1 supports computer input video resolutions up to 1920 x 1440 (@ 60 Hz), which are scaled to 720p or 1080p on the display. It also supports HDMI bandwidth of 165 MHz (1.65 Gbps per channel) and 24-bit True Color (8 bits per channel).
Built-In Scaler Converts and Upscales from VGA to HDMI Ideal for home audio/video setups, media presentations and digital signs Automatically upscales video to 720p Toggle between 720p and 1080p with button on unit Supports computer input video resolutions up to 1920 x 1440 (@ 60 Hz) and scales to 720p or 1080p Supports HDMI bandwidth of 165 MHz (1.65 Gbps per channel) and 24-bit True Color (8 bits per channel)
Plug-and-Play Convenience Ready to use right from the box—no software or drivers required Connects easily to source’s VGA and 3.5 mm mini-stereo ports and display’s HDMI port Eliminates the need for costly equipment upgrades Includes an International power supply with compatible North American, UK, European and Australian plug adapters
General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
P116-000-HDSC1
Manufacturer Website Address
https://tripplite.eaton.com/
Brand Name
Tripp Lite by Eaton
Product Model
P116-000-HDSC1
Product Name
VGA with Audio to HDMI Converter/Scaler
Product Type
Signal Converter
UPC
037332188335
Product Color
White
Height
0.8"
Width
2.2"
Depth
2.4"
Weight (Approximate)
13.44 oz
Miscellaneous
Package Contents
VGA with Audio to HDMI Converter/Scaler

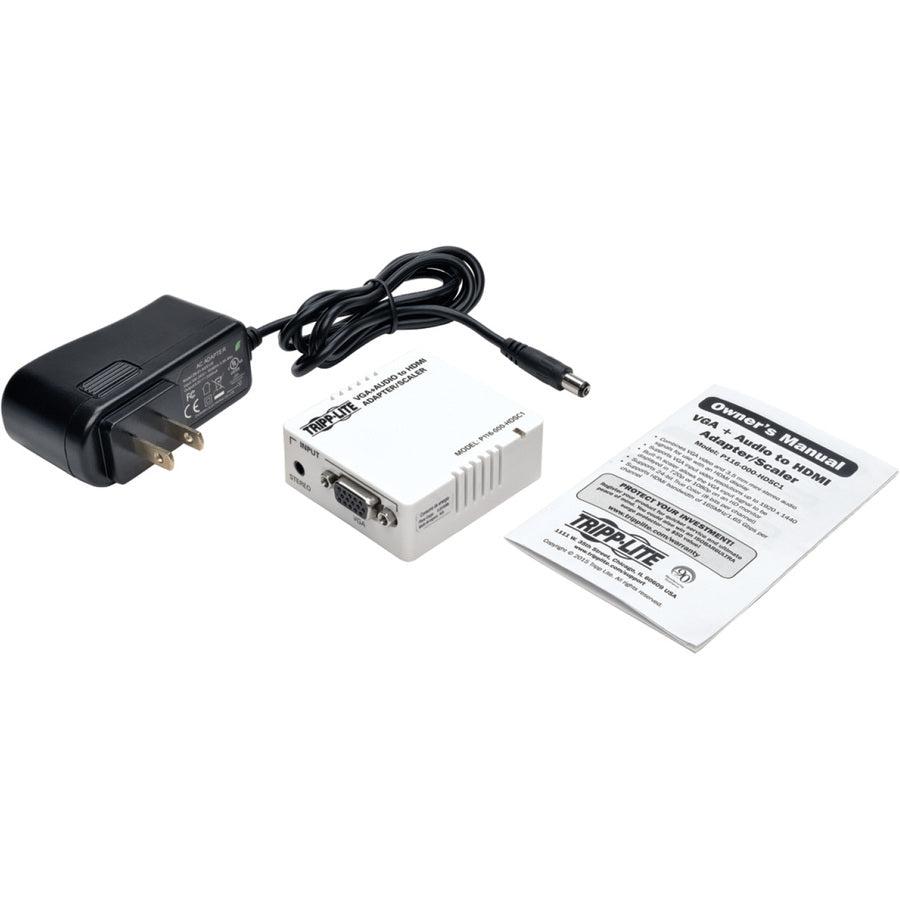

External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A), 4 ft.
