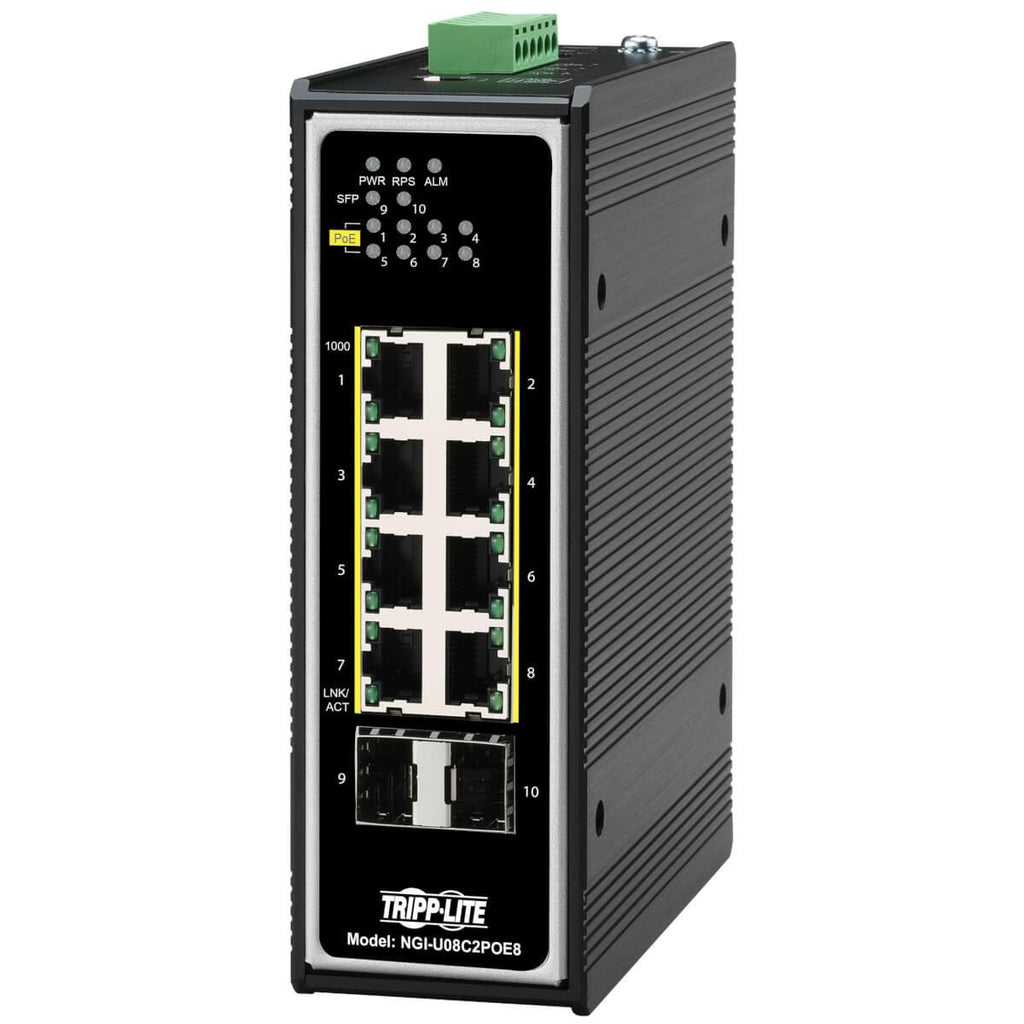

This 8-port industrial network switch is perfect for factory automation engineers, system integrators, and industrial IT professionals who need reliable networking in harsh environments. Our Tripp Lite NGI-U08C2POE8 delivers:
-
Industrial-grade gigabit connectivity for high-speed data transmission in demanding environments
-
Unmanaged switch simplicity with plug-and-play operation requiring no configuration
-
PoE+ power delivery up to 30W per port for powering IP cameras and wireless access points
-

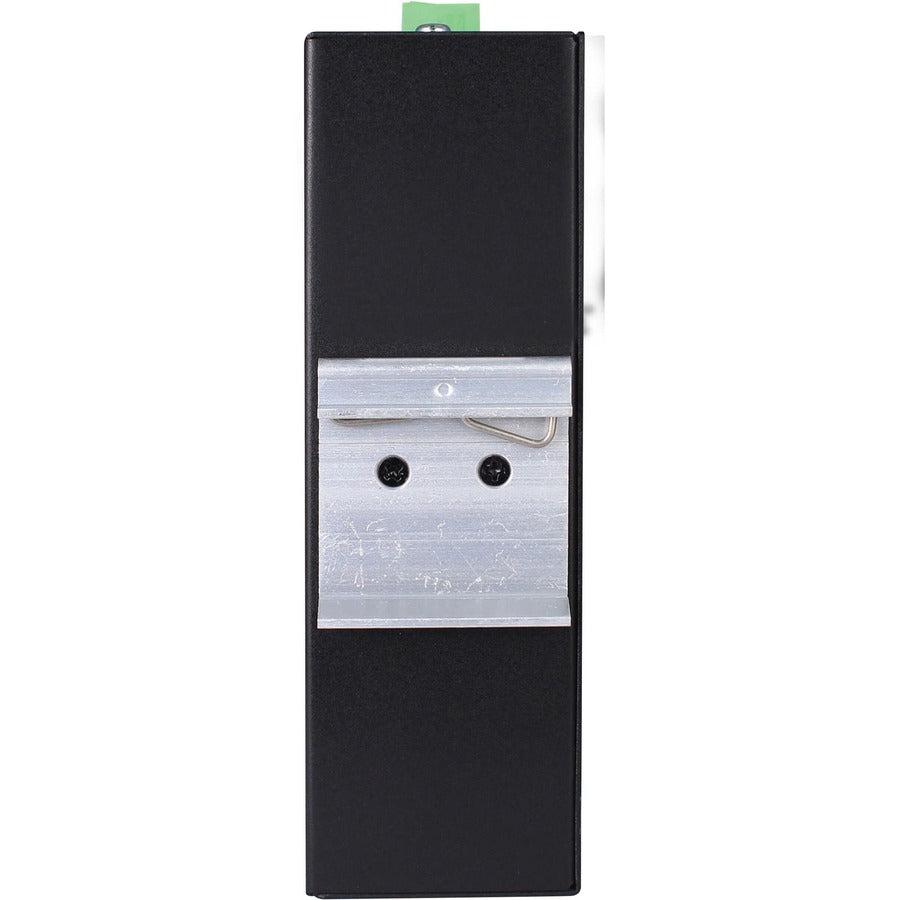

DIN mount design for easy installation in control cabinets and industrial enclosures
Key Features
-

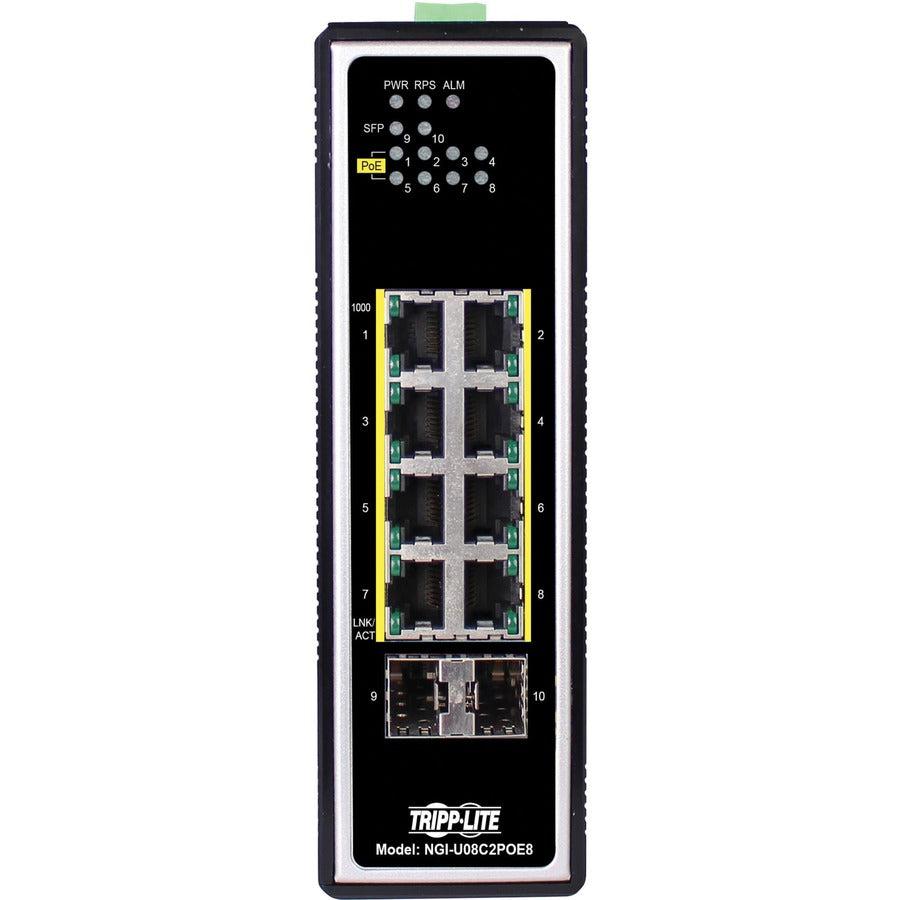

8 Gigabit Ethernet ports with auto-negotiation and auto-MDI/MDIX
-
6 PoE+ ports delivering up to 30W per port for high-power devices
- Ruggedized industrial-grade construction for harsh environment operation
-
DIN rail mounting for secure installation in industrial panels
-
2 SFP fiber ports for long-distance connectivity and network redundancy
- Wide operating temperature range for industrial automation applications
-
Unmanaged operation with no configuration required
Technical Specifications
| Manufacturer |
Tripp Lite by Eaton |
| Model Number |
NGI-U08C2POE8 |
| Type |
8-Port Industrial Gigabit Unmanaged PoE+ Switch |
| Port Configuration |
6 x Gigabit PoE+ ports + 2 x SFP fiber ports |
| PoE Power Budget |
180W total, 30W per port PoE+ capability
|
| Operating Temperature |
-40°C to +75°C for industrial environments
|
| Mounting |
DIN rail mount with included mounting hardware |
| Switch Type |
Unmanaged switch with plug-and-play operation |
| Certifications |
FCC, CE, UL, cUL for industrial compliance |
| Compatible Systems |
Industrial automation, factory networks, security systems |
Frequently Asked Questions
Q: What makes this switch suitable for industrial applications compared to standard network switches?
A: This industrial network switch features ruggedized construction, extended operating temperature range (-40°C to +75°C), and DIN rail mounting, making it ideal for factory floors, outdoor installations, and harsh environments where standard switches would fail.
Q: How much power can this PoE+ switch deliver to connected devices?
A: The switch provides 30W PoE+ per port with a total power budget of 180W, sufficient to power high-demand devices like PTZ IP cameras, industrial wireless access points, and VoIP phones simultaneously.
Q: Does this unmanaged switch require any configuration or setup?
A: No, this unmanaged switch offers true plug-and-play operation with auto-negotiation, auto-MDI/MDIX, and automatic learning of MAC addresses, making installation simple and requiring no technical configuration.
Q: What are the benefits of the SFP fiber ports on this industrial switch?
A: The 2 SFP fiber ports enable long-distance connectivity up to several kilometers, provide immunity to electromagnetic interference common in industrial environments, and allow for network redundancy and uplink connections to core infrastructure.
