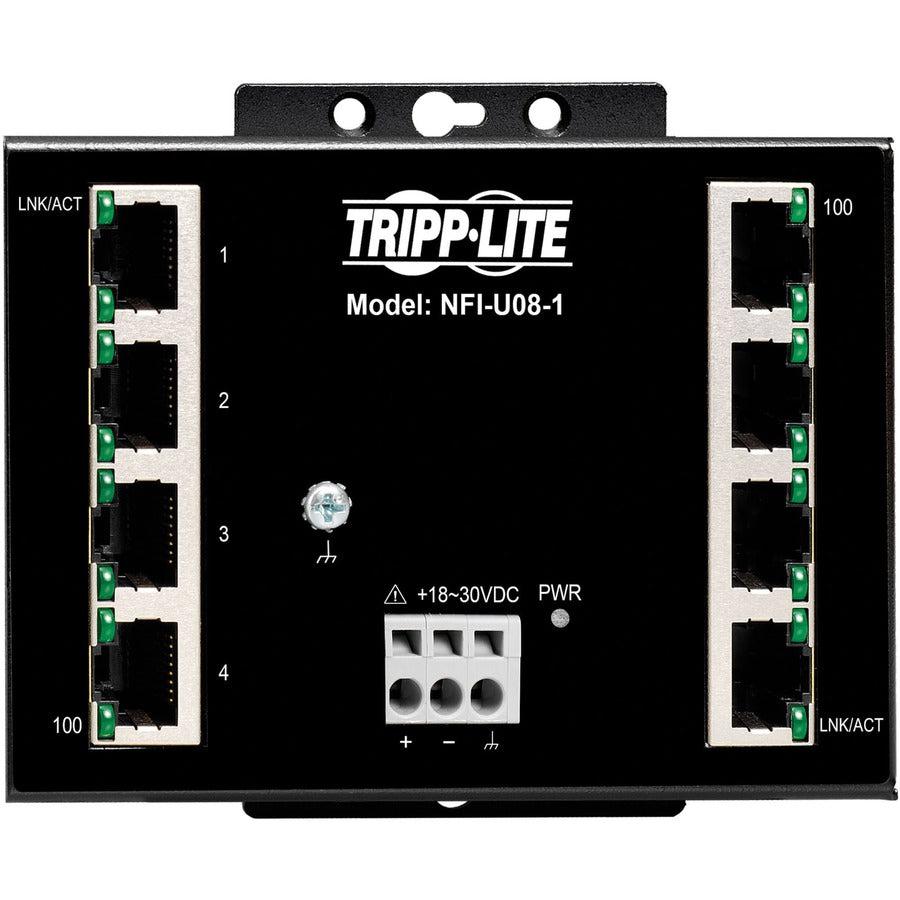

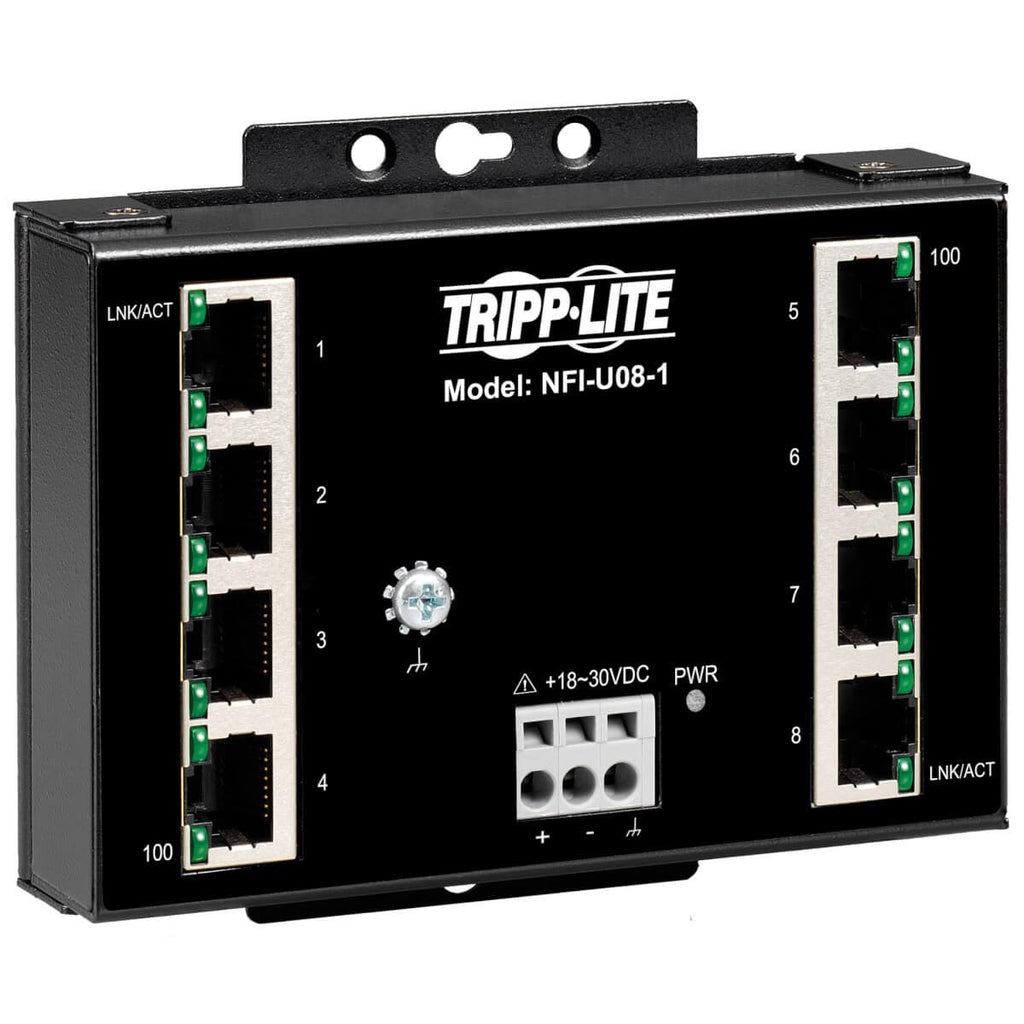

This industrial ethernet switch is designed for deployment in harsh industrial settings such as factory floors and warehouses where reliable network connectivity with minimal management needs is crucial. It is ideal for engineers and IT managers looking for an easy-to-deploy solution with unmanaged functionality for seamless integration into existing industrial networks.
- Plug and play operational simplicity with unmanaged configuration.
- Robust and ruggedized design suitable for extreme working conditions, ensuring performance stability across operating temperatures from -40°C to 75°C.
- 8 auto-negotiable 10/100 Mbps RJ45 ports, enhancing connectivity.

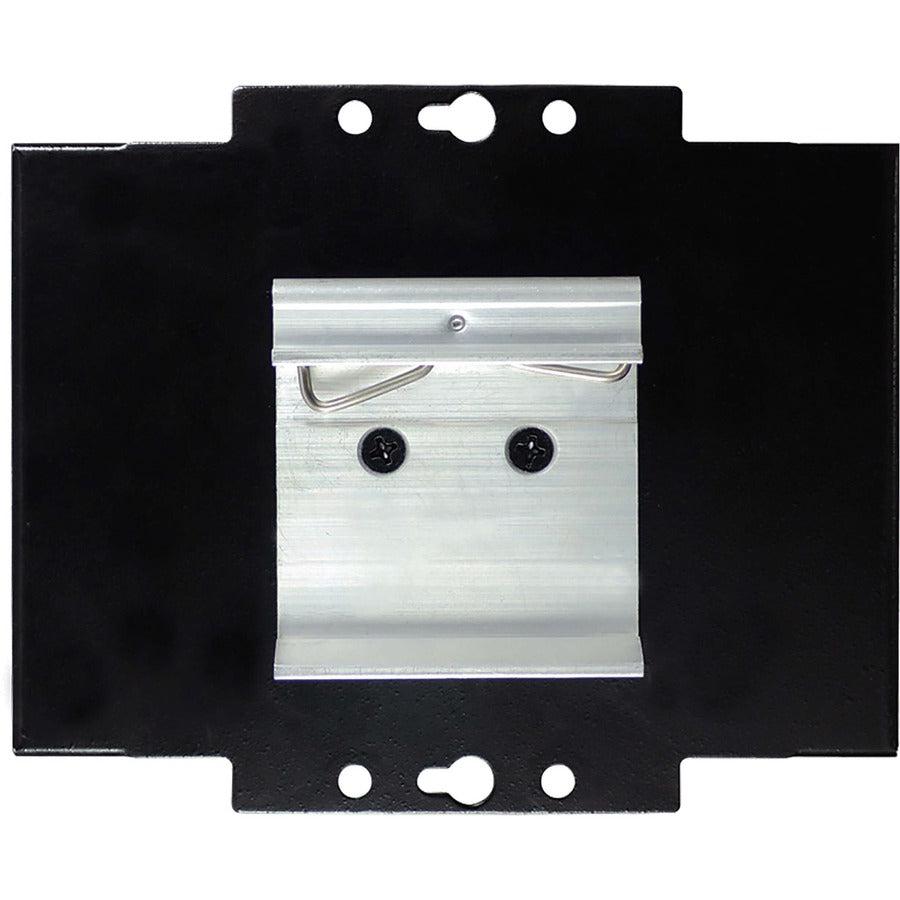

- Versatile mounting options with DIN rail or wall mount capabilities.
- Supports MAC address auto-learning and auto-aging for efficient network routing.
- Low power consumption of 4 watts
Technical Specifications
| Manufacturer |
Tripp Lite by Eaton |
| Part Number |
NFI-U08-1 |
| Ports |
8 x 10/100 Mbps RJ45 |
| Operating Temperature |
-40°C to 75°C |
| Power Consumption |
4 watts typical |
| Mounting Options |
DIN Rail and Wall Mount |
| Switch Type |
Unmanaged |
| Housing |
Ruggedized Metal |
Frequently Asked Questions
Q: Does this switch require configuration software?
A: No, it does not. This is an unmanaged switch designed for plug-and-play functionality.
Q: Can this switch operate in outdoor conditions?
A: Yes, it is built to contend with harsh environments and can operate in temperature ranges from -40°C to 75°C, suitable for installation outdoors where conditions dictate.
Q: What are the mounting options for this switch?
A: The switch supports both DIN rail and wall mounting options for flexible installation.
8-Port industrial ethernet switch, unmanaged, 10/100 Ethernet, DIN mount.
