This industrial ethernet switch is perfect for factory automation engineers and industrial network administrators who need ruggedized network connectivity in harsh environments. Our 5-port DIN mountable solution delivers:
-
Unmanaged ethernet switch operation for plug-and-play simplicity
-
DIN mountable design for secure industrial installations
-
Industrial-grade durability with wide operating temperature range
-
Factory automation ready connectivity for reliable network expansion
Key Features
-

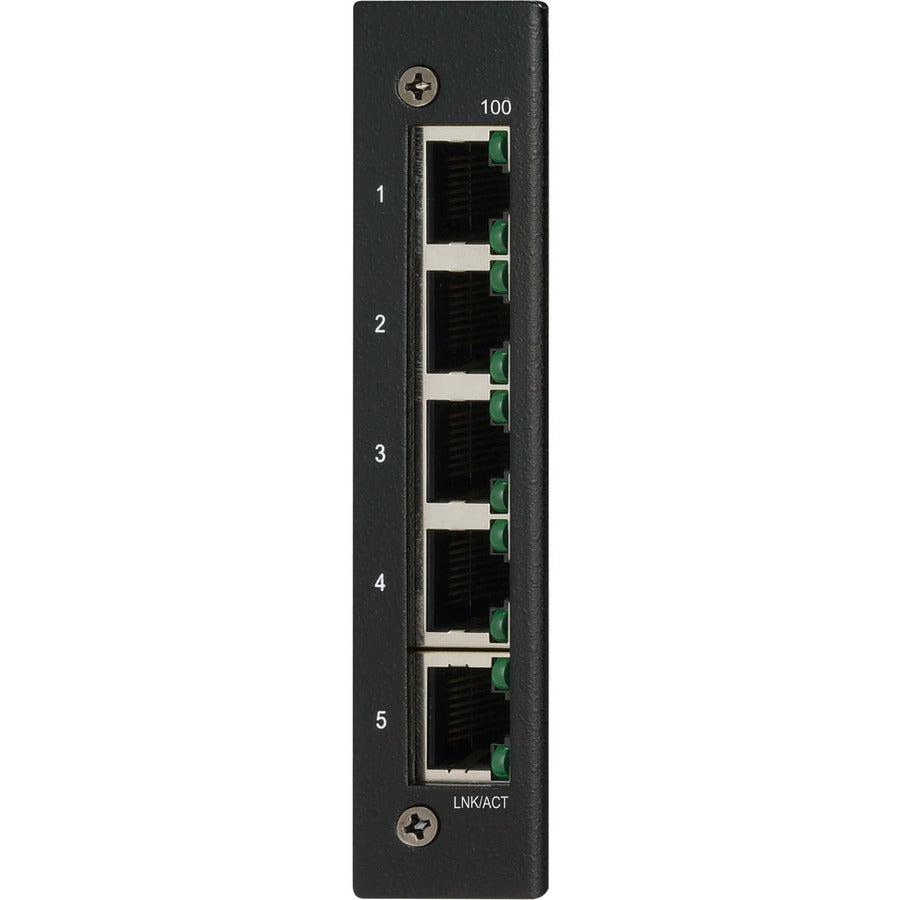

5 auto-negotiable ports supporting 10/100 Mbps speeds
-
Industrial-grade ruggedized metal housing construction
-

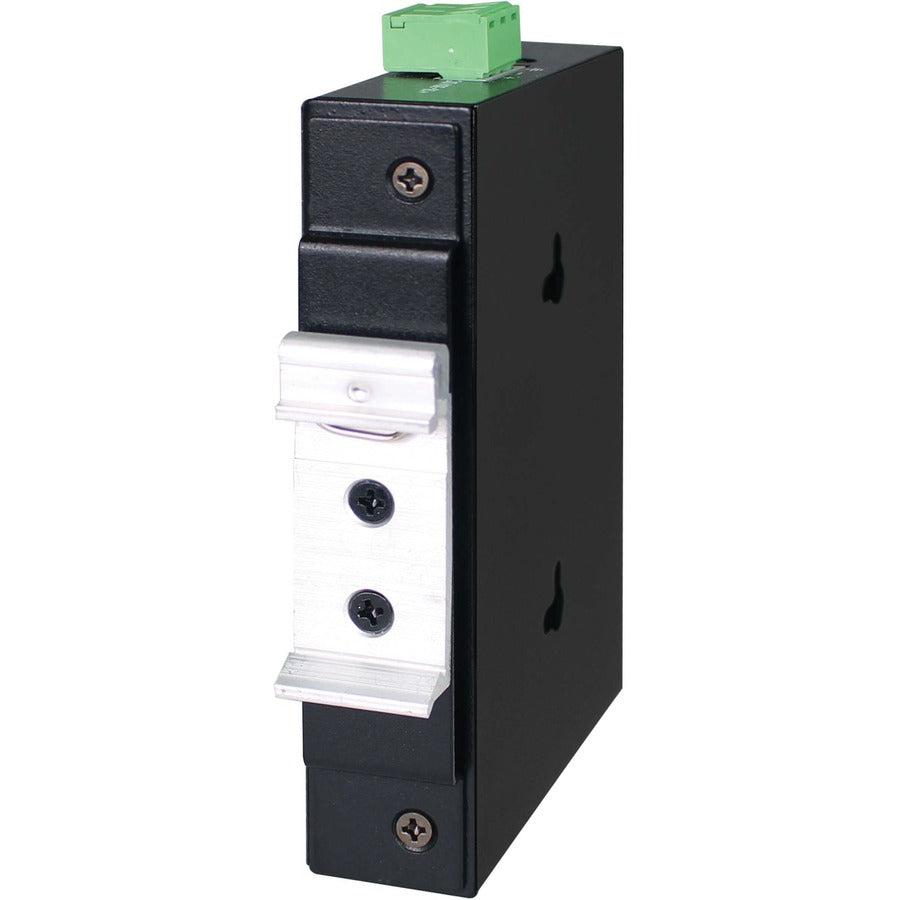

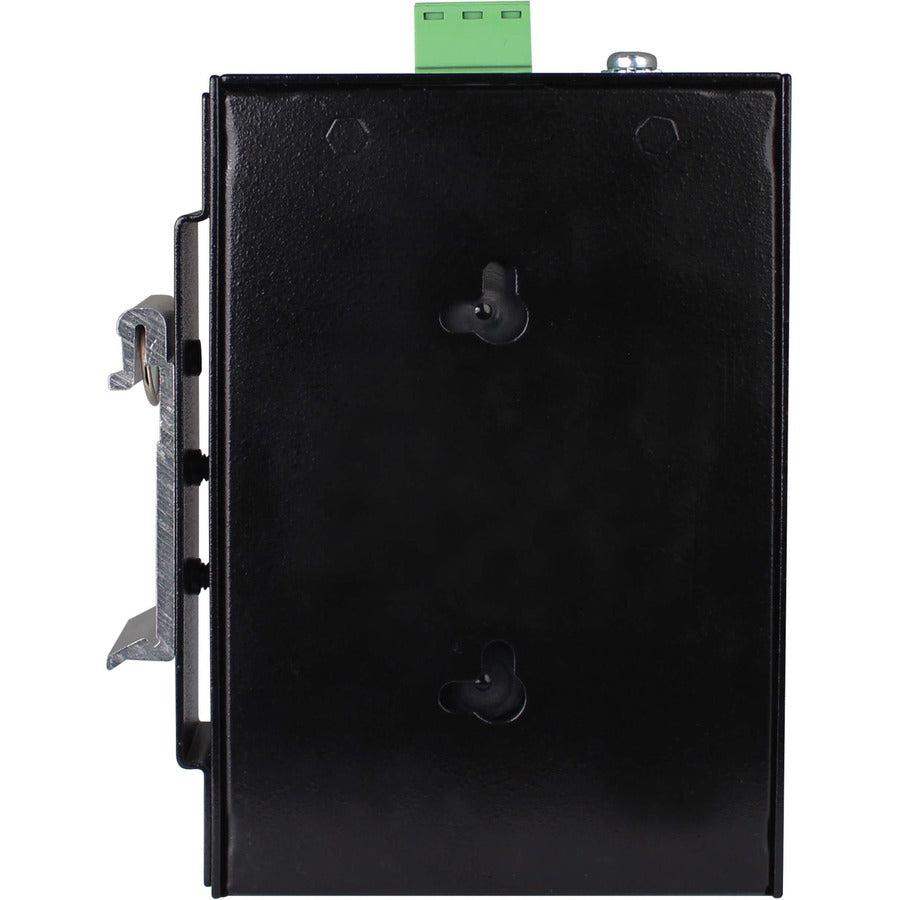

DIN rail mounting and wall mount installation options
-
Wide temperature operation from -40°C to 75°C
-
Plug-and-play operation with no configuration required
-
Energy efficient design with 3W typical power consumption
-
Auto-learning MAC address table with aging support
Technical Specifications
| Manufacturer |
Tripp Lite by Eaton |
| Model Number |

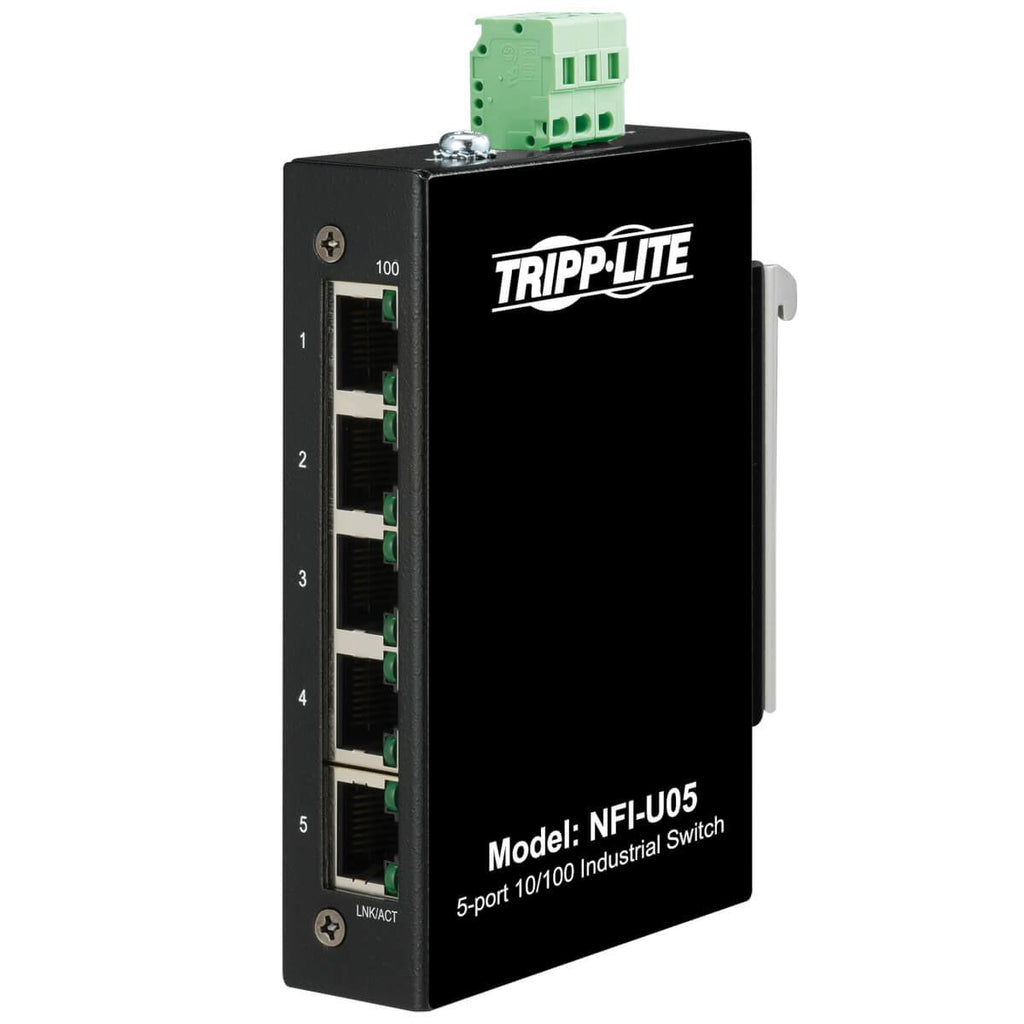

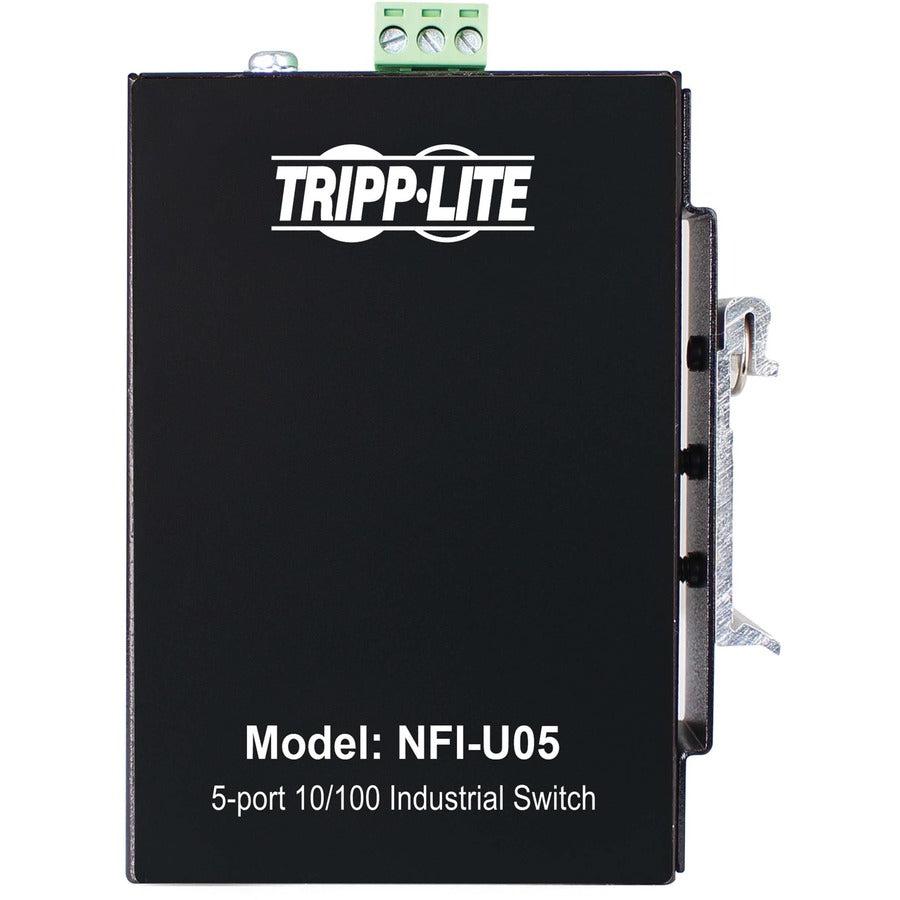

NFI-U05 |
| Type |
Unmanaged Industrial Ethernet Switch |
| Port Configuration |
5 x 10/100 Mbps RJ45 auto-negotiable ports |
| Operating Temperature |
-40°C to 75°C (-40°F to 167°F) |
| Power Consumption |
3W typical |
| Mounting Options |
DIN rail mount and wall mount |
| Housing |
Ruggedized metal construction |
| MAC Address Table |
Auto-learning/auto-aging support |
Frequently Asked Questions
Q: Does this industrial ethernet switch require configuration software?
A: No, this is a completely unmanaged ethernet switch with plug-and-play operation. Simply connect your devices and power on for immediate network connectivity.
Q: Can this switch operate in outdoor industrial environments?
A: Yes, it's engineered for harsh industrial conditions with ruggedized construction and operates reliably from -40°C to 75°C, making it ideal for outdoor factory automation applications.
Q: What mounting options are available for this DIN mountable switch?
A: This industrial-grade ethernet switch supports both DIN rail mounting for standard industrial panels and wall mounting for flexible installation — perfect for space-constrained factory environments.
Q: Is this switch suitable for factory automation networks?
A: Absolutely. This ruggedized network switch is specifically designed for industrial environments including factory floors, warehouses, and automation systems requiring reliable connectivity in challenging conditions.
Industrial ethernet switch 5 port DIN mountable for factory automation. Unmanaged ruggedized design with wide temperature operation and plug-and-play setup.
