Tripp Lite Netdirector 8-Port 1U Rack-Mount Console Kvm Switch With 19-In. Lcd + 8 Ps2/Usb Combo Cables

NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables

Tripp Lite NetDirector 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD + 8 PS2/USB Combo Cables. Display diagonal: 48.3 cm (19"), Display resolution: 1280 x 1024 pixels, Display: LCD. Interface: PS2. Certification: UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, UL, cUL, CE, FCC. Power consumption (typical): 29.1 W, AC adapter input voltage: 100 - 250 V, AC adapter frequency: 50 Hz. Dimensions (WxDxH): 431 x 685 x 44 mm

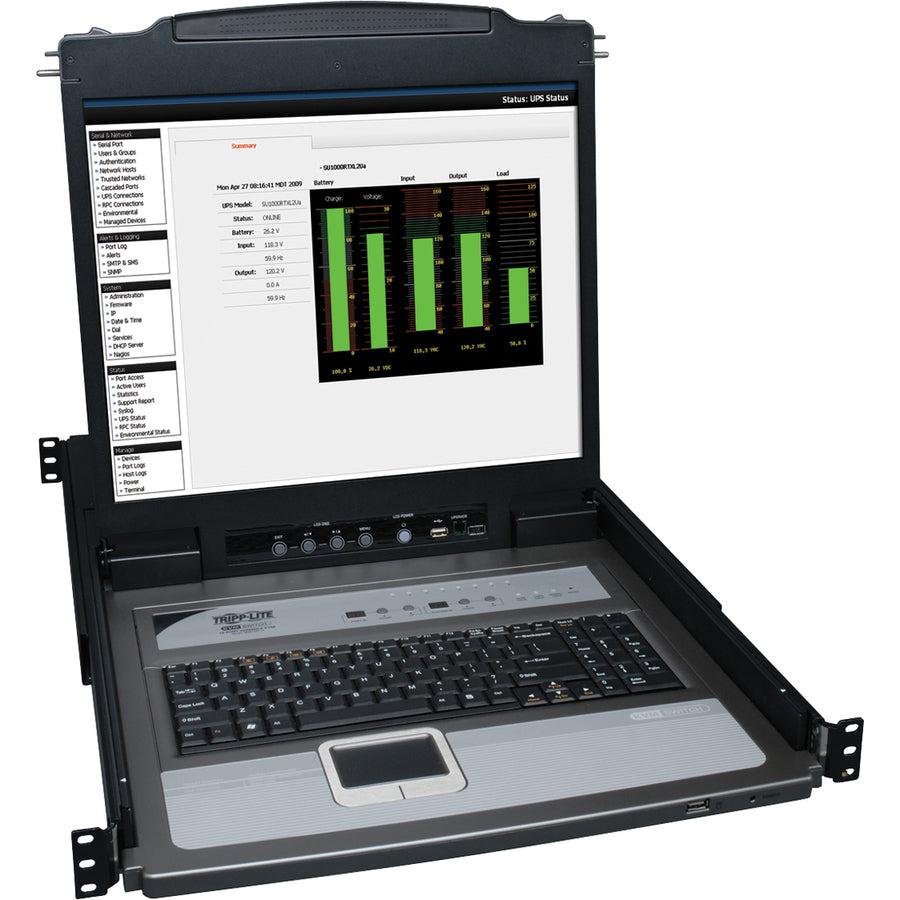

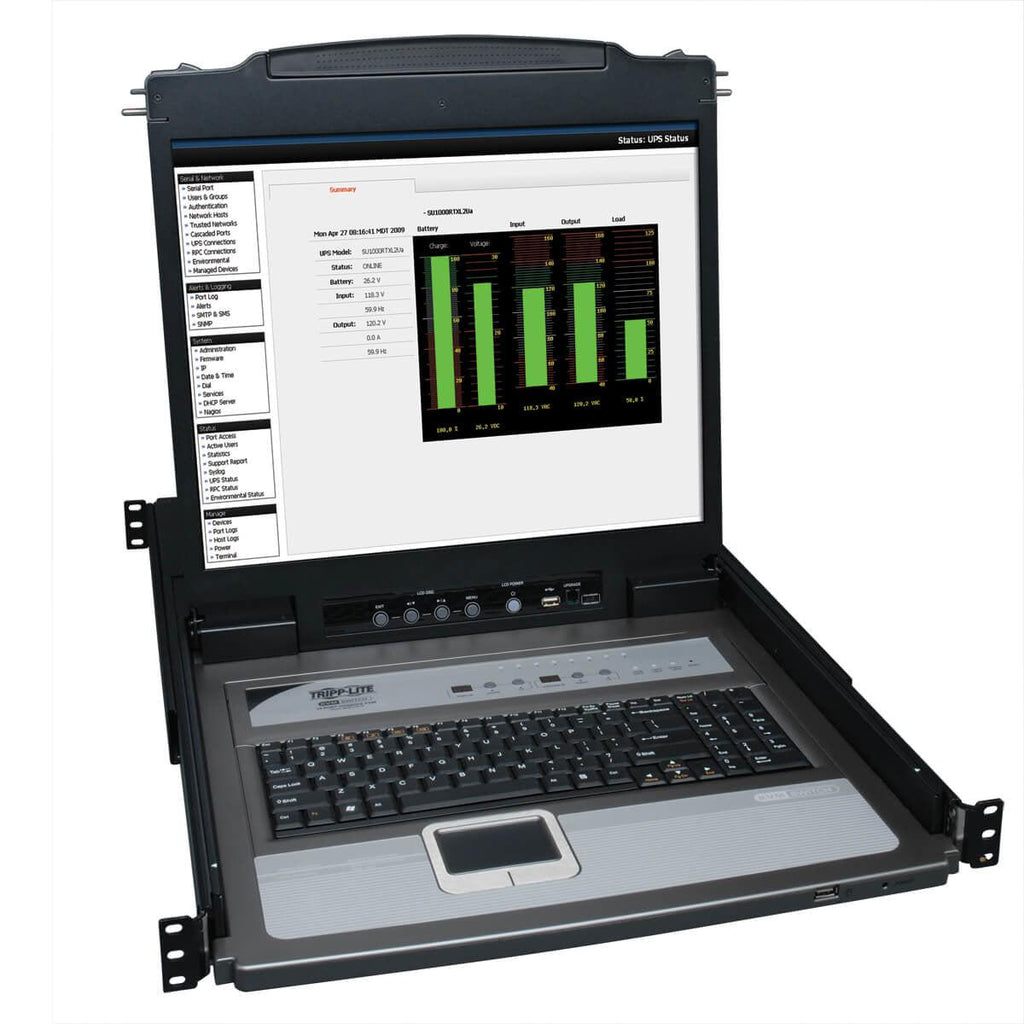

Tripp Lite’s B020-U08-19-K KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the optimal solution for controlling up to 8 computers/servers. Increase the number of connected computers to up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.


The B020-U08-19-K has a built-in 19” LCD screen that supports video resolutions up to 1280 x 1024. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Multi-level password security can be set up for an administrator and up to 4 local users to ensure only those with authorization can access the connected computers.

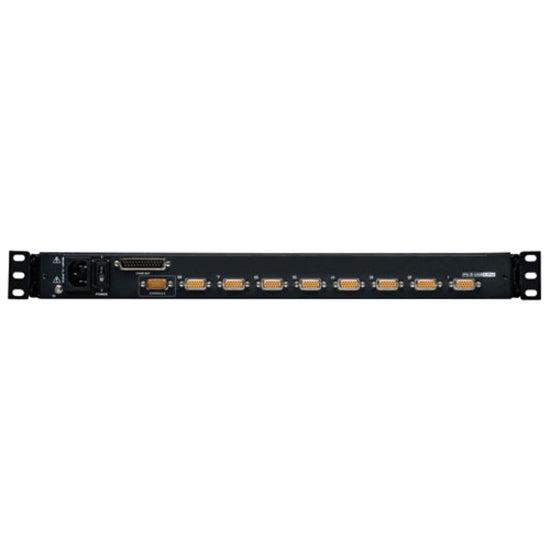

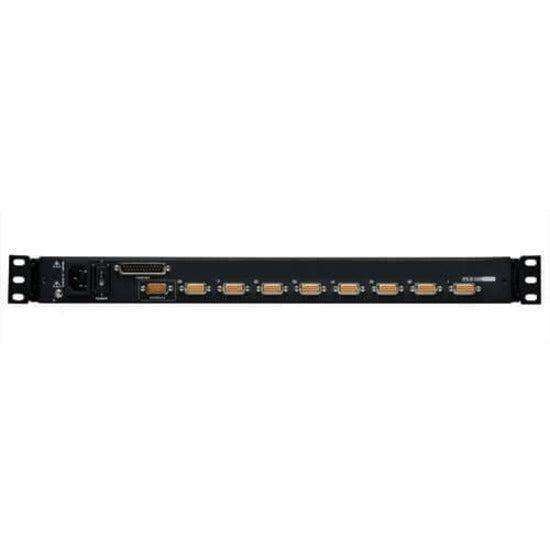

The eight included P778-series combo cable kits support both PS/2 and USB connections, so no adapters are required. A console cable kit can be plugged into the rear of the unit to allow for connection of a Tripp Lite B051-000 IP Remote Access Unit or an external console. A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-K stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.

Saves Space and Money

● Combines an 8-port KVM switch, 19” LCD screen, full keyboard and touchpad in a 1U rack-mountable drawer
● Mounts into 19”-wide rack, 26”-38” deep
● Control up to 8 servers from a single, easily accessible console – ideal when rack space is at a premium
● Includes eight P778-Series cables that support computers with either PS/2 or USB connections
● Flip-up/fold-down screen keeps the console from blocking access to rack equipment when not in use
● Eliminates need to buy costly separate monitors, keyboards and mice for each computer/server

Simplifies IT Tasks

● Switch easily between the 16 ports via on-console buttons, on-screen display or hot keys; OSD can be set to English, Spanish, French, German or Japanese
● Hot pluggable; add or remove computers without having to power down the switch
● Auto-scan mode automatically sequences through all active ports that are accessible to the user

Large 19” LCD

● Extra-wide display makes multitasking easier
● Supports video resolutions up to 1280 x 1024
● DDC emulation allows optimal output to the LCD

Multi-Level Password Security

● Enhances security by limiting access to an administrator and up to 4 local users
● Two-level log-out allows for manual log-out or automatic log-out after a user-defined period of time has passed

Expandability and Long-Lasting Reliability

● Increase the number of connected computers to up to 256 by daisy-chaining up to 31 B022-U08 KVM switches
● A console cable kit is included so you can connect the external console port to a keyboard, mouse or monitor, or a Tripp Lite B051-000 IP Remote Access Unit
● An additional USB port on the front of the unit lets you connect an external USB mouse; a USB port is also available to share a peripheral such as a flash drive or external hard drive with all the connected servers
● Compatible with all major operating systems for easy integration into your existing structure
● Firmware is upgradable with included cable and utility
● Heavy-duty steel housing stands up to frequent use


● Occupies just 1U of space in a rack-mountable drawer

● 19” LCD screen supports video resolutions up to 1280 x 1024

● Simplifies IT tasks with easy switching between all 8 ports

● Provides 2-level password security (administrator and user)

● Combo cables (included) connect to PS/2 or USB servers

System Requirements


● Computer with HD15 port, and USB port or PS/2 keyboard/mouse ports
● P778-006 USB/PS2 combo KVM cable kit is required for each connected computer/server
● Compatible with all major operating systems
● Power consumption: 120V, 60Hz, 28.5W; 230V, 50Hz, 29.1W

Package Includes


● B020-U08-19-K 1U rackmount console KVM switch with 19” LCD
● (x8) P778-006 6 ft. USB/PS2 combo KVM cable kits
● USB/PS2 combo console cable kit
● RJ11 to DB9 firmware upgrade cable
● C13 to 5-15P power cord
● Grounding wire
● Rackmount hardware
● CD with owner's manual
● Quick start guide
