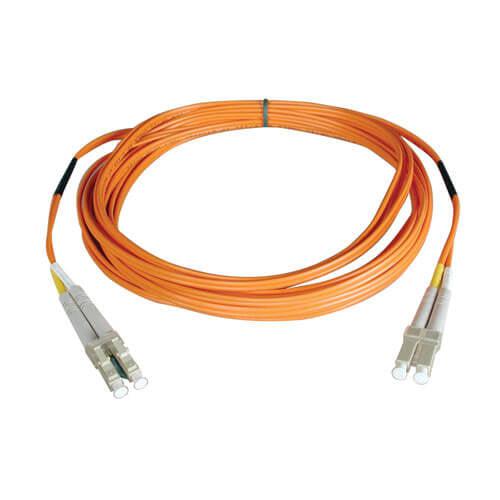

Constructed with 50/125 micron cable Length: 7-meters Use on fiber and fibre channel installations LC male to LC male connectors Higher bandwidth optimized for gigabit and 10Gbps networks Backward compatible with 62.5 micron fiber Built-in headroom for future applications Number of fibers: 2 Fiber type: All glass graded index Core diameter: Two 50+/-3 microns CLAD diameter: 125+/-2 microns Primary coating diameter: 245+/-15 microns Primary coating material: Acrylate Secondary coating diameter: 900+/-50 microns Secondary coating material: PVC Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum Numeric apeture: .275 nominal Proof test level: 100,000 PSI Insertion loss testing performed on every connector (0.2db typical) and provided with cable Beveled edge on ends of glass makes insertion of plug a breeze
General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N520-07M
Manufacturer Website Address
https://tripplite.eaton.com/
Brand Name
Tripp Lite by Eaton
Product Name
Fiber Optic Duplex Patch Cable
Product Type
Network Cable
UPC
037332139245
Physical Characteristics
Color Family
Orange
Product Color
Orange
Miscellaneous
Package Contents
Fiber Optic Duplex Patch Cable
7-meter duplex MMF cable LC/LC 50/125 fiber
Warranty
Limited Warranty
Lifetime
