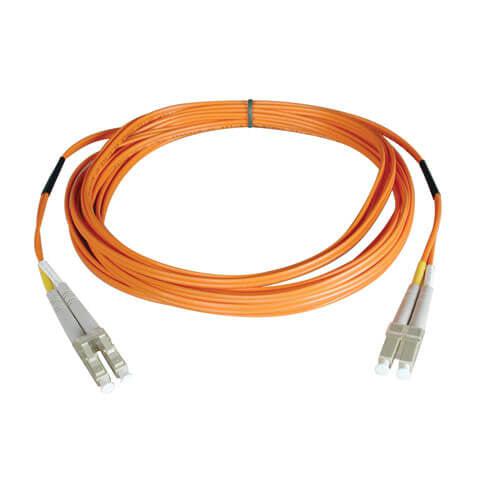

Tripp Lite N520-01M Duplex Multimode 50/125 Fiber Patch Cable (Lc/Lc), 1M (3 Ft.)

Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 1M (3 ft.)

Tripp Lite N520-01M Duplex Multimode 50/125 Fiber Patch Cable (LC/LC), 1M (3 ft.). Cable length: 1 m, Fibre optic type: OM2, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm, Full duplex

Constructed with 50/125 micron cable
Length: 1-meter
Use on fiber and fibre channel installations
LC male to LC male connectors
Higher bandwidth optimized for gigabit and 10Gbps networks
Backward compatible with 62.5 micron fiber
Built-in headroom for future applications
Number of fibers: 2
Fiber type: All glass graded index
Core diameter: Two 50+/-3 microns
CLAD diameter: 125+/-2 microns
Primary coating diameter: 245+/-15 microns
Primary coating material: Acrylate
Secondary coating diameter: 900+/-50 microns
Secondary coating material: PVC
Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
Numerical aperture: .275 nominal
Proof test level: 100,000 PSI
Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Beveled edge on ends of glass makes insertion of plug a breeze
