Tripp Lite N48Lsm-32X32 Spine-Leaf Mpo Panel With Key-Up To Key-Up Mtp/Mpo Adapter - 12F Mtp/Mpo-Pc M/M, 8F Om4 Multimode, 32 X 32 Ports, 1U

Spine-Leaf MPO Panel with Key-Up to Key-Up MTP/MPO Adapter - 12F MTP/MPO-PC M/M, 8F OM4 Multimode, 32 x 32 Ports, 1U

Tripp Lite N48LSM-32X32 Spine-Leaf MPO Panel with Key-Up to Key-Up MTP/MPO Adapter - 12F MTP/MPO-PC M/M, 8F OM4 Multimode, 32 x 32 Ports, 1U. Ethernet interface type: 40 Gigabit Ethernet, 400 Gigabit Ethernet, 100 Gigabit Ethernet, Fiber optic connector: MTP/MPO. Product colour: Aluminium, Black, Mounting: Rack mounting, Rack capacity: 1U. Width: 446 mm, Height: 44 mm, Depth: 375 mm. Package width: 381 mm, Package depth: 533.4 mm, Package height: 88.9 mm. Country of origin: China, Master (outer) case width: 403.9 mm, Master (outer) case length: 495.3 mm

1U Spine-Leaf Panel Simplifies Your Rack Connections and Helps You Keep Costs Down
This network patch panel is designed for spine-and-leaf architecture, which replaces a standard MTP/MPO-to-LC cross-connect with MTP/MPO ports and helps eliminate significant rack clutter. This data center network technology provides high-bandwidth, low-latency, non-blocking server-to-server connectivity, which saves you money, simplifies your rack cabling and improves network performance.

All-in-One Solution Consists of 2 Switch Layers: Spine and Leaf

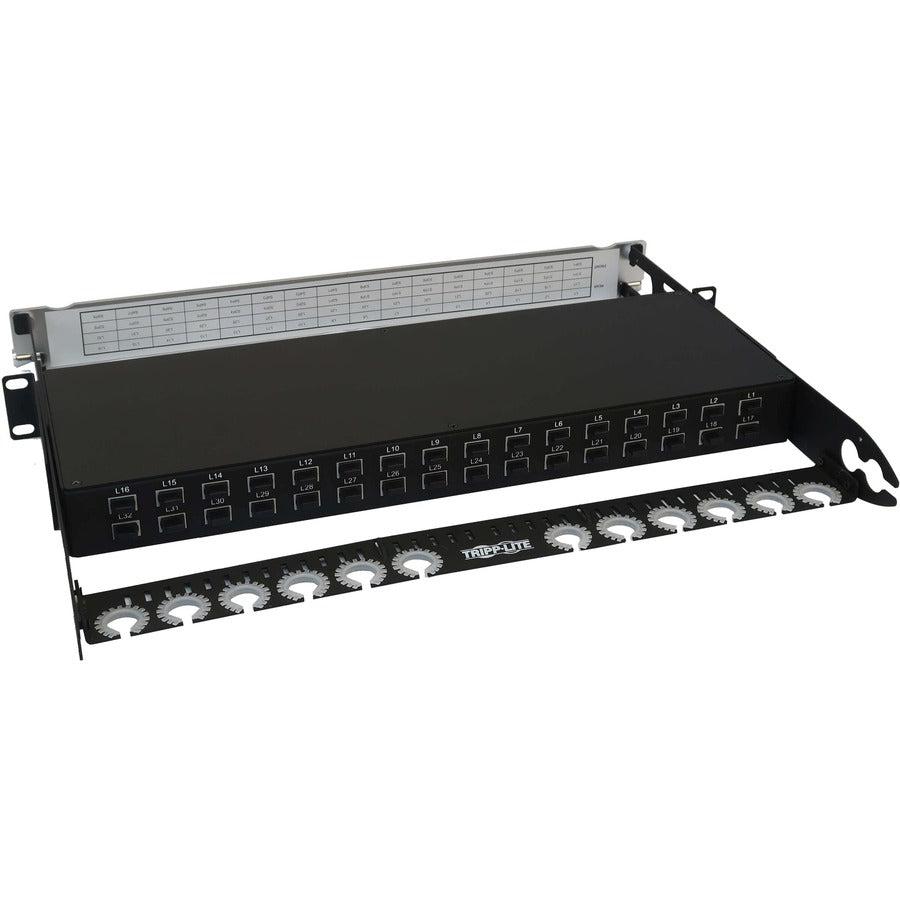

The groundbreaking N48LSM-32X32 contains a complete spine-and-leaf mesh topology, resulting in less labor, less troubleshooting and fewer errors. It features spine ports in the front that mate with a spine switch, as well as leaf ports in the rear that mate with a leaf switch. No LC-to-LC patching, double cassette or user cable shuffling is required with spine-and-leaf architecture, which improves link performance.

Easy to Mount in Just 1U of Rack Space

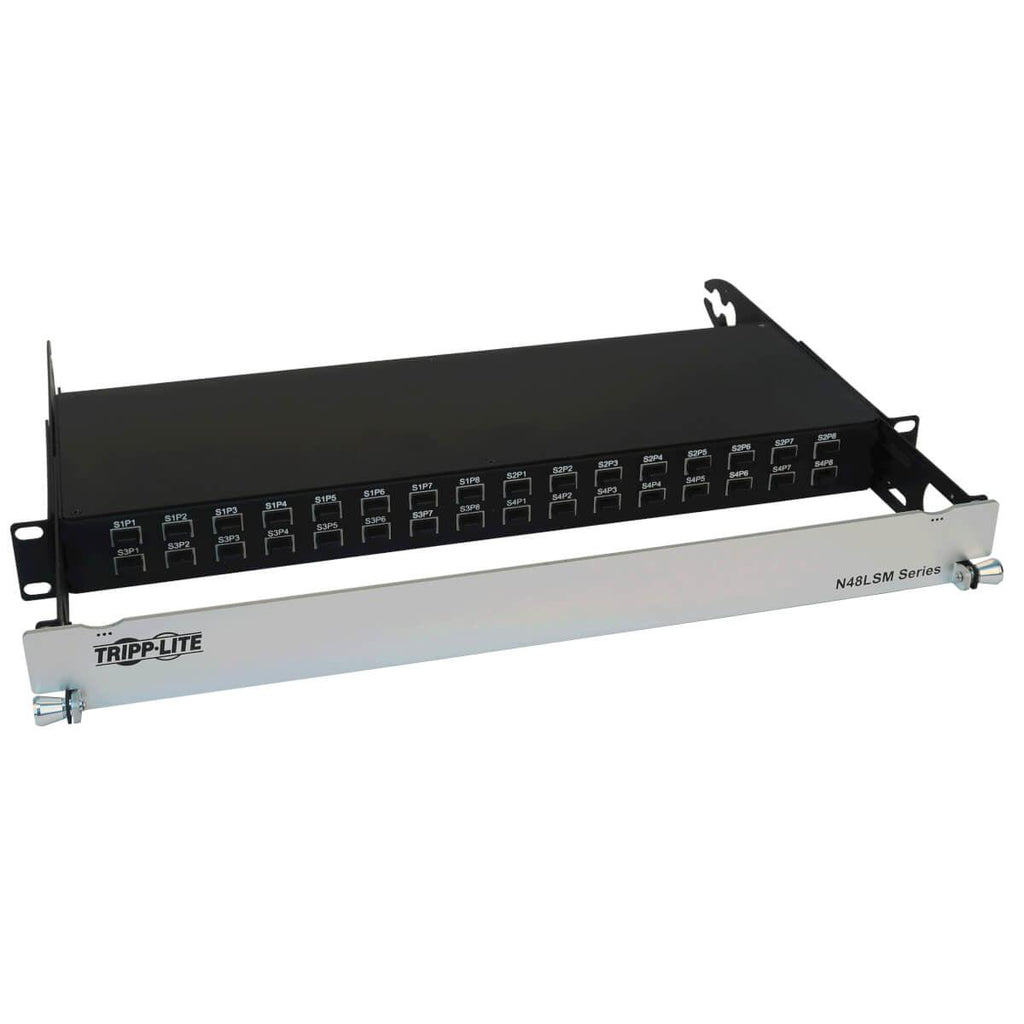

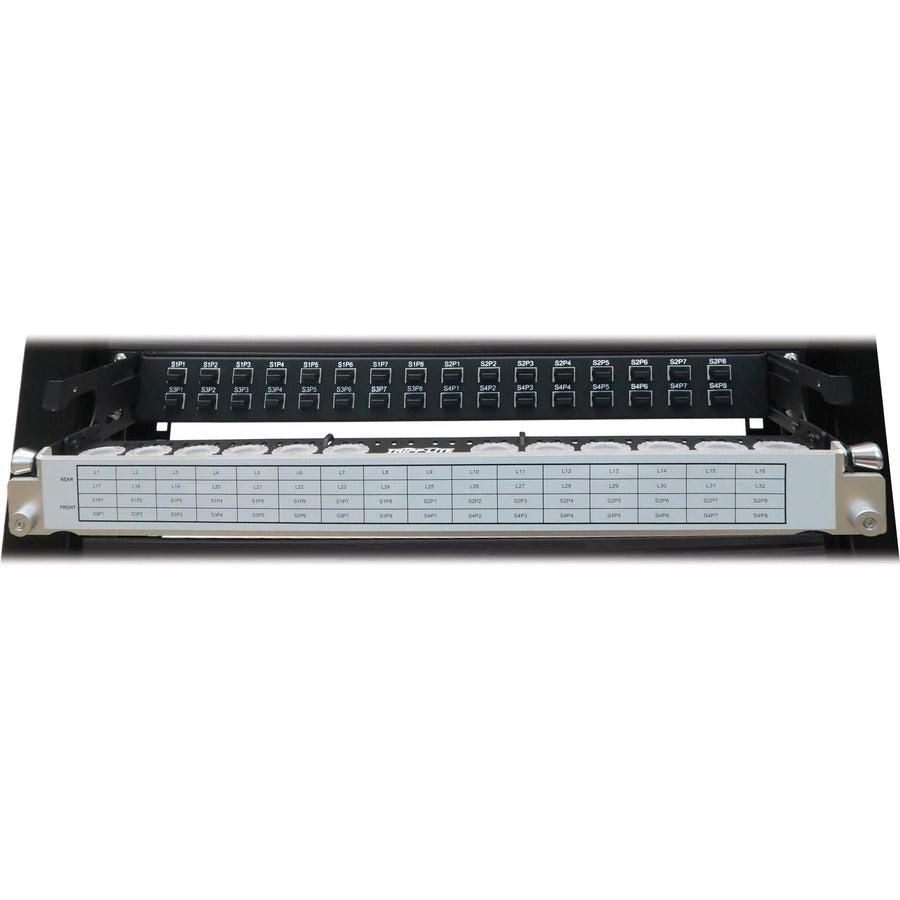

This aluminum panel with key-up to key-up MTP/MPO adapter features 64 12-fiber Elite MTP/MPO-PC male ports: 32 front spine ports and 32 rear leaf ports. The N48LSM-32X32 mounts into 1U of space in an EIA-standard 19-inch rack. Cable managers in both front and rear help organize cabling and eliminate unsightly clutter.
