Tripp Lite N484-12M12 40Gb Pass-Through Cassette - (x12) 12-Fiber MTP/MPO ( Female ). Networking standards: IEEE 802.3ae, Ethernet interface type: 40 Gigabit Ethernet, Maximum data transfer rate: 40000 Mbit/s. Product colour: Black, Material: Steel, Certification: REACH. Width: 130 mm, Height: 30.5 mm, Depth: 119.4 mm. Package width: 200.7 mm, Package depth: 37.1 mm, Package height: 59.9 mm. Country of origin: China, Products per pallet: 1 pc(s), Master (outer) case width: 225 mm

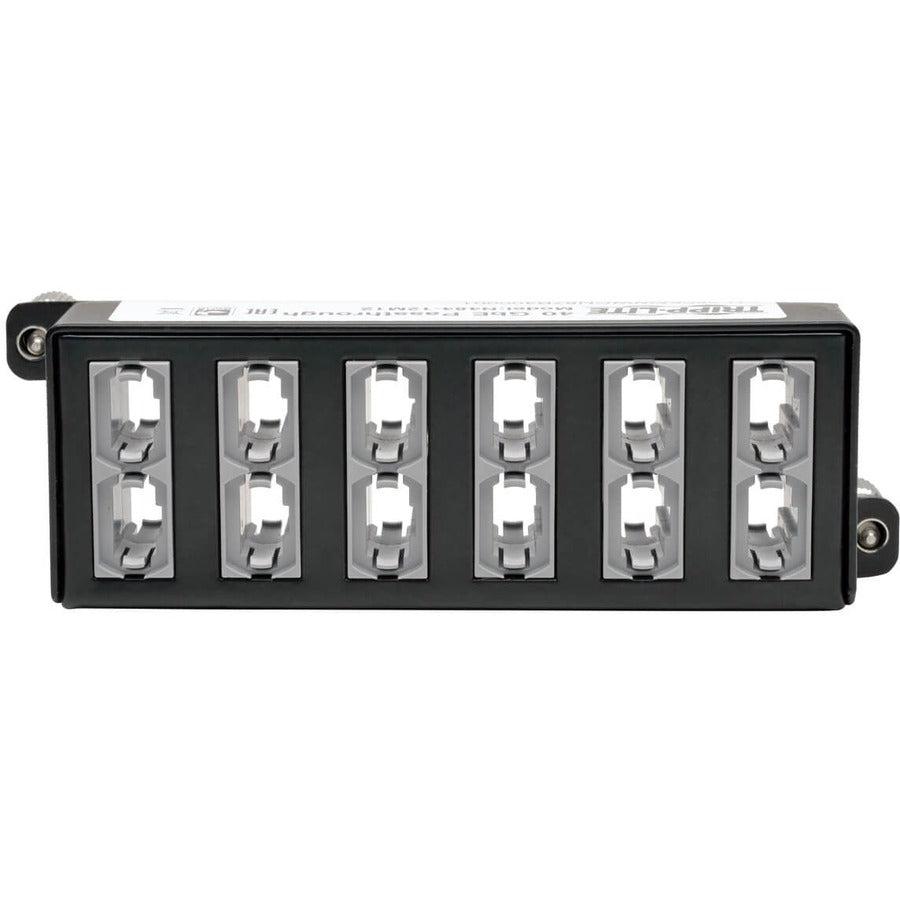

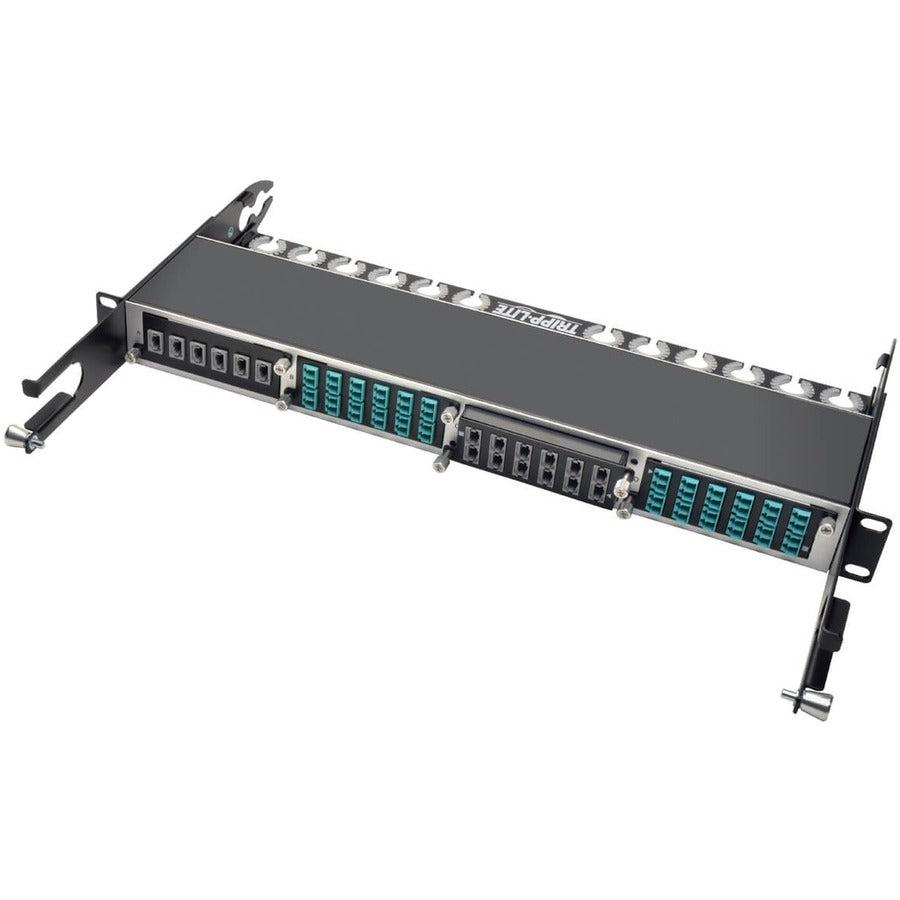

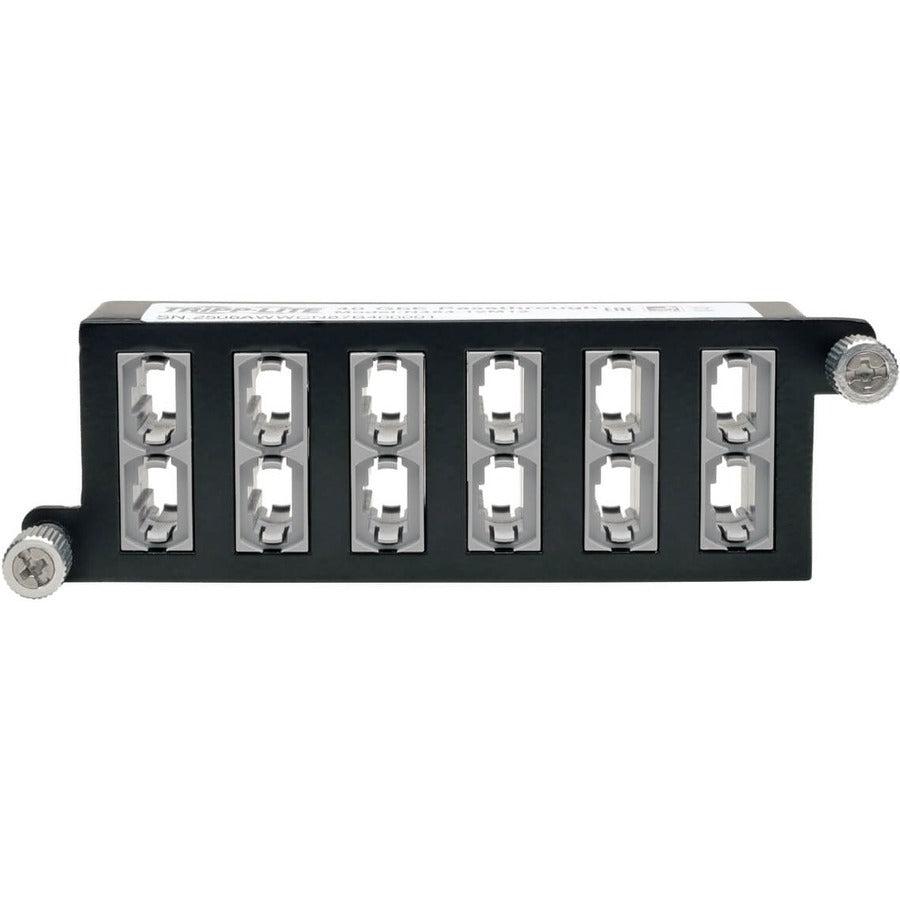

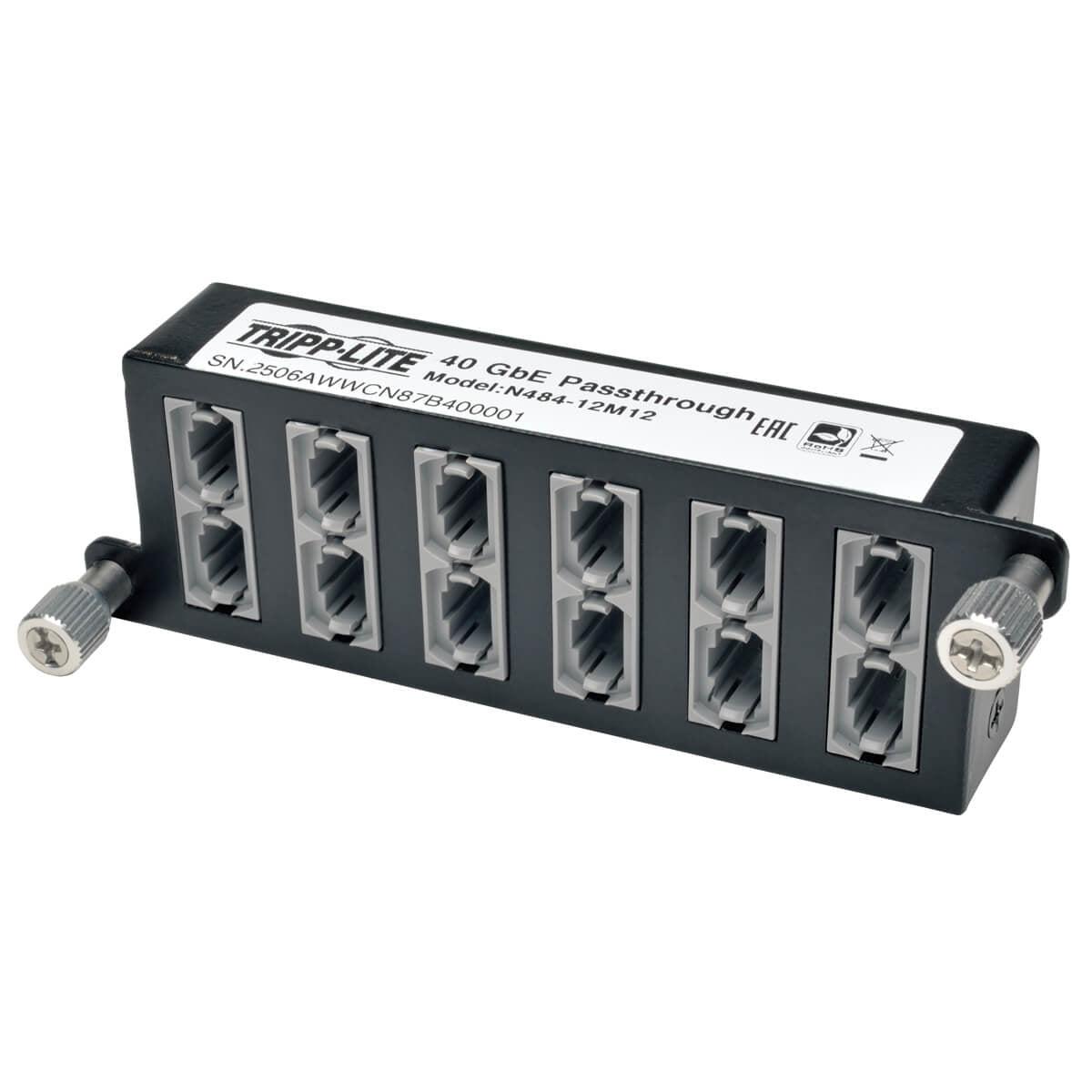

Tripp Lite's N484-12M12 is a High Density 40Gb Pass-through Cassette, with (x12) 12-Fiber MTP/MPO connections. Designed specifically for use with Tripp Lite's N484-00U and N484-01U chassis'; up to 4 cassettes per N484-01U, or 1 per N484-00U. Each MTP/MPO connector is rated for up to 40GbE, with an extremely low insertion loss of 0.35db, well under the IEEE-802.3ae maximum channel loss spec of <25db. Guaranteed compatibility when used with recommended Tripp Lite cabling. Designed specifically for use with Tripp Lite cables, such as the N842-, N844- and N845-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy duty, 1.0mm Cold Rolled Steel.
High Density Fiber Cassette for use with Tripp Lite's N484-00U and N484-01U chassis' 40Gb Pass-through Cassette, with (x12) 12-Fiber MTP/MPO connections Max insertion loss of 0.35dB falls well under the IEEE 802.3ae maximum channel loss spec of <25dB Guaranteed compatibility when used with recommended Tripp Lite cabling Designed specifically for use with Tripp Lite cables, such as the N842-, N844- and N845-Series cables

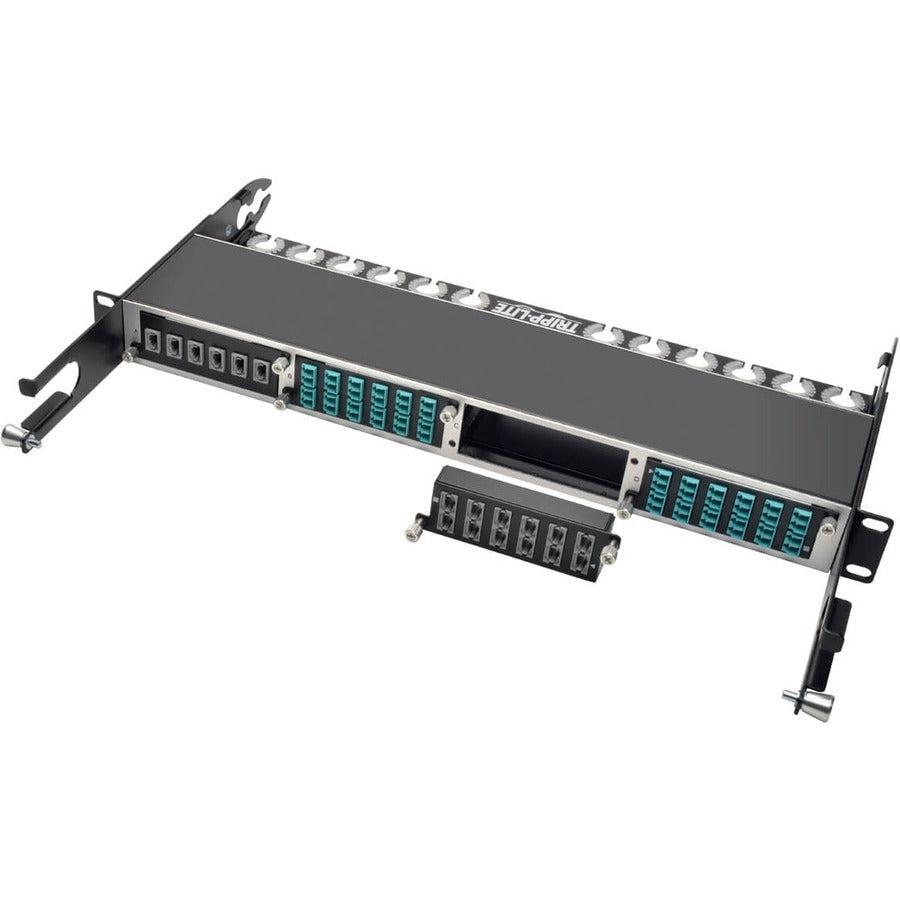

Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required Factory terminated connectors reduce the time and labor required of field connector terminations Housing made of heavy duty, 1.0mm Cold Rolled Steel
