Tripp Lite N482-00U Sleeve Holds 1 High-Density Fiber Cassette, 0U

Sleeve Holds 1 High-Density Fiber Cassette, 0U

Tripp Lite N482-00U Sleeve Holds 1 High-Density Fiber Cassette, 0U. Width: 33 mm, Depth: 221 mm, Height: 89 mm. Package width: 116.8 mm, Package depth: 264.2 mm, Package height: 50.8 mm. Master (outer) case width: 269.2 mm, Master (outer) case length: 342.9 mm, Master (outer) case height: 241.3 mm

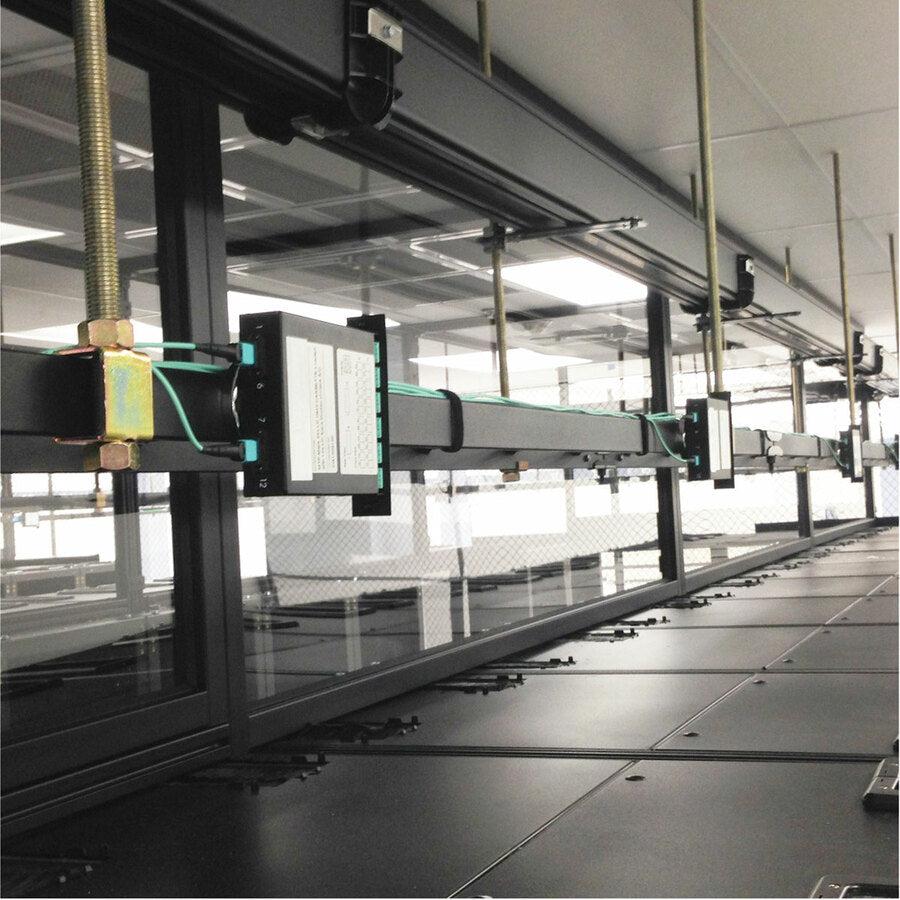

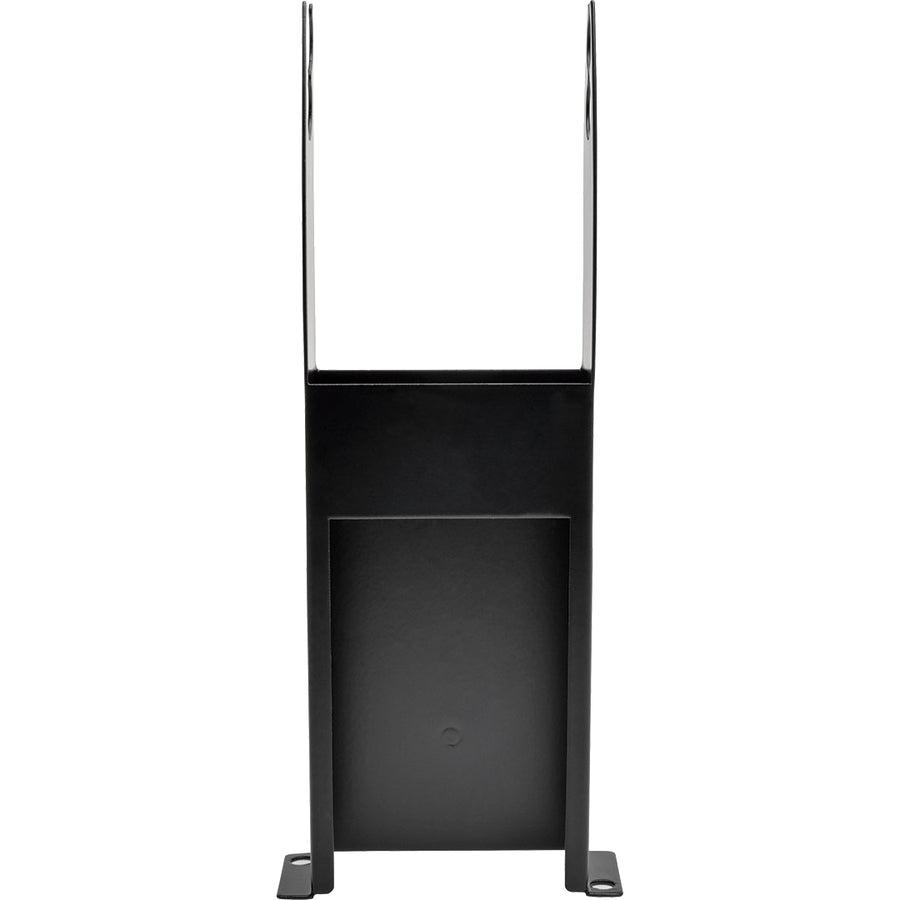

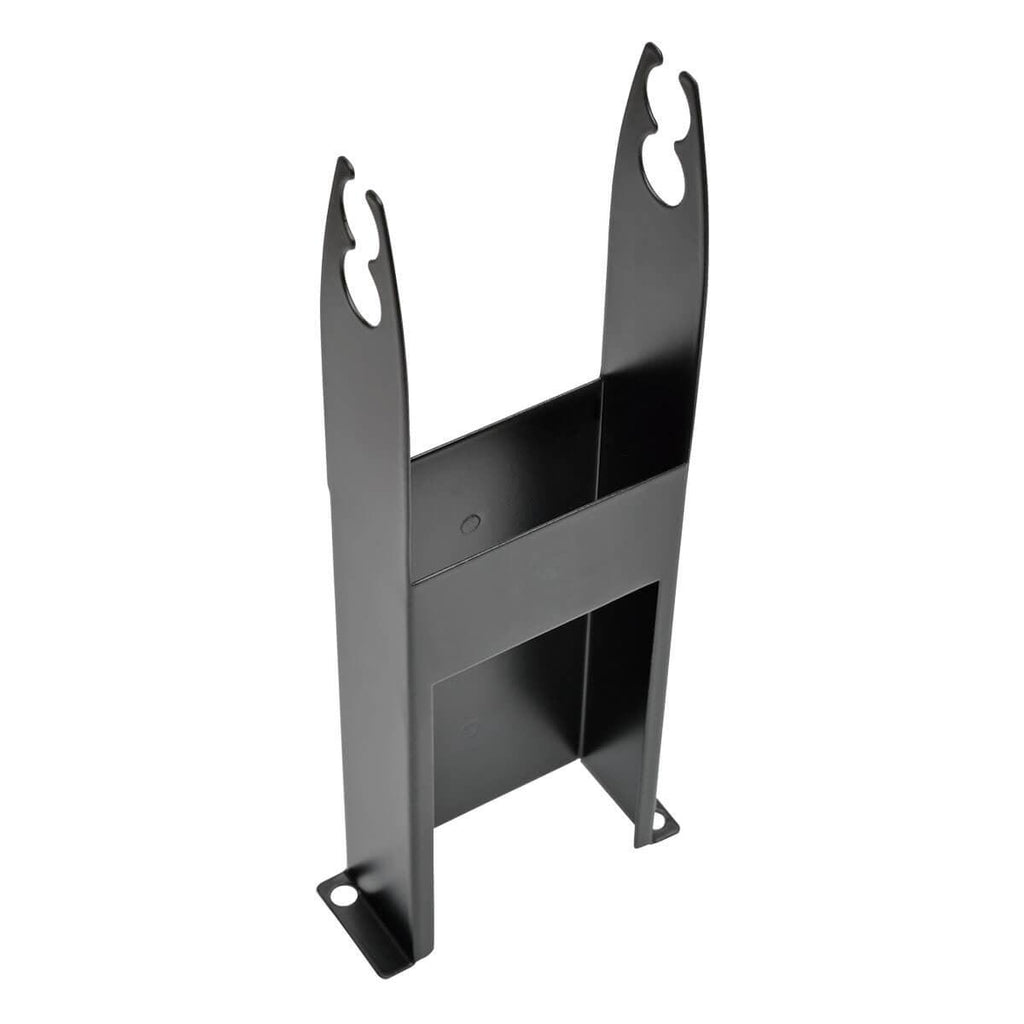

The N482-00U High-Density Fiber Cassette Sleeve is a cost-effective solution for adding a single N482-Series fiber cassette to your network application without buying a chassis. Made of heavy-duty cold-rolled steel, this space-saving 0U sleeve mounts to the metal surface of your EIA-standard 19-inch rack or cable manager via two attached magnets.

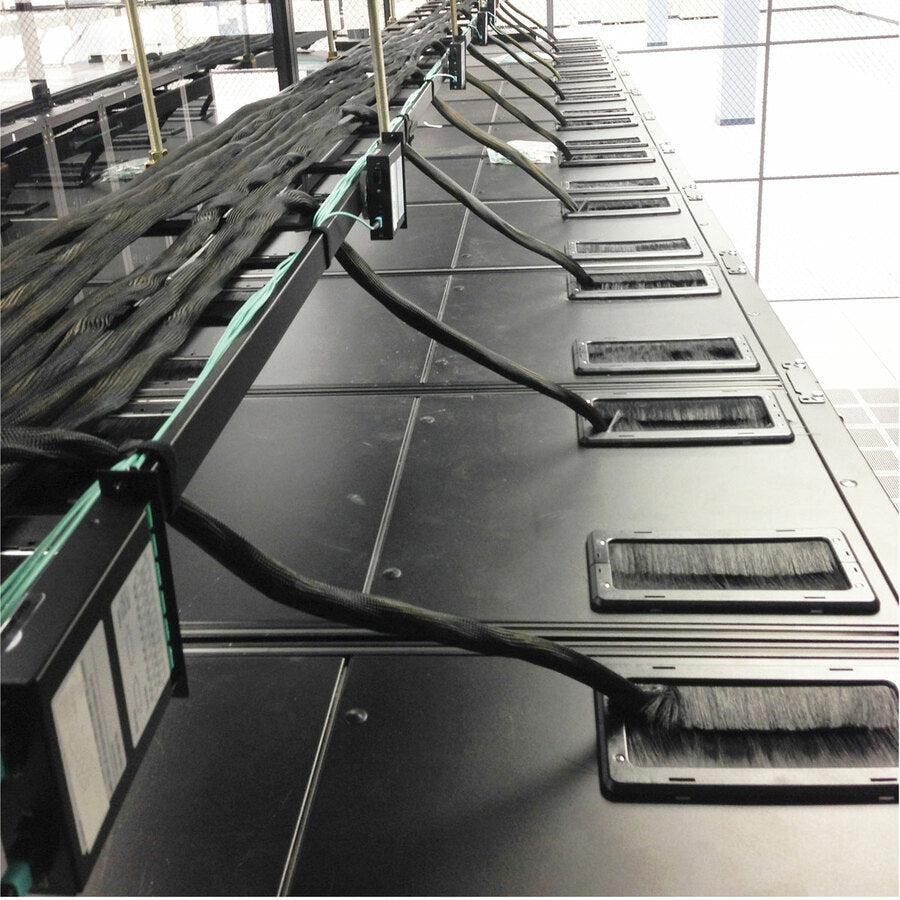

The N482-00U is recommended for adding an extra cassette to a rack application without the expense of a new 1U chassis, as well as adding fiber connectivity where no existing rack infrastructure exists, such as a remote workstation, new build-out or temporary install location. It reduces cable clutter by allowing you to connect cables at the cable manager through which they are being routed.

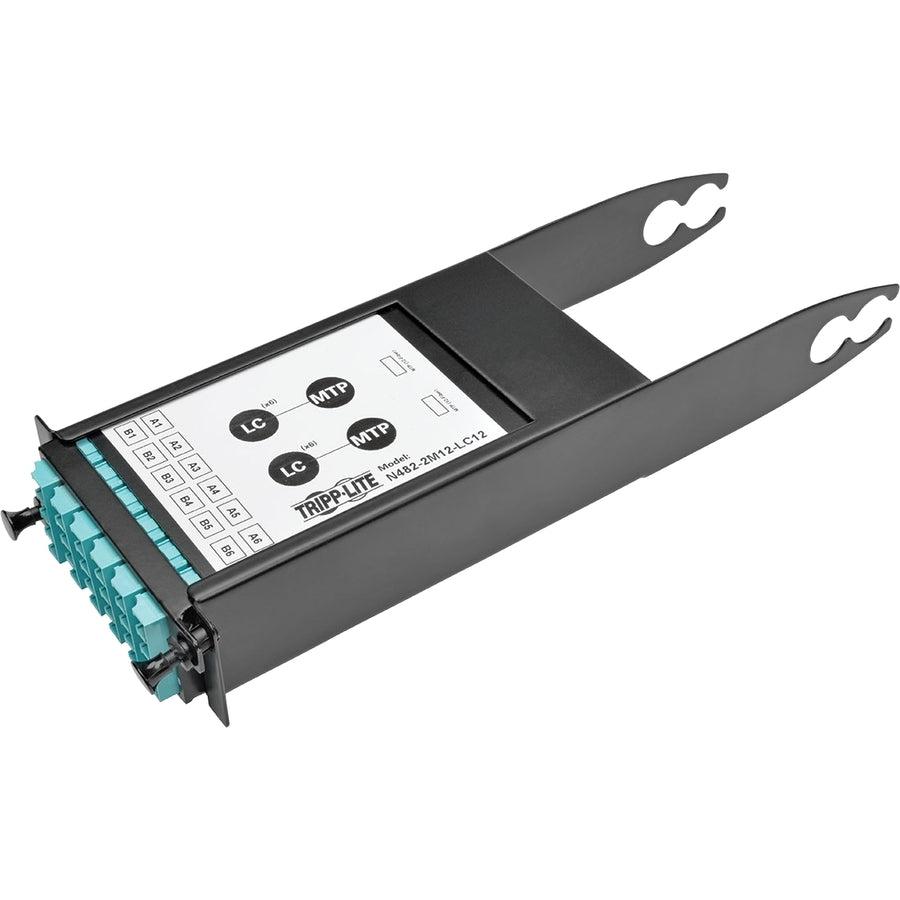

The N482-00U accommodates Tripp Lite N482-Series cassettes, including LC and MTP/MPO connector types. It allows you to connect 10 GbE, 40 GbE and 100/120 GbE network equipment with elegance, ease and little cost. The fully passive sleeve adds no heat or cooling load.

Cost-Effective, Space-Saving Solution for Adding a Fiber Cassette to Your System
Holds a single Tripp Lite N482-Series fiber cassette

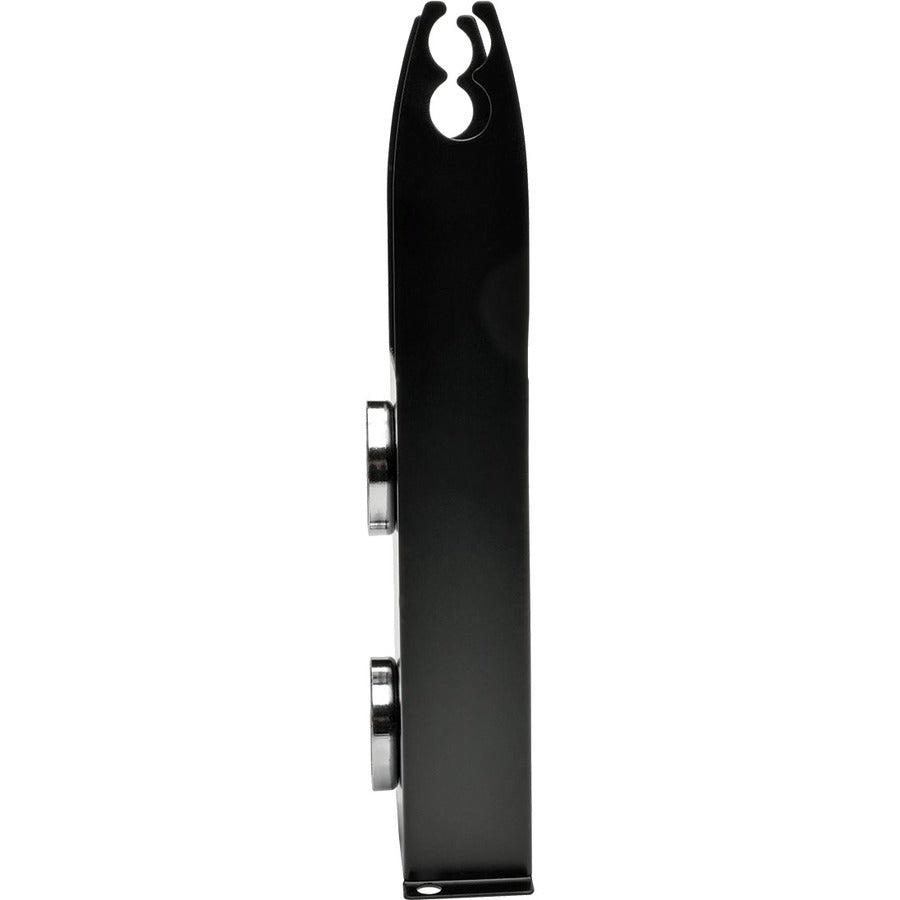

Attaches to metal rack enclosures and cable managers with included magnets
Expands an installation without purchasing a new 1U chassis
Adds network connectivity to areas without existing infrastructure
Ideal for connecting 10 GbE, 40 GbE and 100/120 GbE network equipment
Connects cables at cable manager through which they’re being routed
Fully passive with no added heat or cooling load
Made from heavy-duty cold-rolled steel
