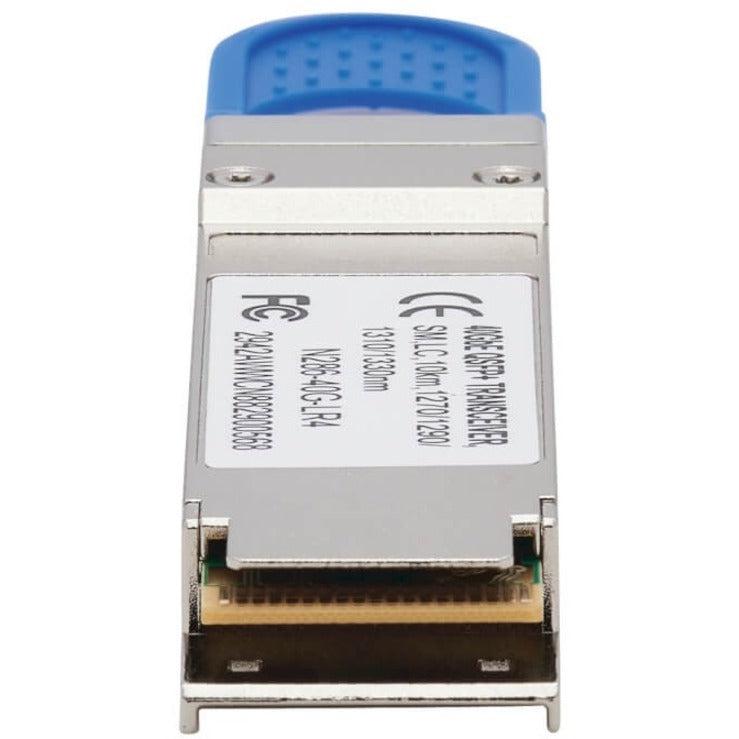

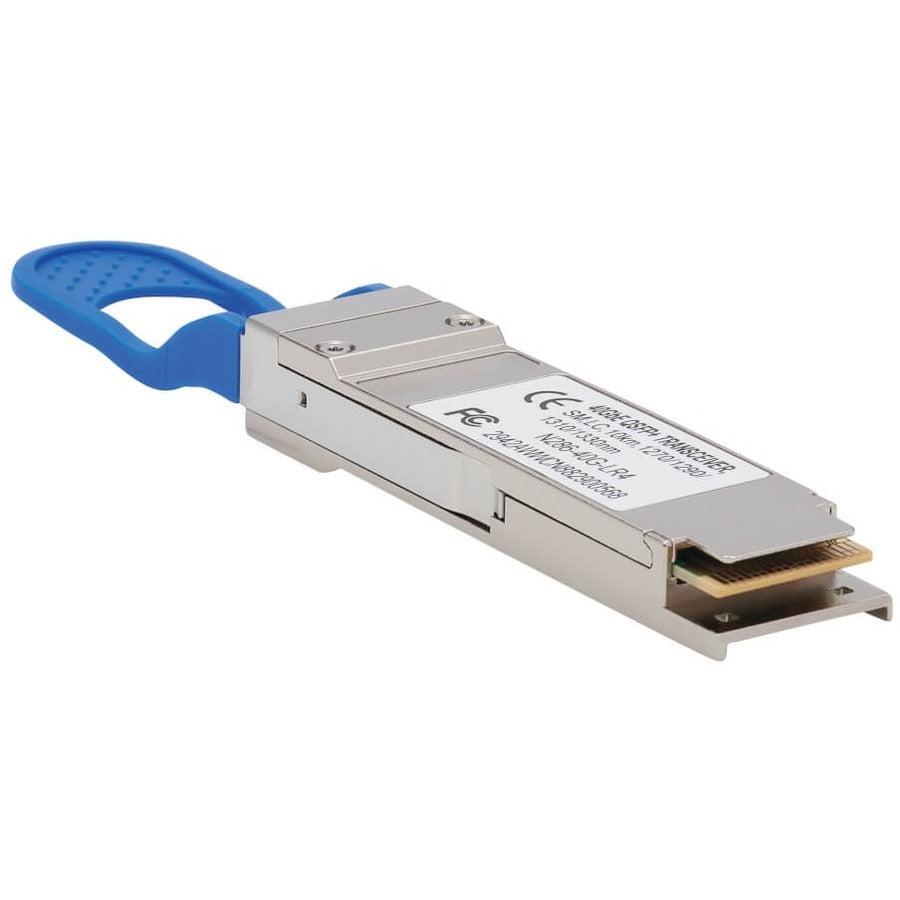

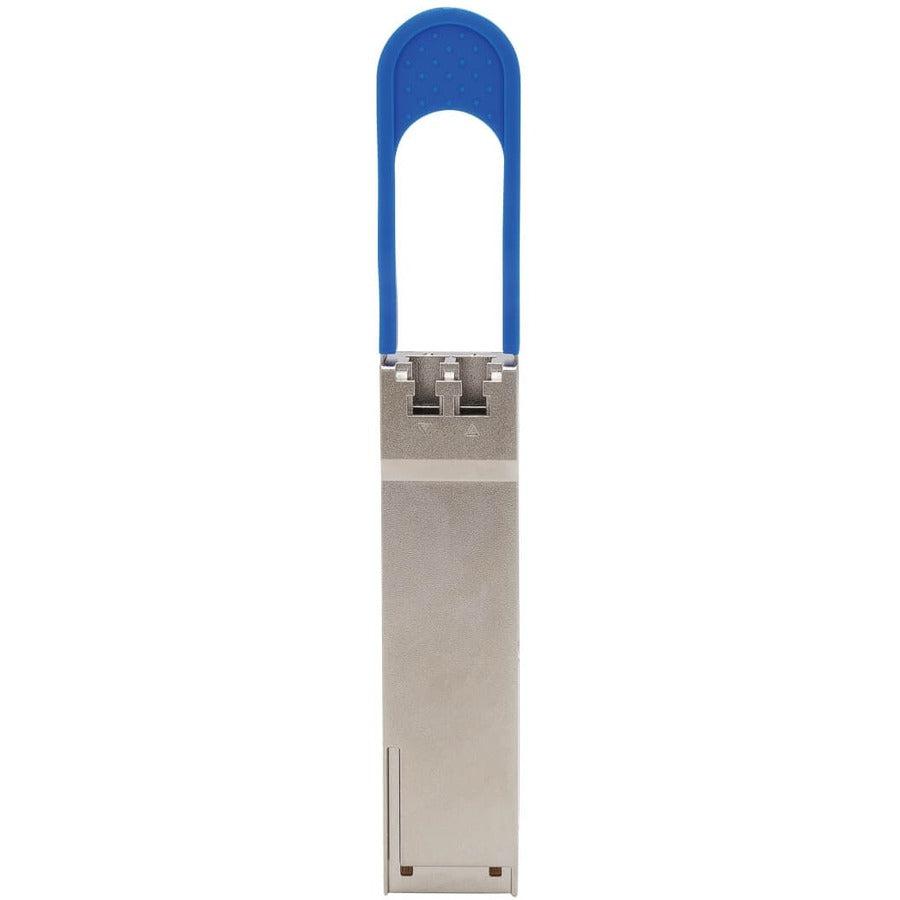

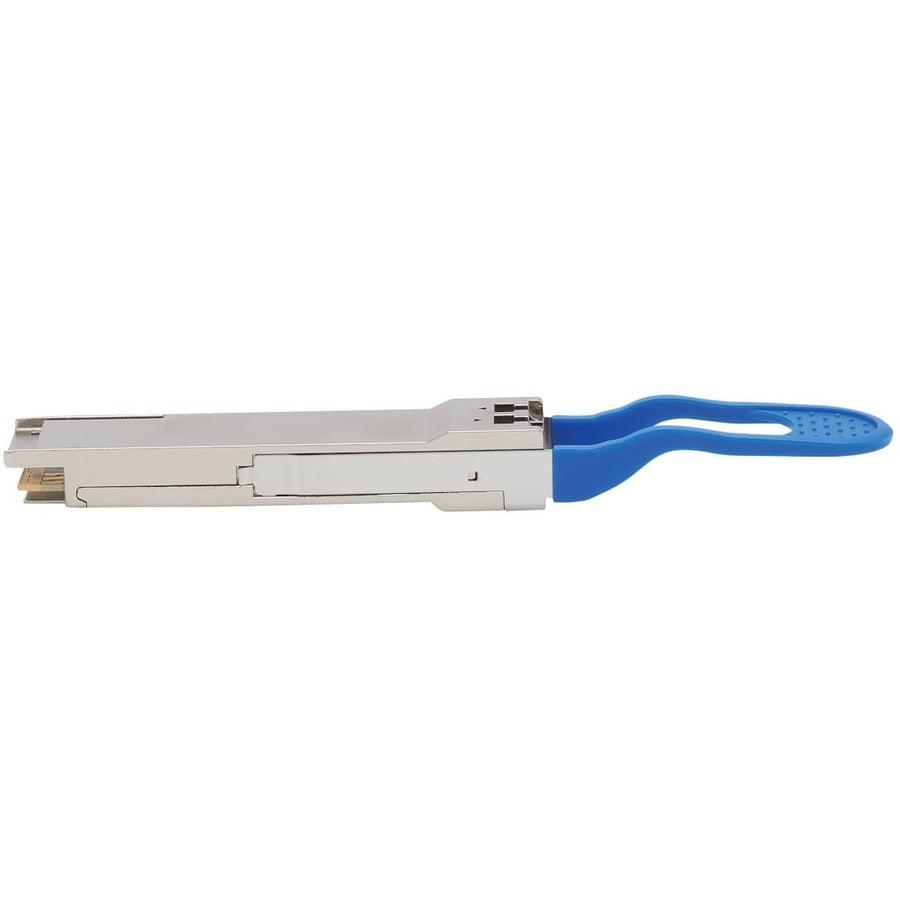

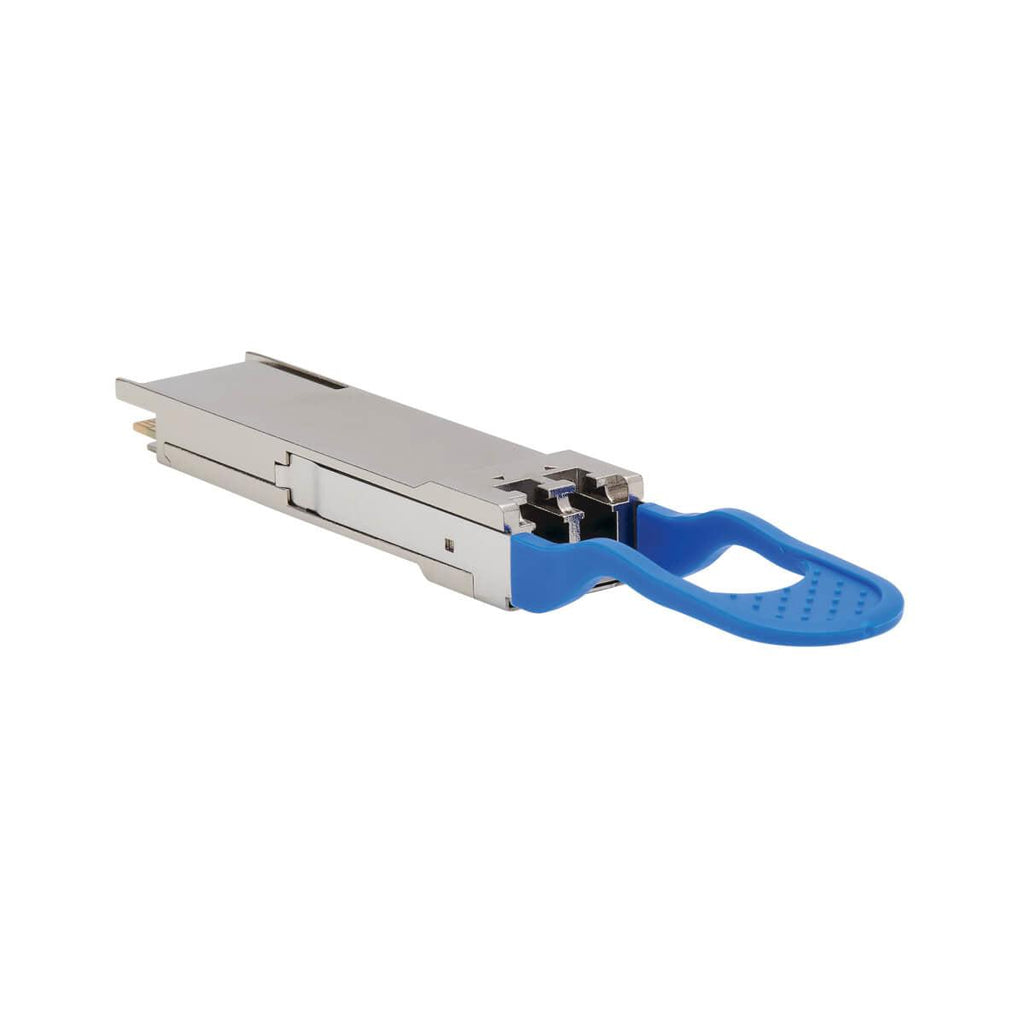

Tripp Lite N286-40G-LR4 Cisco-Compatible QSFP-40G-LR4 QSFP+ Transceiver - 40GBase-LR4, Singlemode LC, 1270-1330 nm, 10 km. SFP transceiver type: Fiber optic, Maximum data transfer rate: 40000 Mbit/s, Interface type: QSFP+. Product colour: Silver, Country of origin: China, Brand compatibility: Cisco. Width: 18.3 mm, Depth: 121.2 mm, Height: 8.4 mm. Number of products included: 1 pc(s), Package width: 144.8 mm, Package depth: 78.7 mm. Master (outer) case width: 185.4 mm, Master (outer) case length: 149.9 mm, Master (outer) case height: 101.6 mm
QSFP+ Transceiver Designed for Connection to Your Cisco Network Switch or Server This QSFP+ transceiver allows you to connect a singlemode fiber optic cable to a 40 Gbps network router, server or switch. It transmits data up to 10 kilometers (6.2 miles) using a 1270 to 1330 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to Cisco QSFP-40G-LR4 Transceiver Module The MSA-compliant N286-40G-LR4 functions just like the equivalent Cisco QSFP-40G-LR4 transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the QSFP-40G-LR4.

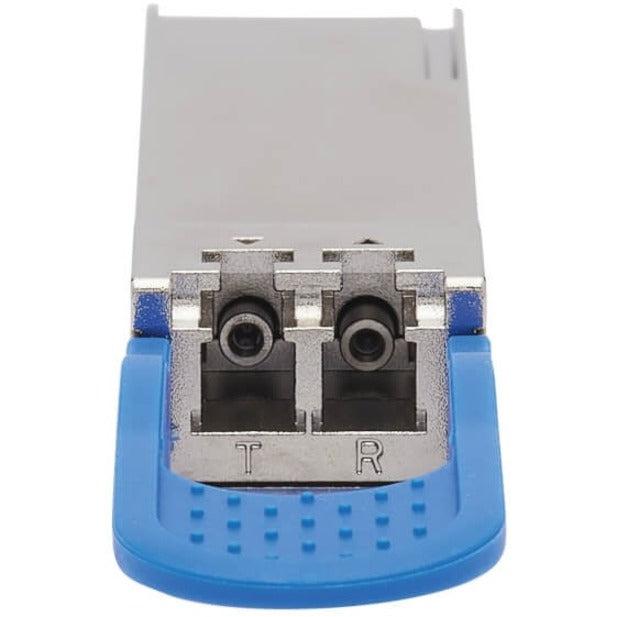

Hot-Swappable for Installation Without Network Interruption This input/output device is fully hot-swappable, so you can install it without a potentially costly 40 Gbps network shutdown or device reboot. Just plug the QSFP+ end of the transceiver into your Cisco network device. The other end has an LC duplex connector to link with singlemode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.
General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N286-40G-LR4
Manufacturer Website Address
https://tripplite.eaton.com/
Brand Name
Tripp Lite by Eaton
Product Name
Cisco QSFP+ Module
Product Type
QSFP+
UPC
037332248510
Ethernet Technology
40 Gigabit Ethernet
Height
0.3"
Width
0.7"
Depth
4.8"
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
