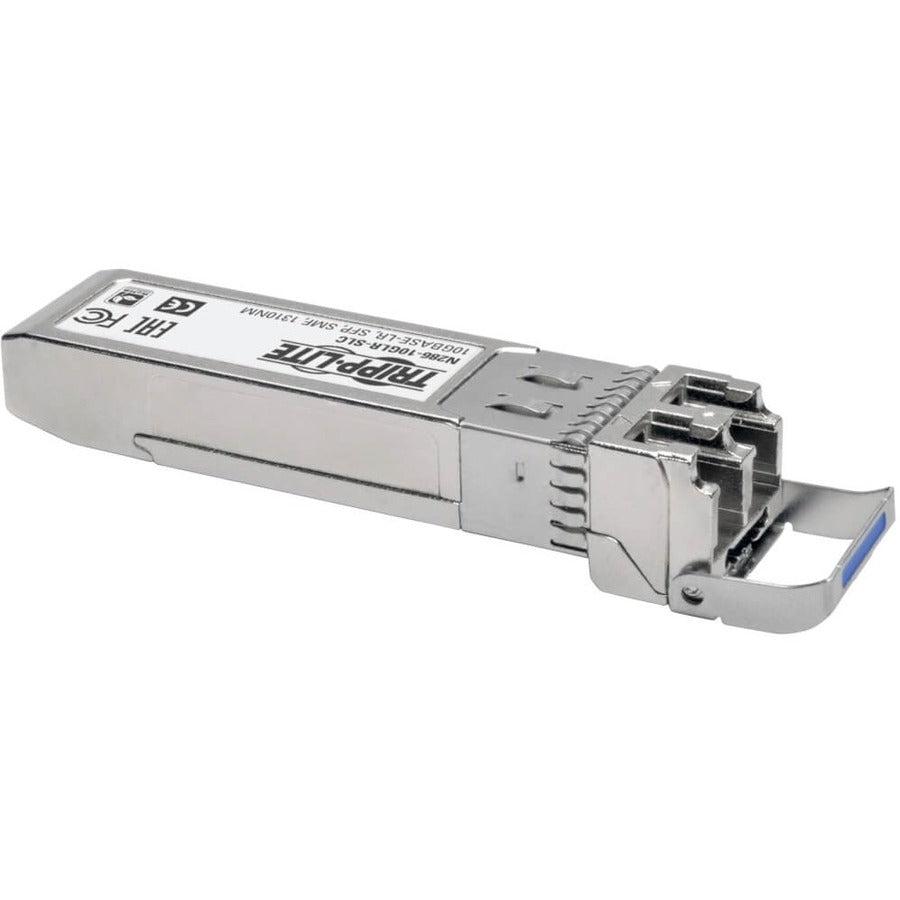

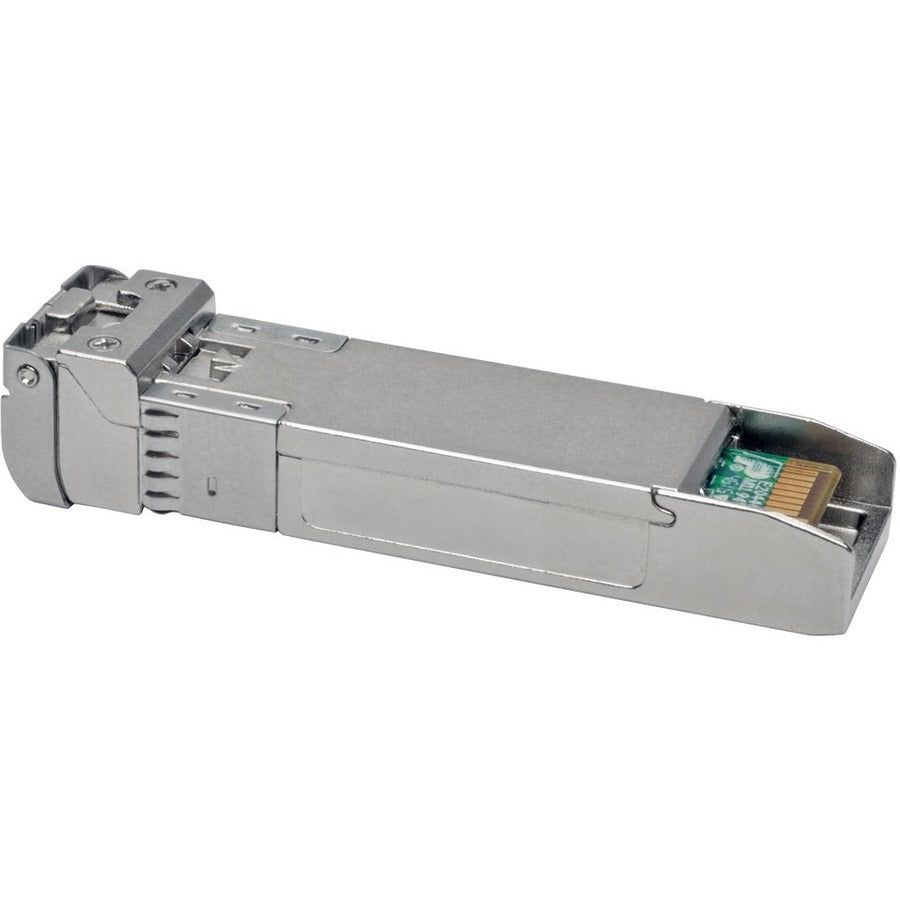

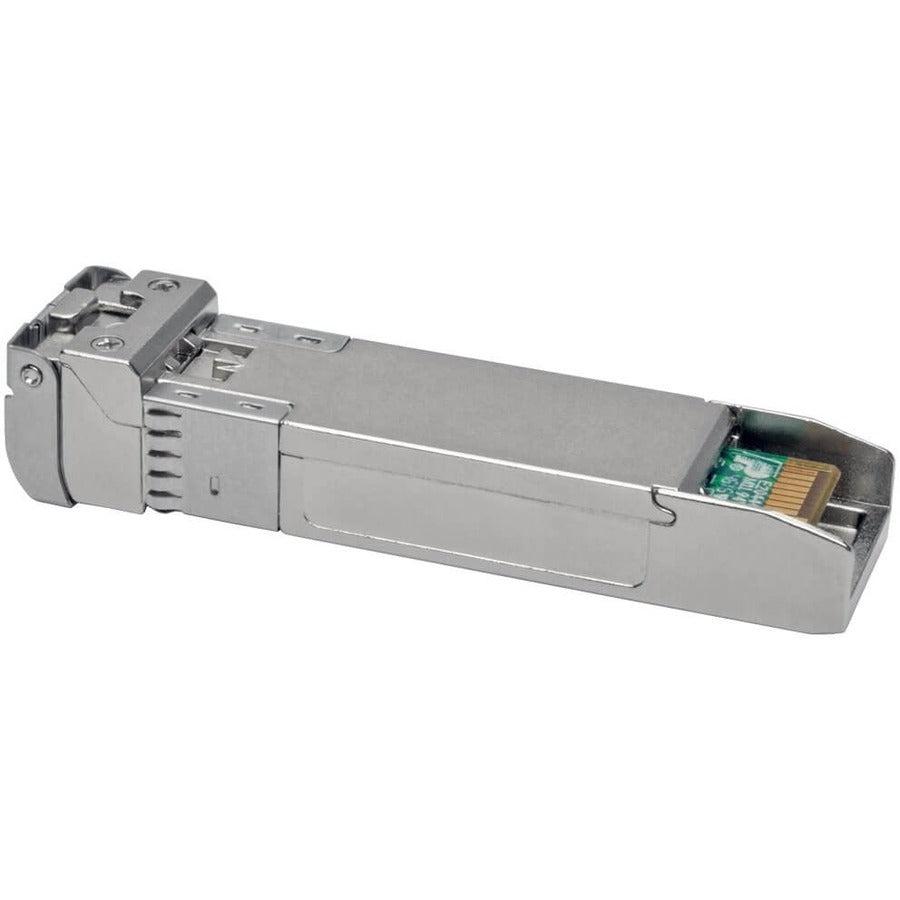

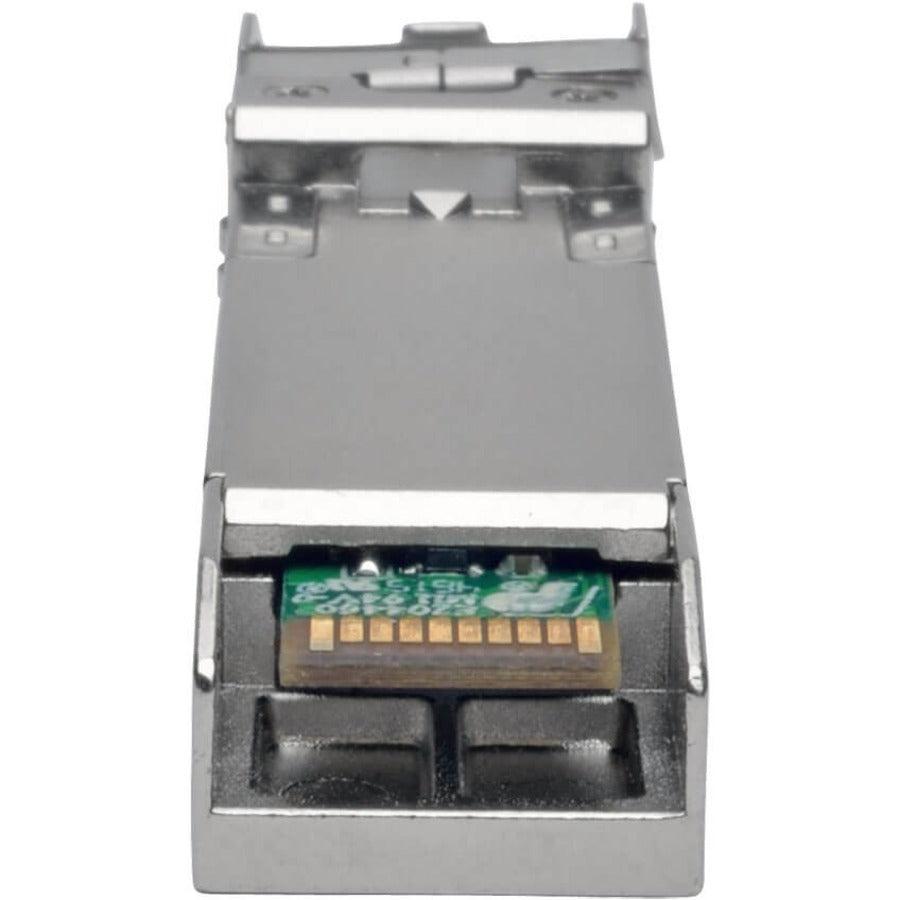

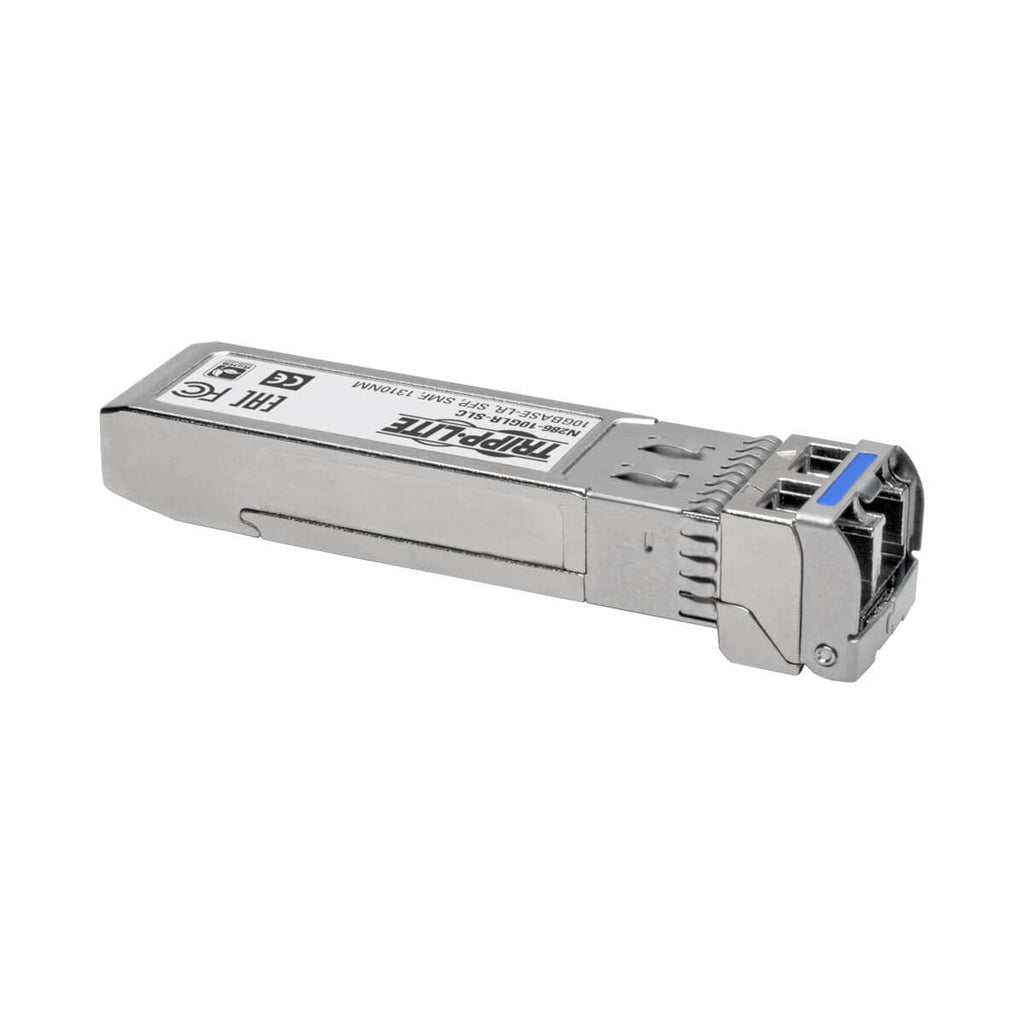

Tripp Lite N286-10GLR-SLC Cisco-Compatible SFP-10G-LR SFP Transceiver, 10GBase-LR, DDM, Singlemode LC , 1310 nm, 10 km. SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Metallic, Country of origin: China. Width: 13.2 mm, Depth: 56.9 mm, Height: 8.4 mm. Number of products included: 1 pc(s), Package width: 114 mm, Package depth: 45 mm. Master (outer) case width: 230.1 mm, Master (outer) case length: 130 mm, Master (outer) case height: 59.9 mm

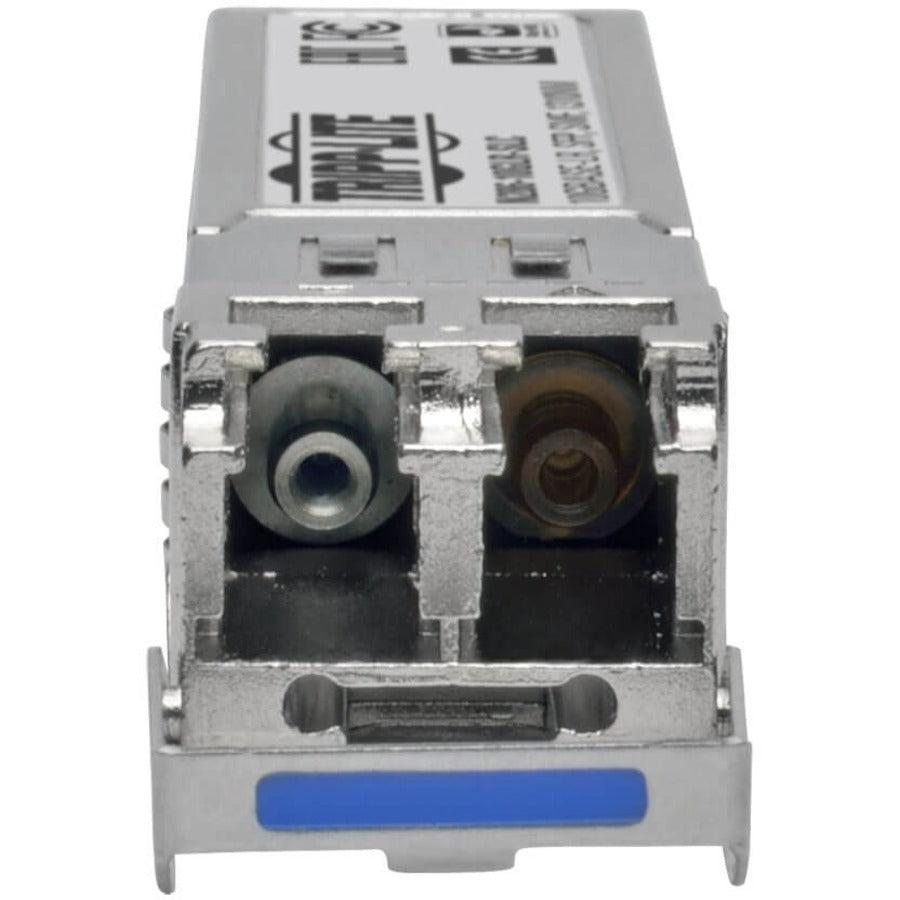

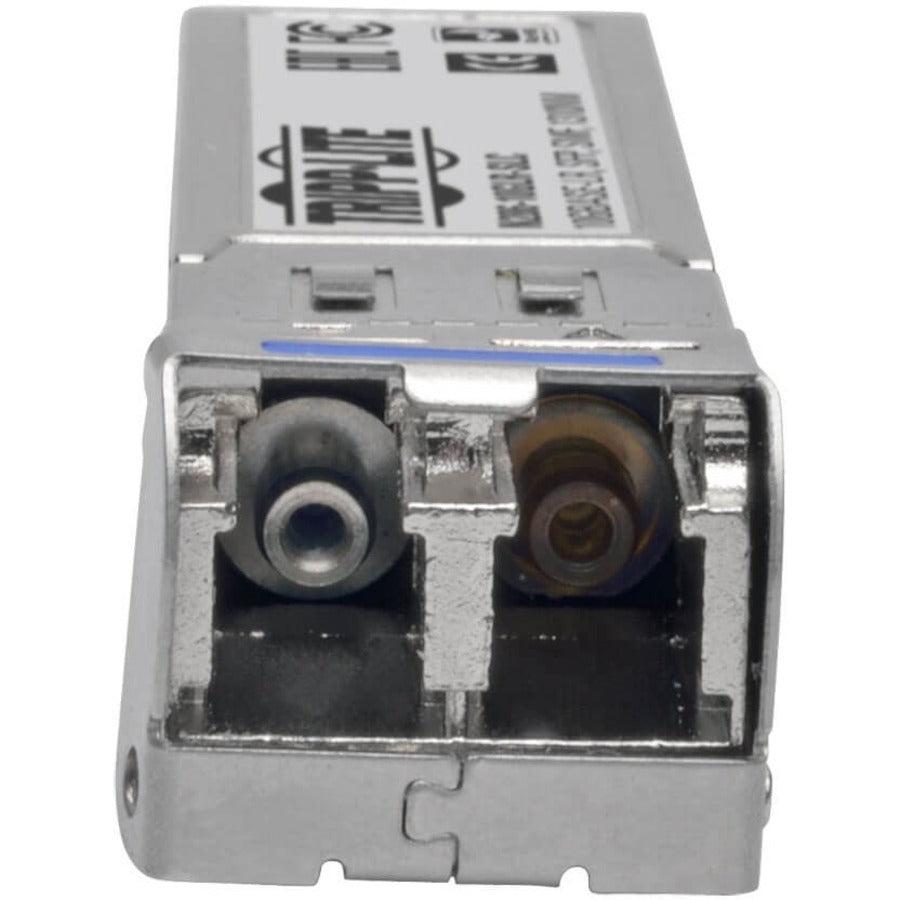

The N286-10GLR-SLC Cisco SFP-10G-LR Compatible 10GBase-LR LC SFP Transceiver with a duplex LC female connector functions just like the Cisco® SFP-10G-LR transceiver module and is designed to operate with Cisco networking equipment. It also meets or exceeds the SFP-10G-LR’s original specifications and complies with MSA standards.
This 10GBase-LR transceiver is fully hot-pluggable, so you can install it without shutting down the network or rebooting your device. It supports data transfer rates up to 10 Gbps with 1310 nm wavelength signaling. It transmits across six miles (10 kilometers) of 9/125 SMF cabling. Its metallic housing allows low EMI.
The N286-10GLR-SLC also supports DDM, so you can monitor optical output power, optical input power, temperature, laser bias current and transceiver supply voltage. It is electrical interface-compliant with SFF-8431 specification, and supports up to 11.1 Gbps bi-directional communication.
10GBase-LR Transceiver with Duplex LC Connector Hot-pluggable for installation without rebooting or shutting down Supports data transfer rates up to 10 Gbps Transmits up to 6 mi. (10 km) with 9/125 SMF cabling Metallic housing for low EMI Supports up to 11.1 Gbps bi-directional communication Supports DDM Electrical interface-compliant with SFF-8431 specification 1310 nm wavelength signaling
Designed for Use with Cisco Networking Equipment Functionally equivalent to Cisco SFP-10G-LR Meets or exceeds SFP-10G-LR specs Complies with MSA standards
General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
N286-10GLR-SLC
Manufacturer Website Address
https://tripplite.eaton.com/
Brand Name
Tripp Lite by Eaton
Product Model
N286-10GLR-SLC
Product Name
Cisco N286-10GLR-SLC SFP+ Module
Product Type
SFP+
UPC
037332197429
Ethernet Technology
10 Gigabit Ethernet
Height
0.3"
Width
0.5"
Depth
2.2"
Weight (Approximate)
0.05 lb
Miscellaneous
Package Contents
Cisco N286-10GLR-SLC SFP+ Module
Owner's manual
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
