Tripp Lite Hdmi Over Dual Cat5 / Cat6 Extender Kit, Transmitter / Receiver For Video, Audio, 1920

HDMI over Dual Cat5 / Cat6 Extender Kit, Transmitter / Receiver for Video, Audio, 1920 x 1200 1080 / 60p (HDMI F/F), Up to 45.72 m (150-ft.)

Tripp Lite HDMI over Dual Cat5 / Cat6 Extender Kit, Transmitter / Receiver for Video, Audio, 1920 x 1200 1080 / 60p (HDMI F/F), Up to 45.72 m (150-ft.). Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat5e,Cat6. Operating voltage: 5 V, Current: 2 A, Power requirements: 100 - 240V, 50/60Hz, 0.5A. Dimensions (WxDxH): 44.5 x 19 x 60.3 mm. Package width: 165.1 mm, Package depth: 215.9 mm, Package height: 38.1 mm. Master (outer) case width: 342.9 mm, Master (outer) case length: 576.6 mm, Master (outer) case height: 254 mm

Tripp Lite's HDMI Over Dual Cat5 Extender Kit is the perfect solution for those who need to extend a HDMI signal over a long distance over two Cat5/6 cables. When using 24Awg, Solid Wire Cat6 cable, a 1080p @ 60Hz (or 1920 x 1200) signal can be extended up to 45.72 m (150-ft.) from the source.
When using 24Awg, Solid Wire Cat6 cable, a 3D signal can be extended up to 38.1 m (125-ft.)
When using 24Awg, Solid Wire Cat5 cable, a 1080p @ 60Hz (or 1920 x 1200) signal can be extended up to 30.5 m (100-ft.) from the source.
When using 24Awg, Solid Wire Cat5 cable, a 3D signal can be extended up to 22.86 m (75-ft.)

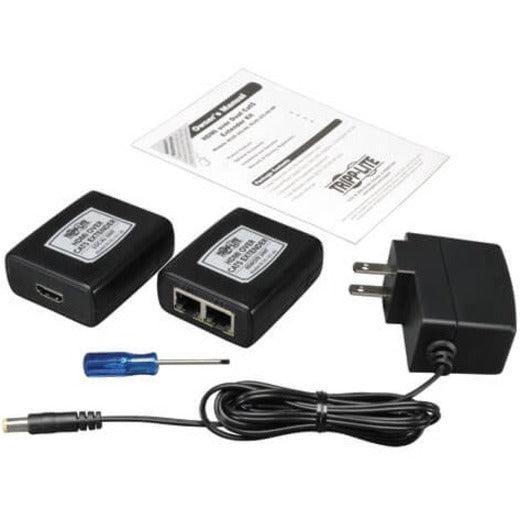

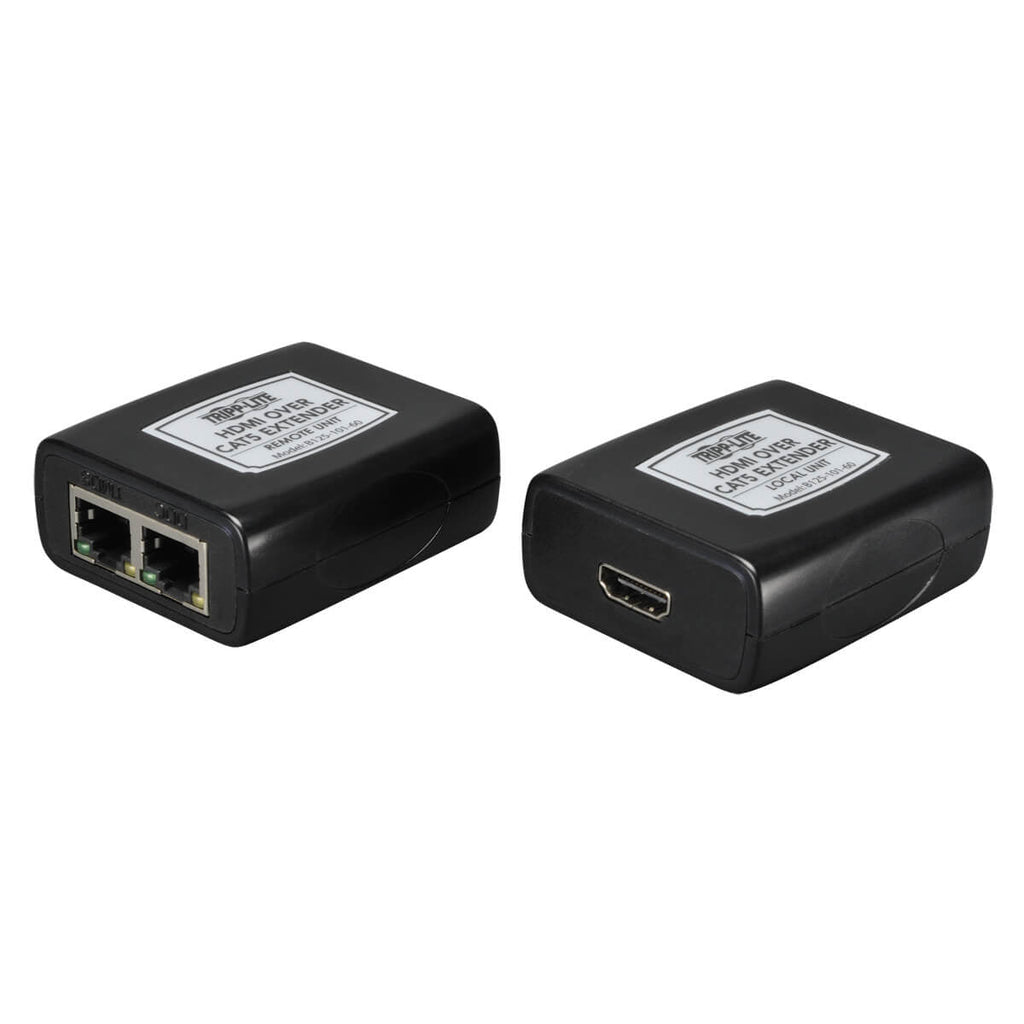

Simply run two Cat5/6 cables between the local transmitter and remote receiver units, and plug in standard Tripp Lite HDMI cables to the HDMI source and the display. The B125-101-60 comes with both local transmitter and remote receiver units. DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio are supported, and it is compliant with HDCP, EDID and DDC. 24-bit True Color (8-bits per channel) is supported.

- Extends a 1080p @ 60Hz (or 1920 x 1200) signal up to 45.72 m (150-ft.) using 24Awg, Solid Wire Cat6* cabling (Tripp Lite N202-Series)
- Extends a 3D signal up to 38.1 m (125-ft.) using 24Awg, Solid Wire Cat6* cabling (Tripp Lite N202-Series)
- Supports 24-bit True Color (8-bits per channel)
- Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
- Supports HDCP, EDID and DDC
*When using Cat5 cable, the maximum extension distance is reduced by 15.24 m (50-ft.)

- Extends a 1080p @ 60Hz (or 1920 x 1200) signal up to 45.72 m (150-ft.) using 24Awg, Solid Wire Cat6 cabling (Tripp Lite N202-Series)
- Extends a 1080p @ 60Hz (or 1920 x 1200) signal up to 30.5 m (100-ft.) using 24Awg, Solid Wire Cat5 cabling
- Extends a 3D signal up to 38.1 m (125-ft.) using 24Awg, Solid Wire Cat6 cabling, or up to 22.86 m (75-ft.) using 24Awg, Solid Wire Cat5 cabling
- Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
- Supports HDCP, EDID and DDC
- Supports 24-bit True Color (8-bits per channel)
- Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor
- Equalization control dial for skew compensation Supports Lip-Sync Pass Through, and CEC pass through
- Green LED indicate power being received
- Orange LED indicates signal connection
