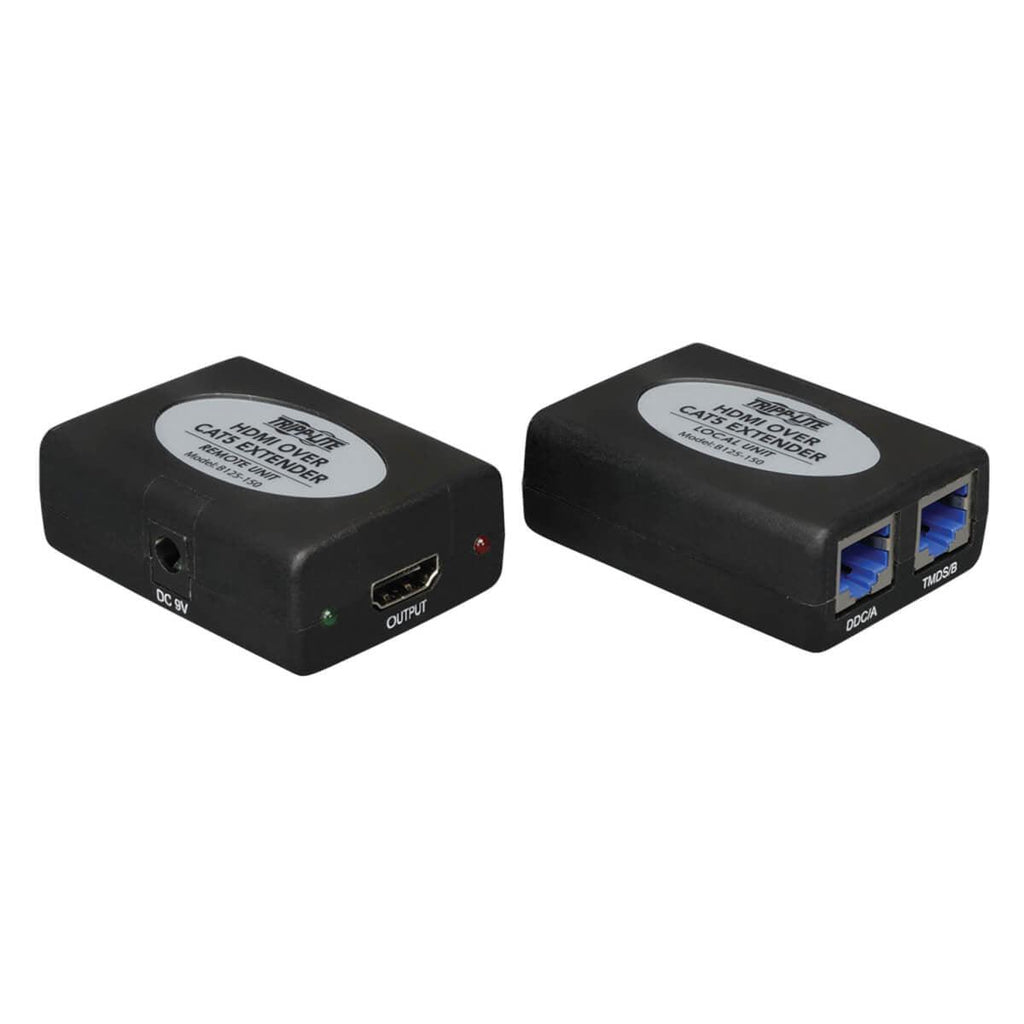

HDMI over Dual Cat5 / Cat6 Extender Kit, In-Line Transmitter / Receiver, Video and Audio, 1920 x 1200 1080 / 24p, Up to 45.72 m (150-ft.)
Tripp Lite HDMI over Dual Cat5 / Cat6 Extender Kit, In-Line Transmitter / Receiver, Video and Audio, 1920 x 1200 1080 / 24p, Up to 45.72 m (150-ft.). Video port type: HDMI, Cable types supported: Cat5,Cat6, Connector(s): HDMI. Maximum resolution: 1920 x 1200 pixels, Product colour: Black, Maximum operating distance: 69 m. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Input current: 0.4 A. Dimensions (WxDxH): 60.3 x 44.4 x 19 mm. Package width: 162.6 mm, Package depth: 55.9 mm, Package height: 182.9 mm
Tripp Lite's HDMI Over Dual Cat5 Extender Kit is the perfect solution for those who need to extend a HDMI signal over a long distance over two Cat5/6 cables. When using 24Awg, Solid Wire Cat6 cable, a 1080p @ 24Hz (or 1920 x 1200) signal can be extended up to 45.72 m (150-ft.) from the source. When using 24Awg, Solid Wire Cat6 cable, a 3D signal can be extended up to 38.1 m (125-ft.) When using 24Awg, Solid Wire Cat5 cable, a 1080p @ 24Hz (or 1920 x 1200) signal can be extended up to 30.5 m (100-ft.) from the source. When using 24Awg, Solid Wire Cat5 cable, a 3D signal can be extended up to 22.86 m (75-ft.) Simply run two Cat5/6 cables between the local transmitter and remote receiver units, and plug in standard Tripp Lite HDMI cables to the HDMI source and the display. The B125-150 comes with both local transmitter and remote receiver units. DTS-HD, Dolby True HD and 7.1 Channel Surround Sound audio are supported, and it is compliant with HDCP, EDID and DDC. 24-bit True Color (8-bits per channel) is supported.
- Extends a 1080p @ 24Hz (or 1920 x 1200) signal up to 45.72 m (150-ft.) using 24Awg, Solid Wire Cat6* cabling (Tripp Lite N202-Series) - Extends a 3D signal up to 38.1 m (125-ft.) using 24Awg, Solid Wire Cat6* cabling (Tripp Lite N202-Series) - Supports 24-bit True Color (8-bits per channel) - Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio - Supports HDCP, EDID and DDC *When using Cat5 cable, the maximum extension distance is reduced by 15.24 m (50-ft.)
- Extends a 1080p @ 24Hz (or 1920 x 1200) signal up to 45.72 m (150-ft.) using 24Awg, Solid Wire Cat6 cabling (Tripp Lite N202-Series) - Extends a 1080p @ 24Hz (or 1920 x 1200) signal up to 30.5 m (100-ft.) using 24Awg, Solid Wire Cat5 cabling - Extends a 3D signal up to 38.1 m (125-ft.) using 24Awg, Solid Wire Cat6 cabling, or up to 22.86 m (75-ft.) using 24Awg, - Solid Wire Cat5 cabling - Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio - Supports HDCP, EDID and DDC - Supports 24-bit True Color (8-bits per channel) - Use Tripp Lite P568-Series HDMI cables to connect to HDMI source and monitor - Supports Lip-Sync Pass Through, and CEC pass through - Green LED on the remote unit will illuminate to indicate that power is being received - The Red LED on the remote unit will illuminate only if a working signal is NOT being received. The unit is functioning properly when the Red LED is not illuminated
