Tripp Lite HDBaseT HDMI Over Cat5e Cat6 Cat6a 4x2 Extender Transmitter, Serial and IR Control 4K x 2K 150m 500ft
The BHDBT-T-SI-4X2 HDBaseT HDMI over Cat5e/6/6a 4x2 Extender Matrix Transmitter works in tandem with the Tripp Lite BHDBT-Series receiver in your HDBaseT installation to extend uncompressed HDMI video and audio, RS-232 serial and IR remote control signals. It features four HDMI input ports and two RJ45 output ports, letting you route any source to either display or the same source to both displays.Using a single Cat5e/6/6a cable, the BHDBT-T-SI-4X2 can extend an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) signal up to 328 feet(100 m) or an HD 1920 x 1080(1080p) signal up to 500 feet(150 m). To further extend and expand your installation, you can insert up to five BHDBT-Series Extender Transceivers between the transmitter and receiver for a total range up to 3,000 feet with a monitor connected to each transceiver.** The sources connect to locking HDMI ports that prevent the cable from coming loose or undone, ensuring an intact signal.The BHDBT-T-SI-4X2 supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach the unit to a wall, rack or pole. Sets up quickly with no software to download or install.
- Plug and play-no software or drivers to install
- Mounts easily to wall, rack or pole
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD
- Supports video resolutions up to 3840 x 2160 (4K x 2K)
- Features 4 HDMI input ports and 2 RJ45 output ports
Product Type: Video Extender Transmitter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Transmitter Height: 1.20"
Transmitter Width: 9.30"
Transmitter Depth: 3.90"
Transmitter Weight (Approximate): 3.50 lb
Taa Compliant: Yes
Product Color: Black
Country Of Origin: Taiwan
Brand Name: Tripp Lite
Form Factor: Pole-mountable
Manufacturer: Tripp Lite by Eaton
Product Model: BHDBT-T-SI-4X2
Product Name: BHDBT-T-SI-4X2 HDBaseT HDMI over Cat5e/6/6a 4x2 Extender Matrix Transmitter
Manufacturer Part Number: BHDBT-T-SI-4X2
Manufacturer Website Address: http://www.tripplite.com

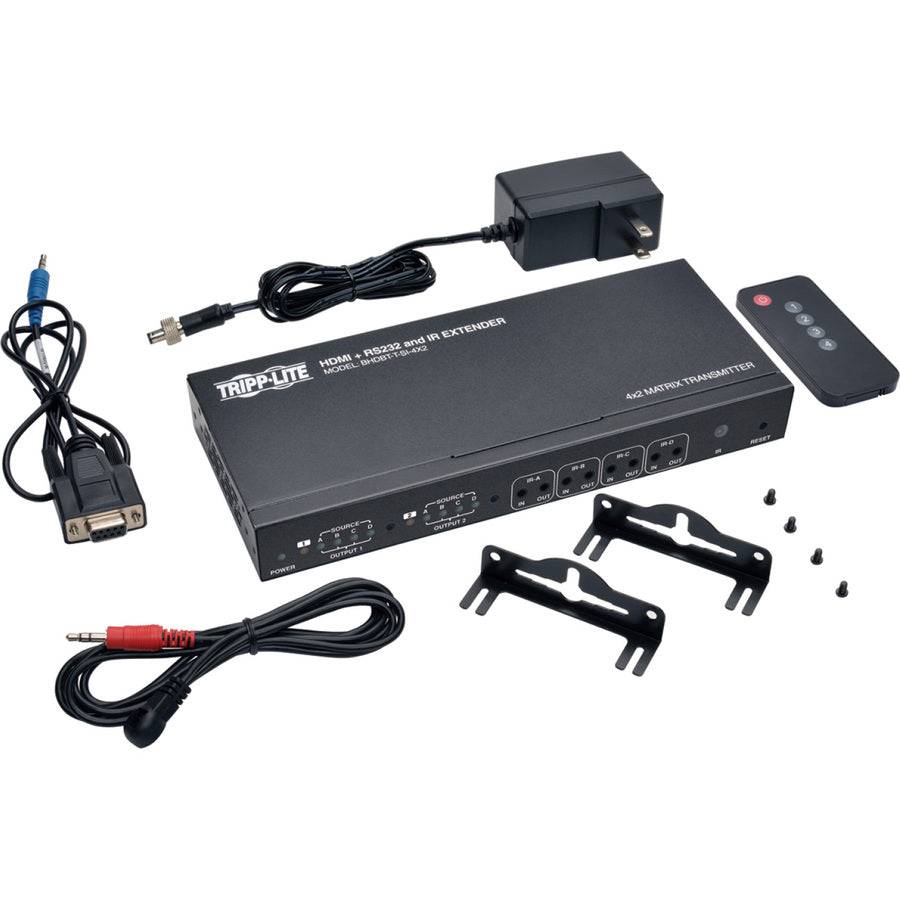

Package Contents:
- BHDBT-T-SI-4X2 HDBaseT HDMI over Cat5e/6/6a 4x2 Extender Matrix Transmitter
- Remote Control
- IR extension Cable
- 3.5 mm Male to DB9 Female Adapter Cable
- External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 3A)
- Mounting Hardware
- Owner's Manual
Limited Warranty: 1 Year
