HDBaseT HDMI over Cat5e/6/6a Extender Receiver, Serial and IR, 4K x 2K UHD/1080p, Up to 328 ft. (100 m)
Tripp Lite HDBaseT HDMI over Cat5e/6/6a Extender Receiver, Serial and IR, 4K x 2K UHD/1080p, Up to 328 ft. (100 m). Type: AV receiver, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e,Cat6,Cat6a. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Dimensions (WxDxH): 114.3 x 63.5 x 27.94 mm, Weight: 249.5 g. Package width: 213.4 mm, Package depth: 165.1 mm, Package height: 55.9 mm. Cables included: AC, Audio (3.5mm), IR
Works with a Tripp Lite HDBaseT matrix transmitter to extend uncompressed HDMI video and audio, RS-232 serial and IR remote control signals over a Cat5e/6/6a cable up to 328 ft. to a projector, monitor or television.
- Extends a 3840 x 2160 (4K x 2K) signal up to 328 ft. (100 m) - Extends a 1080p @ 60 Hz signal up to 328 ft. (100 m) - Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD - Mounts easily to wall, rack or pole - Plug and play—no software or drivers to install
The BHDBT-R-SI-LR HDBaseT Extender Receiver works in tandem with the Tripp Lite BHDBT-Series matrix transmitter in your HDBaseT installation to extend uncompressed HDMI video and audio, RS-232 serial and IR remote control signals.

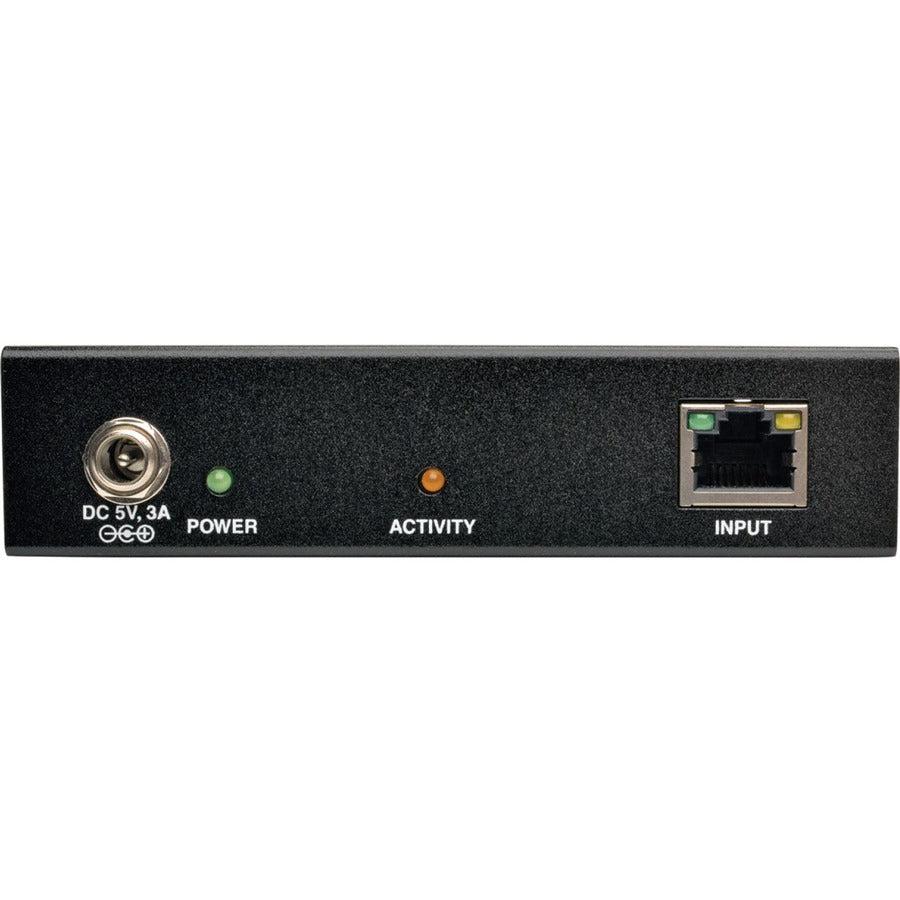

Using a single Cat5e/6/6a cable, the BHDBT-R-SI-LR can extend a 1920 x 1080(1080p) signal at 60 Hz or an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) video signal up to 328 feet(100 m). To further extend and expand your installation, you can insert up to five BHDBT-TR-SI-LR Extender Transceivers between the receiver and transmitter for a total range up to 2,000 feet(610 m) with a monitor connected to each transceiver.

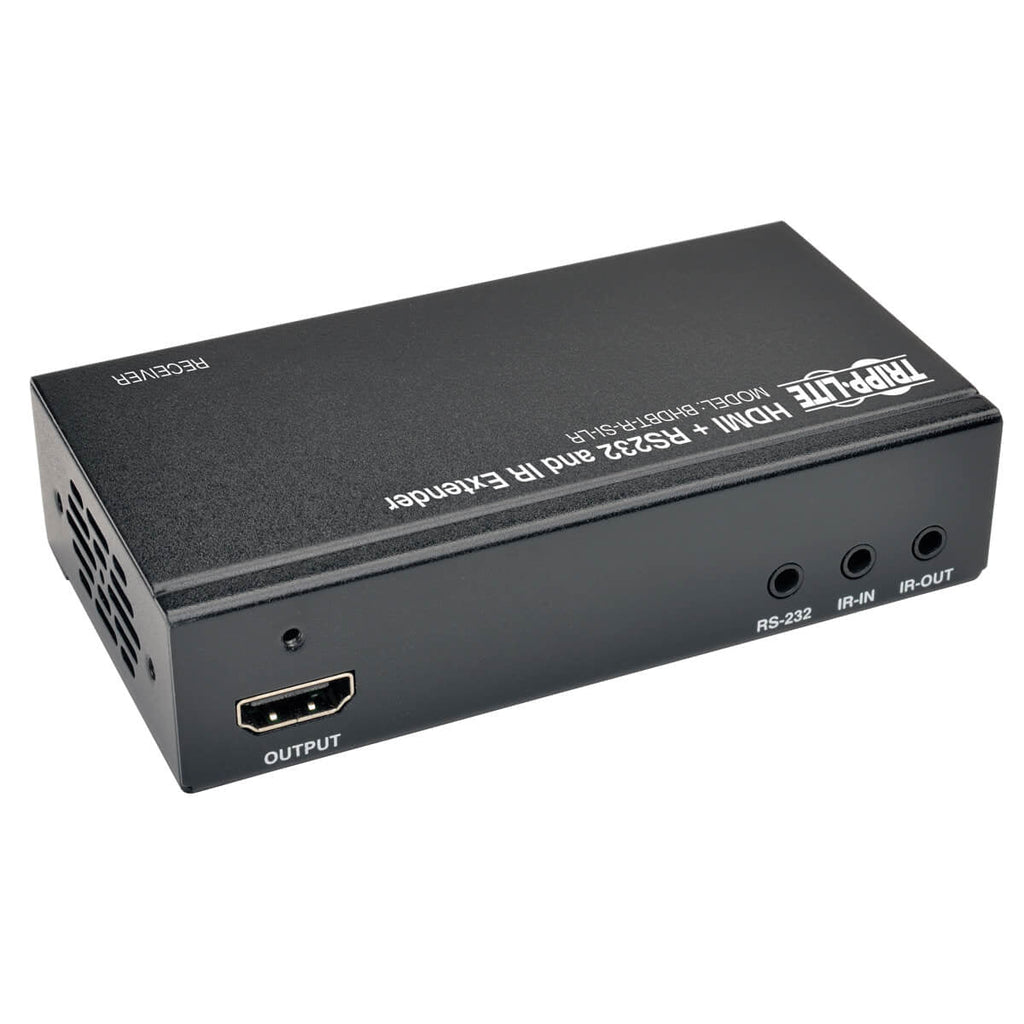

You can control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The 2-way IR Remote Control feature(@ 39 KHz) lets you also control your Blu-ray player using its remote when at the remote monitor and vice versa. The monitor connects to the rear locking HDMI port(ideal for use with Tripp Lite’s P569-006-LOCK High-Speed HDMI cables with locking connectors) that prevents the cable from coming loose or undone, ensuring an intact signal.

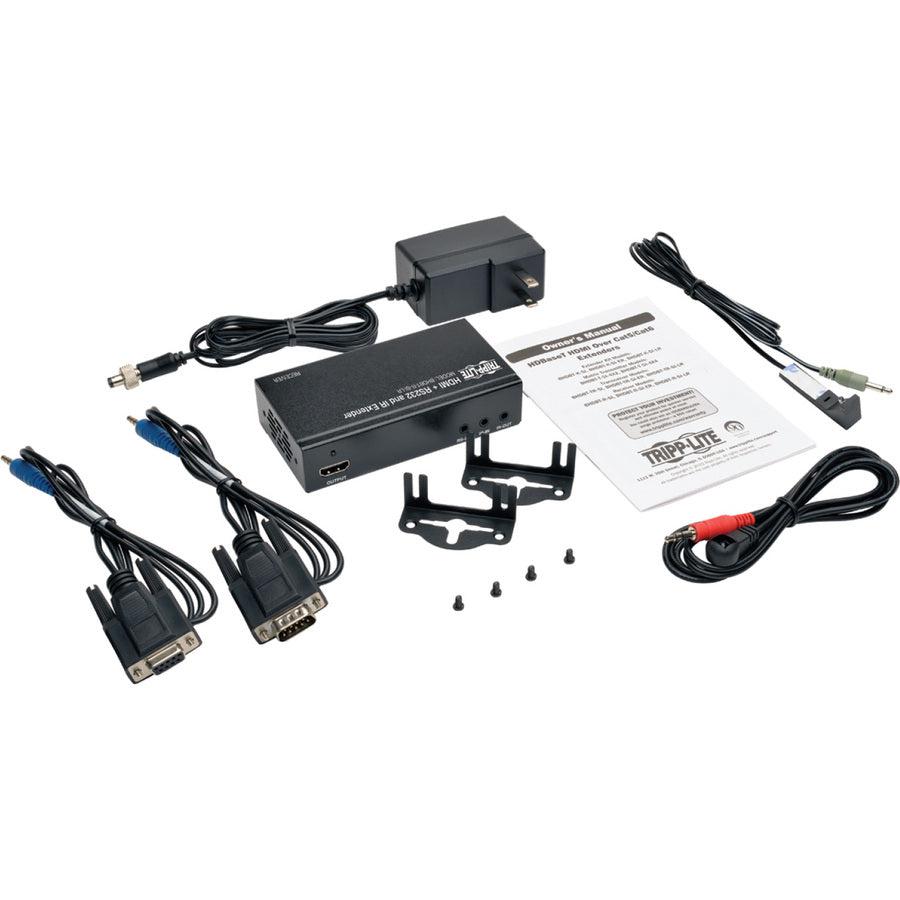

The BHDBT-R-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach the receiver to a wall, rack or pole. Sets up quickly with no software to download or install.
Supports the Latest Video and Audio Applications - Connects to Tripp Lite BHDBT-Series matrix transmitter with a single Cat5e/6/6a cable - Extends an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) signal or High Definition 1920 x 1080(1080p) @ 60 Hz signal up to 328 ft.(100 m) - Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio - Supports 36-bit Deep Color(12 bits per channel), CEC pass-through, 3D video, EDID and HDCP - Add up to 5 BHDBT-TR-SI-LR Extender Transceivers to further expand the range of your installation up to 2,000 ft.(610 m) with a monitor attached to each transceiver
Allows You to Control Other Devices - 2-way 39 KHz IR Remote Control functionality lets you control your Blu-ray player with its remote while standing at the remote monitor(and vice versa) - RS-232 serial port supports 115 Kbps full-duplex baud rates for devices such as scanners and touchscreen monitors
Easy to Set Up and Use - Plug-and-play engineering—no software or drivers to download and install - Included mounting hardware lets you install each unit on a wall, rack or pole - Locking HDMI port(ideal for use with Tripp Lite’s P569-006-LOCK HDMI cables) prevents cable from coming loose or disconnected, ensuring an intact signal
TAA-Compliant - Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
