Tripp Lite Hdbaset Class B (Hdbaset-Lite) Hdmi Over Cat5E/6/6A Extender Transceiver, Serial And Ir, 4Kx2K Uhd/1080P, Up To 230 Ft. (70 M)

HDBaseT Class B (HDBaseT-Lite) HDMI over Cat5e/6/6a Extender Transceiver, Serial and IR, 4Kx2K UHD/1080p, Up to 230 ft. (70 m)

Tripp Lite HDBaseT Class B (HDBaseT-Lite) HDMI over Cat5e/6/6a Extender Transceiver, Serial and IR, 4Kx2K UHD/1080p, Up to 230 ft. (70 m). Type: AV transmitter, Maximum resolution: 3840 x 2160 pixels, Cable types supported: Cat5e,Cat6,Cat6e. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Width: 127 mm, Depth: 101.6 mm, Height: 30.5 mm. Package width: 213.4 mm, Package depth: 165.1 mm, Package height: 55.9 mm. Master (outer) case width: 574 mm, Master (outer) case length: 175.3 mm, Master (outer) case height: 226.1 mm

Transmits uncompressed HDMI video and audio, RS-232 serial and IR remote control signals over a single Cat5e/6/6a cable up to 230 ft. to projectors, monitors or televisions in a chain.

- Extends and expands your Tripp Lite HDBaseT Class B installation
- Connects multiple monitors at different links in a chain
- Extends a 3840 x 2160 (4K x 2K) signal up to 130 feet (40 m)
- Extends a 1080p @ 60 Hz signal up to 230 feet (70 m)
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD

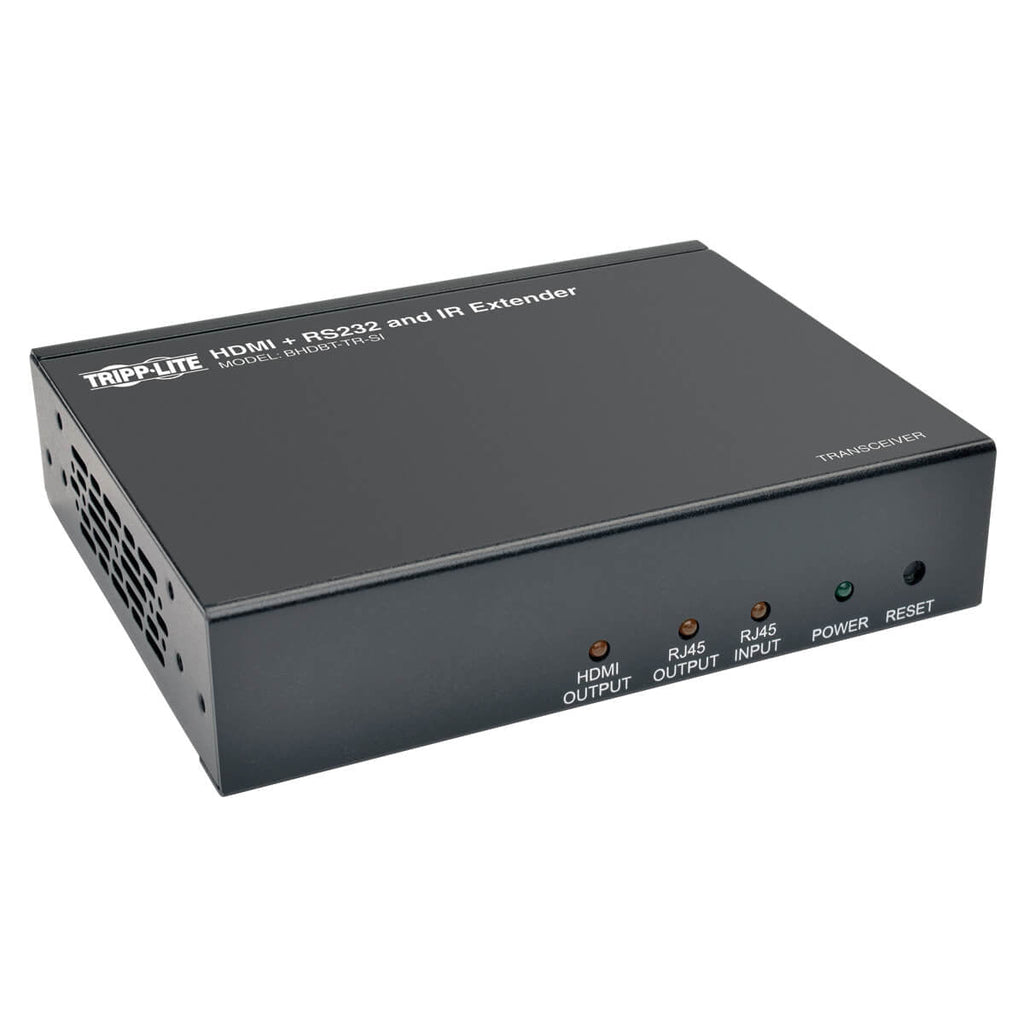

Insert the BHDBT-TR-SI HDBaseT Class B(HDBaseT-Lite) HDMI over Cat5e/6/6a Extender Transceiver between the transmitter and receiver units in your Tripp Lite HDBaseT Class B installation to extend the range of your signal. Connect its HDMI port to a projector, monitor or television to expand your installation.

Using a single Cat5e/6/6a cable, the BHDBT-TR-SI transmits uncompressed HDMI audio and video, RS-232 serial and IR control signals up to 230 feet(70 m) from the previous unit in the chain(either the transmitter or another transceiver), including a 1920 x 1080(1080p) signal @ 60 Hz. It can also extend an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) video signal up to 130 feet(40 m) from the previous unit in the chain. Add up to five BHDBT-TR-SI Extender Transceivers to the chain for a total range up to 780 feet(4K x 2K) or 1,380 feet(1080p) with a monitor connected to each transceiver.

RS-232 serial signals and IR remote control signals(@ 39 KHz) also pass through the transceiver, so your HDBaseT installation can control such RS-232 devices as scanners and touchscreen displays at baud rates up to 115 Kbps. You can also operate a Blu-ray player using its remote when at the remote monitor and vice versa. Locking HDMI ports(ideal for use with Tripp Lite’s P569-006-LOCK High-Speed HDMI cables with locking connectors) prevent cables from coming loose or undone, ensuring an intact signal. Attach the BHDBT-TR-SI to a wall, rack or pole using the included hardware.

Extends and Expands Your HDBaseT Class B(HDBaseT-Lite) Installation
- Extends an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) signal up to 130 feet(40 m)
- Extends a High Definition 1920 x 1080(1080p) @ 60 Hz signal up to 230 feet(70 m)

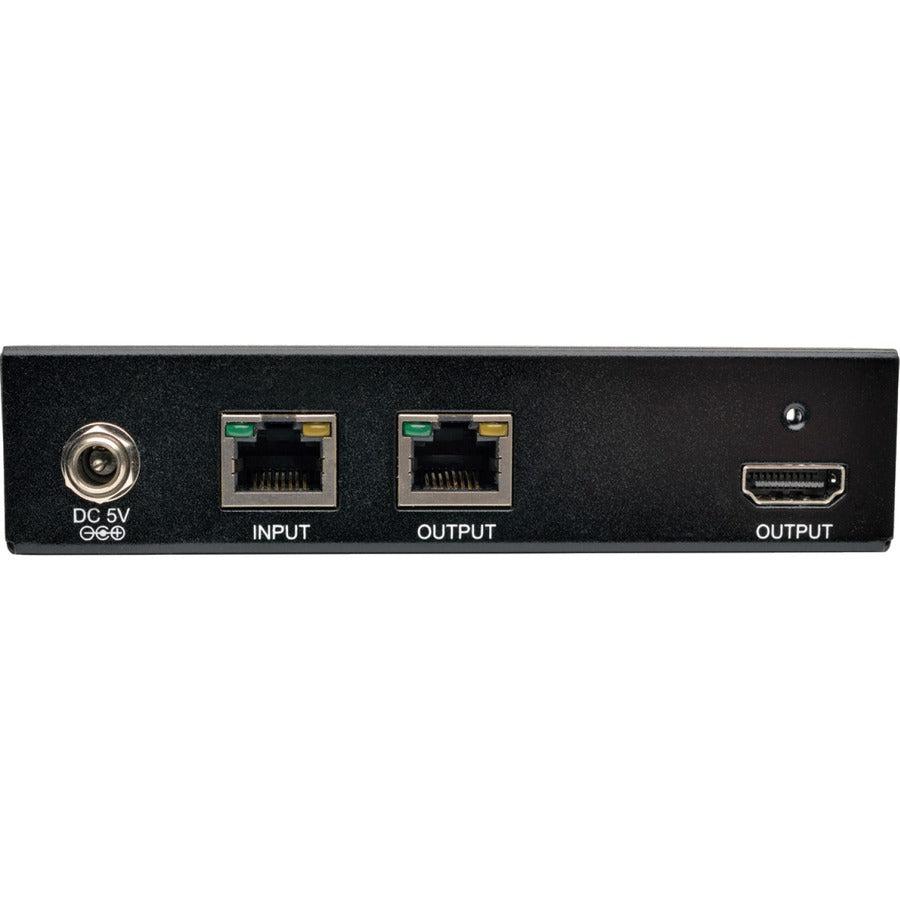

- Connects to next link in the chain with just one Cat5e/6/6a cable
- Add up to 5 transceivers to further expand the range of your installation up to 780 feet(4K x 2K) or 1,380 feet(1080p) with a monitor attached to each transceiver
- Supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio
- Supports 36-bit Deep Color(12 bits per channel), CEC passthrough, 3D video, EDID and HDCP

Allows RS-232 and IR Control Passthrough
- Passes through RS-232 serial signals at 115 Kbps full-duplex baud rates for devices such as scanners and touchscreen monitors
- Passes through IR remote control signals so you can operate your Blu-ray player with its remote while standing at the remote monitor(and vice versa)

Easy to Set Up and Use
- Plug-and-play engineering—no software or drivers to download and install
- Inserts quickly between transmitter and receiver in Tripp Lite HDBaseT Class B installation

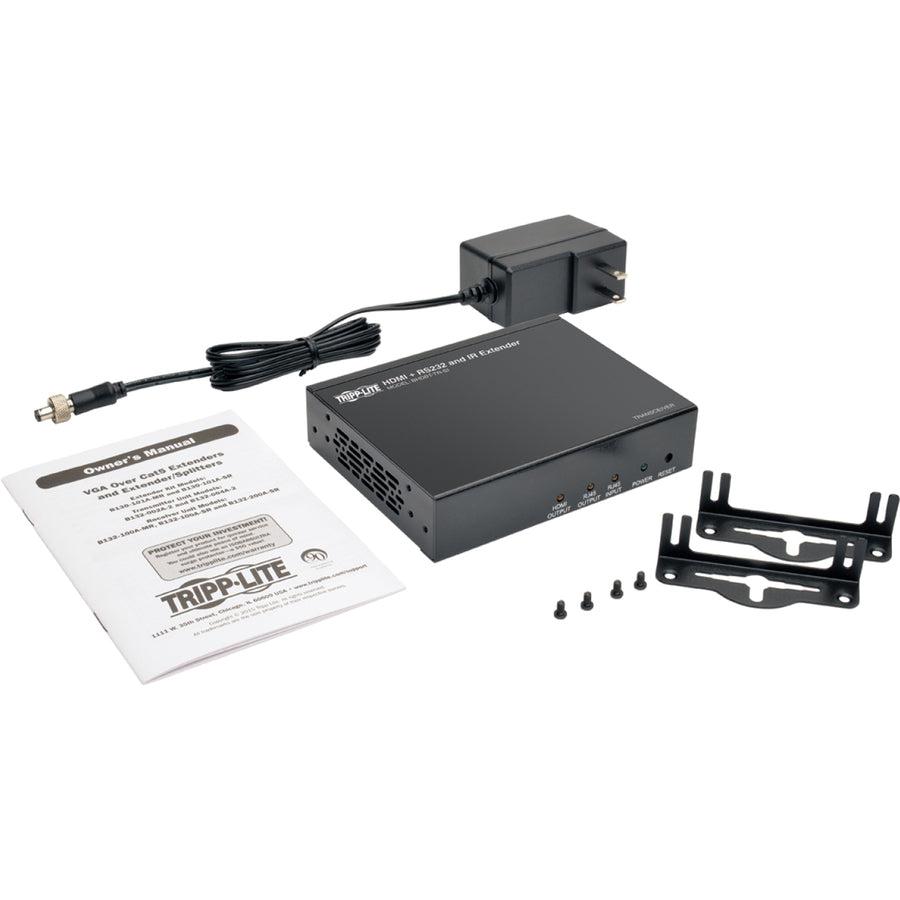

- Included mounting hardware lets you install each unit on a wall, rack or pole
- Locking HDMI ports(ideal for use with Tripp Lite’s P569-006-LOCK HDMI cables) prevent cables from coming loose or disconnected, ensuring an intact signal

TAA-Compliant
- Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
