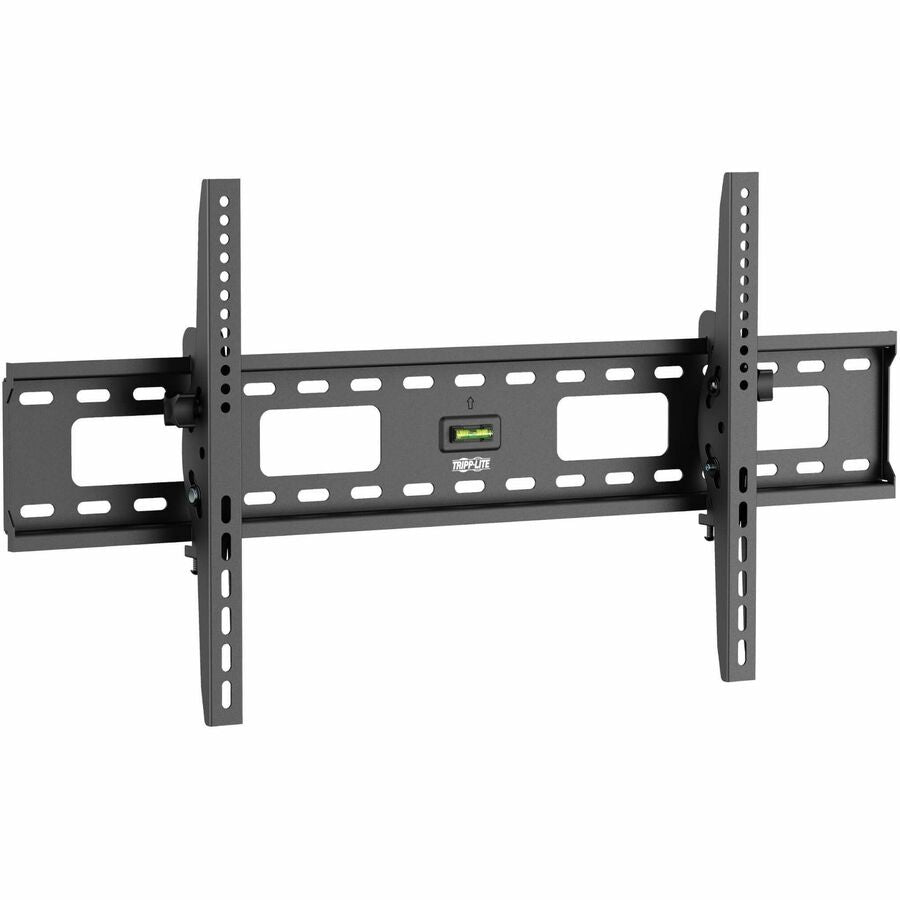

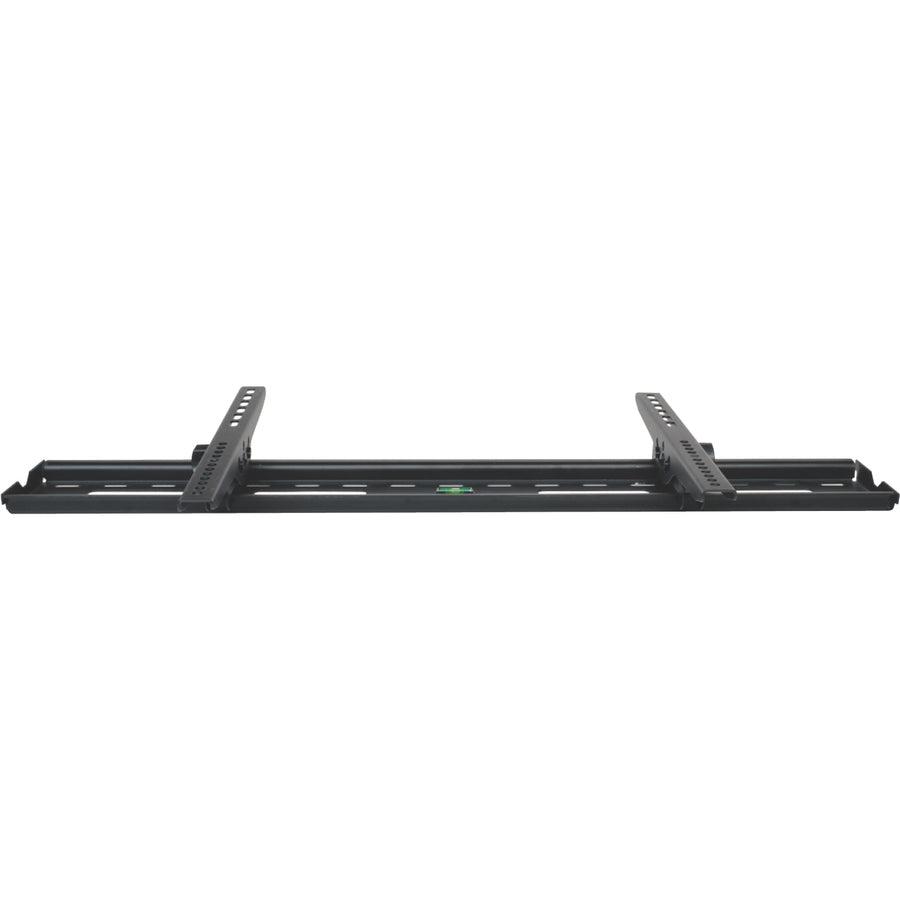

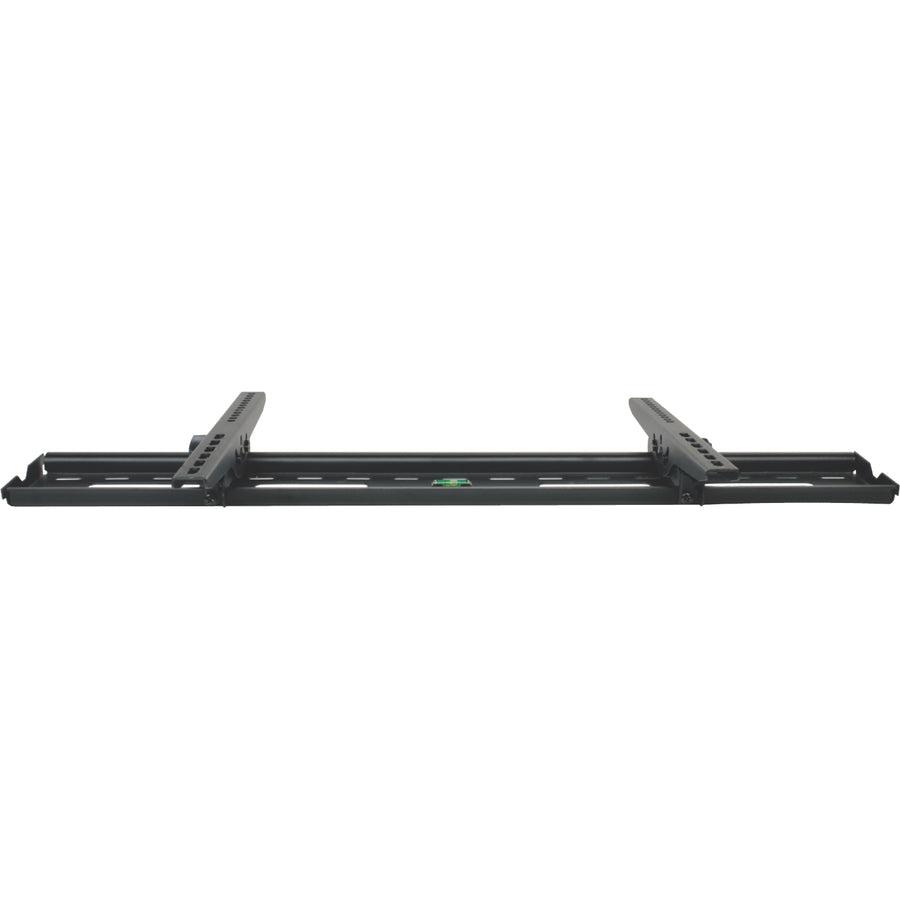

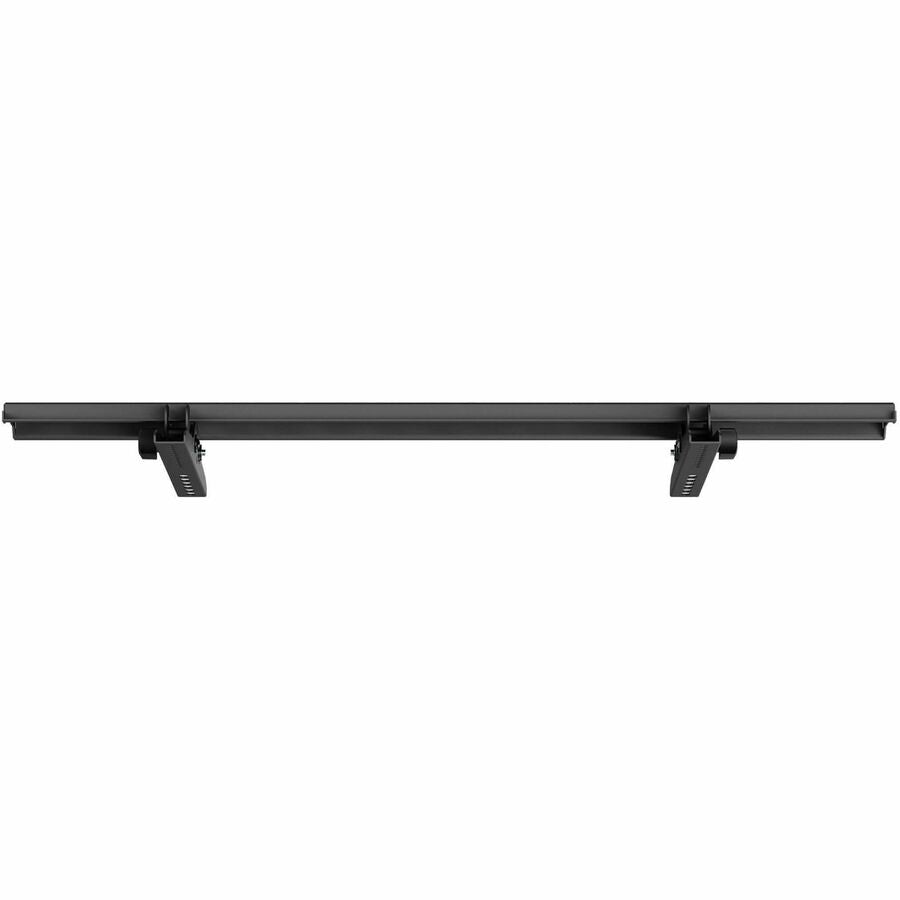

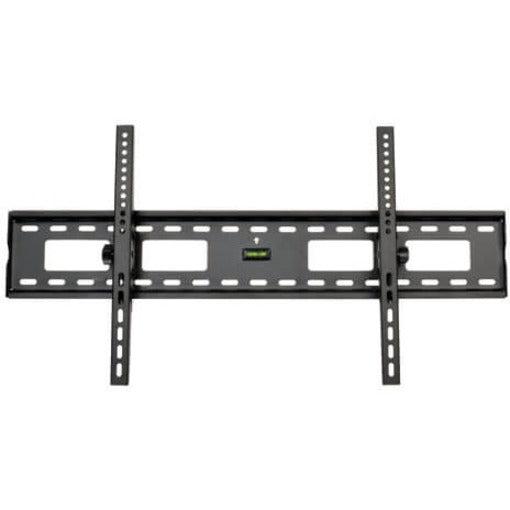

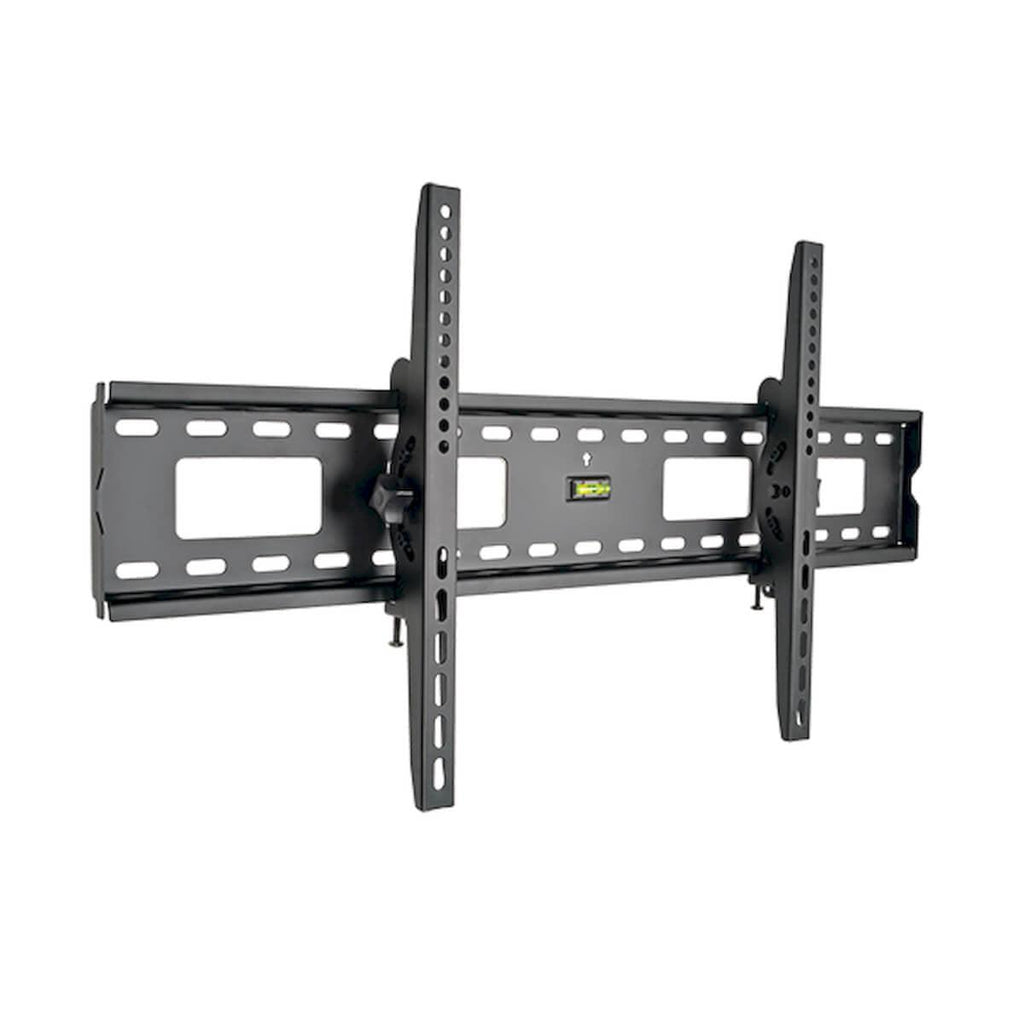

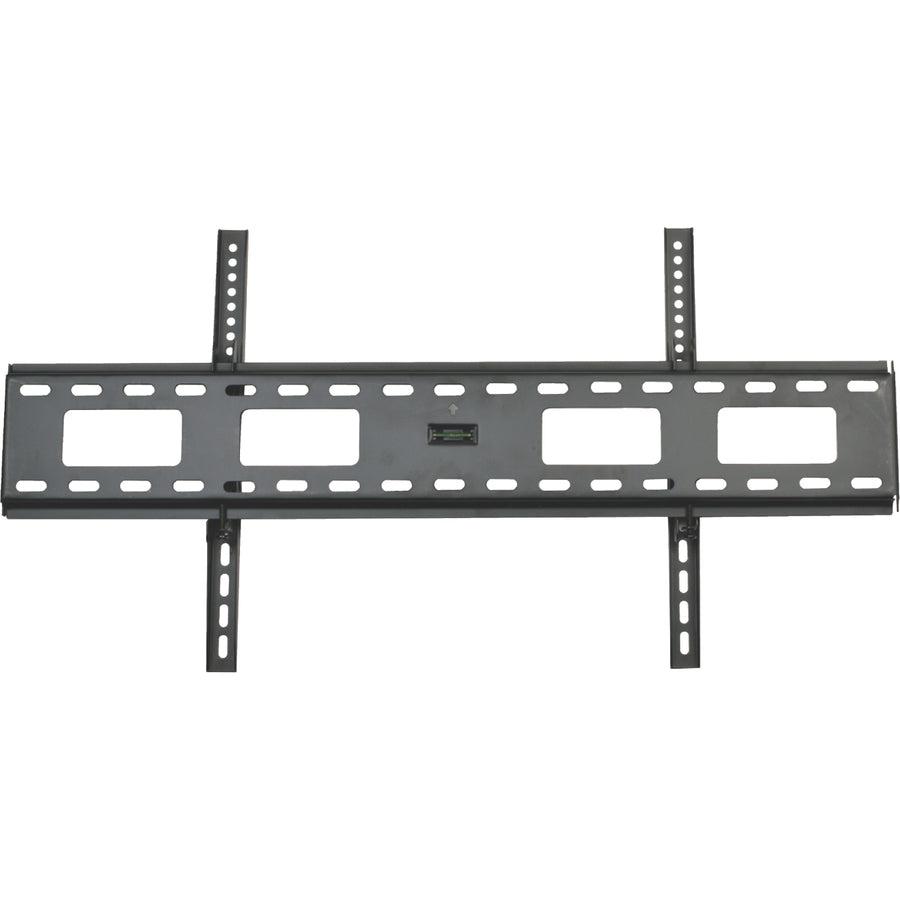

Tripp Lite DWT4585X Tilt Wall Mount for 45" to 85" TVs and Monitors. Maximum weight capacity: 90.72 kg, Minimum screen size: 114.3 cm (45"), Maximum screen size: 2.16 m (85"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 800 x 400 mm. Tilt angle range: -10 - 10°, Distance to the wall (min): 6.3 cm. Product colour: Black
The VESA-compliant DWT4585X Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 45 to 85 inches. A -10° to +10° tilt capability minimizes glare and provides comfortable viewing from multiple angles.
Low-profile mount is concealed behind the display to give a sleek, professional appearance. Frame is open for easy wall access. Mounting rails adjust horizontally to compensate for off-center wall studs. Built-in bubble level allows accurate display leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 200 lbs (90.7 kgs). Mounting hardware included. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm
Mounts Your TV or Monitor to the Wall Fits most flat-panel televisions, monitors and other displays from 45 to 85 in. Ideal for home theaters, classrooms, boardrooms, hotels, bars and restaurants Mounts out of sight behind display for sleek, professional appearance Mounting hardware included
Convenient One-Touch Adjustment -10° to +10° tilt capability provides comfortable viewing from multiple angles Improves viewing angles in applications where audience is below the display
Durable Metal Construction Supports up to 200 lbs (90.7 kgs). Open frame allows easy wall access Adjustable mounting rails compensate for off-center wall studs Built-in bubble level for accurate display leveling Scratch-resistant powder-coated finish
VESA Compliance Supports the following VESA mounting hole patterns: 200 x 200 mm, 200 x 300 mm, 200 x 400 mm, 300 x 200 mm, 300 x 300 mm, 300 x 400 mm, 400 x 200 mm, 400 x 300 mm, 400 x 400 mm, 500 x 300 mm, 500 x 400 mm, 600 x 300 mm, 600 x 400 mm, 800 x 300 mm and 800 x 400 mm
General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
DWT4585X
Manufacturer Website Address
https://tripplite.eaton.com/
Brand Name
Tripp Lite by Eaton
Product Model
DWT4585X
Product Name
Tilt Wall Mount for 45" to 85" Flat-Screen Displays
Product Type
Wall Mount
UPC
037332186461
Physical Characteristics
Color Family
Black
Product Color
Black
Height
17.3"
Width
33.9"
Depth
2.5"
Weight (Approximate)
6.83 lb
Miscellaneous
Package Contents
Tilt Wall Mount for 45" to 85" Flat-Screen Displays
