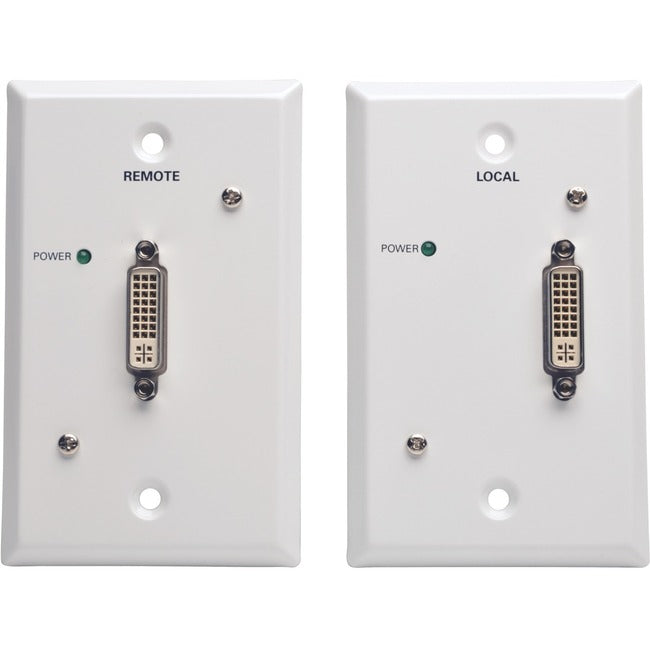

Tripp Lite DVI Over Cat5/Cat6 Video Extender Transmitter and Receiver TAA 100'

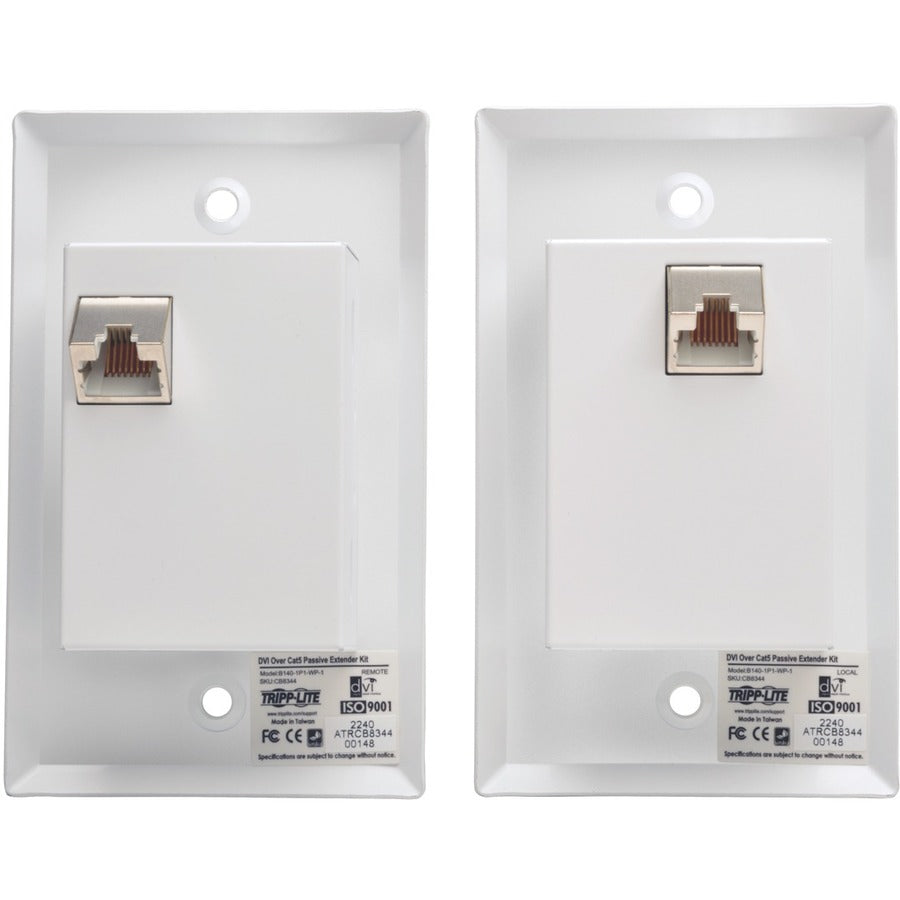

The B140-1P1-WP-1 is a DVI over Cat5/6 Passive Extender Wallplate kit, which comes with both transmitter and receiver units. It can transmit a DVI-D Single-Link signal up to 100 ft. away using a single Cat5e/6 patch cable To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202 Series ). Rear-facing RJ45 female jacks allow for quick and easy connections. The B140-1P1-WP-1 is compatible with all operating systems, and is plug and play with no external power, software or drivers required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Installation Is Simple. Connect The Transmitter Unit To A Dvi Source Using A Tripp Lite P561 Series Dvi Cable (Not Included). Connect The Receiver Unit To A Display Using A Tripp Lite P561 Series Dvi Cable (Not Included). Finally, Connect The Rj45 Jacks On The Transmitter And Receiver Units Using A Single Cat5E/6 Patch Cable. A 1920 X 1080 @ 60Hz Single-Link Signal Can Be Extended Up To 50 Ft., Or A 1024 X 768 @ 60Hz Signal Up To 100 Ft. Using A Single Cat5E/6 Patch Cable.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Plug and play, no external power, software or drivers required
- Wallplate local and remote units with RJ-45 connectors are ideal for permanent mounting and easy wiring of Cat5/6 cabling
- Extends a 1920 x 1080 @ 60Hz DVI Single-Link signal up to 50 ft., or a 1024 x 768 @ 60Hz signal up to 100ft.
Product Type: Video Extender Transmitter/Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Product Color: White
Country Of Origin: Taiwan
Brand Name: Tripp Lite
Manufacturer: Tripp Lite by Eaton
Product Model: B140-1P1-WP-1
Product Name: DVI over Cat5 / Cat6 Extender, Video Transmitter and Receiver, 1920x1080 at 60Hz
Manufacturer Part Number: B140-1P1-WP-1
Manufacturer Website Address: http://www.tripplite.com
Package Contents:
- B140-1P1-WP-1 Local Wallplate
- B140-1P1-WP-1 Remote Wallplate
- Wallplate Screws
- Owner'S Manual
Limited Warranty: 1 Year
