Tripp Lite Dvi Over Cat5/6 Extender, Extended-Range Video Wallplate Receiver, 1920 X 1080 @ 60 Hz, Up To 200 Ft, Rj45 Keystone Jack

DVI over Cat5/6 Extender, Extended-Range Video Wallplate Receiver, 1920 x 1080 @ 60 Hz, Up to 200 Ft, RJ45 Keystone Jack

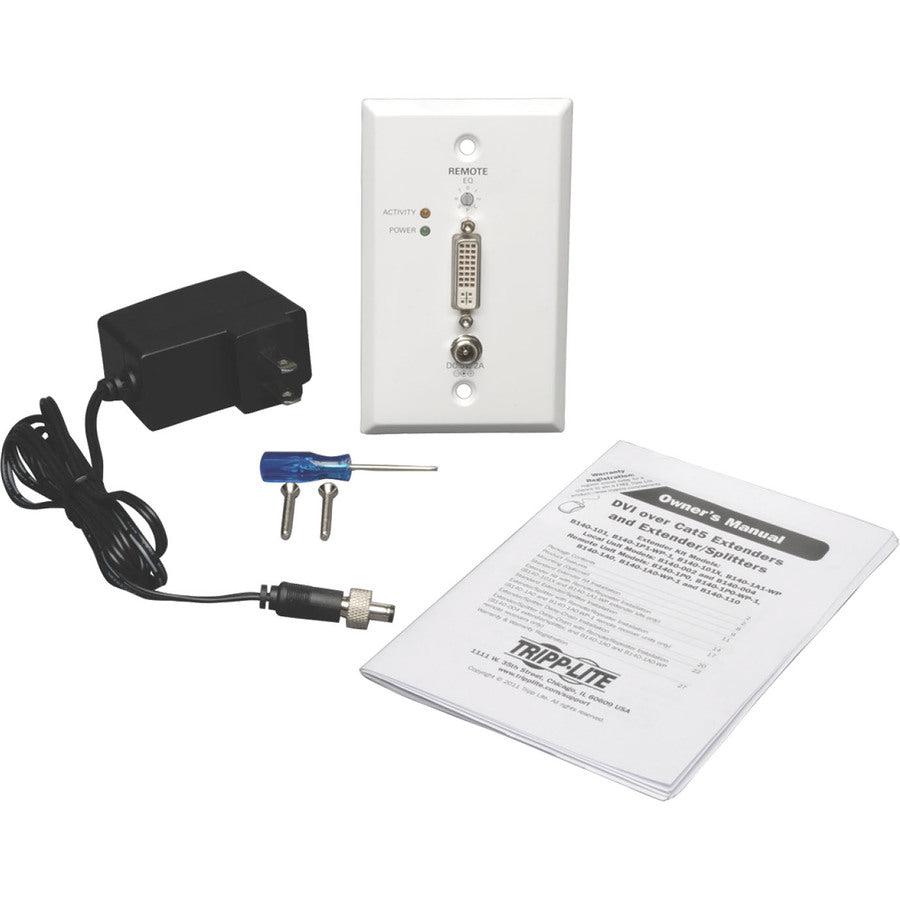

Tripp Lite DVI over Cat5/6 Extender, Extended-Range Video Wallplate Receiver, 1920 x 1080 @ 60 Hz, Up to 200 Ft, RJ45 Keystone Jack. Type: AV receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat5,Cat6. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Dimensions (WxDxH): 69.9 x 25.4 x 114.3 mm. Package width: 182.9 mm, Package depth: 165.1 mm, Package height: 55.9 mm. Cables included: AC, DVI

Receiver wallplate extends a DVI-D single-link signal via one Cat5e/6 patch cable up to 200 ft. with a Tripp Lite B140-002 or B140-004 extender/splitter transmitter unit(sold separately).

- Supports video resolutions up to 1920 x 1080, including 1080p
- Easy RJ45 connector on wallplate back
- Built-in equalization control for image adjustment
- Compatible with all major operating systems
- Plug and play—no software or drivers to download

The B140-1A0-WP-1 DVI over Cat5/6 Extender works in tandem with Tripp Lite’s B140-002 or B140-004 extender/splitter transmitter unit(sold separately) to extend a DVI-D single-link signal over a single Cat5e/6 patch cable. It can extend a 1920 x 1080(@ 60 Hz) signal up to 150 feet and a 1024 x 768 signal(@ 60 Hz) up to 200 feet. It’s ideal for digital sign applications in schools, churches, trade shows, retail settings and anywhere else a high-resolution DVI signal needs to be delivered over a long distance.

Just connect a B140-002 or B140-004 transmitter to the DVI source using a DVI cable, such as Tripp Lite’s P561-Series. Connect the B140-1A0-WP-1 to the transmitter using a Cat5e/6 cable(for best results, we recommend Tripp Lite N202-Series 24 AWG solid-wire Cat5e/6 cable) and connect to the display using a DVI cable.

To expand the range and the number of displays, add up to three B140-110 remote repeaters and an active receiver to each channel for a total of four displays per channel. A 1920 x 1080(@ 60 Hz) signal can be extended up to 125 feet to the next unit in the chain, and a 1024 x 768 signal(@ 60 Hz) up to 175 feet.

The B140-1A0-WP-1 works with all operating systems. Its plug-and-play technology means no software or drivers need to be downloaded and installed. Built-in equalization control allows for manual adjustment of the video image. Complies with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases.

- Extend DVI-D Signal via Cat5e/6 Patch Cable Up to 200 Ft.
- Ideal for digital sign applications in schools, churches, trade shows and retail settings
- Works in tandem with Tripp Lite B140-002 or B140-004 extender/splitter transmitters(sold separately)
- Extends a 1920 x 1080(@ 60 Hz) signal up to 150 ft.
- Extends a 1024 x 768 signal(@ 60 Hz) up to 200 ft.

Even More Distance and Flexibility
- Add up to 3 B140-110 remote repeaters and an active receiver for total of 4 displays per channel
- Can extend 1920 x 1080(@ 60 Hz) signal up to 125 ft. to next unit in chain
- Can extend 1024 x 768(@ 60 Hz) signal up to 175 ft. to next unit in chain

Convenient Plug-and-Play Setup
- No software or drivers required
- Compatible with all major operating systems
- Easy RJ45 connector on back—no 110 punchdown necessary
- HDCP compatible
- Built-in equalization control for image adjustment

TAA Compliant
- Complies with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases
