Tripp Lite Dvi Extender Equalizer, Dual-Link Video Repeater, 2560X1600 At 60Hz (Dvi F/F)

DVI Extender Equalizer, Dual-Link Video Repeater, 2560x1600 at 60Hz (DVI F/F)

Tripp Lite DVI Extender Equalizer, Dual-Link Video Repeater, 2560x1600 at 60Hz (DVI F/F). Type: AV repeater, Maximum resolution: 2560 x 1600 pixels, Maximum transfer distance: 45.72 m. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz. Width: 61 mm, Depth: 50.8 mm, Height: 24.1 mm. Package width: 162.6 mm, Package depth: 55.9 mm, Package height: 177.8 mm. Master (outer) case width: 348 mm, Master (outer) case length: 221 mm, Master (outer) case height: 589.3 mm

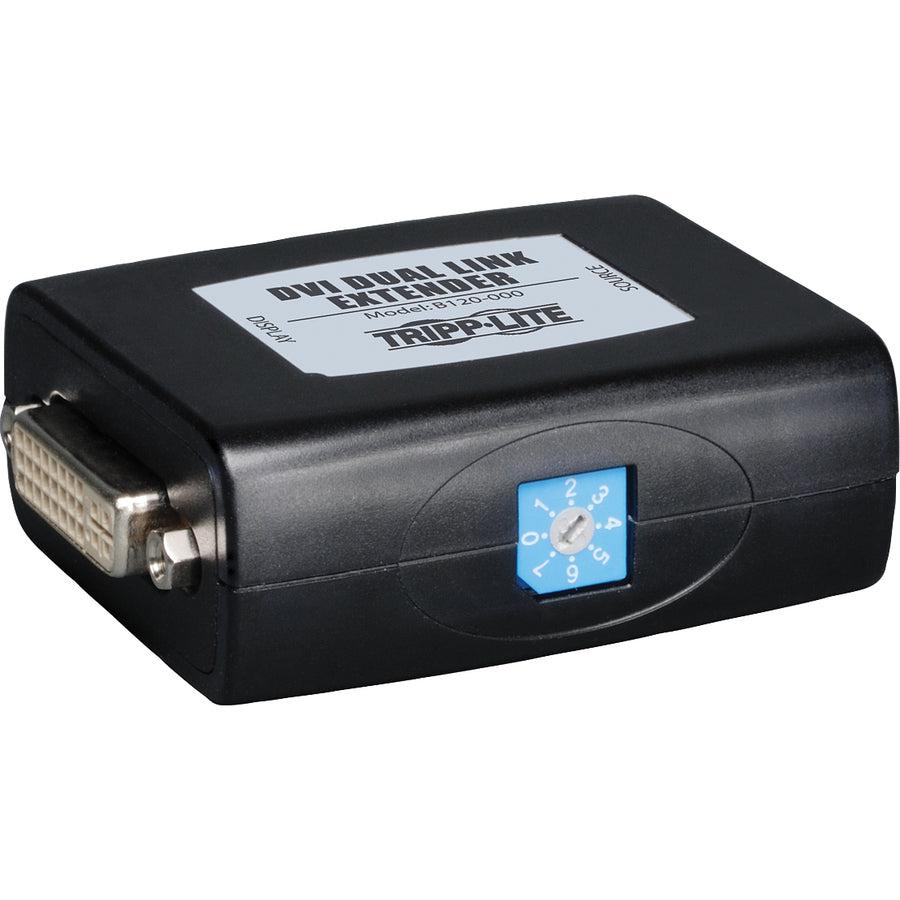

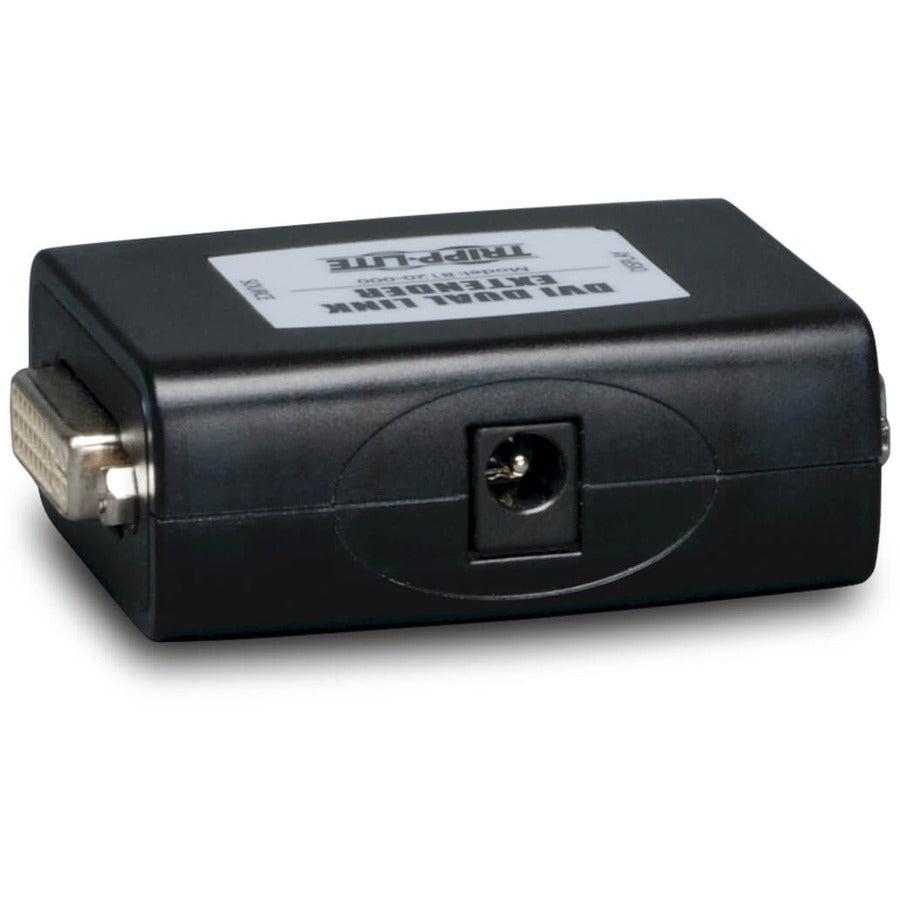

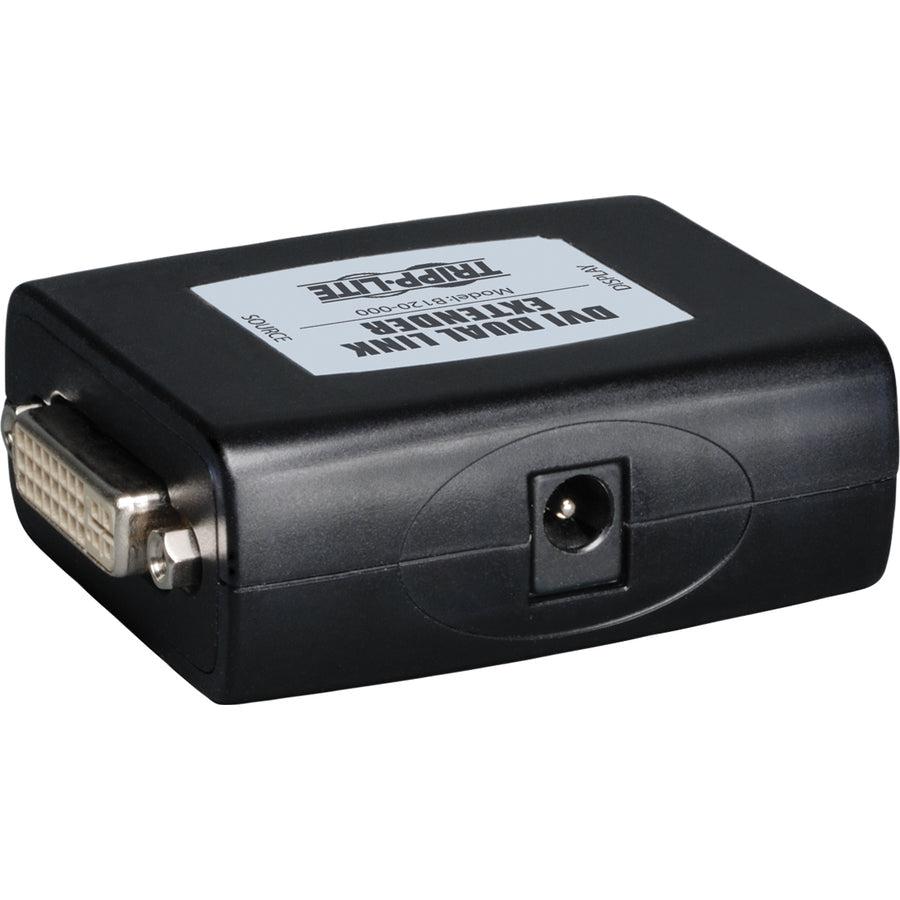

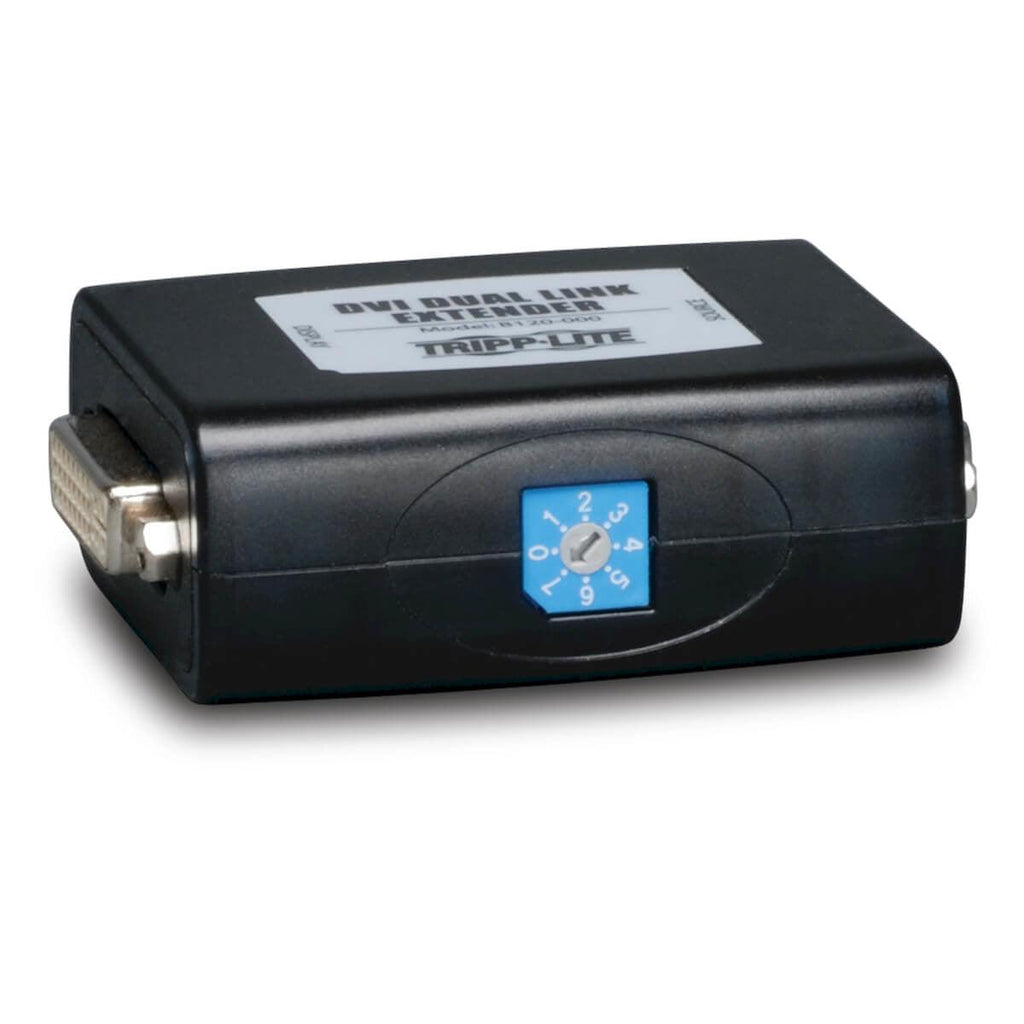

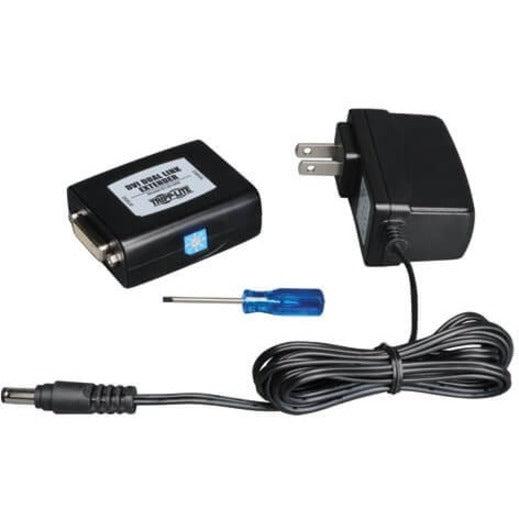

Tripp Lite's B120-000 DVI Dual Link Signal Extender increases the distance a DVI-D signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports video resolutions up to 2560 x 1600 @ 60Hz, and a maximum distance of 150 ft. from the source. Use P560-Series DVI Dual-Link cables in most applications. When extending a 2560 x 1600 video signal more than 75 ft., use cable made with 24Awg wiring. (Available from Tripp Lite as a custom order) Simply connect the longer cable between the source and the B120-000, and the shorter cable (16 ft. or less) between the adapter and the monitor. Software or drivers are not required. Built-in Equalization control to adjust the video image. HDCP and DDC compatible. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
- Extend a DVI-D Dual Link signal up to 150 ft. from the source
- Supports a maximum video resolution of 2560 x 1600 @ 60Hz
- Use P560-Series DVI Dual-Link cables in most applications
- When extending a 2560 x 1600 video signal more than 75 ft., use a cable made with 24Awg wiring (Available from Tripp Lite as a custom order)
- Built-in Equalization control to adjust the video image
- HDCP and DDC compatible
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
