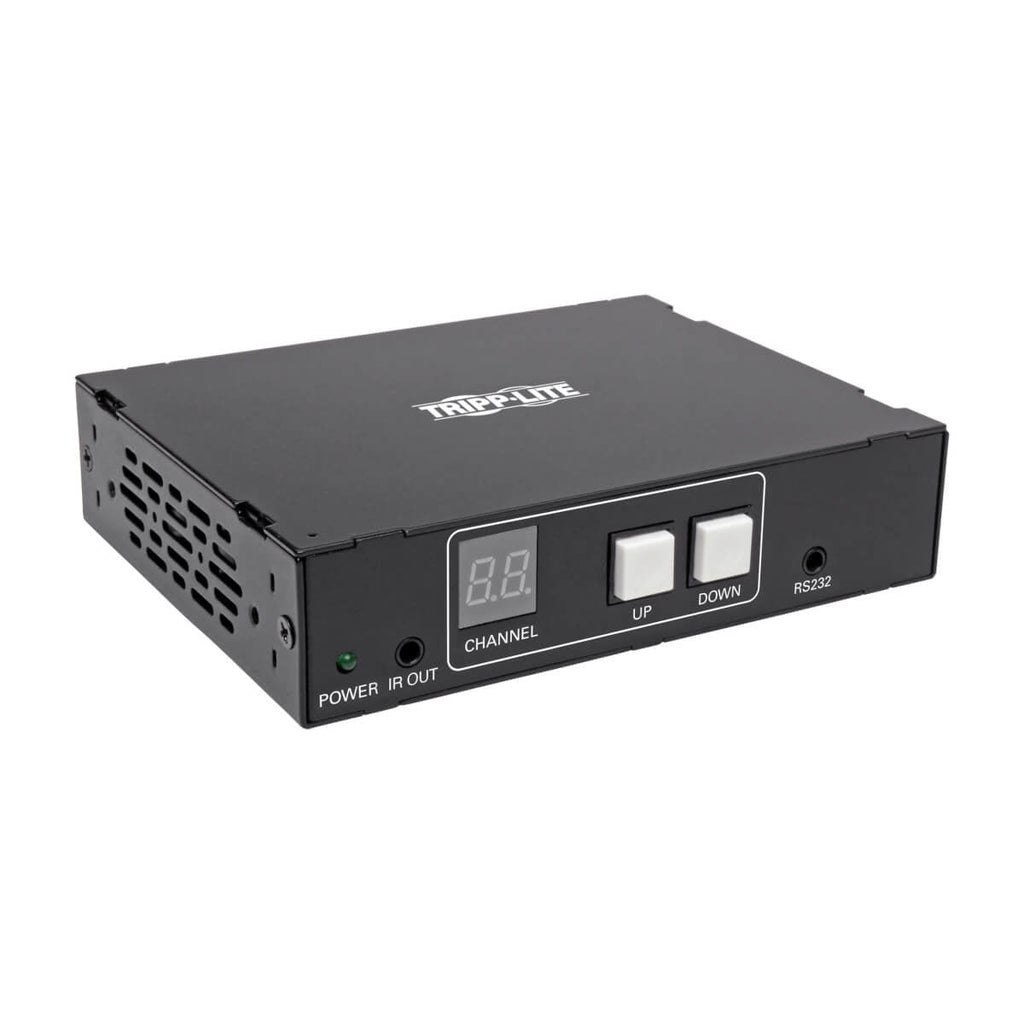

DisplayPort over IP Extender Transmitter over Cat5/Cat6, RS-232 Serial and IR Control, 1920 x 1080, 328 ft. (100 m), TAA
Tripp Lite B160-001-DPSI DisplayPort over IP Extender Transmitter over Cat5/Cat6, RS-232 Serial and IR Control, 1920 x 1080, 328 ft. (100 m), TAA. Type: AV transmitter, Maximum resolution: 1920 x 1440 pixels, Cable types supported: Cat5,Cat6. AC input voltage: 100-240 V, AC input frequency: 50 - 60 Hz, Operating voltage: 5 V. Package width: 160 mm, Package depth: 259.1 mm, Package height: 50.8 mm. Cables included: IR. Master (outer) case width: 563.9 mm, Master (outer) case length: 271.8 mm, Master (outer) case height: 175.3 mm

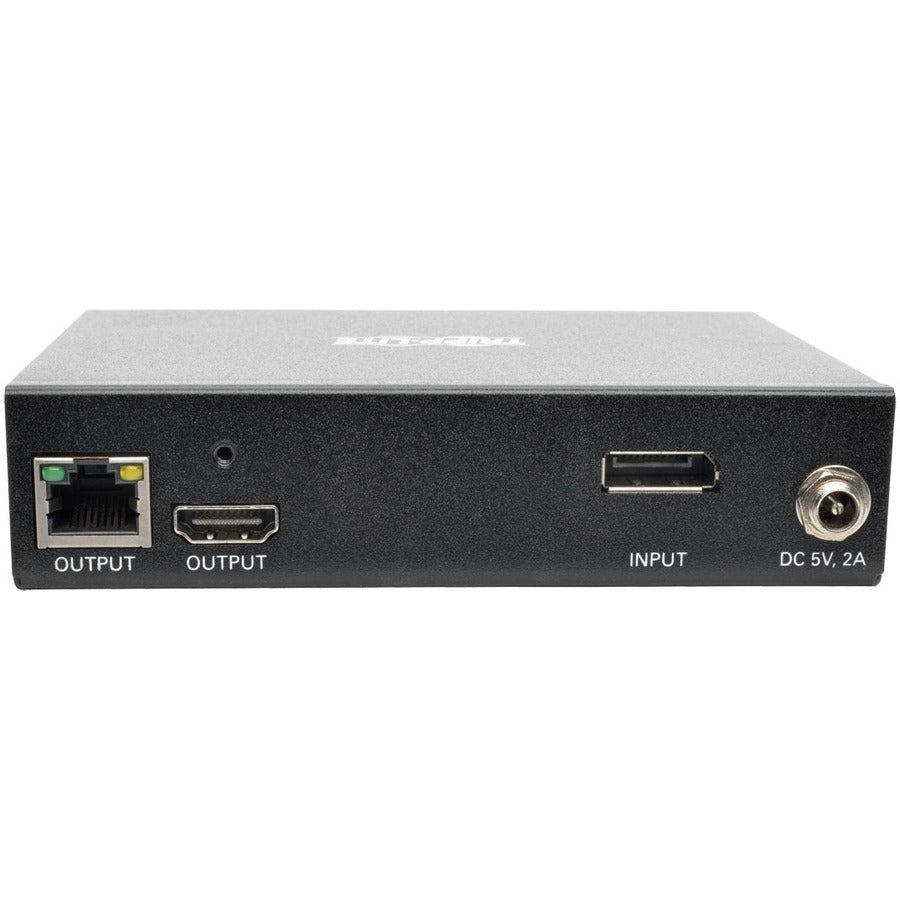

Distributes DisplayPort A/V, Serial and IR Control Signals over Cat5/6 Cabling Converts audio/video to an IP-based signal that is transmitted point-to-point to a display 328 ft. away Add low-cost network switches between transmitter and receiver to continue extending distance up to 328 ft. per switch HDMI output for connecting a local display

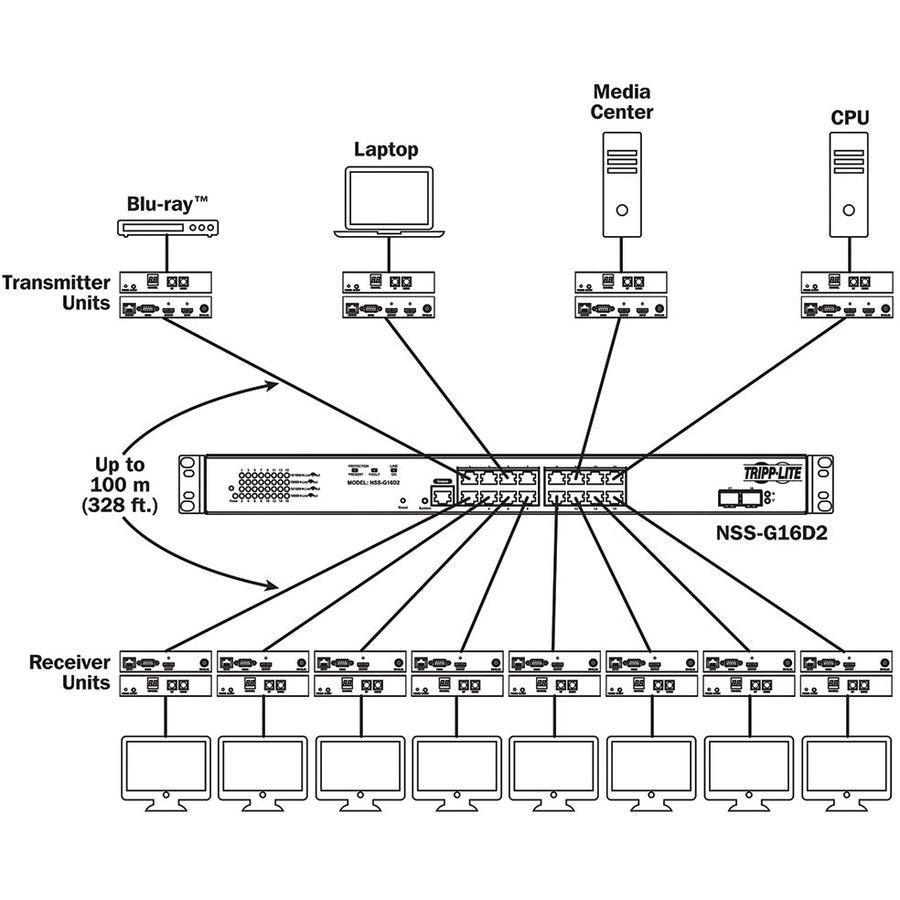

Create a Multi-In, Multi-Out Installation Using B160-Series Transmitters and Receivers Connect up to 64 transmitters and 255 receivers through multiple dedicated managed network switches IGMP-enabled switches allow centralized control over which sources show on which displays Video source can be sent to any analog or digital display, so you can mix and match technologies and use existing monitors
Enhanced Technical Features Supports video resolutions up to 1920 x 1080, including 1080p (limited to receiver’s max resolution) Uses H.264 video compression standard Transmits on 20–60 kHz IR frequency Extends IR control signals that control a source from a remote display Supports RS-232 serial baud rates up to 57600 Bps HDCP and 3D compatible when used with a DisplayPort or HDMI receiver (not compatible with VGA receiver)

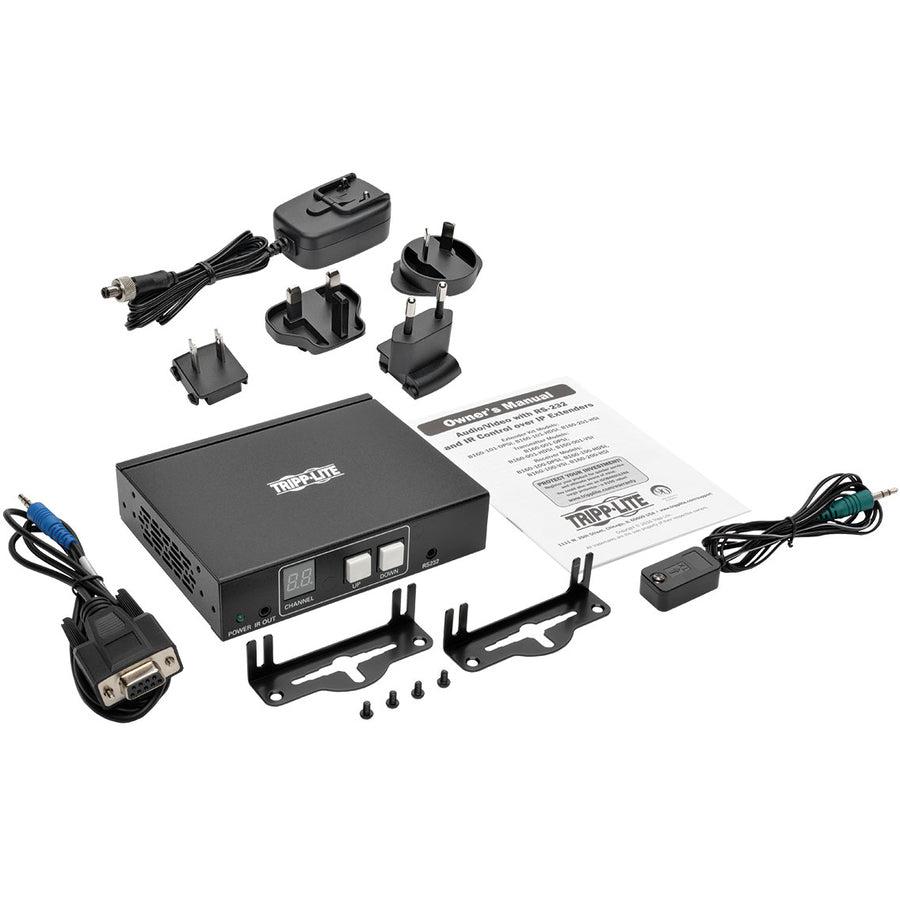

Plug-and-Play Functionality No software or drivers required Hardware included for mounting on wall, rack or pole Compatible with all Tripp Lite B160-Series A/V over IP receivers
TAA-Compliant Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
