DisplayPort to DVI over Cat5/6 Active Extender Kit, Pigtail Transmitter/Receiver for Video/Audio, 125 ft. (38 m)
Tripp Lite B150-1A1-DVI DisplayPort to DVI over Cat5/6 Active Extender Kit, Pigtail Transmitter/Receiver for Video/Audio, 125 ft. (38 m). Type: AV transmitter & receiver, Maximum resolution: 1600 x 1200 pixels, Cable types supported: Cat5e,Cat6. USB connector type: Micro-USB B. Package width: 199.9 mm, Package depth: 151.1 mm, Package height: 43.9 mm. Cables included: Micro-USB. Master (outer) case width: 455.9 mm, Master (outer) case length: 152.9 mm, Master (outer) case height: 213.1 mm

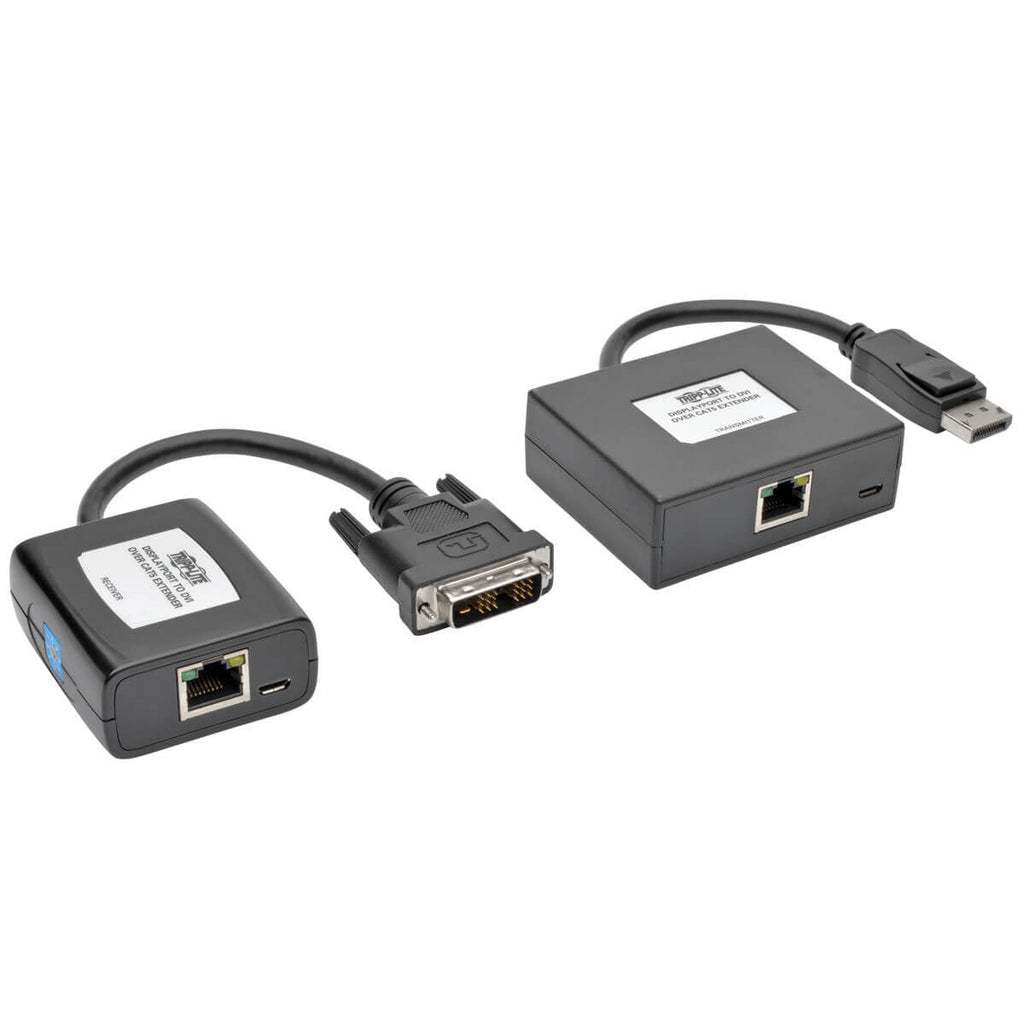

The B150-1A1-DVI DisplayPort to DVI over Cat5/6 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to convert a DisplayPort audio/video signal to DVI and then extend it to a projector, monitor or television up to 125-ft. (38.1 m) away. The kit is ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than convention cables allow.

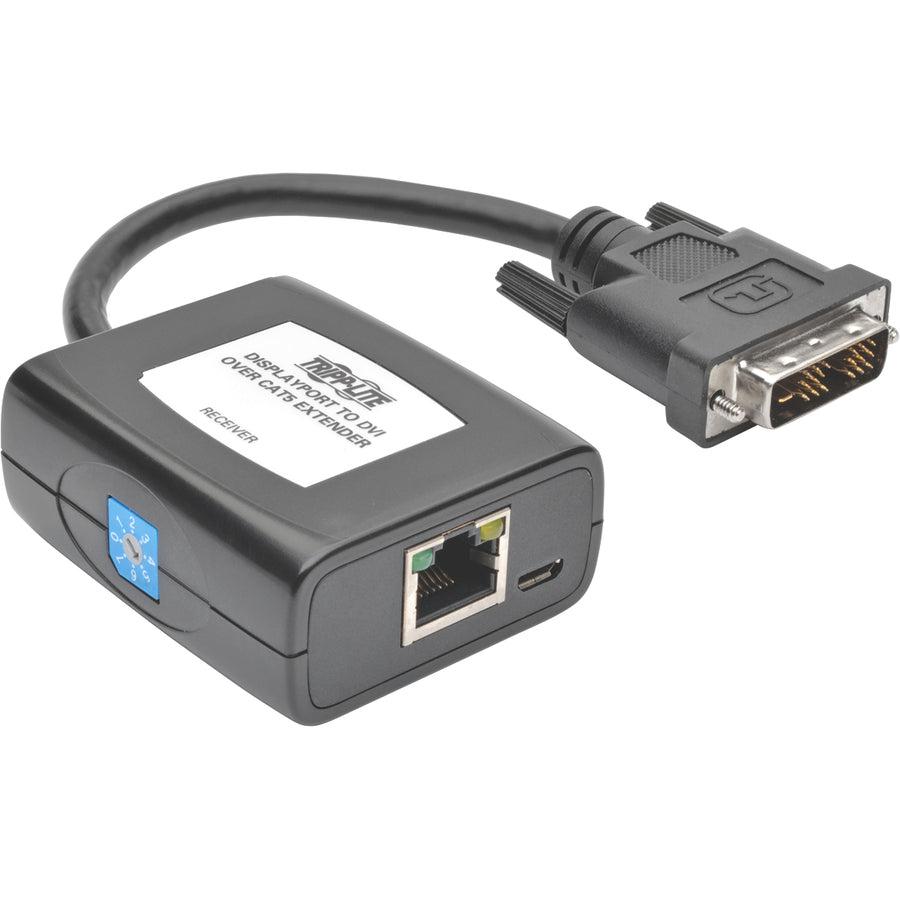

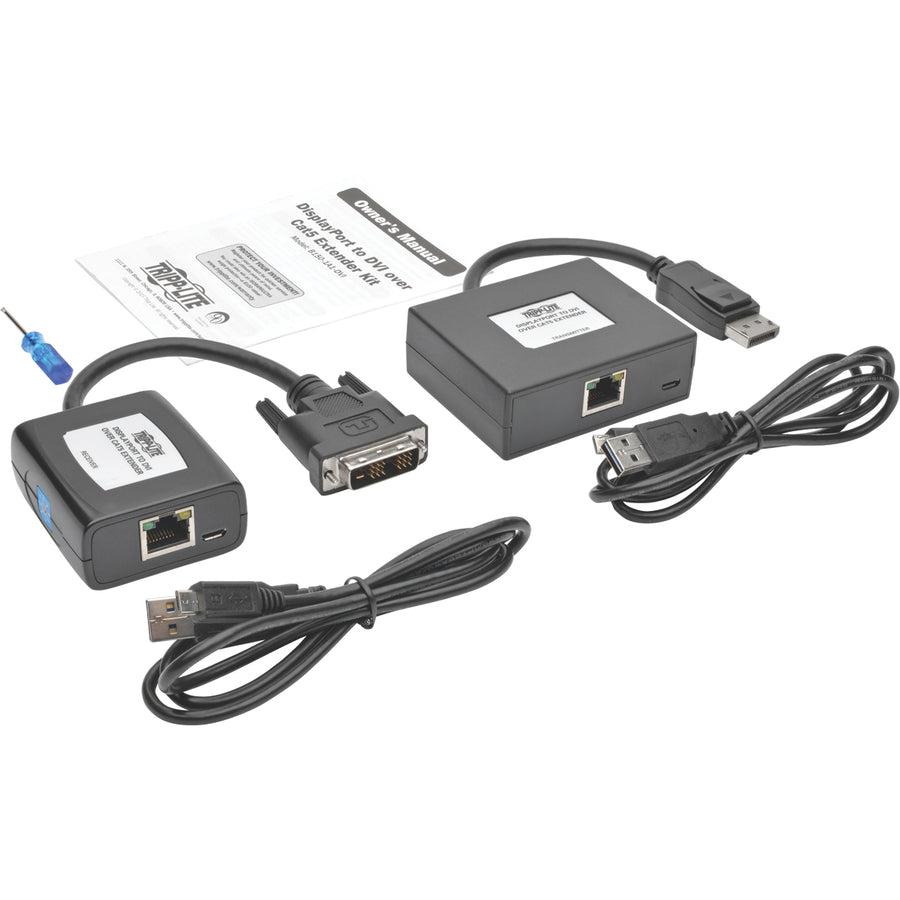

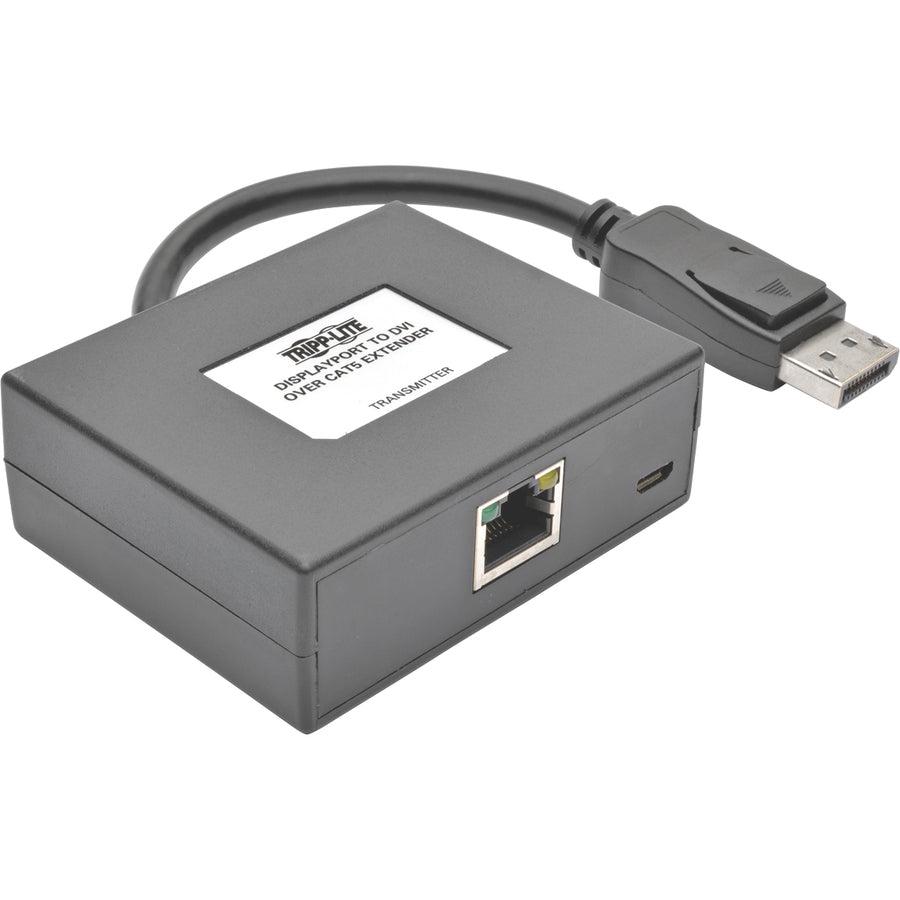

One Cat5e/6 cable connects the transmitter and receiver (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite’s N202-Series). A built-in DisplayPort plug connects the transmitter to the source, while a built-in DVI-D single-link plug connects the receiver to the display. Included USB Micro-B cables supply power to the units via USB ports on the source and display or USB wall chargers.
Please note: In order to properly power the unit via an external source, a minimum of 500mA will be needed. Any type of power supply will work as well as any standard USB port that is USB 2.0 or newer.
The B150-1A1-DVI can extend a high-definition 1920 x 1080 (60 Hz) signal up to 125-ft. (38.1 m). In addition to crystal-clear video, including 24-bit True Color (8 bits per channel), the kit delivers full, rich stereo. LEDs on the RJ45 ports indicate when the units are receiving power and a DVI signal from the source. Built-in equalization control lets you fine-tune the image on the DVI display. Easy to set up with no software or drivers to install. Compatible with all operating systems. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Converts DisplayPort Signal to DVI, Extends It Up to 125-ft. (38.1 m) Ideal for digital signs, trade shows, presentations, classrooms, churches and retail settings Extends a high-definition 1920 x 1080 (60 Hz) signal up to 125-ft. (38.1 m) Transmitter and receiver connect with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series) Supports 24-bit True Color (8 bits per channel) and stereo audio Built-in equalization control lets you adjust the image on the display HDCP 1.3 compliant
Easy to Set Up and Use Plug-and-play engineering—no software or drivers to download and install Works with all operating systems Built-in cables connect transmitter to DisplayPort source and receiver to DVI-D display Included USB Micro-B cables provide power to the units LEDs indicate when the units are receiving power and sharing a signal
TAA Compliant Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
