Tripp Lite B140-101 Dvi Over Cat5/6 Passive Extender Kit, Box-Style Transmitter/Receiver For Video, Up To 100 Ft. (30 M), Taa

DVI over Cat5/6 Passive Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 100 ft. (30 m), TAA

Tripp Lite B140-101 DVI over Cat5/6 Passive Extender Kit, Box-Style Transmitter/Receiver for Video, Up to 100 ft. (30 m), TAA. Video port type: DVI, Cable types supported: Cat5e,Cat6. Maximum resolution: 1920 x 1080 pixels, Product colour: Black, Supported graphics resolutions: 1024 x 768 (XGA). Package width: 200.7 mm, Package depth: 142.2 mm, Package height: 43.2 mm. Master (outer) case width: 467.4 mm, Master (outer) case length: 226.1 mm, Master (outer) case height: 311.2 mm

The B140-101 is a DVI over Cat5 Passive Extender kit, which comes with both transmitter and receiver units. It transmits a DVI-D Single-Link signal up to 100-ft. (30.5 m) away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-101 is compatible with all operating systems, and is plug and play, with no external power, software or drivers required.Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect the built-in DVI connector on the transmitter unit to the source. Connect the built-in DVI connector on the receiver unit to a display. Finally, the RJ45 ports on the transmitter and receiver units are connected using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 50-ft. (15.24 m) from the source,, or a 1024 x 768 @ 60Hz signal up to 100-ft. (30.5 m)

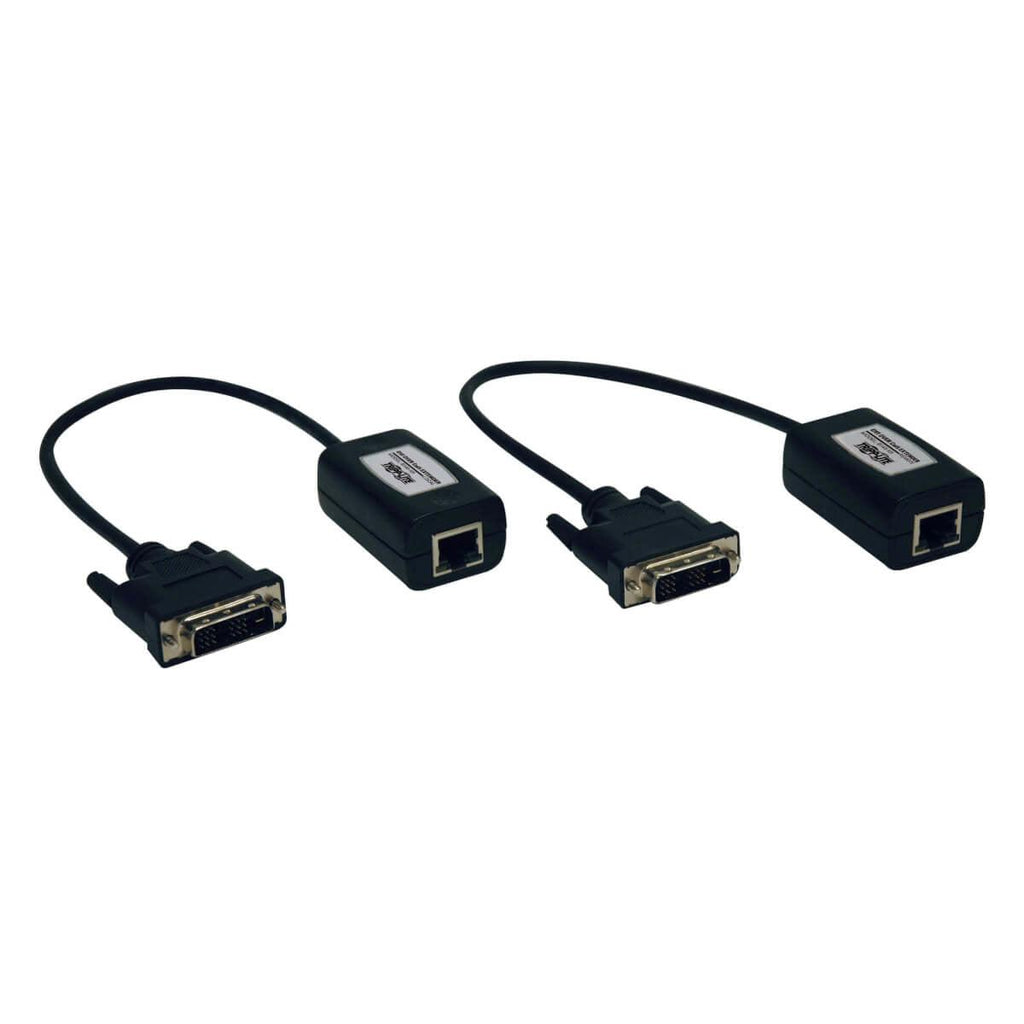

Extender kit comes with transmitter and receiver units
Transmit a DVI-D Single-Link signal up to 100-ft. (30.5 m) away using a single Cat5e/6 patch cable
Supports DVI-D Single-Link video resolutions up to 1920 x 1080 @ 60Hz
Extends a 1920 x 1080 @ 60Hz signal up to 50-ft. (15.24 m), or a 1024 x 768 @ 60Hz signal up to 100-ft. (30.5 m)
Use 24AWG, Solid Wire Cat5e/6 cable, such as Tripp Lite's N202-Series, to achieve maximum distance and resolution
HDCP compatible
Compatible with all operating systems
Plug and play; no external power, software or drivers required
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
