Tripp Lite B132-100A-Wp-1 Av Extender Av Receiver White

Cat5e, Cat6, VGA, 3.5 mm, White

Tripp Lite B132-100A-WP-1. Type: AV receiver, Maximum resolution: 1920 x 1440 pixels, Cable types supported: Cat5e,Cat6. Operating voltage: 240 V, Current: 0.5 A. Width: 71.1 mm, Depth: 38.1 mm, Height: 114.3 mm. Package width: 165.1 mm, Package depth: 55.9 mm, Package height: 182.9 mm. Master (outer) case width: 348 mm, Master (outer) case length: 221 mm, Master (outer) case height: 589.3 mm

Tripp Lite's B132-100A-WP-1 works with a local transmitter unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 152 m (500-ft.), or a 1024 x 768 (60Hz) Video and Audio signal up to 305 m (1,000-ft.) 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution. For optimal image quality between 152 m (500-ft.) and 305 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K. Features built-in Equalization and Gain controls to adjust the video image. RJ45 type wallplate allows you to use standard patch cable, eliminating the need for a 110 punchdown connection. Ideal for digital signage situations, such as retail, schools, churches, etc.

● For international use, the B110-INT power supply can be purchased separately; it features plugs for the UK, Europe, and Australia


● Works with a local unit to extend a 1920 x 1440 (60Hz) Video and Audio signal up to 152 m (500-ft.), or a 1024 x 768 (60Hz) Video and Audio signal up to 305 m (1,000-ft.)
● 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6), is required to achieve maximum distance and resolution
● For optimal image quality between 152 m (500-ft.) and 305 m (1,000-ft.), use Zero-Skew cable, such as Tripp Lite P524-01K
● Features built-in Equalization and Gain controls to adjust the video image

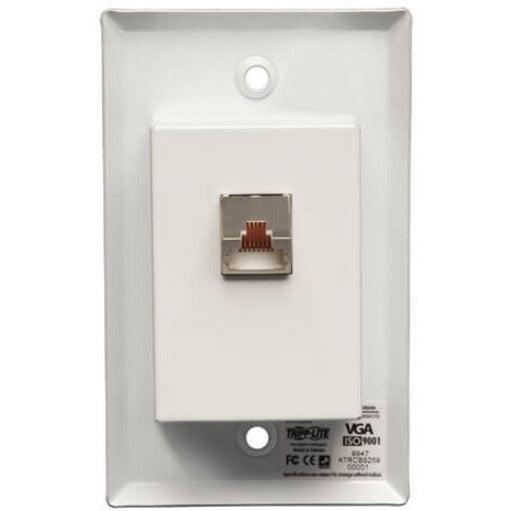

● RJ45 type wallplate allows you to use standard patch cable, eliminating the need for a 110 punchdown connection
● Ideal for digital signage situations, such as retail, schools, churches, etc..
● 1 year limited waranty
