Tripp Lite B130-101A-Mr Vga Over Cat5/6 Extender Kit, Transmitter/Receiver For Video/Audio, Usb Powered, Up To 750 Ft. (228.6 M), Taa

VGA over Cat5/6 Extender Kit, Transmitter/Receiver for Video/Audio, USB Powered, Up to 750 ft. (228.6 m), TAA

Tripp Lite B130-101A-MR VGA over Cat5/6 Extender Kit, Transmitter/Receiver for Video/Audio, USB Powered, Up to 750 ft. (228.6 m), TAA. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1080 pixels, Cable types supported: Cat5e,Cat6. USB connector type: Micro-USB B. Package width: 137.2 mm, Package depth: 200.7 mm, Package height: 45.7 mm. Cables included: USB. Master (outer) case width: 157.5 mm, Master (outer) case length: 447 mm, Master (outer) case height: 210.8 mm

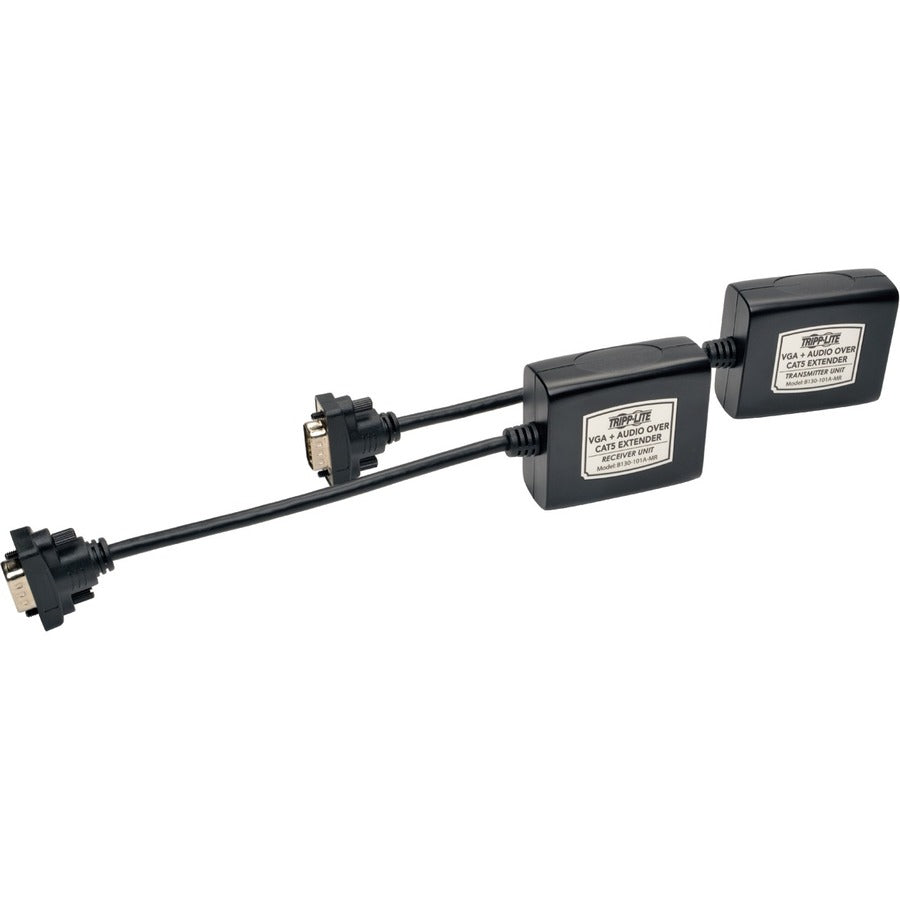

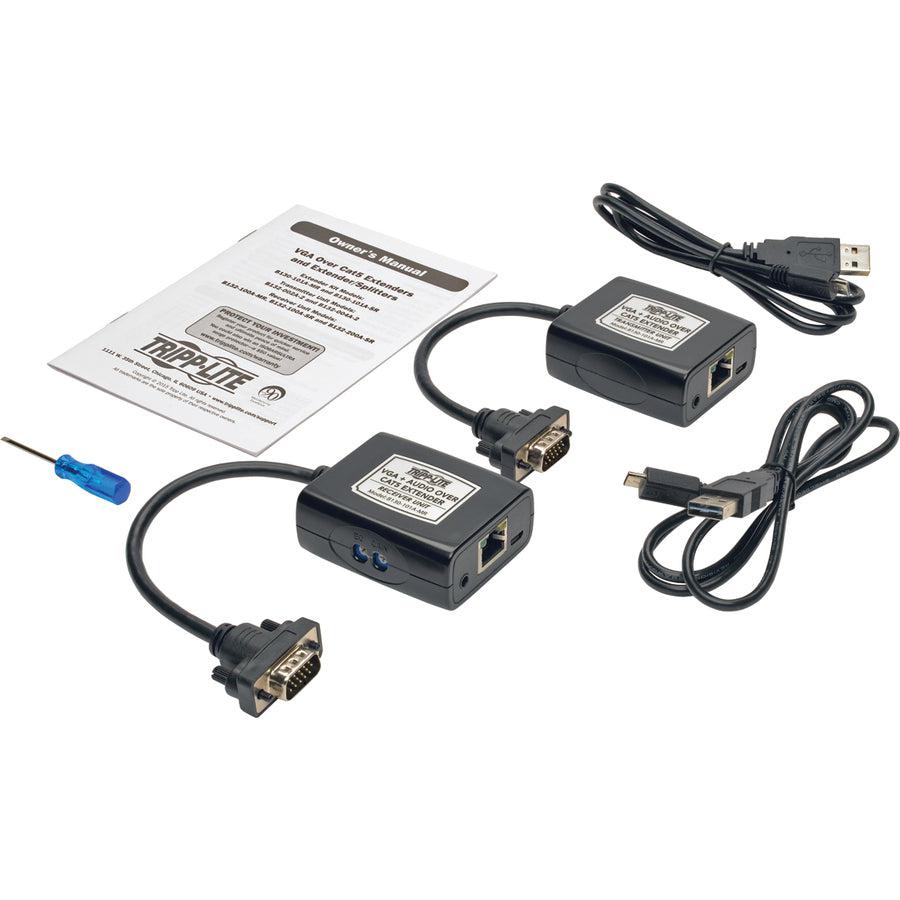

Tripp Lite's B130-101A-MR VGA with Audio over Cat5 Extender Kit is a cost effective solution for those who don't need the long range capabilities (up to 1,000-ft. (304.8 m) of Tripp Lite's B130-101A-2. It extends a 1920 x 1080 video and audio signal up to 300-ft. (91.44 m) from the source, or a 1024 x 768 video and audio signal up to 750-ft. (228.6 m). The EDID copy feature stores the monitor's EDID information and sends it to the connected computer, ensuring optimal display compatibility. Power is supplied via the included USB Micro-B cables, with no external power supplies required. Connect the included Micro-B cables between the Transmitter and Receiver, and a USB port on a computer, monitor, or USB wall charger, such as the Tripp Lite U280-W01-QC3. The receiver unit also features equalization and gain controls to adjust the video image. Audio connections are made with standard 3.5mm stereo cables (not included) at both the transmitter and receiver. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Extends a 1920 x 1080 video and audio signal up to 300-ft. (91.44 m), or a 1024 x 768 video and audio signal up to 750-ft. (228.6 m)
24AWG, Solid Wire Cat5e/6 cable (such as Tripp Lite's N202-Series Cat6 cables) is required to achieve maximum distance and resolution
EDID copy feature stores the monitor's EDID information and sends it to the connected computer, ensuring optimal display compatibility
Power is supplied via the included USB Micro-B cables; no external power supplies required
Receiver unit features built-in equalization and gain controls to adjust the video image.
All operating systems supported
Plug and play; no software or drivers required
HDCP and EDID compliant
Ideal for digital signage installations for retail, schools, churches, etc.
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
