Description
VGA over Cat5/6 Extender Kit, Transmitter/Receiver for Video, USB Powered, Up to 500 ft. (152 m), TAA
Tripp Lite B130-101-U VGA over Cat5/6 Extender Kit, Transmitter/Receiver for Video, USB Powered, Up to 500 ft. (152 m), TAA. Type: AV transmitter, Maximum resolution: 1920 x 1440 pixels, Cable types supported: Cat5e. Package width: 200.7 mm, Package depth: 142.2 mm, Package height: 43.2 mm. Master (outer) case width: 467.4 mm, Master (outer) case length: 226.1 mm, Master (outer) case height: 309.9 mm

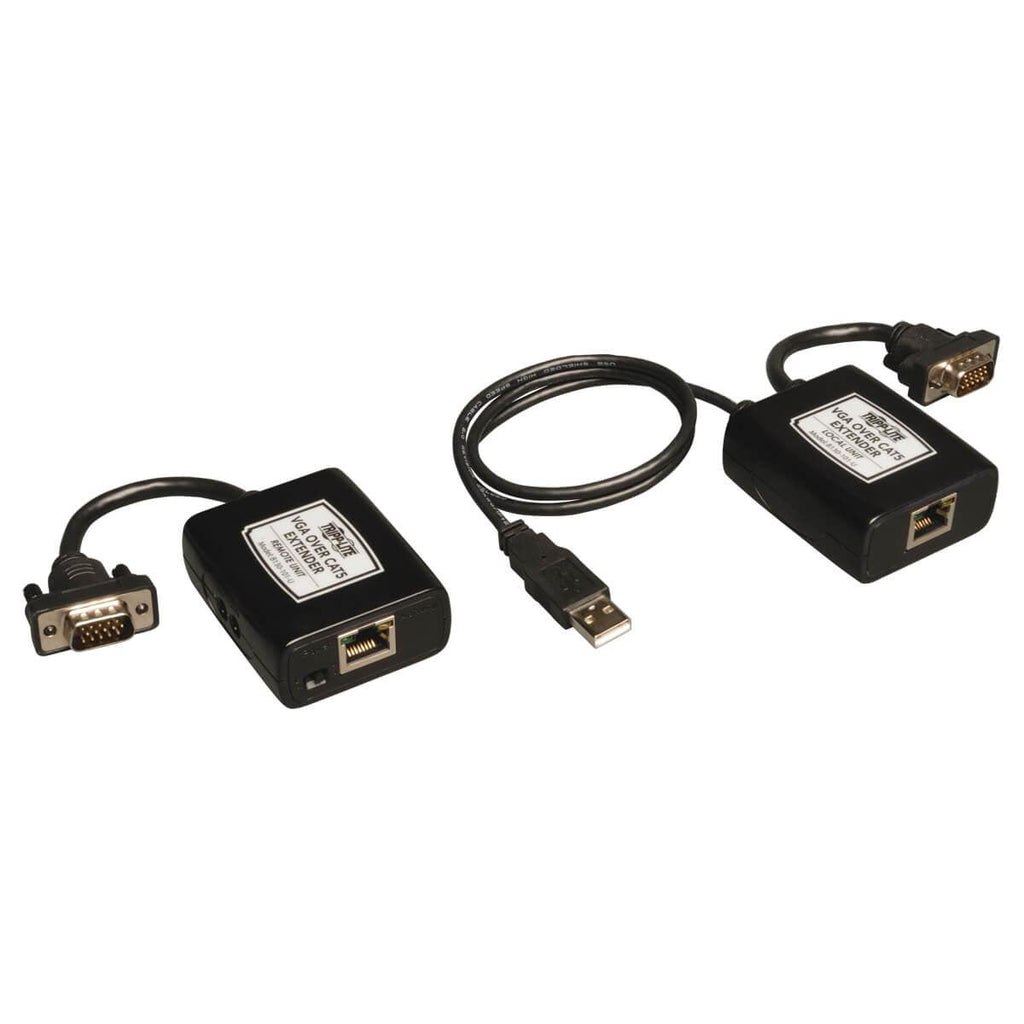

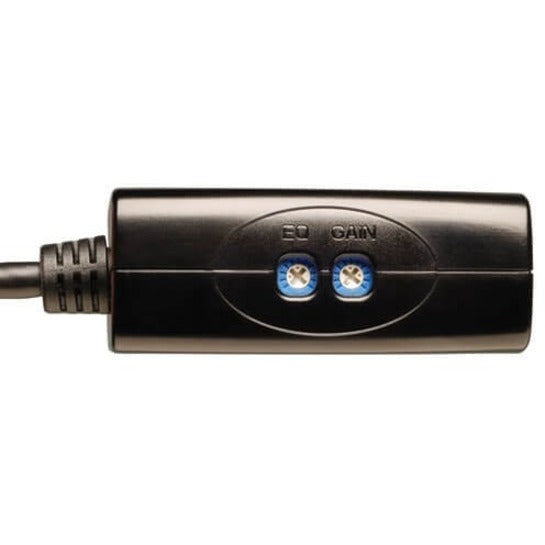

Tripp Lite's USB-powered VGA over Cat5 Extender Kit allows you to extend a 1920 x 1440 (60Hz) signal up to 350-ft. (106.68 m), or a 1024 x 768 (60Hz) signal up to 500-ft. (152.4 m), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6). Ideal for digital signage applications, classroom or auditorium projectors, and more. Extender draws needed power from a USB connection at the computer...no external AC adapters required. Receiver unit includes Gain adjustment for brightness/darkness control, and Equalization adjustment for sharp, clear images. VGA "dongles" allow for direct attachment to video equipment...no additional VGA cables required. Kit includes a Transmitter with VGA and USB (power) pigtails, and a Receiver with VGA pigtail. Also included is a small adjustment screwdriver for the EQ and GAIN controls. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Extends a 1920 x 1440 (60Hz) signal up to 350-ft. (106.68 m), or a 1024 x 768 (60Hz) signal up to 500-ft. (152.4 m), when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6) USB-powered...no external AC power needed Built-in VGA dongles...no need for additional VGA cables Built-in Equalization and Gain controls for the sharpest images Uses readily available Cat5e or Cat6 solid conductor cable Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
General Information
Manufacturer
Tripp Lite by Eaton
Manufacturer Part Number
B130-101-U
Manufacturer Website Address
https://tripplite.eaton.com/
Brand Name
Tripp Lite by Eaton
Product Model
B130-101-U
Product Name
B130-101-U TAA / GSA Video Extender/Console
Product Type
Video Extender Transmitter/Receiver
UPC
037332166593
Network (RJ-45)
Yes
Physical Characteristics
Color Family
Multicolor
Product Color
Black
Miscellaneous

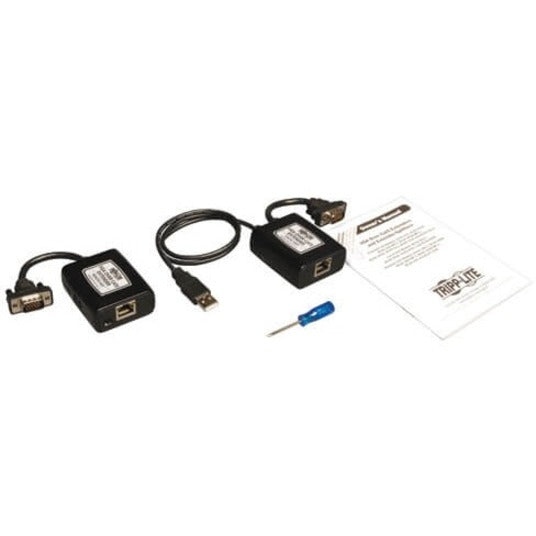

Package Contents
VGA Over Cat5 Transmitter
VGA Over Cat5 Receiver
EQ And GAIN Adjustment Screwdriver
Warranty
Limited Warranty
1 Year
Additional Warranty Information
1 year limited warranty
