Tripp Lite B126-1P0-Wp-1 Hdmi Over Cat5/6 Passive Extender, Wall Plate Remote Receiver For Video/Audio, Up To 50 Ft. (15 M), Taa

HDMI over Cat5/6 Passive Extender, Wall Plate Remote Receiver for Video/Audio, Up to 50 ft. (15 m), TAA

Tripp Lite B126-1P0-WP-1 HDMI over Cat5/6 Passive Extender, Wall Plate Remote Receiver for Video/Audio, Up to 50 ft. (15 m), TAA. Type: AV transmitter & receiver, Maximum resolution: 1920 x 1200 pixels, Supported video modes: 1080p. Package width: 184.2 mm, Package depth: 165.1 mm, Package height: 55.9 mm. Master (outer) case width: 586.7 mm, Master (outer) case length: 348 mm, Master (outer) case height: 222.2 mm

The B126-1P0-WP-1 HDMI over Cat5/Cat6 Passive Remote Receiver works with Tripp Lite's B126-002 or B126-004 transmitter to extend an HDMI signal to a projector, monitor or television. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.

The receiver uses HDMI cable (see Tripp Lite's P568-Series) to connect to the monitor and a single Cat5e/6 cable to receive the signal from the transmitter (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). No 110 punchdown connection is required.

The B126-1P0-WP-1 can extend a 1080i (60 Hz) signal up to 100 feet (30.5 m) or a 1080p (60 Hz) signal up to 50-ft. (15.24 m) with a single Cat5e/6 cable between it and the transmitter. No external power is needed.

In addition to crystal-clear video, the B126-1P0-WP-1 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter unit. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install. Works with all operating systems and HDMI video sources.

Extends High-Definition Signals
Works in tandem with Tripp Lite's B126-002 or B126-004 transmitter unit
Extends a 1080i (60 Hz) signal up to 100-ft. (30.5 m)
Extends a 1080p (60 Hz) signal up to 50-ft. (15.24 m)

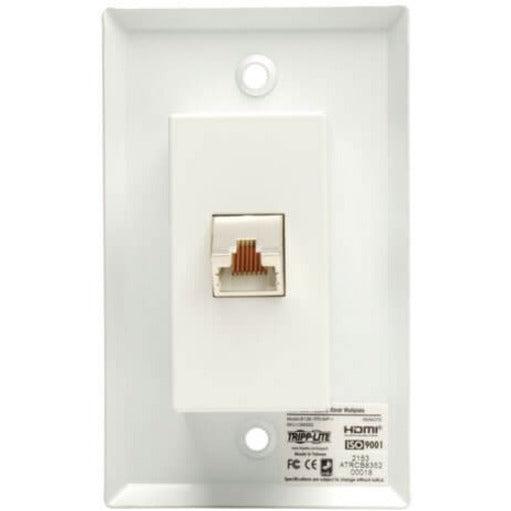

Connects to transmitter with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series)
No 110 punchdown connection required


Supports the Latest Video and Audio Resolutions
Works with all operating systems and HDMI video sources
Supports HD resolutions up to 1080p (60 Hz)
Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with B126-002 or B126-004 transmitter unit
Supports 24-bit True Color (8 bits per channel) and HDCP

Easy to Set Up and Use
Plug-and-play engineering—no software or drivers to download and install
Connects quickly to monitor with HDMI cable, such as Tripp Lite's P568-Series

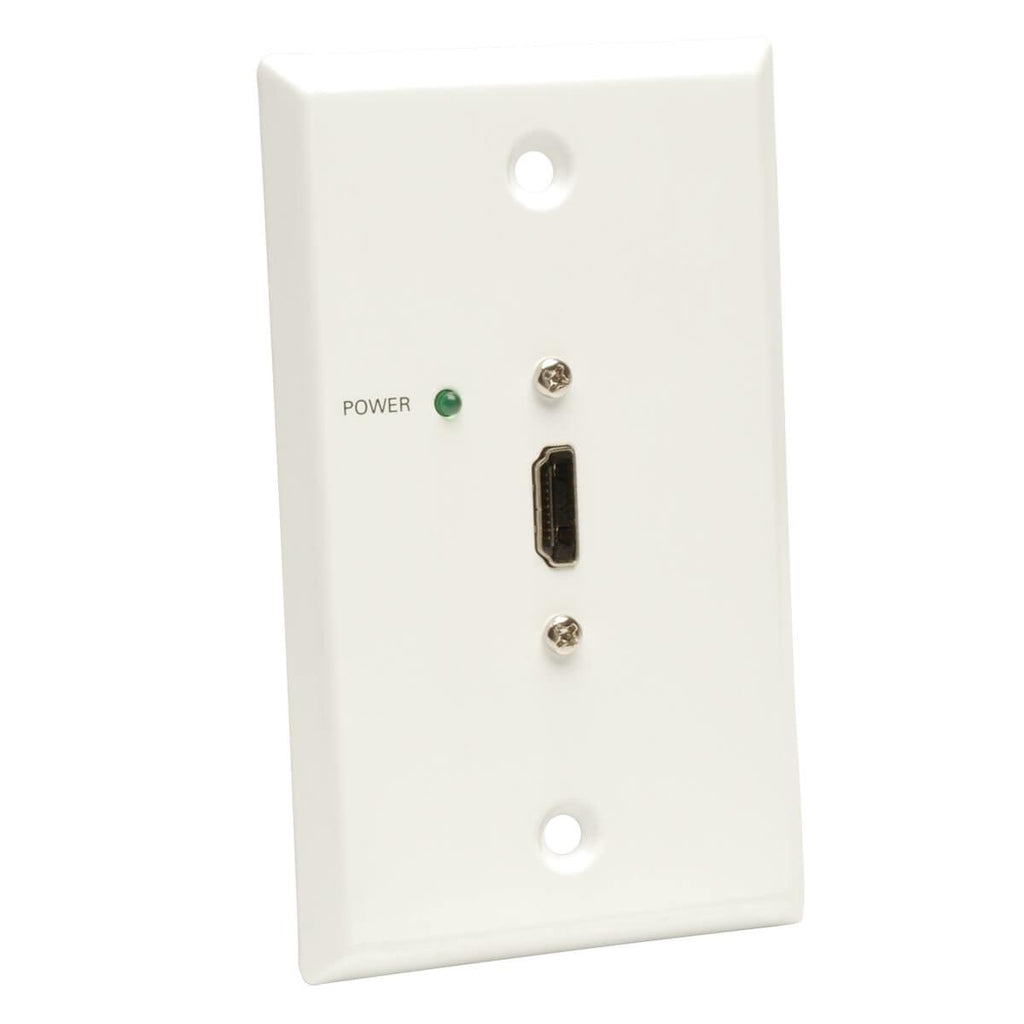

Green LED indicates at a glance when the unit is receiving power

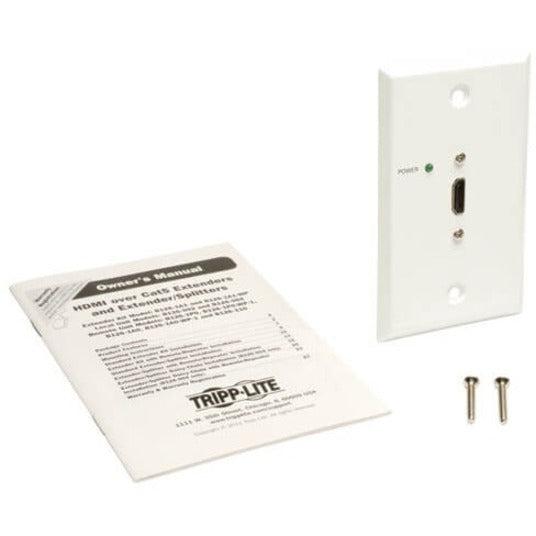

Included mounting hardware lets you install the unit on a wall
No external power required

TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
