Tripp Lite B126-1P0 Hdmi Over Cat5/6 Passive Extender, Box-Style Remote Receiver For Video/Audio, Up To 100 Ft. (30 M), Taa

HDMI over Cat5/6 Passive Extender, Box-Style Remote Receiver for Video/Audio, Up to 100 ft. (30 m), TAA

Tripp Lite B126-1P0 HDMI over Cat5/6 Passive Extender, Box-Style Remote Receiver for Video/Audio, Up to 100 ft. (30 m), TAA. Video port type: HDMI, Cable types supported: Cat5e,Cat6. Product colour: Black, Supported graphics resolutions: 1920 x 1080 (HD 1080), Supported video modes: 1080i,1080p. Package width: 156 mm, Package depth: 121.9 mm, Package height: 33 mm. Master (outer) case width: 342.9 mm, Master (outer) case length: 163.1 mm, Master (outer) case height: 135.9 mm

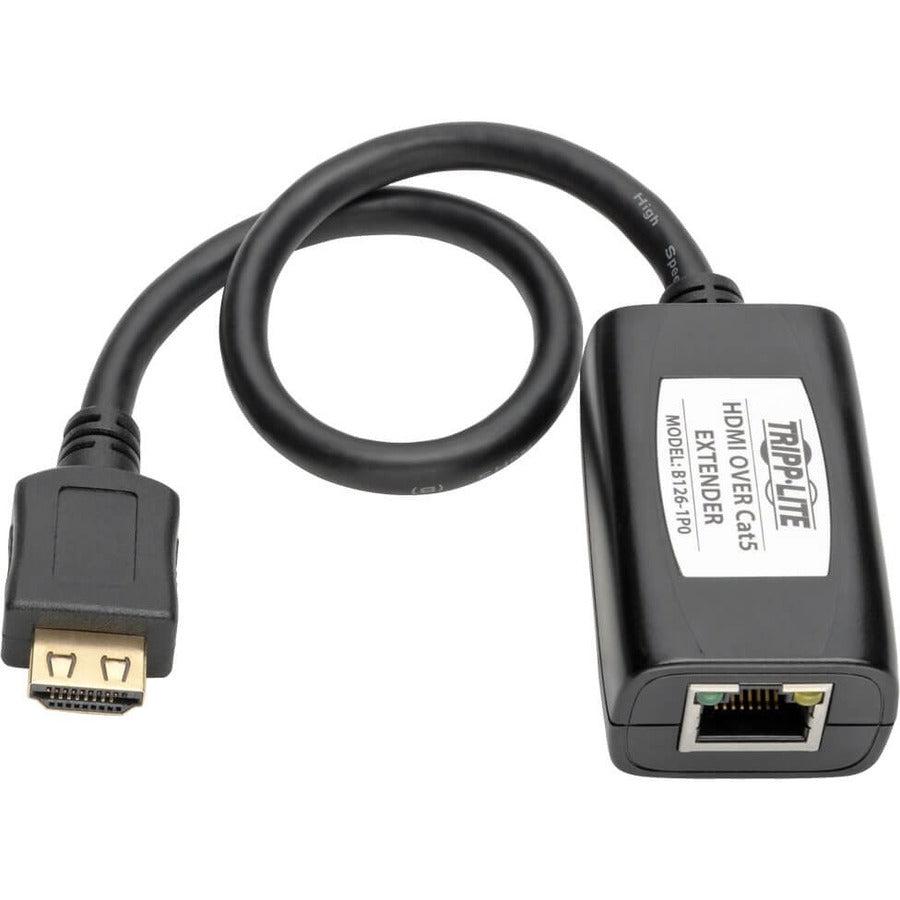

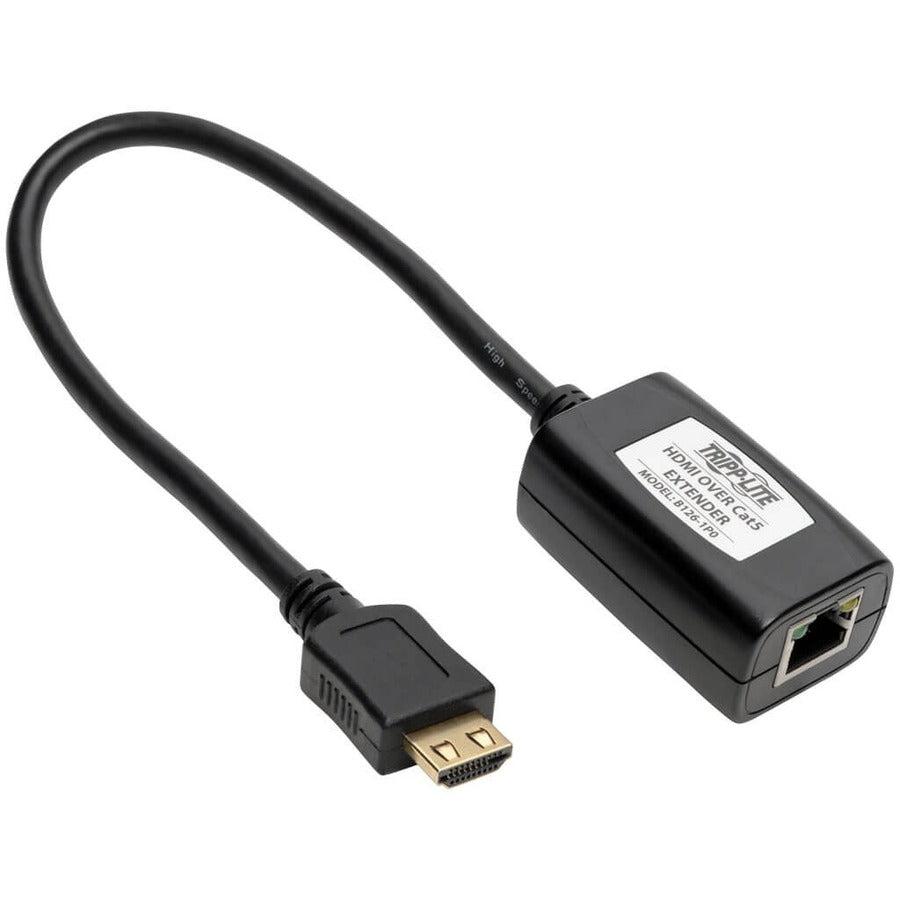

The B126-1P0 HDMI over Cat5/Cat6 Passive Remote Receiver works with Tripp Lite's B126-002 and B126-004 transmitters to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.

The B126-1P0 can extend a 1080i (60 Hz) signal up to 100-ft. (30.5 m) or a 1080p (60 Hz) signal up to 50-ft. (15.24 m) with a single Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series) between it and the transmitter. The built-in HDMI cable features a latching connector that helps prevent accidental disconnection. No external power is required.

In addition to crystal-clear video, the B126-1P0 delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software or drivers to install.

Extends High-Definition Signals
Works in tandem with Tripp Lite's B126-002 and B126-004 transmitter units
Extends a 1080i (60 Hz) signal up to 100-ft. (30.5 m)
Extends a 1080p (60 Hz) signal up to 50-ft. (15.24 m)
Connects to transmitter with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series)

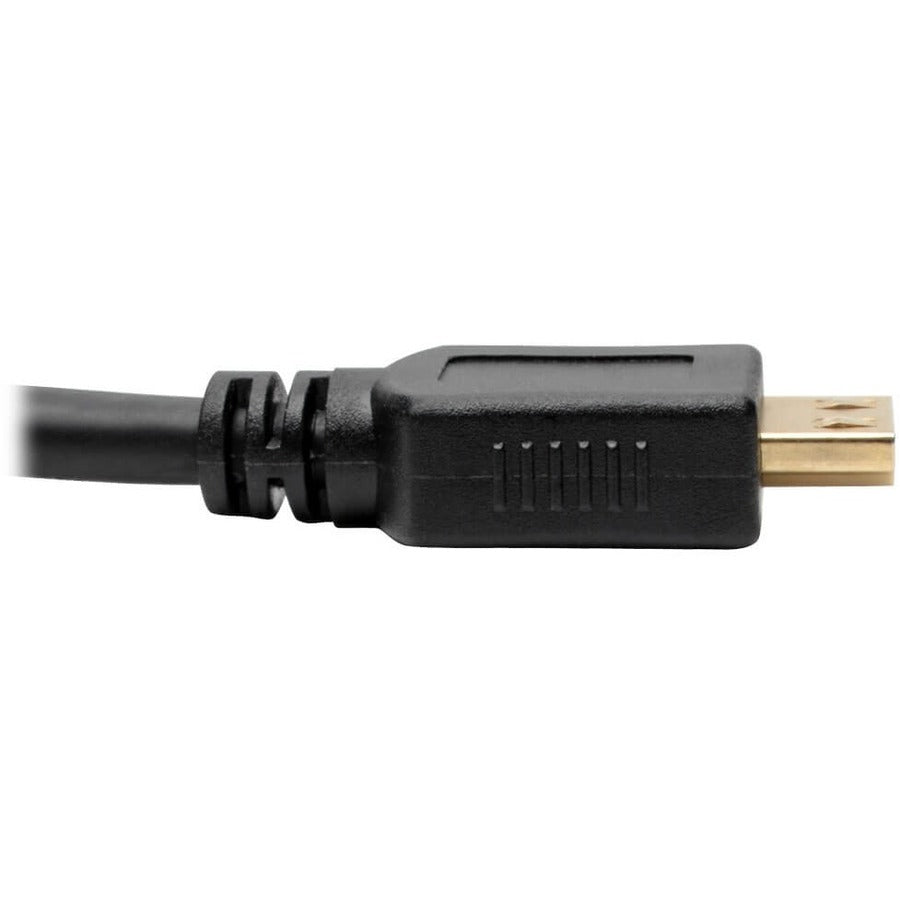

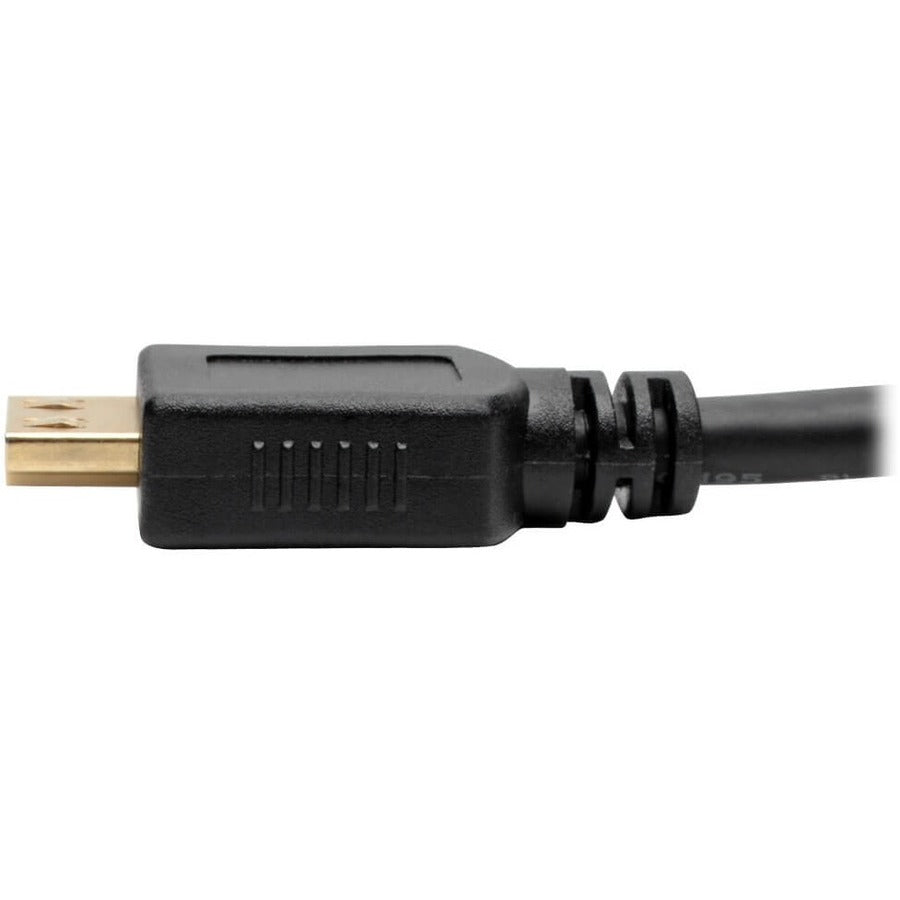

Built-in HDMI cable with latching connector to help prevent accidental disconnection

Supports the Latest Video and Audio Resolutions
Works with all operating systems and HDMI video sources
Supports HD resolutions up to 1080p (60 Hz)
Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter
Supports 24-bit True Color (8 bits per channel) and HDCP

Easy to Set Up and Use
Plug-and-play engineering—no software or drivers to download and install
No external power required

TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
