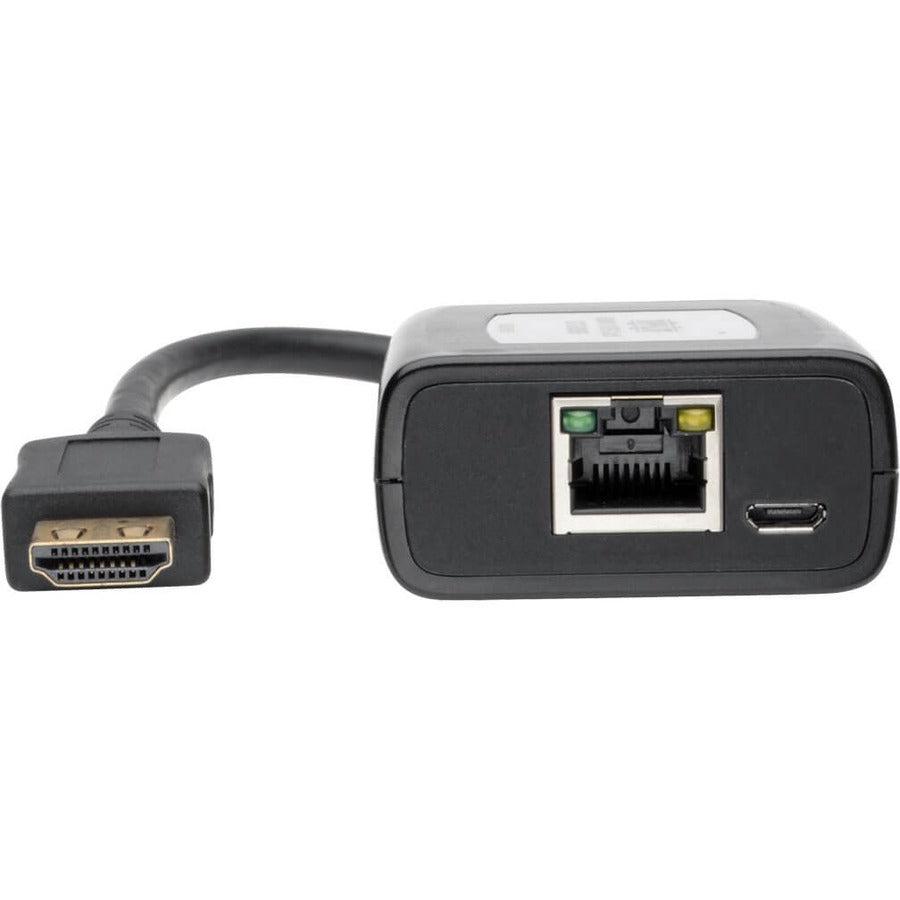

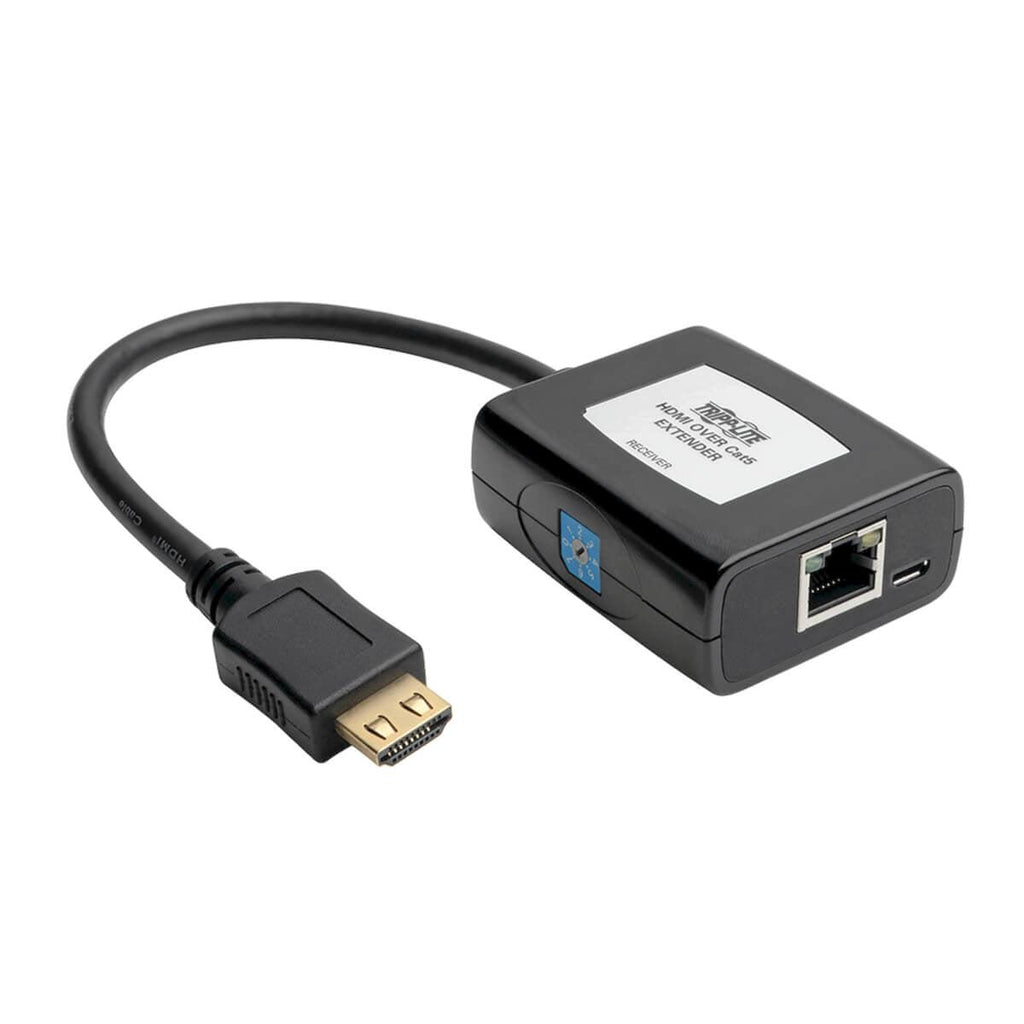

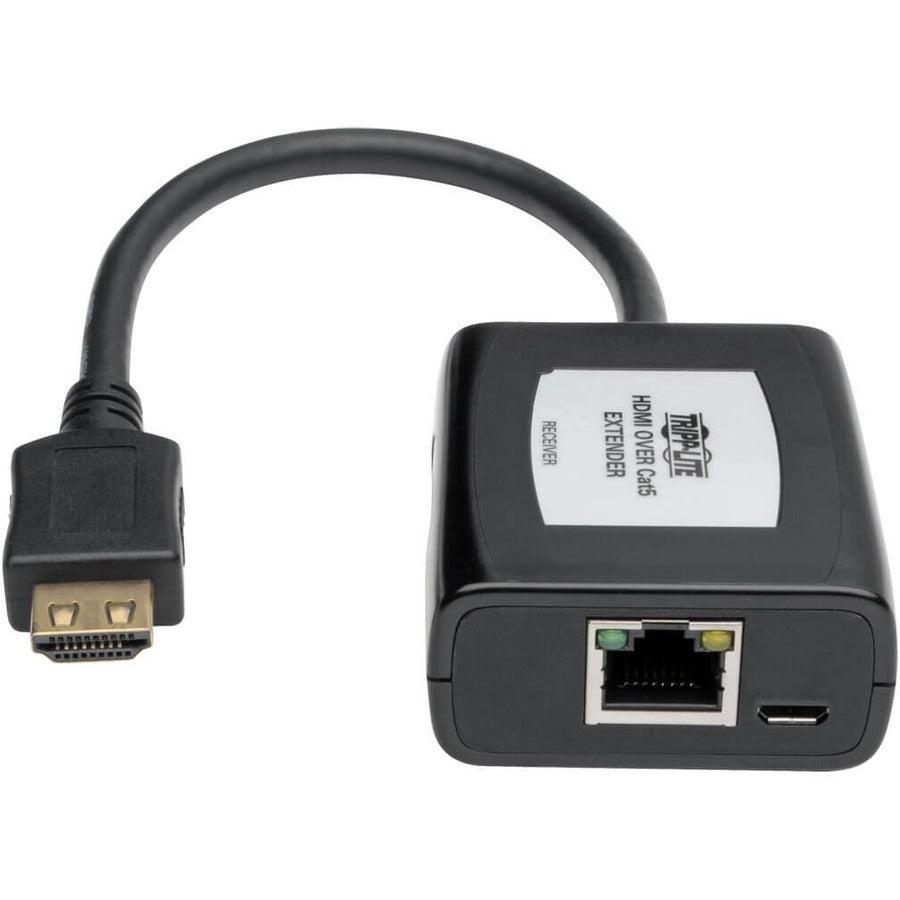

Tripp Lite B126-1A0-U Hdmi Over Cat5/6 Extender, Pigtail-Style Receiver For Video/Audio, Usb Powered, Up To 125 Ft. (38 M), Taa

HDMI over Cat5/6 Extender, Pigtail-Style Receiver for Video/Audio, USB Powered, Up to 125 ft. (38 m), TAA

Tripp Lite B126-1A0-U HDMI over Cat5/6 Extender, Pigtail-Style Receiver for Video/Audio, USB Powered, Up to 125 ft. (38 m), TAA. Type: AV receiver, Maximum resolution: 1600 x 1200 pixels, Cable types supported: Cat5e,Cat6. USB connector type: Micro-USB B. Package width: 132.1 mm, Package depth: 152.4 mm, Package height: 33 mm. Cables included: USB. Master (outer) case width: 162.6 mm, Master (outer) case length: 337.8 mm, Master (outer) case height: 139.7 mm

The B126-1A0-U HDMI over Cat5/Cat6 Active Extender works with Tripp Lite's B126-002 or B126-004 transmitter to extend an HDMI audio/video signal to an HDMI projector, monitor or television. It's ideal for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow. A latching HDMI connector on the built-in cable provides a more secure connection

The receiver's built-in HDMI cable connects to the display. Cat5e/6 cable connects the receiver to the B126-Series transmitter (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). Power is supplied by the included USB Micro-B to USB-A cable, which connects between the receiver and a USB port on the display or a USB wall charger.

The B126-1A0-U can extend a 1080p (@ 60 Hz) signal up to 125-ft. (38.1 m) with full, rich stereo. Built-in RJ45 LEDs indicate the units are receiving power and a signal from the source. Built-in equalization control lets you fine-tune the image quality at the display. Easy to set up with no software or drivers to install. Works with all operating systems and HDMI sources.

Extends HDMI Audio/Video Signals to an HDMI Display
Extends a 1080p (@ 60 Hz) signal up to 125-ft. (38.1 m)
Ideal for digital signs, trade shows, presentations, classrooms, churches and retail settings
Built-in cable includes latching HDMI connector for a more secure connection

Connects to transmitter with one Cat5e/6 cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series)
Supports stereo audio and HDCP
Built-in equalization control lets you adjust the image

Easy to Set Up and Use
Plug-and-play engineering—no software, drivers or external power supply
Powered via included USB cable
Connects quickly to display with built-in HDMI cable
LEDs indicate when units are receiving power and a signal from the source
Works with all operating systems and HDMI sources

TAA-Compliant
Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
